Hatco GRAIHL-60D3 Glo-Ray® Heat Lamps
Description

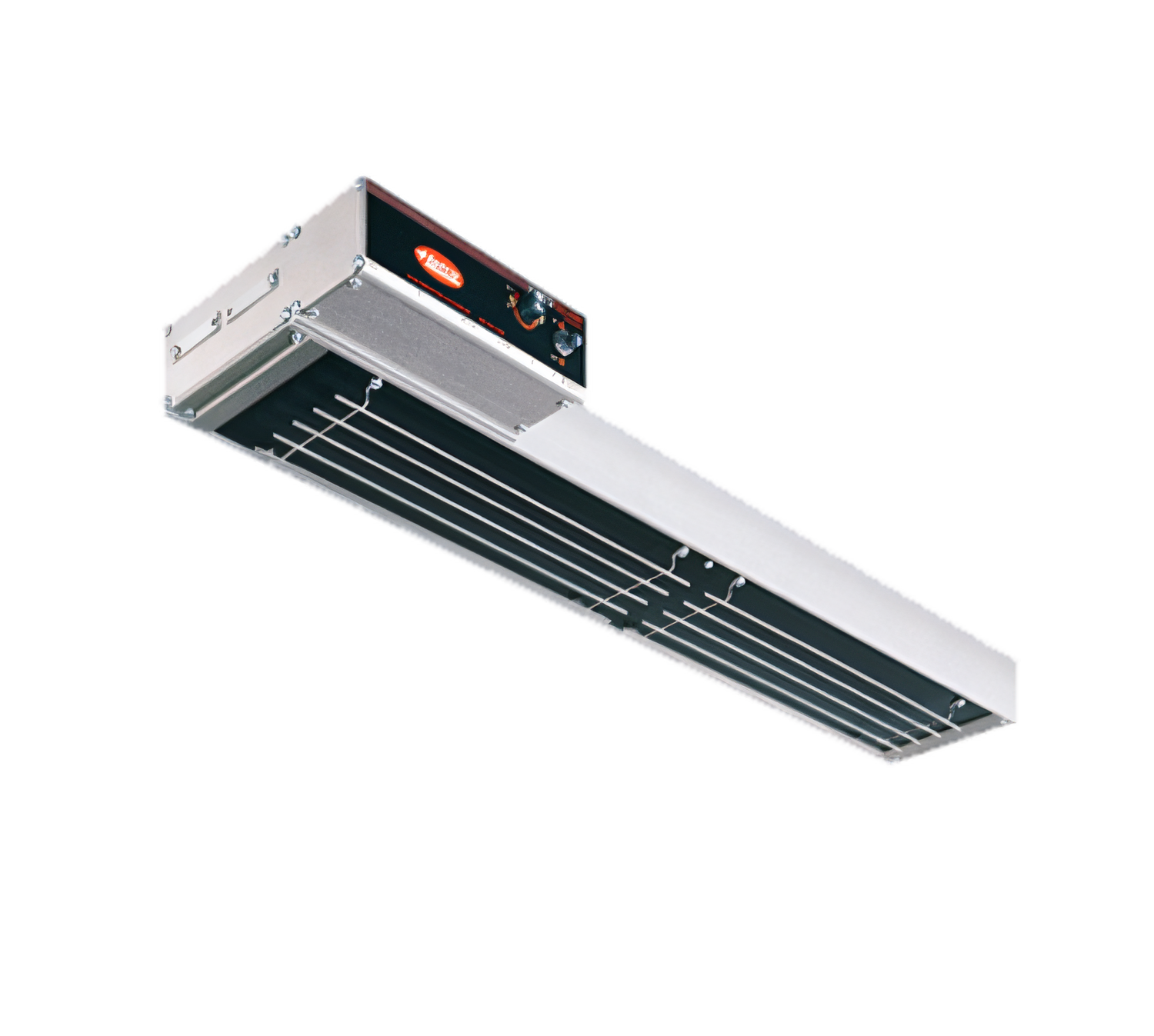

Hatco Glo-Ray® High-Watt Dual Infra-Black Strip Heater – 60″ with Lights
Model GRAIHL-60D | 3100 W | NSF, CE & cULus | Made in USAGive every entrée the just-made appeal guests crave. Hatco’s 60-inch Glo-Ray® Dual Infra-Black Strip Heater saturates food with a broad, even blanket of radiant heat while five integrated display lights spotlight your presentation. Built for hard-working kitchens and attractive self-service lines alike, this high-watt unit combines rock-solid aluminum construction with industry-leading heat technology to keep product at safe, appetizing temperatures without over-drying.
Why you’ll love it

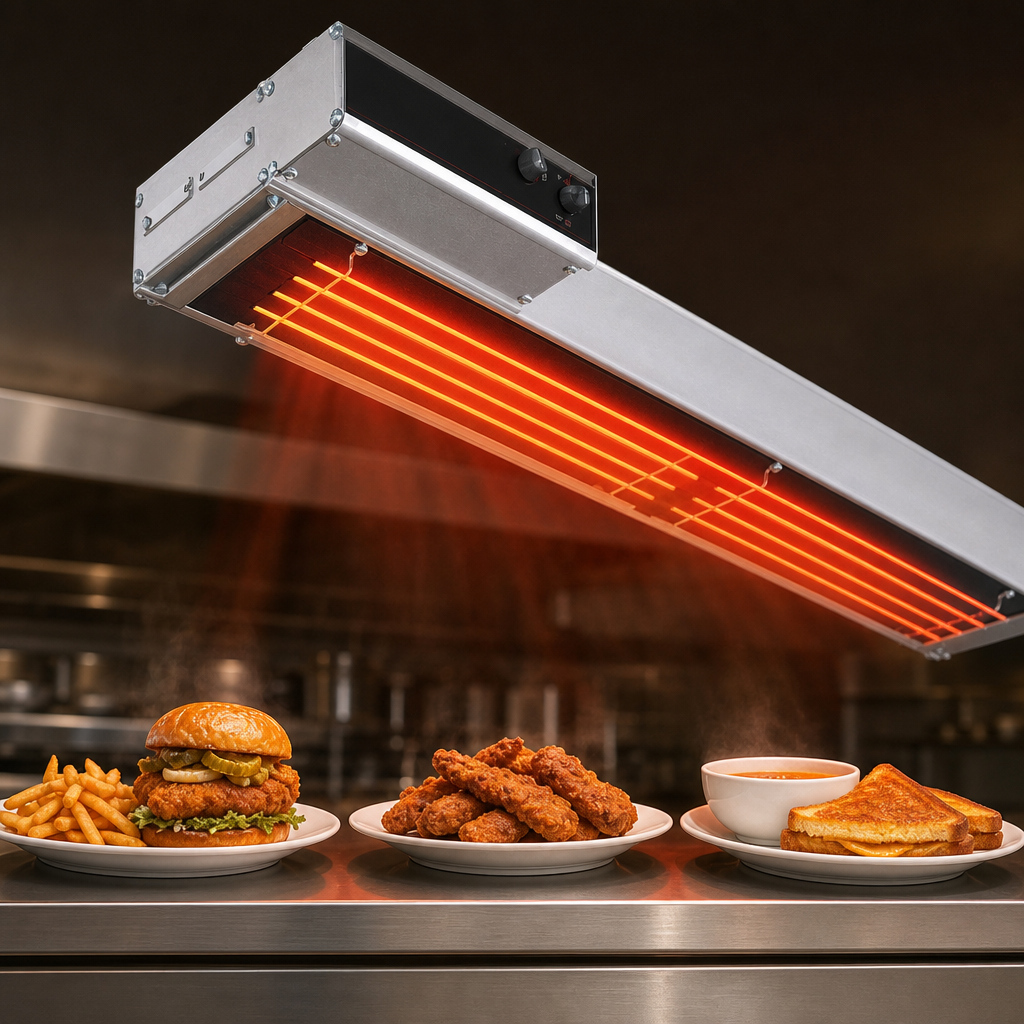

- Infra-Black emitters = zero hot spots. A continuous “black panel” element delivers uniform heat at short range—perfect for pass-throughs, carving stations, or buffet lines.
- Dual high-watt housing. Two heaters, spaced 3″ apart, provide higher peak temperatures and faster heat recovery than single-bank strips.

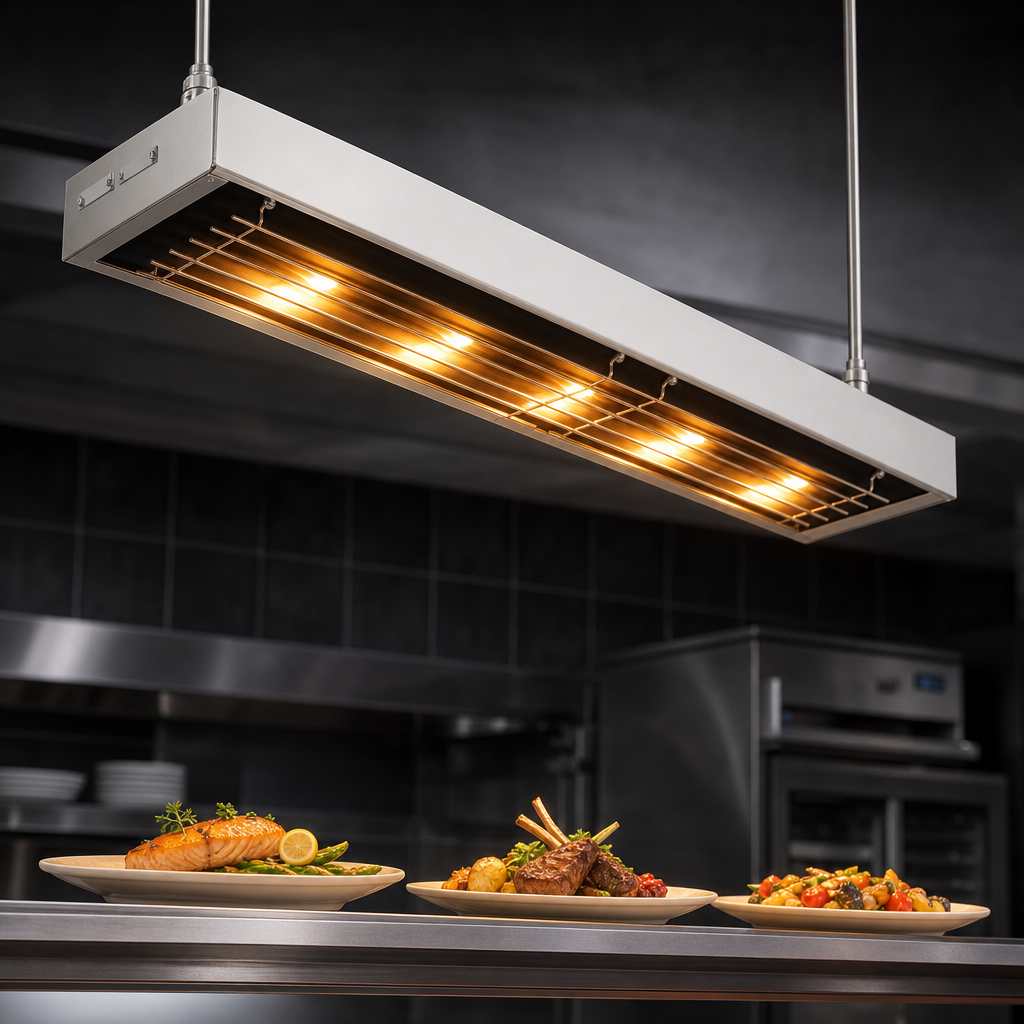

- Built-in merchandising lights. Five 60-watt lamps (optional LED/halogen upgrades) illuminate product to boost impulse sales.
- Heavy-duty extruded aluminum. Will not sag across its full 60″ span and is fully insulated to keep the exterior cool to the touch.
- Metal-sheathed elements with 2-year warranty. Engineered to resist burnout and mechanical shock.
- Remote or attached controls. Choose infinite or thermostatic knobs mounted in a stainless remote enclosure to suit your line layout.
- Meets NSF 4 sanitation standards and is CE & cULus listed for worldwide compliance.
- Proudly designed, manufactured, and performance-tested in Milwaukee, WI USA.
Technical specifications
| Model | GRAIHL-60D |
|---|---|
| Overall dimensions | 60″ W × 15″ D × 2.6″ H (standard 3″ spacer) 60″ W × 18″ D × 2.6″ H (optional 6″ spacer) |
| Heating elements | Dual Infra-Black, metal-sheathed |
| Heat output | 3,100 watts |
| Lamps | 5 × 60 W incandescent (standard) – LED & halogen options available |
| Electrical |
• 120/208 V, 1-ph, 16.0 A • 120/240 V, 1-ph, 14.2 A • 220 V, 1-ph, 13.9 A • 240 V, 1-ph, 12.9 A |
| Minimum clearance | 8″–14″ above a metal target surface; 10″ (254 mm) from front of an over-shelf |
| Shipping weight | Approx. 47 lb / 22 kg |
| Certifications | NSF 4, CE, cULus |
| Warranty | 2 yrs element • 1 yr parts & labor (U.S. & Canada) |
Installation & safety
- Mount heater 8–14″ (203–356 mm) above the food surface for optimum holding performance.
- Maximum overshelf clearance: 10″ (254 mm) from the front edge of the overshelf.
- Must be installed level with adequate back wall support or compatible tubular stands.
- International models include 6″ (152 mm) pigtail leads; extended lead sets available.
Factory-installed options
- Designer powder-coat or gloss housings in 16 colors plus plated finishes
- 6″ spacer for greater clearance
- Protective element wire guard
- Chef-friendly 3000 K or 4000 K LED bulbs
- Adjustable angle brackets, non-adjustable stands, or suspension chain kits
Colors shown are representative only; non-standard finishes are non-returnable. Please review Hatco’s antimicrobial paint info for additional details.
