Hatco Glo-Ray® GRAIHL-54D3 54-Inch Dual Lighted Infra-Black Strip Heater with 3-Inch Spacer

SKU: GRAIHL-54D3
$1,297.45
/each
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Food Heat Lamps Food Warmers & Holding Equipment Hatco Heat Lamps New Arrivals Restaurant Equipment Serving & Display Equipment Strip Heat Lamp

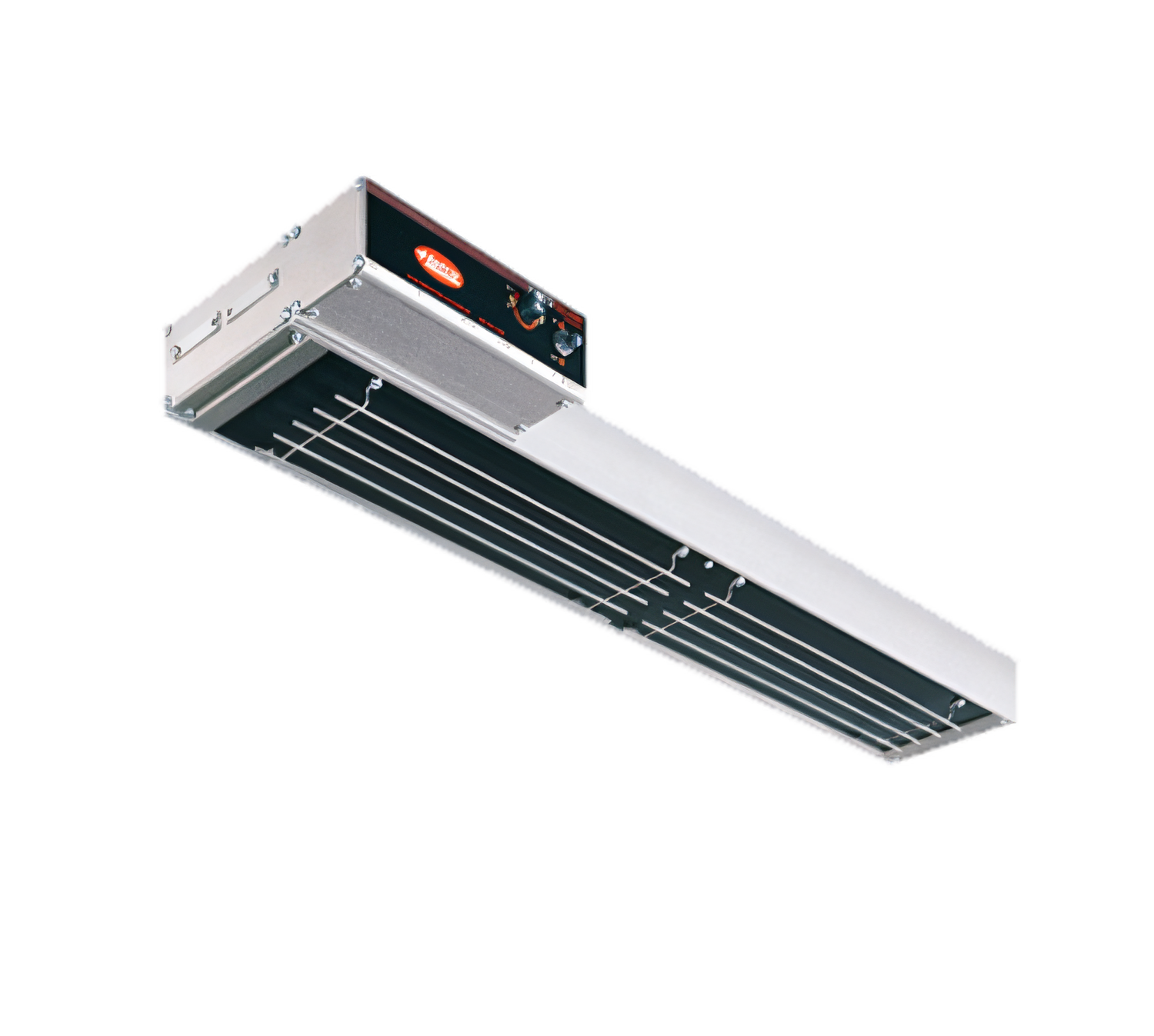

Hatco Glo-Ray® GRAIHL-54D3 54-Inch Dual Lighted Infra-Black Strip Heater with 3-Inch Spacer

Aluminum Housing, 2.74 kW, 240 Volts, 1-Phase

Deliver even infrared holding heat and a lit presentation line in one durable 54-inch strip heater.

  • Dual Infra-Black heating design provides uniform heat for close-range food holding with fewer hot spots.
  • Integrated lights help showcase plated food and improve line presentation.
  • Durable aluminum housing and metal-sheathed heating element are built for demanding commercial use.
  • Thermostatic operation helps maintain consistent holding temperatures.
  • Standard 3-inch spacer supports proper mounting clearance; 6-inch spacer is available as an option.
  • Designed for pass-through service applications with clear clearance requirements for safe installation.

Overall Dimensions:

54.0"W x 15.0"D x 2.5"H

Product Weight:

39.0 lb

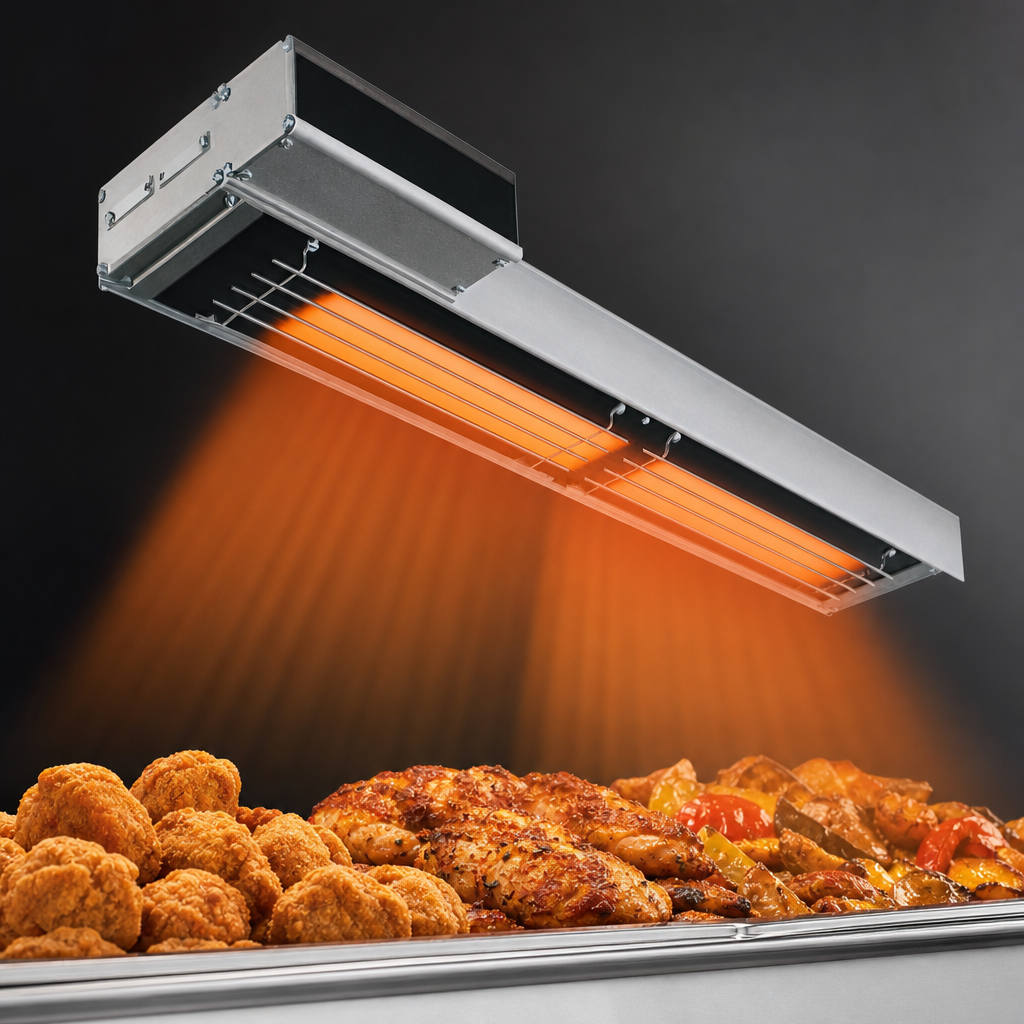

Infra-Black Heat Technology

Produces a solid panel of uniform infrared heat for close-range food warming and reduced hot spots.

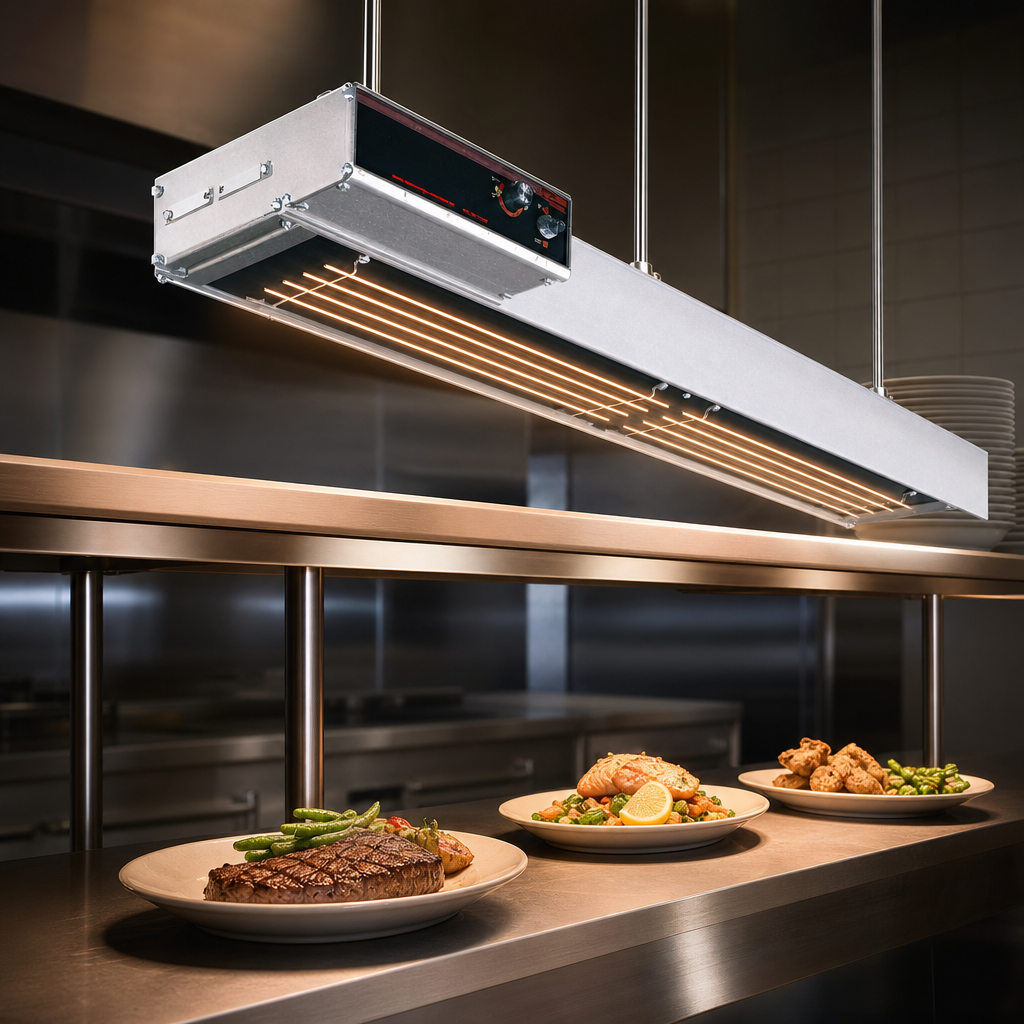

Lighted Display Design

Integrated lights help merchandise plated foods and improve visibility on the serving line.

Aluminum Housing

Sturdy continuous aluminum housing is built for durability and resists sagging.

Metal-Sheathed Heating Element

Heavy-duty heating element is designed to resist burnout and breakage.

Thermostatic Temperature Control

Thermostatically controlled operation helps maintain consistent food-holding temperatures.

Heavy-Duty Insulation

Insulation helps keep the exterior housing cooler during operation.

3-Inch Standard Spacer

Standard spacer supports proper mounting distance and clearance for installation.

Dual Heater Housing

Double housing design supports broader coverage across the food holding area.

Type Strip Heater
Style Dual Lighted
Material Aluminum
Finish Clear Anodized
Voltage 240 Volts
Watts 2.74 kW
Amps 11.4 Amps
Phase 1-Phase
Shipping Width 54 Inches
Shipping Depth 15 Inches
Shipping Height 3 Inches
Shipping Weight 39 Pounds
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

24/7 parts and service assistance

Documents

PDF Cutsheet PDF Download PDF Color chart PDF Download PDF Owner's manual PDF Download PDF Catalog brochure PDF Download

Frequently Asked Questions

Yes. This is the lighted GRAIHL version, and the 54-inch model uses four 60-watt bulbs.
It uses Infra-Black heat technology, which produces a solid panel of uniform infrared heat for close-range food warming.
The listed unit is 240 Volts, 1-Phase, 2.74 kW, and 11.4 Amps.
The unit must be mounted at least 8 inches above the surface below. With TCBI control, it is for pass-through applications only and cannot be installed against a back wall. With RMB control, 3 inches of back-wall clearance is required.
A 3-inch spacer is standard, and a 6-inch spacer is available as an option.
Available accessories include adjustable angle brackets, chain suspension, element wire guard, non-adjustable tubular stands, and control enclosures.
