Hatco GRAIHL-48D6 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® Dual Infra-Black Strip Heater — 48″ High-Watt with Lights
Model GRAIHL-48D • 2440 W • 6″ SpacerKeep hot foods at their flavorful best with Hatco’s flagship strip heater. The Dual Infra-Black® element bathes a 48-inch holding zone in uniform, gentle heat while four bright display lights entice guests and boost impulse sales.
Why You’ll Love It

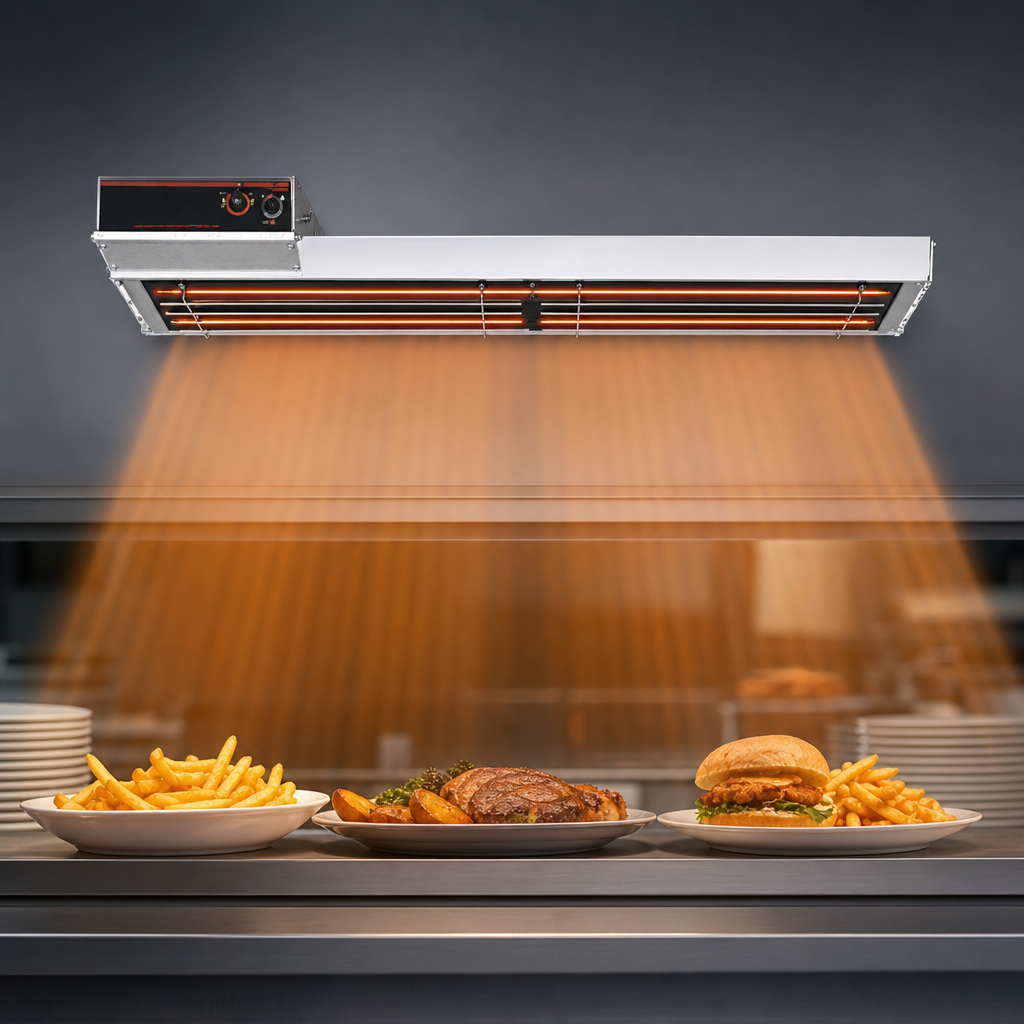

- Infra-Black® technology delivers a solid curtain of heat that won’t dry out or over-cook food.
- High-watt dual elements conquer wide or extra-deep holding areas.

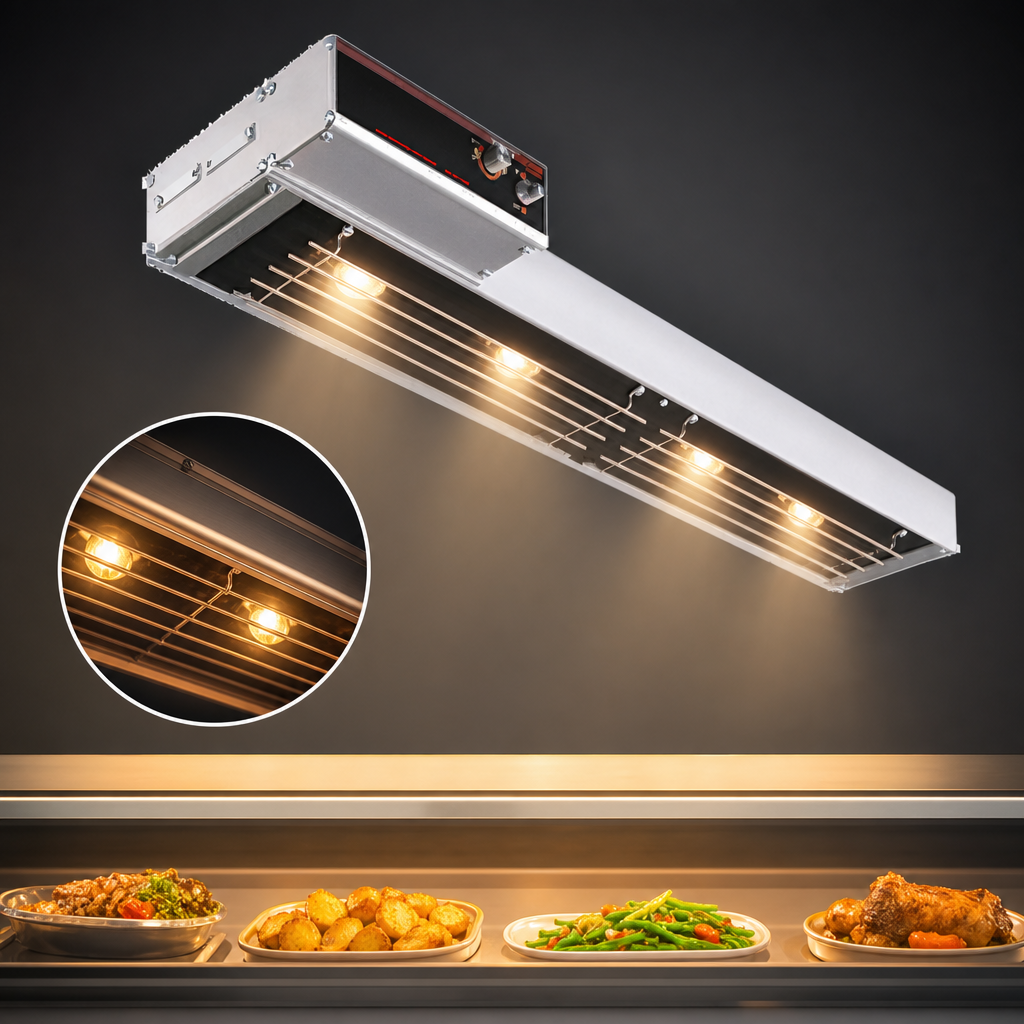

- 4 × 60 W shatter-resistant bulbs spotlight product (halogen or LED upgrades available).
- 6″ (152 mm) housing spacing maximizes the heat footprint for pans, sheet trays & pizza boxes.
- Extruded aluminum housing won’t sag and stays cool to the touch thanks to heavy-duty insulation.
- Metal-sheathed elements carry a 2-year warranty against burnout or breakage.
- Thermostatically controlled for precise, worry-free temperature regulation (remote or attached controls).
- NSF, CE & cULus listed; proudly Made in the USA.
Perfect For
- Pass-through windows & drive-thru pickup shelves
- Buffet lines & hotel breakfast bars
- Carving stations & banquet service
- Convenience-store grab-and-go displays
- Quick-service & fast-casual kitchens
Technical Specifications
| Model | GRAIHL-48D |
|---|---|
| Width | 48″ (1219 mm) |
| Depth | 18″ (457 mm) with 6″ spacer |
| Height | 2.6″ (66 mm) |
| Heating Wattage | 2440 W |
| Voltage Options | 120/208 V, 120/240 V, 208 V, 220 V, 240 V, 1-phase |
| Amperage (240 V) | 10.2 A |
| Heat Source | Dual Infra-Black metal-sheathed elements |
| Display Lights | 4 × 60 W incandescent (standard) |
| Housing Material | Extruded aluminum, insulated |
| Net Weight | 35 lb (16 kg) |
| Certifications | NSF, CE, cULus |
| Country of Origin | USA |
Control & Mounting Options
- RMB Series remote control enclosures (toggle, infinite or relay switches).
- Attached thermostatic control box with indicator lights.
- Adjustable angle brackets, tubular stands (4″–14″ clearances) or suspension chain kits.
- Protective element wire guards for high-traffic areas.
Designer Finishes
Customize your heater with 20+ powder-coat colors, gloss metals or plated finishes. Antimicrobial coatings are available to help inhibit microbial growth on painted surfaces.
Need a different size? Glo-Ray Dual Infra-Black Strip Heaters are stocked from 18″ to 72″. Contact us for quick quotes on alternate lengths or wattages.
