Hatco GRAIHL-48D3 Glo-Ray® Heat Lamps
Description

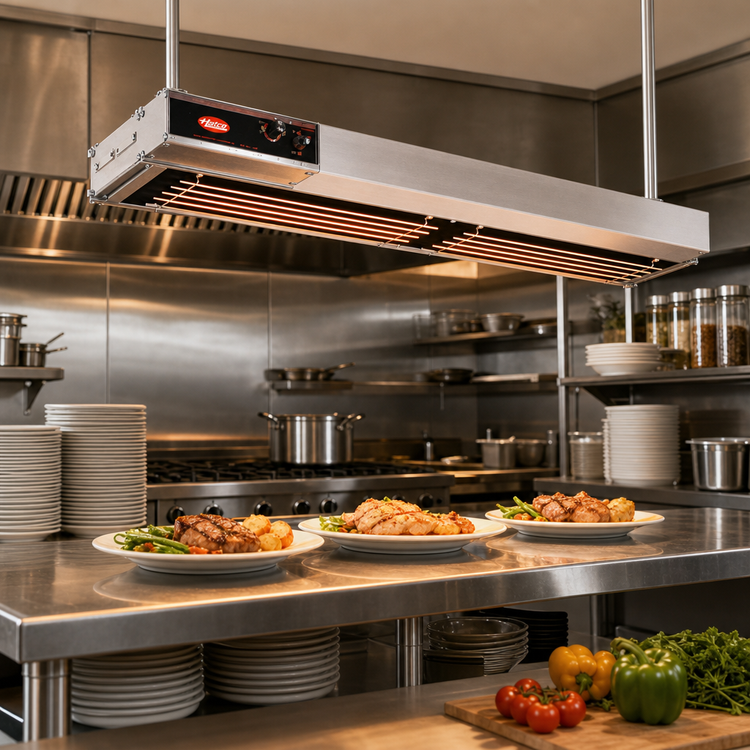

Hatco Glo-Ray® Dual Infra-Black Strip Heater – 48" with Lights
Model GRAIHL-48D | 2440 W High-Watt Dual HousingHold plated meals at a perfect serving temperature and display them beautifully with the Hatco Glo-Ray® 48-inch Dual Infra-Black Strip Heater. The high-watt GRAIHL-48D projects a uniform blanket of heat while four built-in display lights showcase every dish in its best light.
Key benefits
- Powerful 2440 W dual heating system evenly warms a full 48" (1219 mm) holding zone.

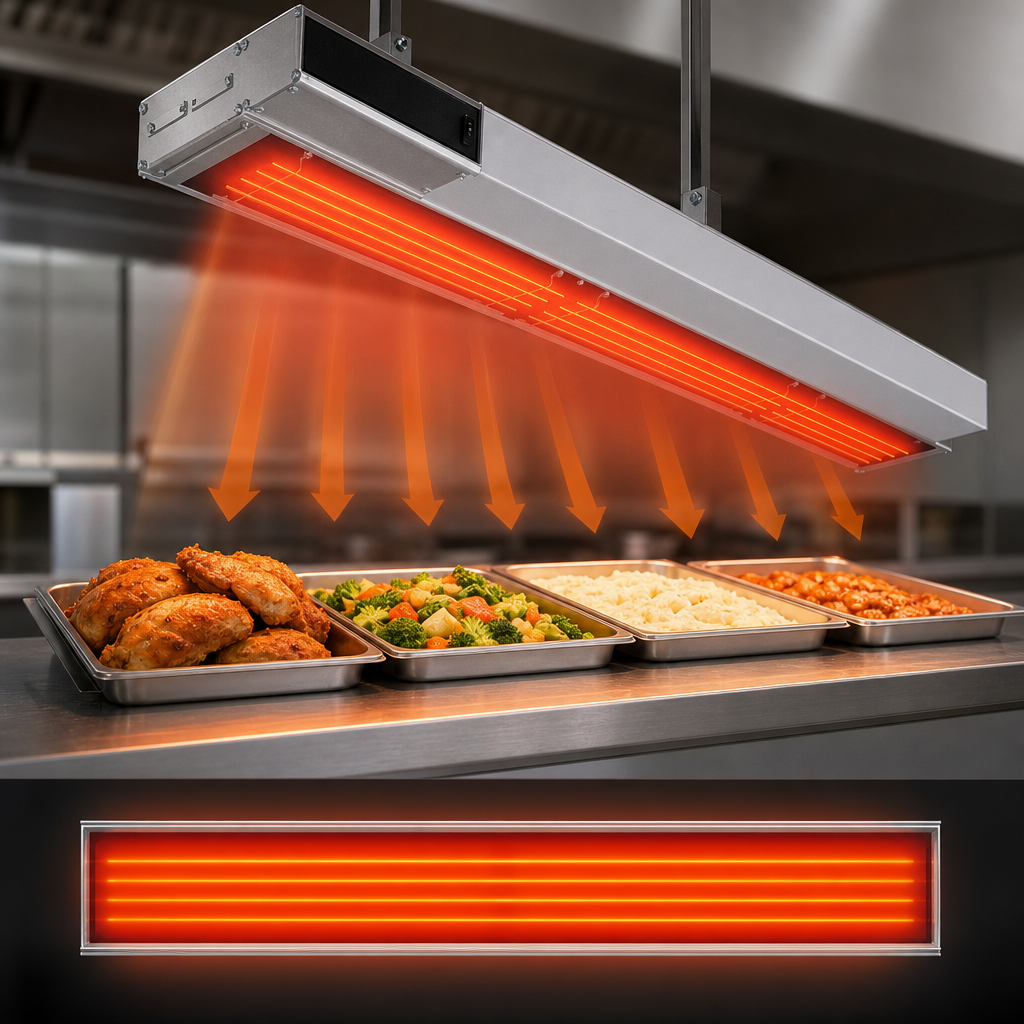

- Infra-Black emitter panel eliminates hot & cold spots for close-range applications.

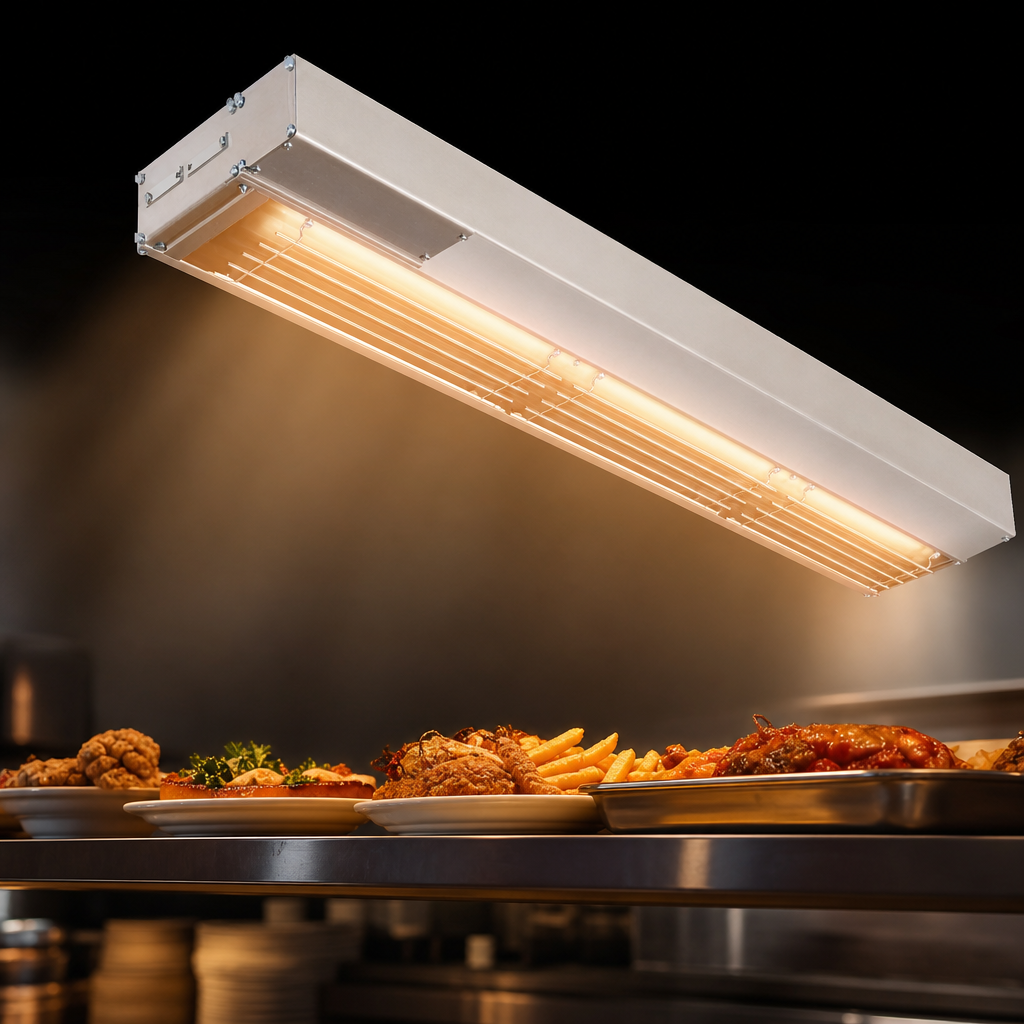

- Four 60 W display lights draw attention to menu items and improve visibility.
- Rugged extruded-aluminum housing resists sagging; heavy insulation keeps the exterior cool.
- Metal-sheathed elements carry Hatco’s 2-year burnout/breakage warranty.
- Standard 3" (76 mm) spacer in the dual housing focuses heat where it’s needed.
- Compatible with Hatco remote toggle, infinite or thermostatic control boxes (ordered separately).
- NSF-listed, CE-marked, cULus certified and proudly Made in the USA.
At-a-glance specifications
| Overall width | 48" / 1219 mm |
|---|---|
| Depth × height | 15" × 2.6" (381 × 66 mm) with 3" spacer |
| Heat technology | Dual Infra-Black® metal-sheathed strip elements |
| Total wattage | 2440 W @ 240 V (see manual for additional voltages) |
| Amperage | 10.2 A @ 240 V |
| Display lights | 4 × 60 W incandescent (halogen & LED options available) |
| Recommended mounting height | 8"–14" (203–356 mm) above metallic target surface |
| Construction | Continuous extruded aluminum, natural anodized (15 designer colors optional) |
| Certifications | NSF, CE, cULus |
| Country of origin | USA |
| Approx. shipping weight | ≈ 35 lb / 16 kg (heater only) |
Factory-fit options
- Designer powder-coat or gloss finishes to match any décor
- 6" (152 mm) spacer for a wider heat pattern
- Protective element wire guard
- Non-adjustable tubular stands for countertop use
- Chef-grade LED bulbs (3000 K warm or 4000 K cool)
Looking for another size? Glo-Ray® Dual Infra-Black Strip Heaters are available in 18"-72" widths—contact us for details and pricing.
