Hatco GRAIHL-36D3 Glo-Ray® Heat Lamps
$1,036.18
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Hatco GRAIHL-36D3 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAIHL-36D3 Glo-Ray® Heat Lamps
$1,036.18
Unit price
/
Unavailable
Description

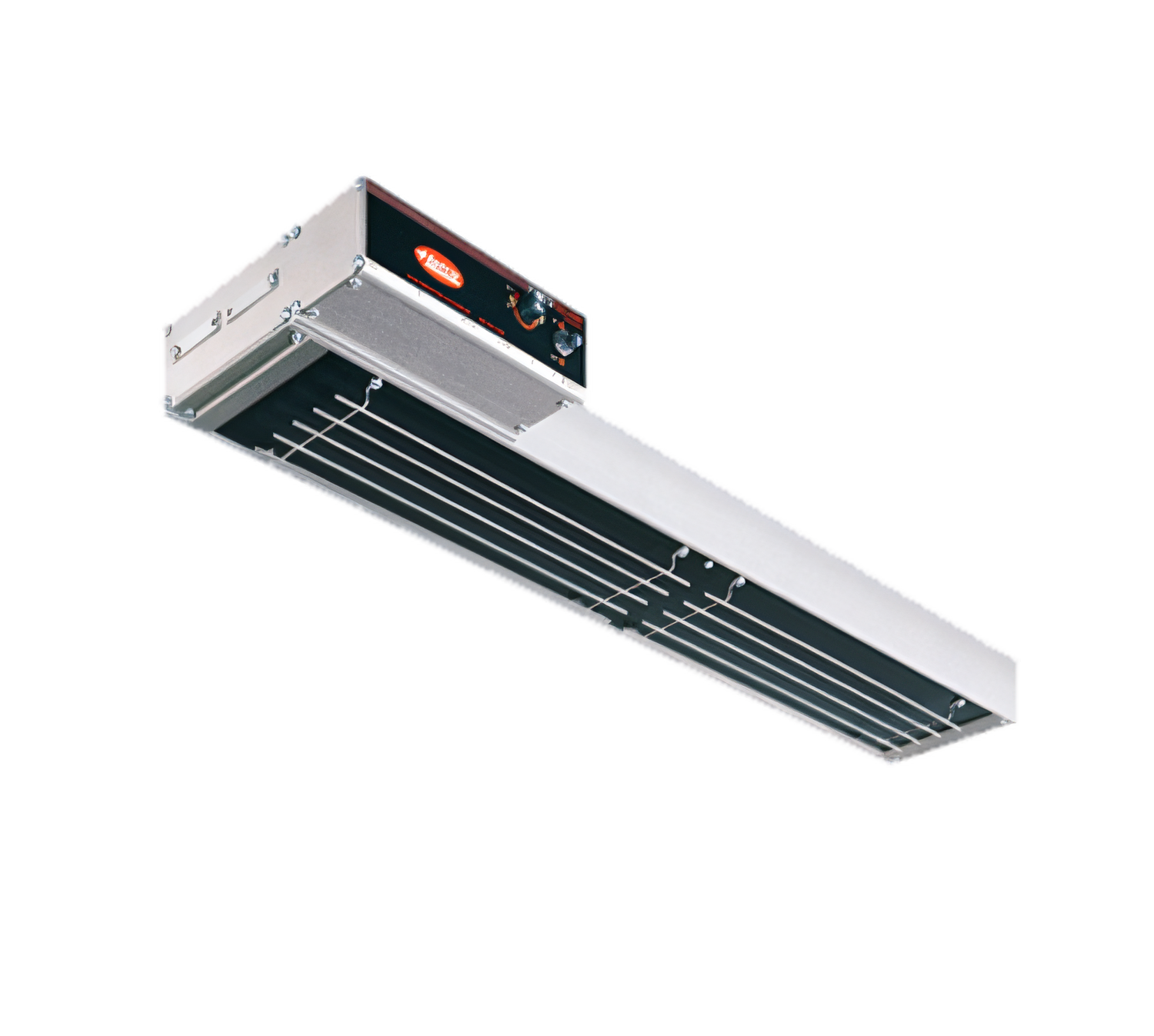

Hatco Glo-Ray® GRAIHL-36D Infra-Black Strip Heater – 36"
High-watt dual heater with lights • 1780 W • Made in USABuilt for busy pass-through stations, buffets and heated shelves, the GRAIHL-36D combines Hatco’s Infra-Black® heat technology with brilliant display lighting to keep food hot, appetising and always within safe-serve temperatures.
Why you’ll love it
- Uniform Infra-Black heat panel eliminates hot or cold spots.
- High-watt dual elements (1780 W) ideal for 8"-14" (203-356 mm) mounting heights.

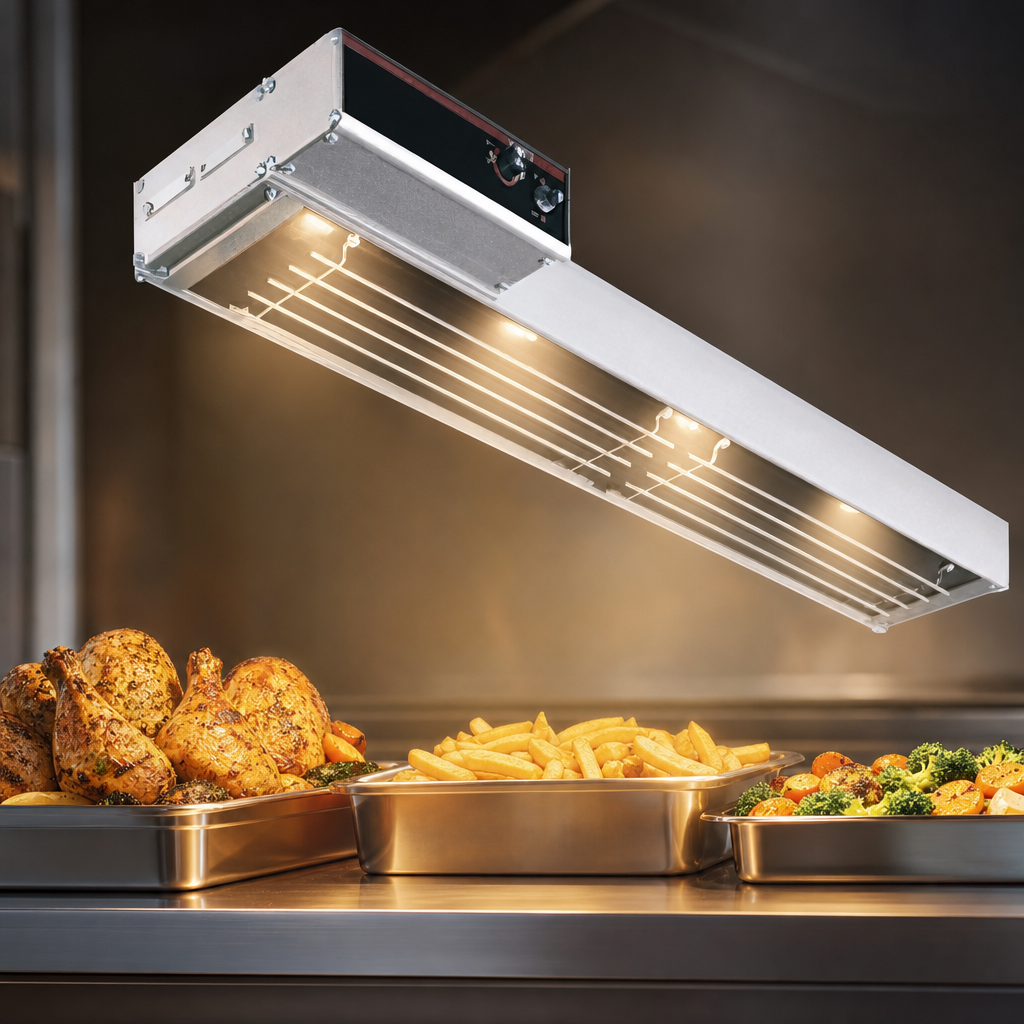

- Three integrated 60 W display bulbs highlight food and boost impulse sales.
- Rugged 36" continuous extruded aluminium housing will not sag or twist.
- Metal-sheathed elements carry a 2-year no-burn-out warranty.
- Standard 3" (76 mm) spacer creates an insulating air gap for maximum efficiency.
- Heavy insulation keeps exterior surface cool to the touch.
- NSF, CE & cULus listed for global compliance.
Technical specifications
| Model | GRAIHL-36D |
|---|---|
| Overall width | 36" (914 mm) |
| Heat source | Dual Infra-Black, metal-sheathed elements |
| Total wattage | 1780 W (high watt) |
| Voltage options | 120/208 V, 120/240 V, 220 V or 240 V • 1 ph |
| Maximum amperage | Up to 9.2 A (varies by voltage) |
| Lighting | 3 × 60 W incandescent bulbs (included) |
| Housing material | Clear-anodised aluminium (14 designer colours optional) |
| Standard spacer | 3" (76 mm) between heater housings |
| Approx. ship weight | 29 lb (13 kg) |
| Certifications | NSF • CE • cULus |
| Country of origin | USA |
Popular accessories
- RMB Series remote control enclosures (toggle or infinite switches)
- Attached thermostatic control box with indicator lights
- Protective element wire guard
- 6" (152 mm) spacer for additional clearance
- Non-adjustable tubular stands (4"-14" clearance options)
- Chain-suspension kit or adjustable angle brackets
- Designer powder-coat or gloss finishes (Warm Red, Black, Gray Granite, and more)
Installation note: Unit requires a remote control box mounted outside
the heat zone. Install 8"-14" above a metallic target surface and maintain at least
10" (254 mm) clearance from the front edge of any overshelf. Refer to the included
manual for complete electrical and mounting guidelines.
Hatco® provides 24/7 parts & service support and a 2-year warranty on metal-sheathed elements.
Features & Specs
Features & Specs
Manufacturer
Hatco
Brand_name
Glo-Ray®
Certifications
NSF, cULus, Made in USA
Height
2.5in
Width
36.0in
Depth
15.0in
Shipping Weight
29.0lbs
Finish
aluminum
Size
double
Type
lighted
Length
31 - 36"
Type of element
black panel heating system
Specifications
Glo-Ray® Infrablack Strip Heater, 36" W, high wattage with lights, metal sheathed heating element, double heater housing 3" spacing, aluminum construction, 1780 watts, NSF, CE, cULus, Made in USA
