Hatco GRAIHL-30D3 Glo-Ray® Heat Lamps
Description

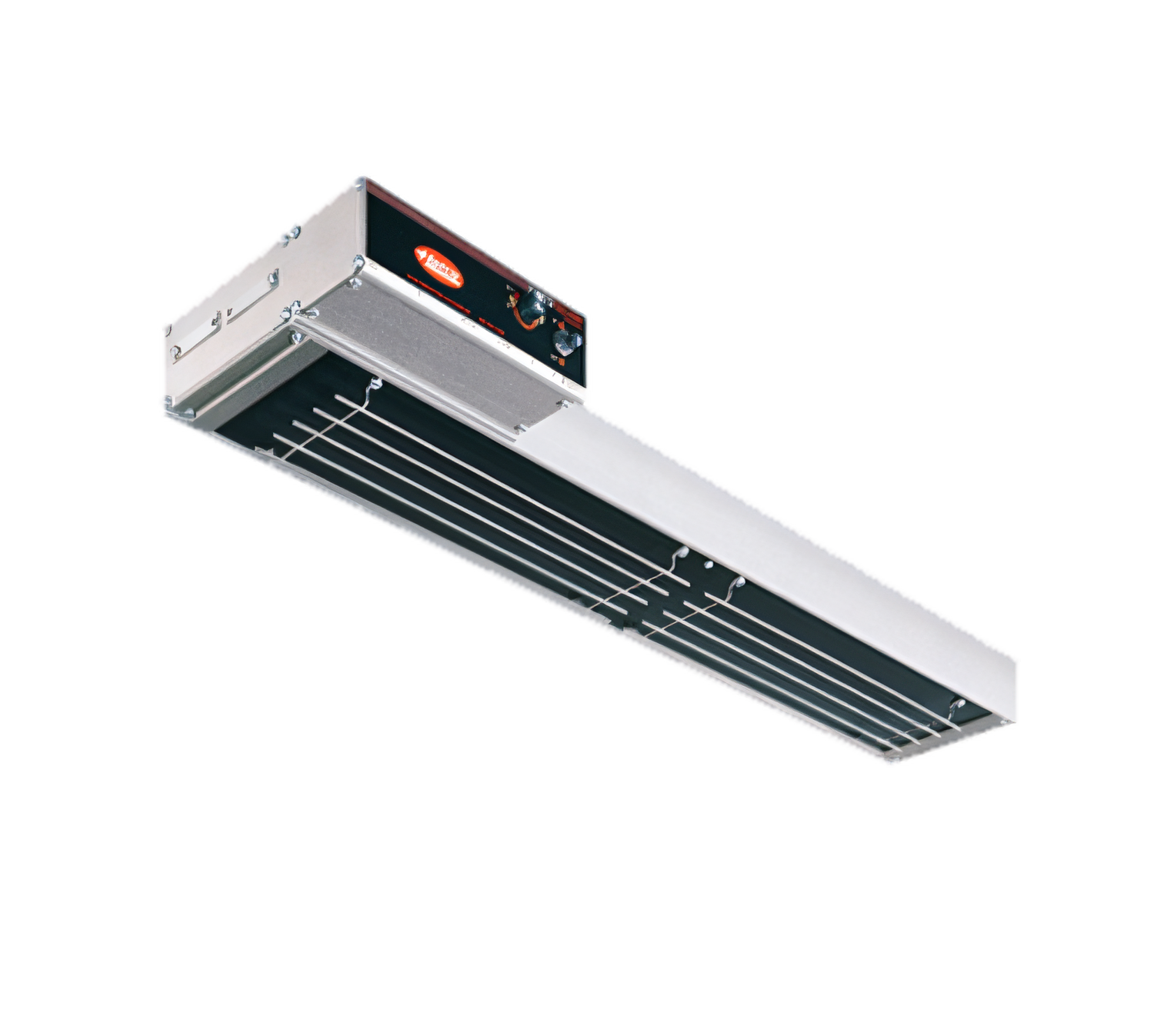

Hatco Glo-Ray® 30″ High-Watt Dual Infra-Black Strip Heater with Lights
Model GRAIHL-30D | 1420-1440 W | NSF • CE • cULus • Made in USAGive every plated order the “just-made” appeal it deserves. Hatco’s Glo-Ray® Infra-Black technology delivers a solid, even blanket of heat while built-in display lights keep product appetising and visible—all in a compact 30 inch footprint perfect for pass-through shelves, buffets and quick-service lines.
Key benefits
- High-watt dual heater housing generates extra BTUs for demanding, high-volume holding.

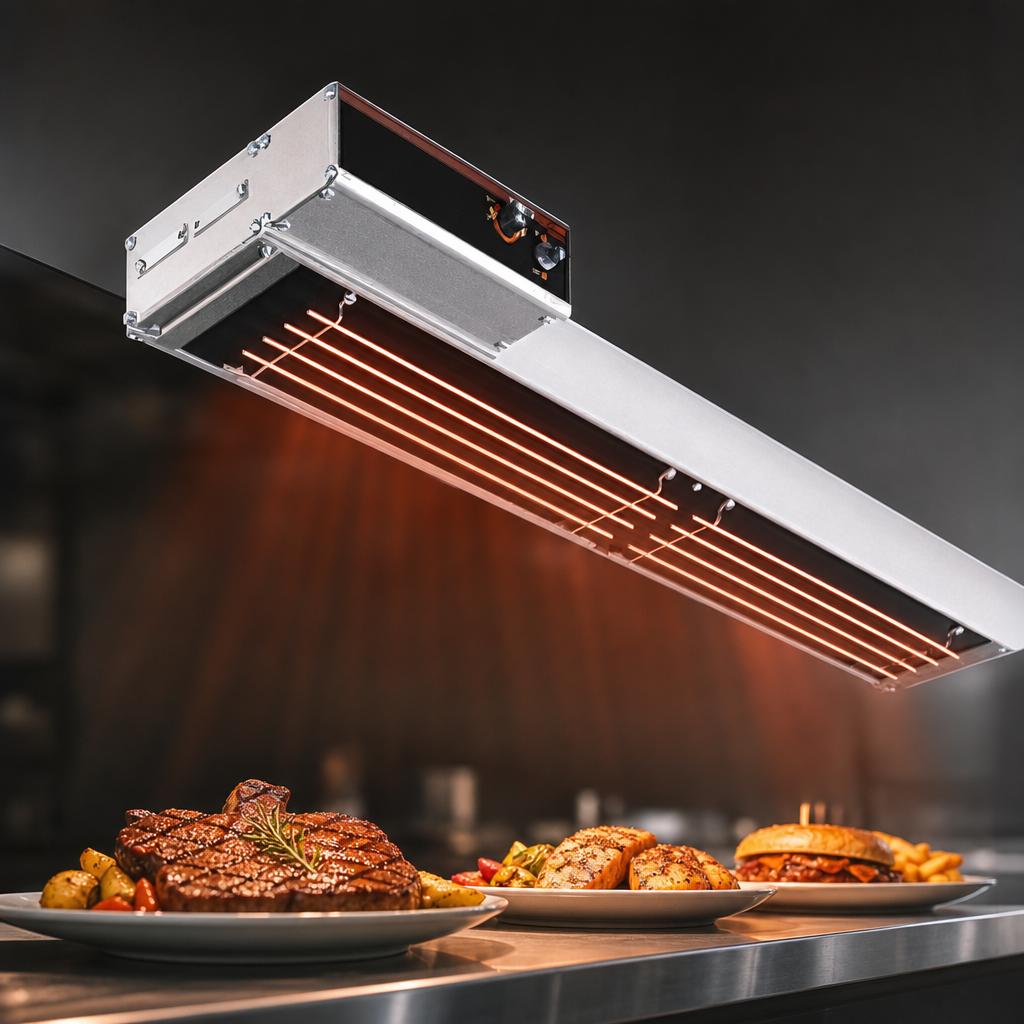

- Infra-Black metal-sheathed elements provide precise, uniform heat—no hot spots, no cold corners.

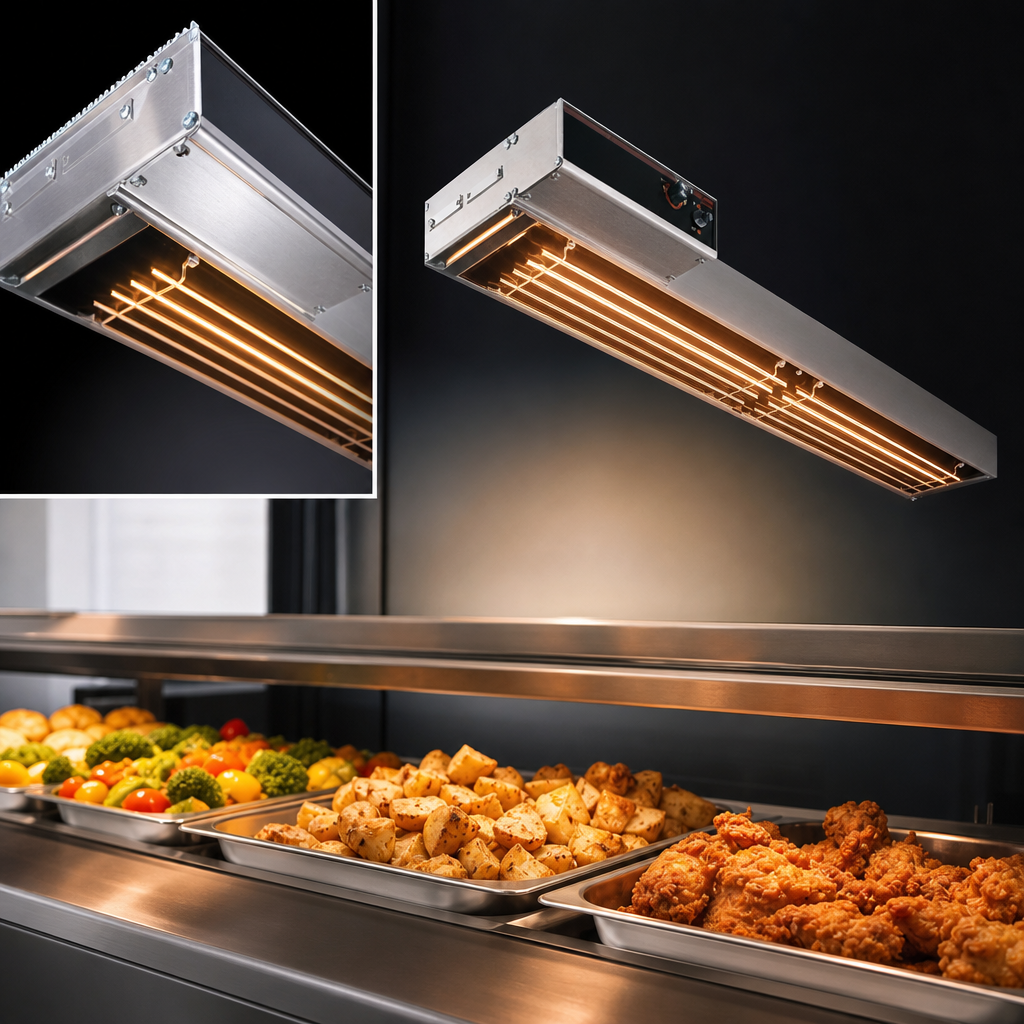

- Integrated display lighting (2 × 60 W incandescent bulbs) showcases food while maximising counter space.
- 3″ (76 mm) factory-set spacer maintains the ideal gap between the two heater banks for consistent coverage.
- Rugged extruded aluminium housing will not sag and is fully insulated to keep exterior surfaces cool.
- Fast, tool-free mounting—install above the target surface 8″–14″ (203-356 mm) using angle brackets, tubular stands or suspension chain (sold separately).
- Element warranty: metal-sheathed Infra-Black emitters are guaranteed against burnout and breakage for 2 years.
- Built to North American & international standards: NSF-listed, cULus, CE-marked.
Typical applications
- Pass-through heated shelves & chef’s lines
- Cafeterias, buffets & self-service stations
- Pizza holding, fried snack centres & grab-and-go merchandising
Technical specifications
| Overall width | 30 in (762 mm) |
|---|---|
| Heater configuration | Dual housing, 3″ spacing |
| Heat source | Infra-Black metal-sheathed elements (2 banks) |
| Wattage | 1420 W (220 V) – 1440 W (208/240 V) |
| Voltage options | 120 V 1-ph, 120/208 V, 120/240 V, 220 V, 240 V |
| Amps (max) | 12.0 A @ 120 V | 7.4 A @ 208 V | 6.0 A @ 240 V |
| Display lights | 2 × 60 W incandescent (included) |
| Recommended mounting height | 8″–14″ (203–356 mm) above metallic target surface |
| Shipping weight | ≈ 25 lb (12 kg) |
| Certifications | NSF, CE, cULus |
| Country of origin | USA |
Electrical connection and control: this high-watt, light-equipped model requires a remote control enclosure (RMB Series) or attached thermostatic control box (TCBI). Controls are sold separately so you can choose infinite, toggle or thermostatic regulation to suit your operation.
Want a custom look? Factory powder-coat housings are available in Hatco Designer Colors and Gloss Finishes at time of order.
For full installation, operation and service details, download the current manual from the Hatco resource library or consult your authorised Hatco representative.
