Hatco GRAIH-72D3 Glo-Ray® Heat Lamps
Description

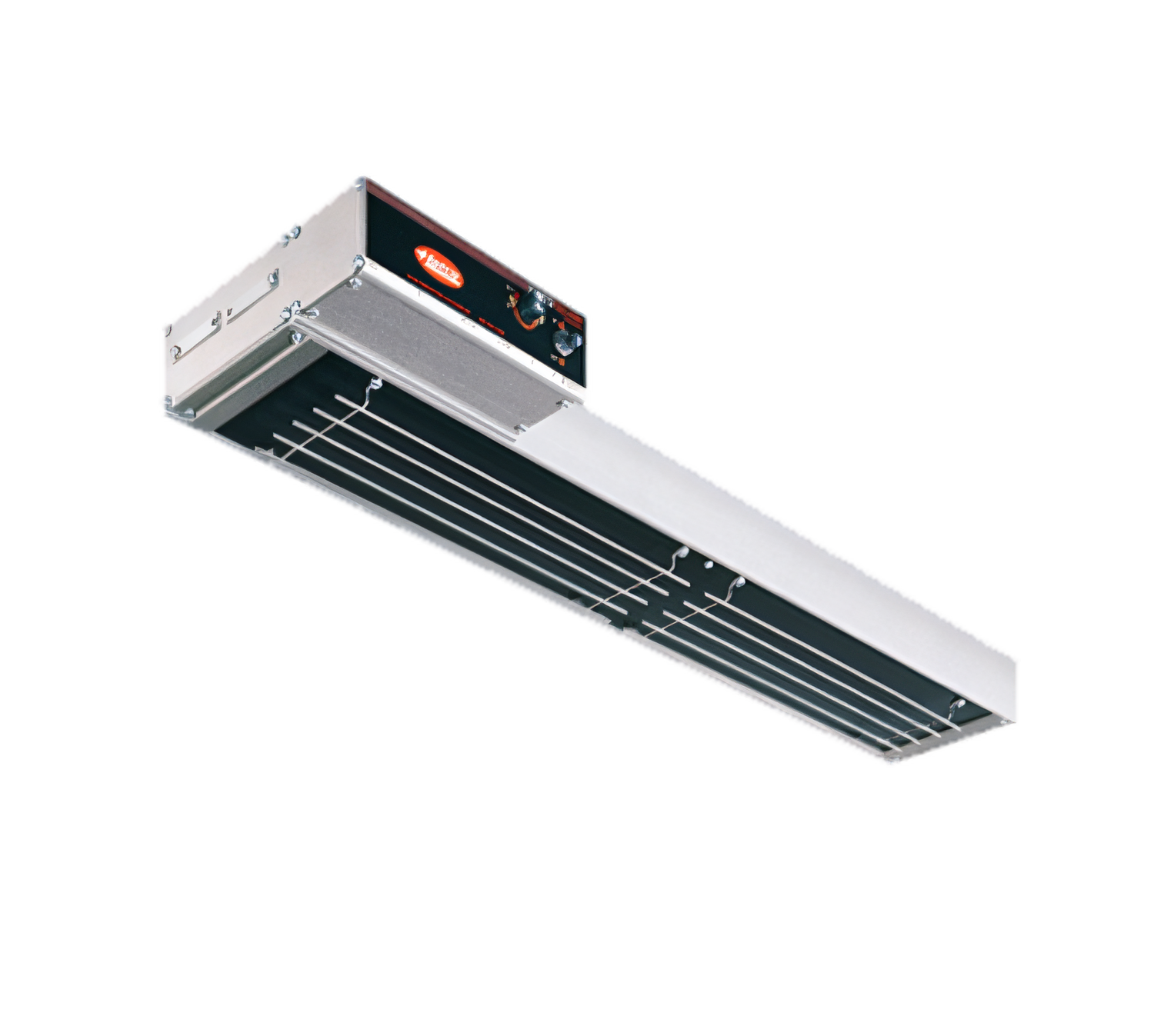

Hatco Glo-Ray® 72" Dual Infra-Black High-Watt Strip Heater
Model GRAIH-72D | 3 450 W | NSF • CE • cULusStretching a full six feet, the Hatco Glo-Ray® Dual Infra-Black Strip Heater keeps every inch of your serving line or pass-through shelf at a consistent, appetizing temperature. Its powerful high-watt elements bathe foods in a solid panel of uniform heat—no hot or cold spots, just perfectly held product ready for service.
Key features
- High-watt dual housing supplies 3 450 W of even infrared heat across 72 in (1 829 mm).
- Infra-Black metal-sheathed elements deliver close-range heat and are guaranteed against burnout or breakage for 2 years.
- Integrated 3" (76 mm) spacer maintains the ideal gap between heater banks; optional 6" spacer available.

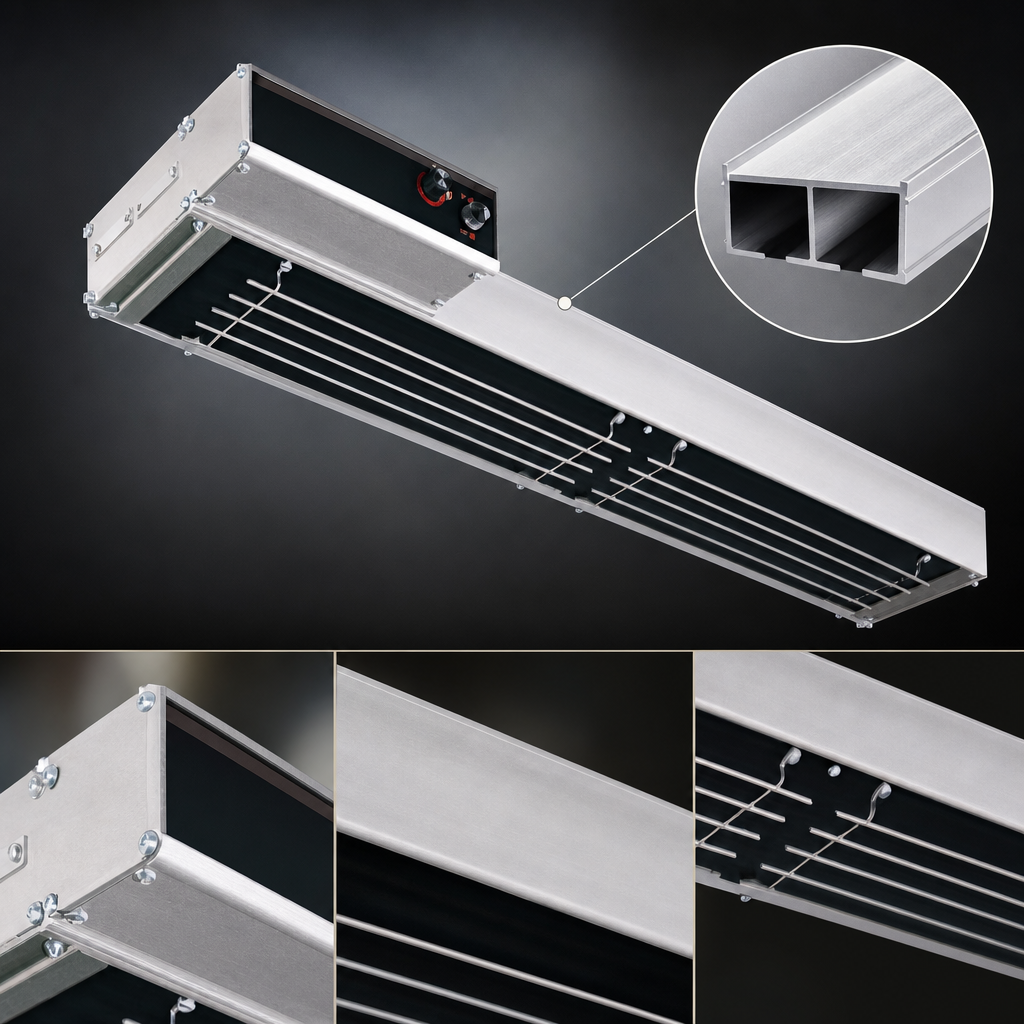

- Extruded aluminum construction will not sag and stays cool to the touch thanks to heavy-duty insulation.
- Remote control enclosure (toggle, infinite or thermostatic) mounts outside the heat zone for safe, convenient operation (sold separately).
- Certified to NSF, CE and cULus standards and proudly Made in the USA.
- Available in Hatco Designer Colors and Gloss Finishes to match your front-of-house décor.
Performance specs
| Model | GRAIH-72D |
|---|---|
| Heat technology | Dual Infra-Black metal-sheathed elements |
| Overall size (W × D × H) |
72" × 15" × 2.6" (1 829 × 381 × 66 mm) Depth increases to 18" (457 mm) with optional 6" spacer. |
| Wattage | 3 450 W |
| Voltage / phase | 208, 220-230 or 240 V, 1 ph |
| Amperage | 16.6 A @ 208 V • 15.7 A @ 220 V • 14.4 A @ 240 V |
| Recommended mounting height | 8"–14" (203–356 mm) above food surface |
| Certifications | NSF, CE, cULus |
| Origin | Made in USA |
Installation & clearance
- Mount no more than 10" (254 mm) from the front edge of an overshelf.
- Maintain at least 1" (25 mm) clearance from back wall.
- Remote control enclosure must be installed outside the heat zone to prevent damage.
Need a custom color, spacer length or mounting hardware? Contact us or your local Hatco rep—your Glo-Ray® can be built to fit your exact operation.
