Hatco  |  Glo-Ray®  |  SKU: GRAIH-66D6

Hatco GRAIH-66D6 Glo-Ray® Heat Lamps

$1,399.91
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Catalog brochure Owner's manual
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

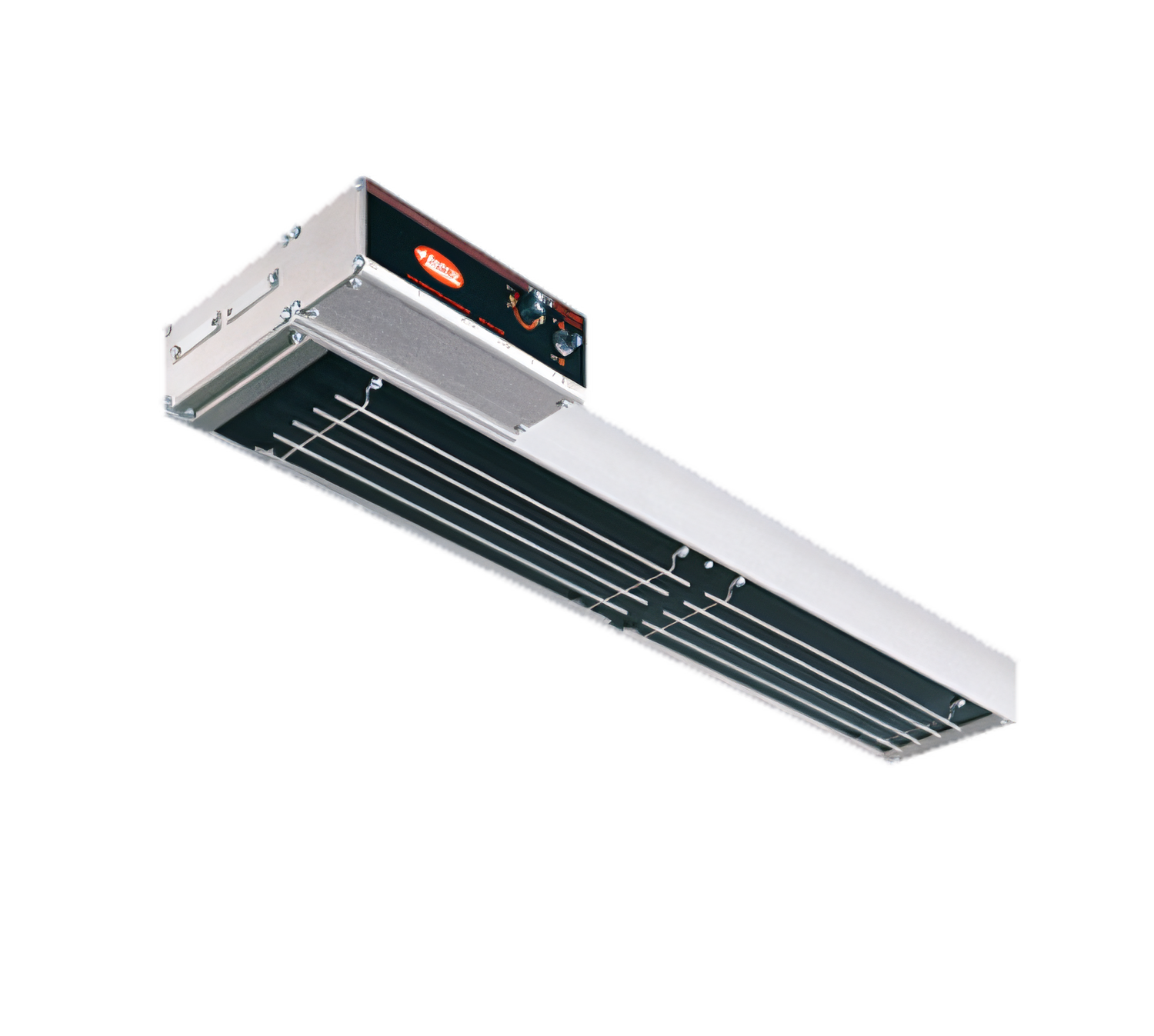

Hatco Glo-Ray® High-Watt Dual Infra-Black Strip Heater – 66" (GRAIH-66D)

3120 W • Dual housing with 6" spacer • Metal-sheathed elements

Deliver even, high-intensity infrared heat across wider serving areas with Hatco’s 66" Glo-Ray® Dual Infra-Black strip heater. Engineered for close-range food-holding (8"–14" above the target), the GRAIH-66D produces a solid blanket of uniform heat that keeps entrées at safe, appetizing temperatures without over-cooking.

Why You’ll Love It
  • Dual Infra-Black emitters in two separate housings (6" spacing) broaden the heat footprint for large pans or multi-well lines.
  • High-watt output – 3120 W (at 208/220/230/240 V) for demanding, high-volume applications.
  • Metal-sheathed heating elements are guaranteed for 2 years against burnout or breakage.
  • Extruded aluminum construction will not sag; heavy-duty insulation keeps the exterior cool to the touch.

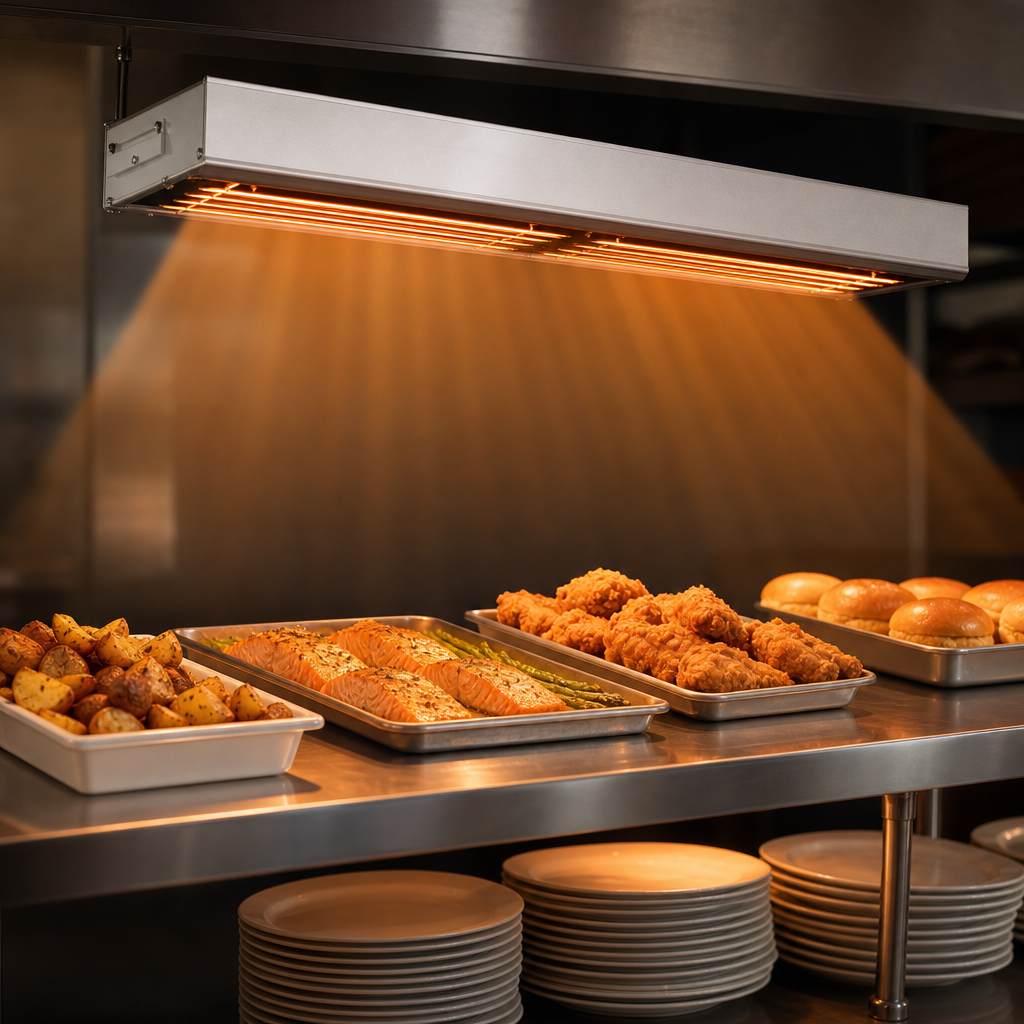

  • Infra-Black technology emits a continuous panel of even heat, eliminating hot and cold spots.
  • Compatible with Hatco remote control enclosures or attached thermostatic control boxes for precise temperature regulation (sold separately).
  • Made in the USA and fully certified – NSF • cULus • CE.
Technical Specifications
Model GRAIH-66D
Overall Width 66" / 1676 mm
Depth × Height 18" D (with 6" spacer) × 2.6" H  / 457 mm × 66 mm
Wattage 3120 W (high watt)
Voltage / Phase 208, 220, 230 or 240 V • 1 Ø
Amps 13.0 A @ 240 V
 | 14.2 A @ 220 V
 | 15.0 A @ 208 V
Heater Housing Dual aluminum housings with 6" (152 mm) spacer
Recommended Mounting Height 8"–14" (203–356 mm) above a metallic surface
Shipping Weight ≈ 44 lbs / 20 kg (heater only)
Certifications NSF, CE, cULus
Country of Origin USA
Control Requirement: This strip heater must be paired with a Hatco remote control enclosure (RMB series) or an attached thermostatic control box (TCBI). Controls are sold separately. Install the control box outside the heat zone to avoid damage.

Need mounting hardware, designer colors, longer leads or protective wire guards? Ask our team for available options at the time of order.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

66.0in

Depth

18.0in

Shipping Weight

44.0lbs

Finish

aluminum

Type of element

black panel heating system

Size

double

Length

61 - 66"

Type

unlighted

Specifications

Glo-Ray® Infrablack Strip Heater, 66" W, high wattage, metal sheathed heating element, double heater housing 6" spacing, aluminum construction, 3120 watts, NSF, CE, cULus, Made in USA
