Hatco GRAIH-66D3 Glo-Ray® Heat Lamps
Description

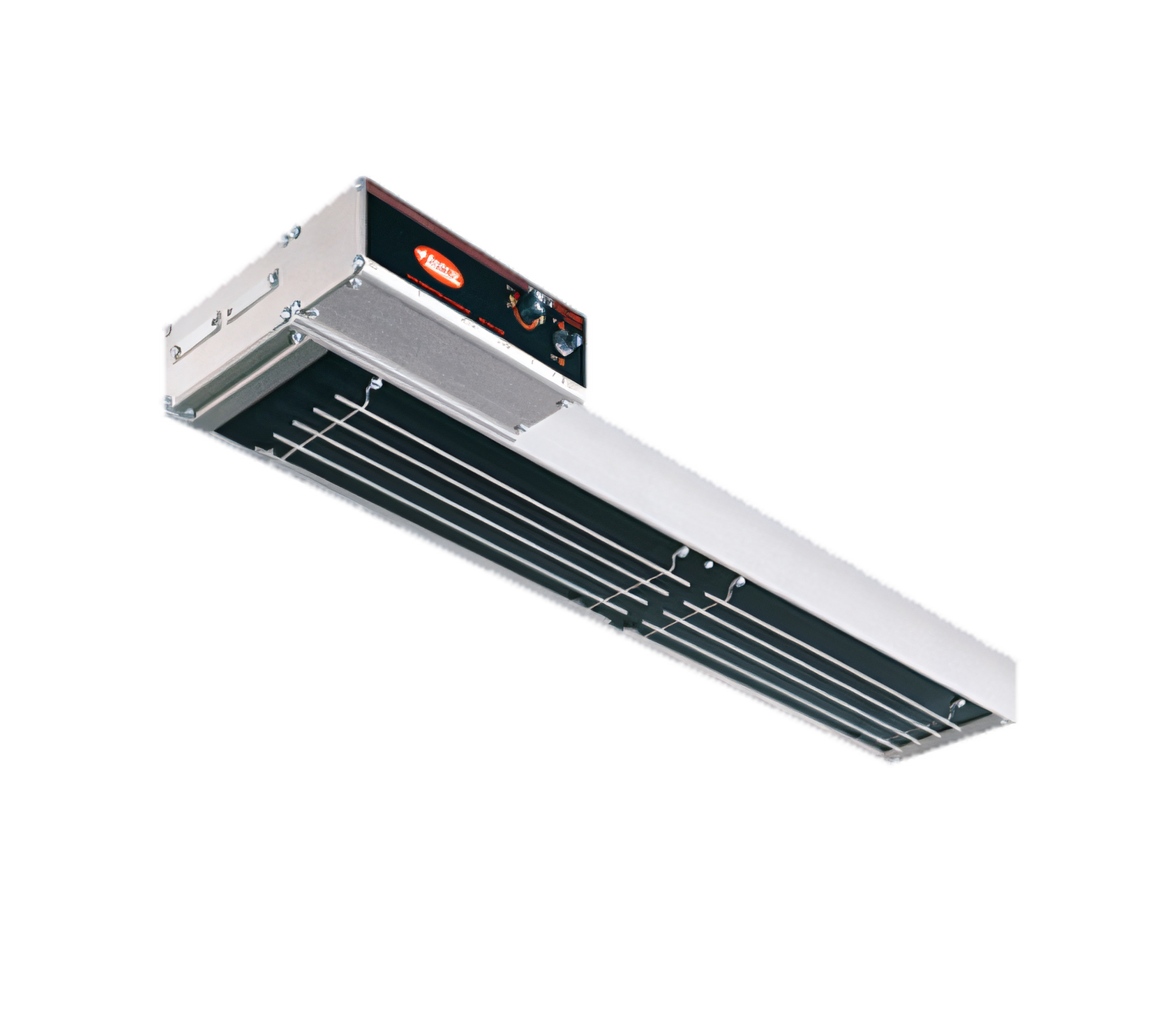

Hatco Glo-Ray® High-Watt Dual Infra-Black Strip Heater – 66"
Model GRAIH-66D | 3120 W | NSF • CE • cULus • Made in USAKeep menu items hot, appetizing and ready to serve with the industry-leading Glo-Ray® Infra-Black® technology. The 66 inch GRAIH-66D delivers a solid blanket of even infrared heat without hot spots, making it the perfect solution for buffets, pass-through stations, pizza lines and more.
Why You’ll Love It
- High-Watt Performance – 3120 watts of focused infrared heat keeps food safely above 140 °F (60 °C) even during peak periods.

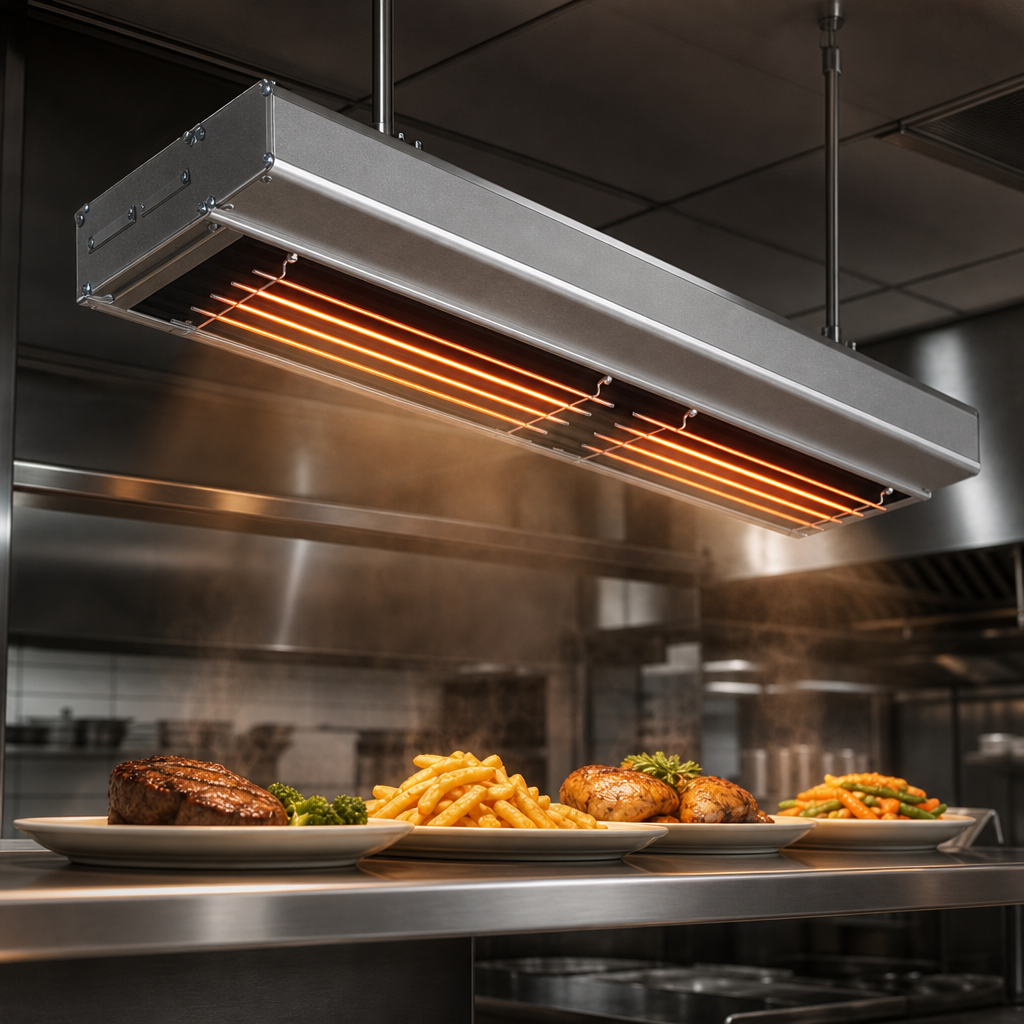

- Dual Heater Housing – Two heaters in one 3" spaced aluminum extrusion double the heat intensity for demanding applications.

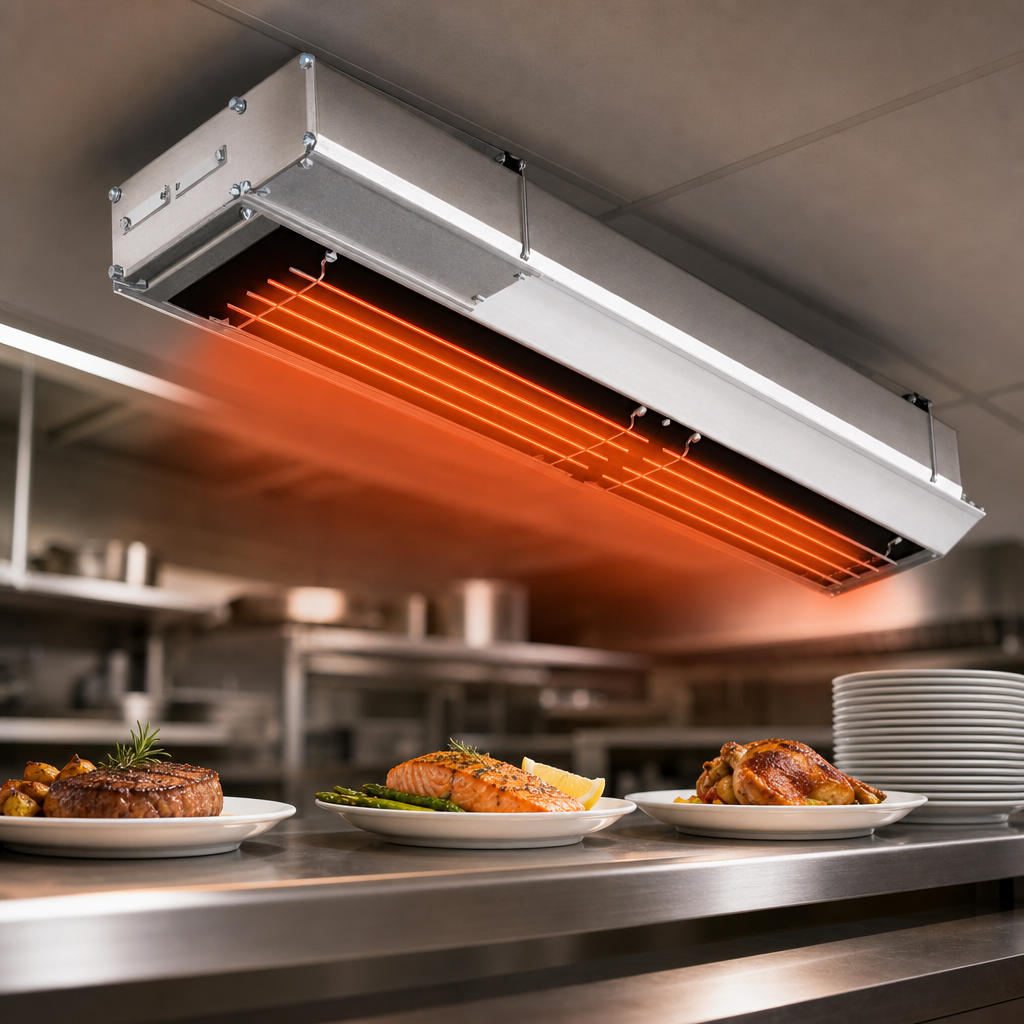

- Infra-Black® Emitter – Provides a broad, uniform heat pattern ideal for close-clearance mounting (8–14" / 203–356 mm).
- Metal-Sheathed Elements – Heavy-duty elements are backed by a 2-year no-burnout warranty.
- Cool-to-Touch Exterior – Internal high-density insulation keeps the housing temperature low for safer work areas.
- Built to Last – One-piece extruded aluminum will not sag over time and resists corrosion.
- Flexible Mounting – Compatible with angle brackets, chain suspension, or tubular stands (all sold separately) for easy installation over counters or wells.
- Designer Finishes – Upgrade the look of your serving line with 15 optional powder-coat or gloss colors in addition to standard clear anodized.
Need-to-Know Installation Facts
- Recommended mounting height: 8–14" (203–356 mm) above a metallic target surface.
- Standard 3 ft (914 mm) leads on 208 V units; longer leads available.
- 3" (76 mm) spacer supplied; optional 6" (152 mm) spacer available for overshelf clearance.
- Remote control box required – choose infinite toggle, thermostatic, or RMB series enclosure.
Technical Specifications
| Model | GRAIH-66D |
|---|---|
| Overall Width | 66" (1676 mm) |
| Heat Source | Dual metal-sheathed Infra-Black® elements |
| Wattage | 3120 W |
| Voltage / Phase | 208 V / 1 ph – 15.0 A 220 V / 1 ph – 14.2 A 240 V / 1 ph – 13.0 A |
| Construction | One-piece extruded aluminum housing with high-density insulation |
| Standard Spacer | 3" (76 mm) between heater housings |
| Approx. Ship Weight | 44 lb (20 kg) |
| Certifications | NSF, CE, cULus |
| Country of Origin | USA |
Popular Options & Accessories
- Protective element wire guard (set of two)
- 6" (152 mm) spacer for increased clearance
- Non-adjustable tubular stands (4" – 14" clearance)
- Chef-LED bulbs (for GRAIHL models with lights)
- Designer color housings & matching remote boxes
- Chain suspension kit or adjustable angle brackets for under-shelf mounting
Hatco Corporation provides 24/7 parts and service assistance throughout the U.S. and Canada. Full warranty details are included with the unit.
