Hatco GRAIH-60D6 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® GRAIH-60D Dual Infra-Black Strip Heater – 60 in
High-watt, metal-sheathed element | 2800 W | NSF & cULus ListedKeep entrées, sides and plated orders at perfect serving temperature without cooking them further. The Hatco Glo-Ray® GRAIH-60D delivers a solid curtain of Infra-Black® heat across a full 60 inches, making it the go-to warmer for full-size steam tables, pass-through windows and buffet lines.
Why You’ll Love It

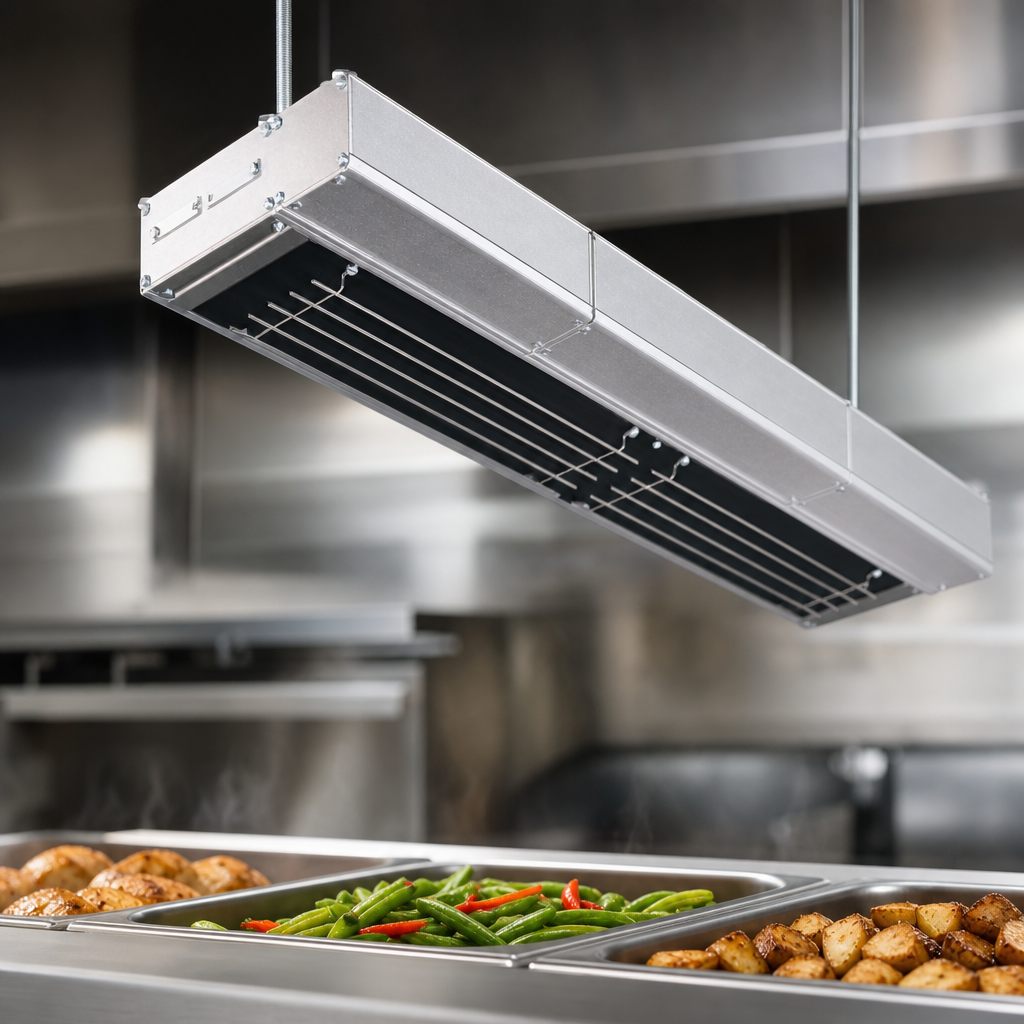

- Dual 60 in heater housings with 6 in spacing blanket large pans and platters evenly.
- High-watt metal-sheathed elements (2800 W) emit uniform infrared heat—no dangerous hot spots.

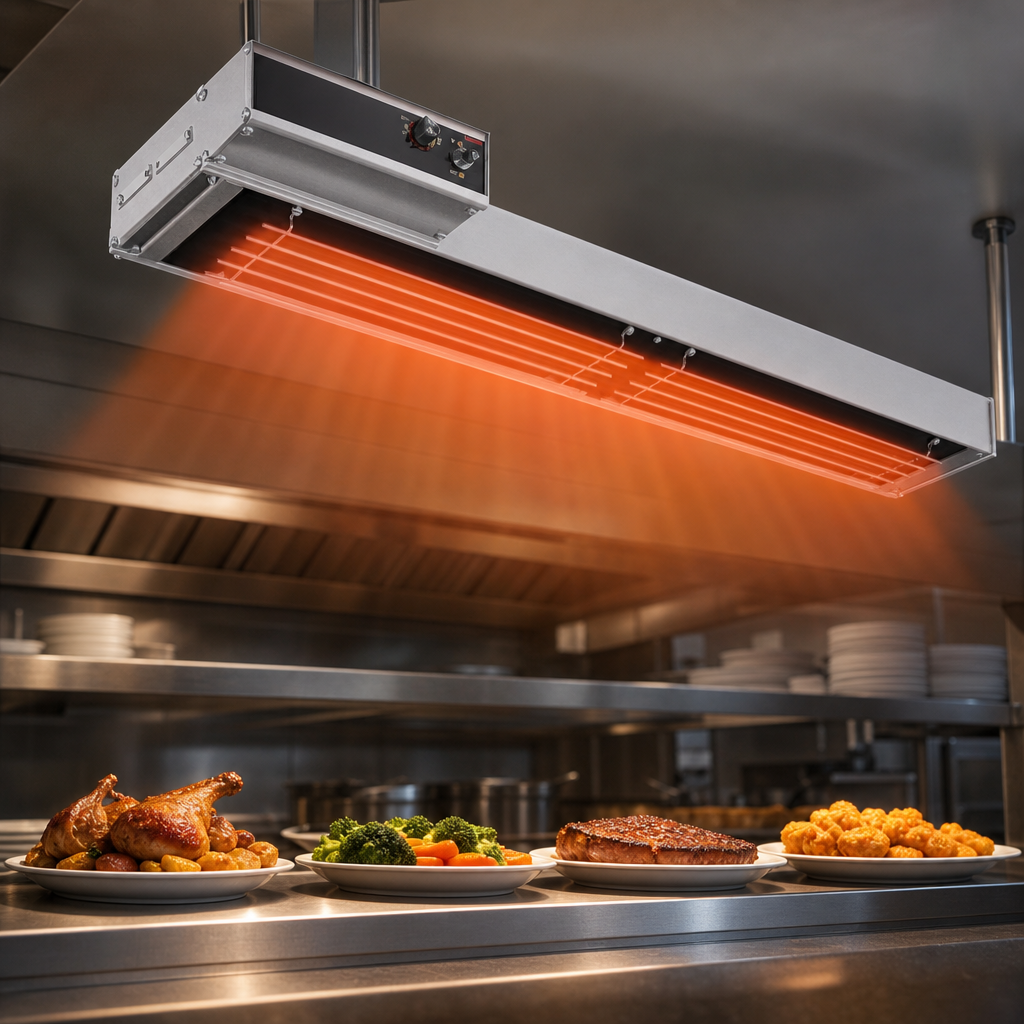

- Infra-Black® technology is ideal for close-range warming (8–14 in above the food).
- Extruded aluminum construction will not sag and stays cool to the touch thanks to heavy-duty insulation.
- Elements are backed by Hatco’s 2-year burnout & breakage warranty for worry-free ownership.
- NSF, CE and cULus certifications meet demanding food-service safety standards.
- Built, tested and shipped from Sturgeon Bay, Wisconsin, USA.
Quick-Glance Specs
| Model | GRAIH-60D |
|---|---|
| Heat Source | Dual metal-sheathed Infra-Black® elements |
| Overall Width | 60 in (1524 mm) |
| Depth × Height | 18 in × 2.6 in (457 mm × 66 mm) (18 in depth reflects supplied 6 in spacer) |
| Clearance to Food | 8–14 in (203–356 mm) above metallic target surface |
| Wattage | 2800 W |
| Electrical | 208 V / 13.5 A • 240 V / 11.7 A Single-phase hard-wire connection |
| Shipping Weight | ≈ 46 lb (21 kg) |
| Construction | Continuous extruded aluminum housing, insulating fiber board |
| Warranty | 2 yrs parts & labor on heating elements |
| Certifications | NSF, CE, cULus |
| Country of Origin | Made in USA |
Installation & Operation
- Mount from 8–14 in above the holding surface for best results.
- Unit ships with 3 ft leads; conduit exits back of unit.
- Optional angle brackets, tubular stands or chain kits simplify mounting under shelves or overshelves.
- Choose from more than a dozen Designer and Gloss colors at time of order to match your décor.
Need a size or voltage not listed? Contact us for the complete Hatco Glo-Ray family of strip heaters.
