Hatco GRAIH-60D3 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® High-Watt Dual Infra-Black Strip Heater – 60" Wide (GRAIH-60D)
2800 Watts • Dual Housing • Metal-Sheathed ElementsKeep plated meals and grab-&-go pans at a perfect serving temperature without sacrificing product quality. The Hatco GRAIH-60D delivers an even, infrared “curtain” of heat across a full 5 ft span, making it ideal for pass-through windows, buffet lines, and cooklines that demand consistent, high-capacity holding power.
Why Youʼll Love It

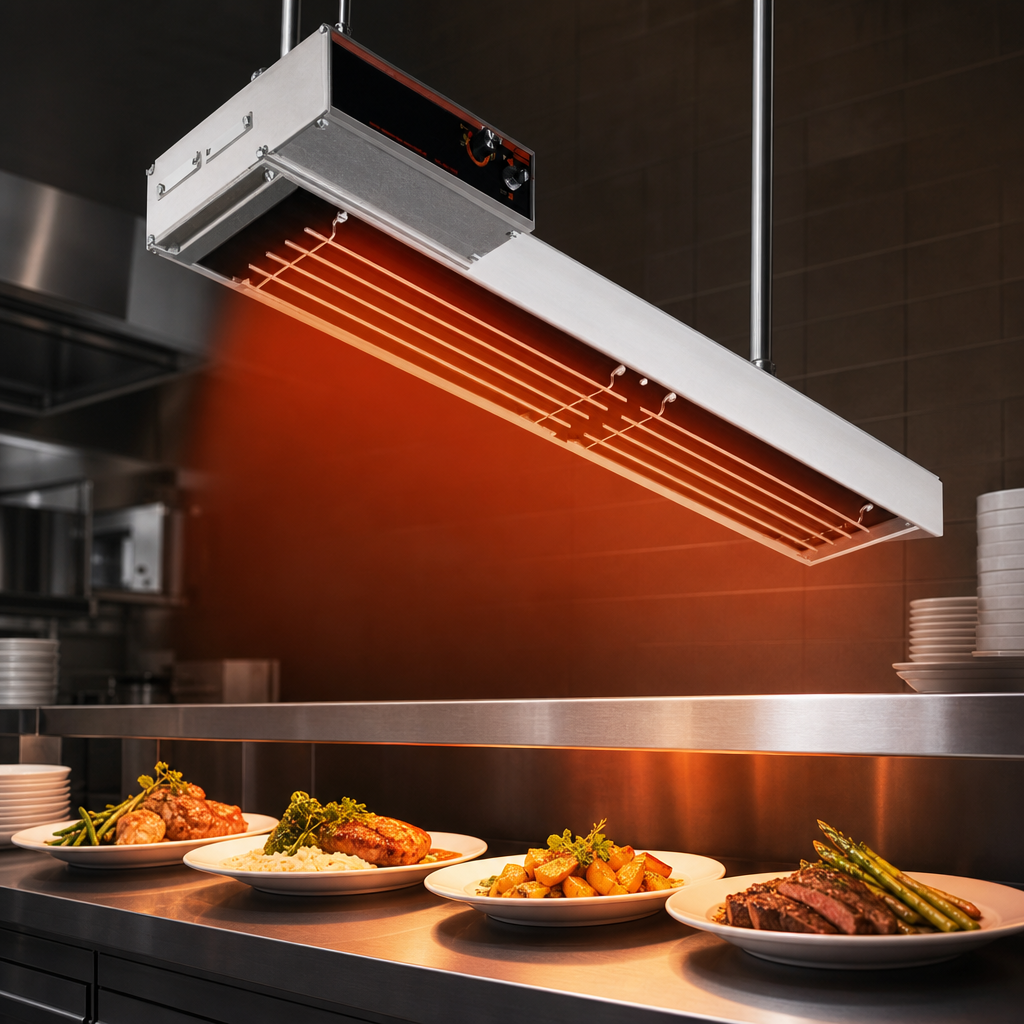

- Infra-Black® Technology – Emits a solid, uniform heat pattern that eliminates hot spots and cold zones.
- High-Watt Performance – 2800 W of power keeps entrées, sides, and proteins at food-safe temps even during rush periods.

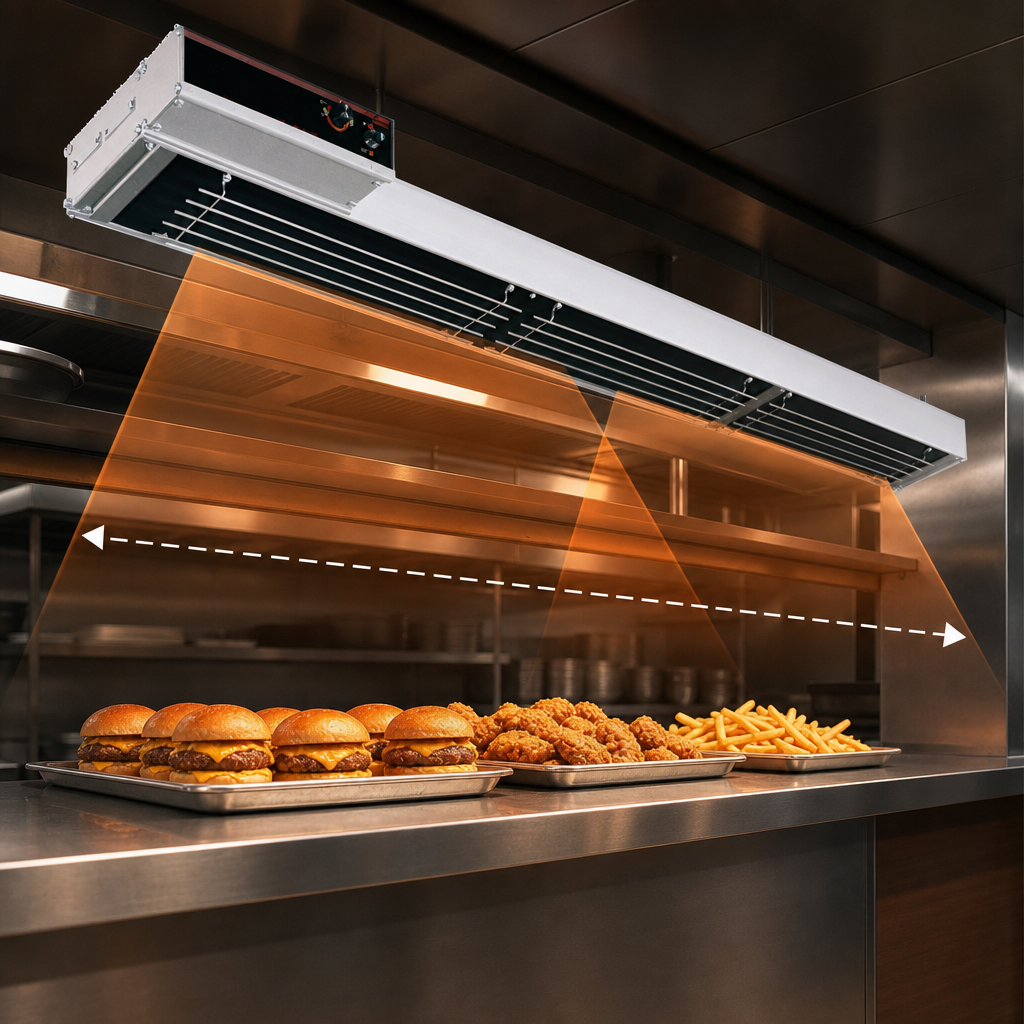

- Dual 3" Heater Housing – Two heat tubes, spaced 3" apart, blanket the entire holding area for maximum coverage.
- Durable Construction – Rigid, extruded aluminum housing won’t sag; heavy-duty insulation keeps the exterior cool to the touch.
- Metal-Sheathed Elements – Backed by a 2-year no-burnout guarantee for worry-free ownership.
- Space-Saving Mounting – Install 8"–14" above a metallic target surface; perfect for limited-height pass-thru applications.
- Safety & Compliance – NSF, cULus, and CE listed; proudly made in the USA.
At-a-Glance Specs
| Model | GRAIH-60D |
|---|---|
| Overall Width | 60" (1524 mm) |
| Depth (with 3" spacer) | 15" (381 mm) |
| Height | 2.6" (66 mm) |
| Wattage | 2800 W |
| Voltage / Amps |
208 V – 13.5 A 240 V – 11.7 A 220-230 V (CE) – 12.7-13.3 A |
| Phase | Single |
| Mounting Height | 8"–14" (203-356 mm) above food surface |
| Housing Material | Extruded aluminum, clear anodized |
| Certifications | NSF • cULus • CE |
| Shipping Weight | ≈ 46 lb (21 kg) |
| Country of Origin | USA |
Make It Yours
- Designer powder-coat or gloss finishes in 15+ colors (Warm Red, Bold Black, Brilliant Blue, and more).
- 6" spacer for wider heat pattern.
- Protective element wire guard.
- Remote control enclosures with toggle, infinite, or thermostatic controls.
- Non-adjustable tubular stands or chain suspension kits.
Need help sizing controls or selecting mounting hardware? Our team is ready to assist—just reach out via the chat or hatcocorp.com.
