Hatco GRAIH-54D3 Glo-Ray® Heat Lamps
Description

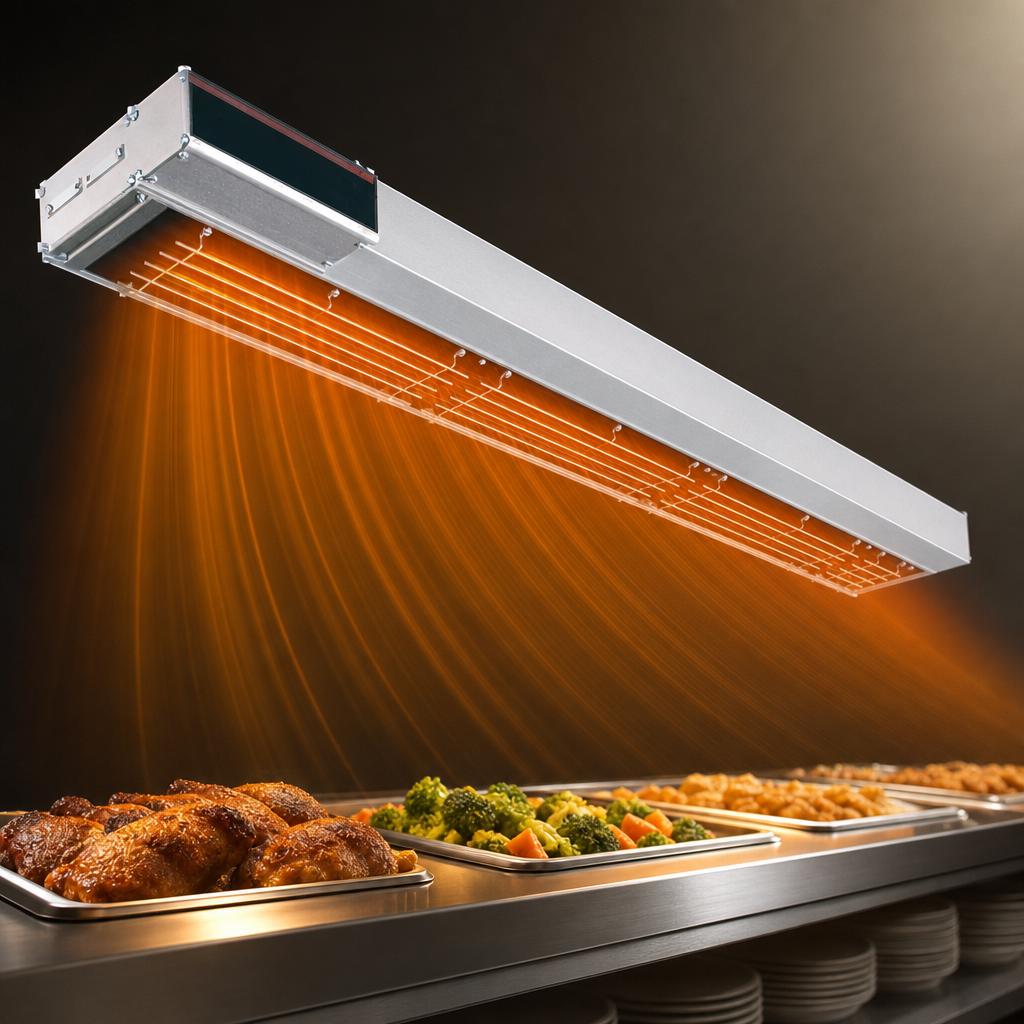

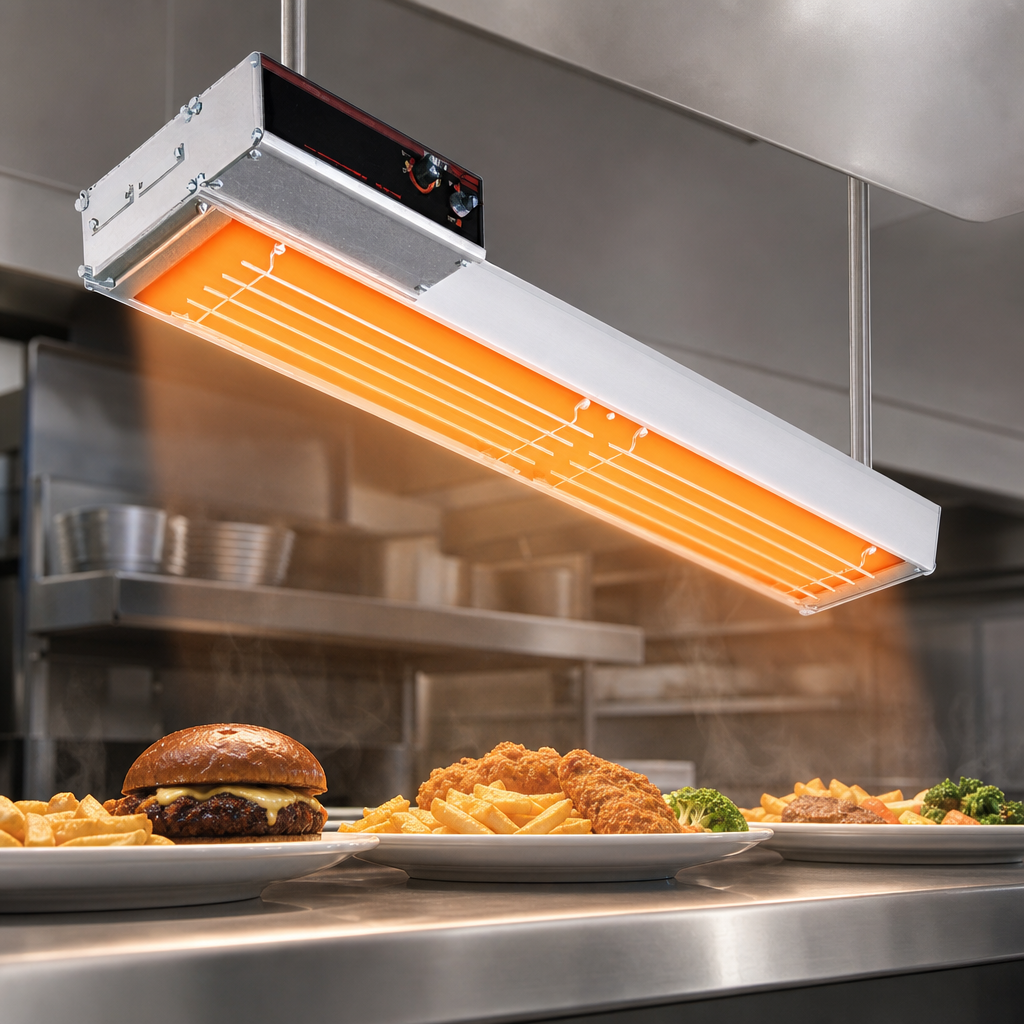

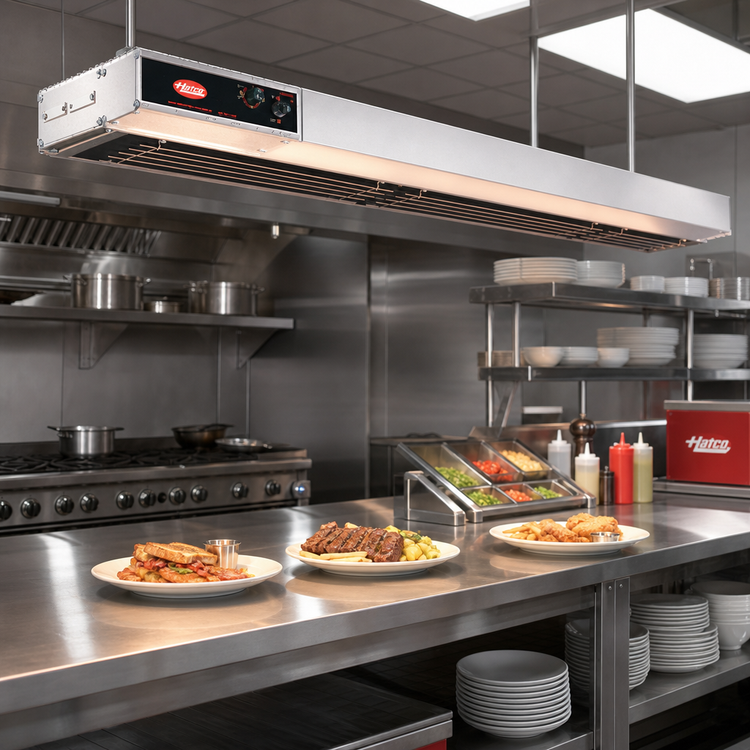

Hatco Glo-Ray® High-Watt Dual Infra-Black Strip Heater – 54" (Model GRAIH-54D)
2500 W | NSF, CE, cULus | Made in USAHold plated meals, pans, and trays at perfect serving temperature without drying or over-cooking. Hatco’s 54" Glo-Ray® Dual Infra-Black heater blankets product with a broad, even sheet of infrared heat while its aluminum housing stays cool to the touch—ideal for busy pass-through windows, buffet lines, and make-up stations.
Why you’ll love it
- Dual high-watt Infra-Black elements deliver uniform, spot-free heat across the entire 54" width.
- Metal-sheathed elements are guaranteed for two years against burnout or breakage.
- Extruded aluminum housing resists sagging and includes heavy-duty insulation to keep exterior surfaces cooler.
- Factory-set 3" (76 mm) spacer positions the heater for close-range, energy-efficient warming.
- Certified NSF, CE and cULus for worldwide food-service compliance.
- Made in Milwaukee, WI and backed by Hatco’s renowned 24/7 parts & service network.
Product specifications
| Model | GRAIH-54D (no lights) |
|---|---|
| Overall dimensions | 54" W × 15" D × 2.6" H (with standard 3" spacer) |
| Construction | Anodized extruded aluminum housing with heavy-duty insulation |
| Heating elements | Dual metal-sheathed Infra-Black tubes, 2500 W total |
| Electrical (single-phase) |
208 V / 12.0 A • 240 V / 10.4 A • 220 V / 11.4 A 120 V version available (remote control only) |
| Recommended mounting height | 8"–14" (203–356 mm) above a metallic target surface |
| Shipping weight | ≈ 41 lb (19 kg) |
| Certifications | NSF • CE • cULus |
| Country of origin | USA |
Make it your own
Choose from a full palette of Hatco designer colors or gloss metallic finishes, add 6" spacers for extra clearance, or pair with non-adjustable tubular stands for countertop use. Contact us for lead times and configuration assistance.
