Hatco GRAIH-48D6 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® Dual Infra-Black Strip Heater – 48" (GRAIH-48D-6)
High-Watt • 6" Spacer • 2200 W • NSF, CE, cULus • Made in USAGive every plate the just-cooked appeal diners love. Hatco’s 48" Glo-Ray® Infra-Black heater delivers a solid curtain of infrared warmth that keeps food hot, fresh and ready for service—without cooking it further. The high-watt dual housing and optional 6" spacer maximize heat coverage for wide steam tables, pass-throughs and buffet lines while the metal-sheathed elements ensure long-term durability in the busiest kitchens.
Why You’ll Love It
- High-watt dual emitters (2 × 2200 W) provide intense, even heat with zero “cold spots.”

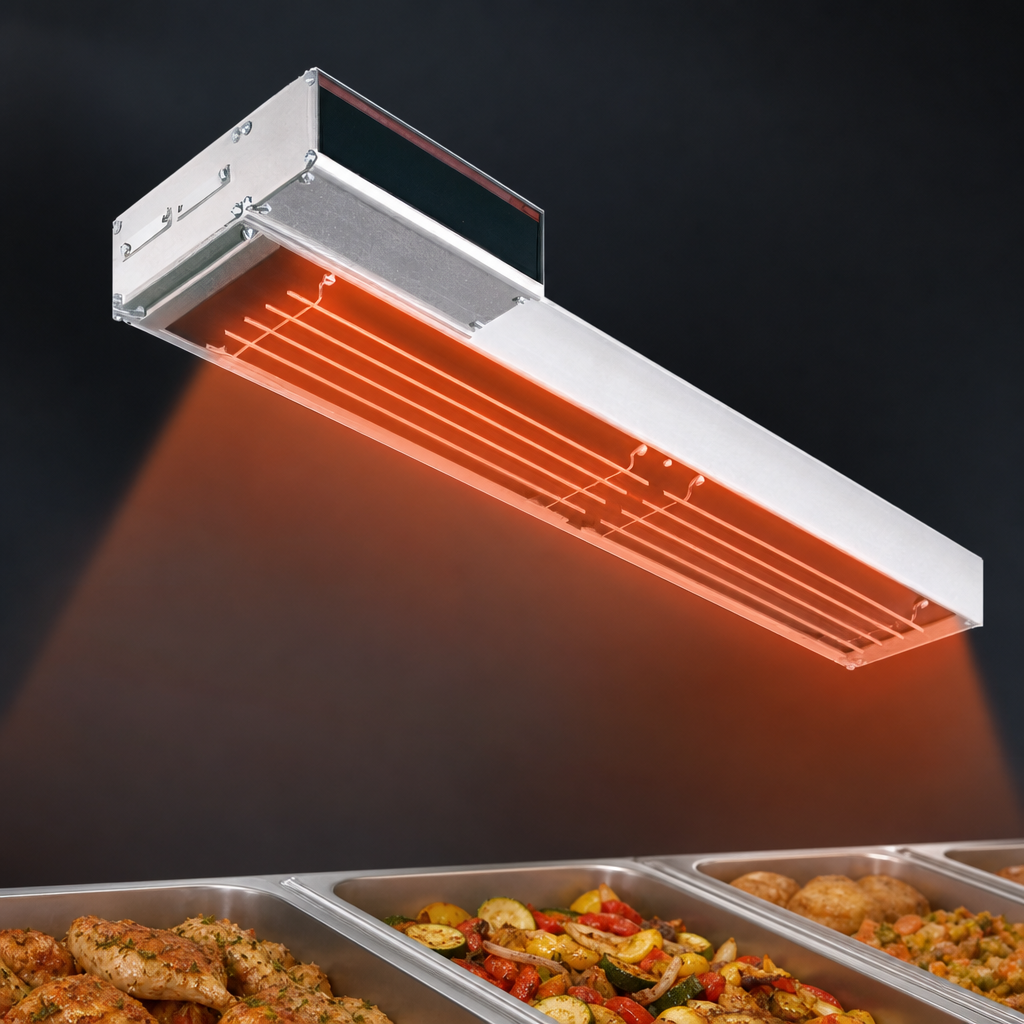

- Infra-Black technology focuses radiant energy directly on the holding area for 8–14" (203–356 mm) mounting heights.
- 6" (152 mm) factory-installed spacer increases heat zone depth to 18", ideal for full-size pans and platters.
- Rugged one-piece extruded aluminum housing will not sag—even at 48" spans.
- Heavy-duty insulation keeps the exterior cool to the touch and saves energy.
- Metal-sheathed elements are guaranteed for two years against burnout or breakage.
- Certified NSF, CE and cULus for safe, worldwide installation.
- Proudly Made in the USA and backed by Hatco’s 24/7 Parts & Service network.
Key Specifications
| Model | GRAIH-48D-6 (Dual, High-Watt, 6" spacer) |
|---|---|
| Overall Dimensions | 48" W × 18" D × 2.6" H (1219 × 457 × 66 mm) |
| Heat Output | 2200 W |
| Voltage / Phase | 208 V / 1 ph – 10.6 A 240 V / 1 ph – 9.2 A 220–230 V (CE) – ≈10 A |
| Clearance to Food | 8–14" (203–356 mm) above a metallic target surface |
| Construction | One-piece extruded aluminum with heavy-duty insulation |
| Certifications | NSF • CE • cULus |
| Shipping Weight | ≈ 33 lb (15 kg) (add 2–8 lb for remote control enclosure) |
| Warranty | 2-yr element warranty • 1-yr parts & labor |
Popular Options (factory installed)
- Designer or Gloss-Finish housings in Warm Red, Bold Black, Brilliant Blue and more.
- Protective wire guard set.
- Angle brackets, tubular stands or chain suspension kits for easy mounting.
- Remote control enclosures (toggle, infinite or thermostatic) in matching colors.
Need a different length, voltage or finish? Chat with our team to configure the perfect Hatco Glo-Ray® solution for your venue.
