Hatco GRAIH-48D3 Glo-Ray® Heat Lamps
Description
Glo-Ray® High Watt Dual Infra-Black Strip Heater – 48" (Model GRAIH-48D)
Powerful 2200 W overhead warmer with dual metal-sheathed elementsKeep plated meals, pizzas, appetizers and grab-and-go items at perfect serving temperature without sacrificing texture or appearance. Hatco’s 48" Glo-Ray® Infra-Black technology blankets food in a uniform panel of infrared heat, eliminating cold spots while preventing product dry-out or over-cooking—ideal for pass-through, buffet and quick-service lines where holding quality is everything.
Why you’ll love it

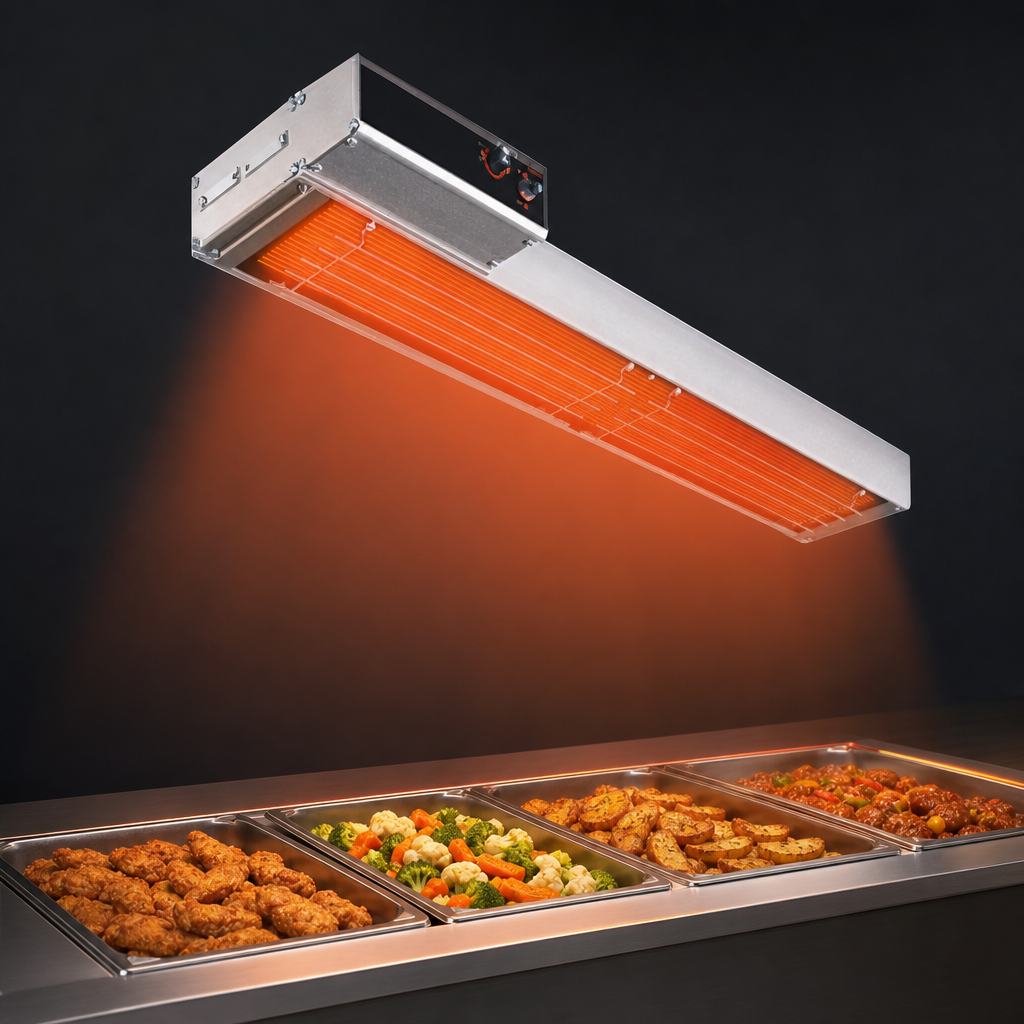

- Even, close-range heating – Infra-Black emitters deliver a continuous sheet of heat 8"–14" above the food surface.

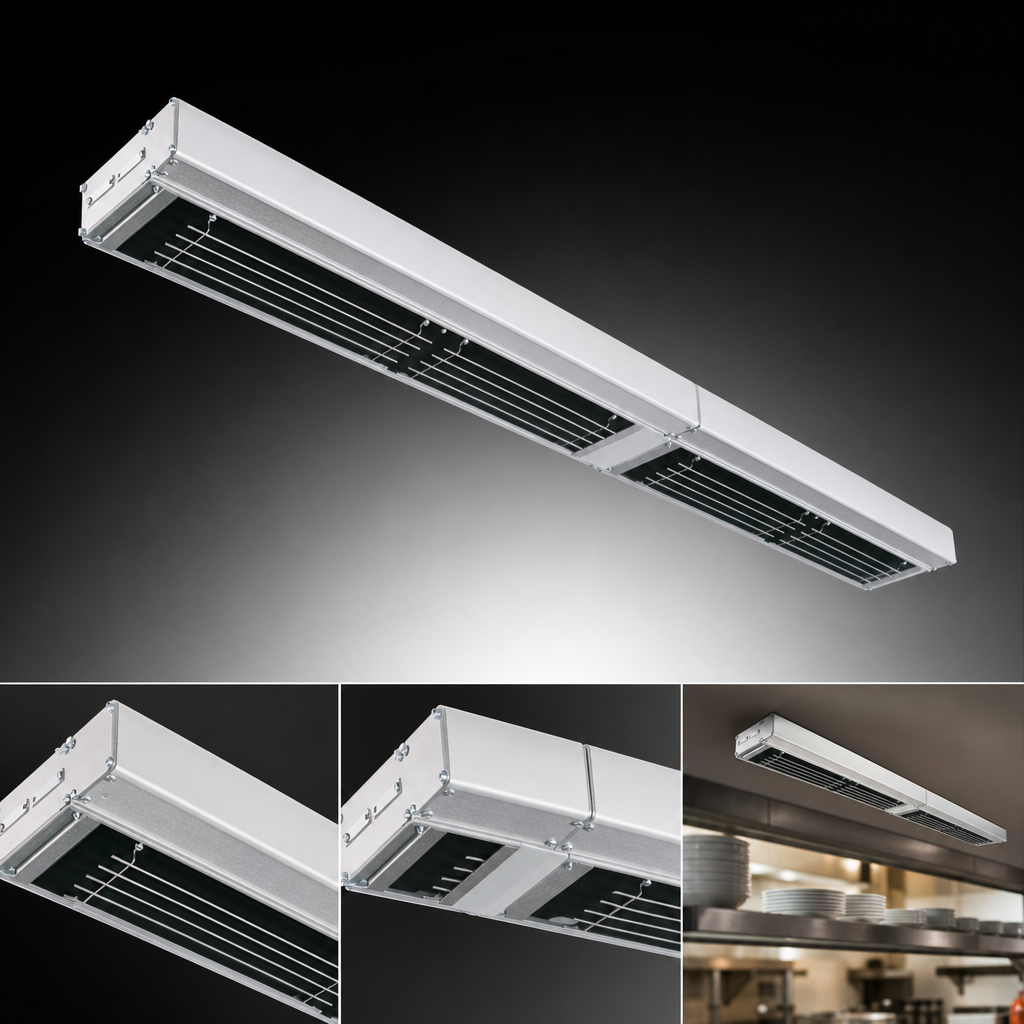

- High-watt, dual housing – Twin 1100 W elements (2200 W total) provide rapid heat recovery for busy service periods.
- Metal-sheathed elements – Rugged, easy-to-clean and backed by a 2-year burnout/breakage warranty.
- Stay-cool exterior – Heavy-duty insulation keeps the extruded aluminum housing comfortable to the touch.
- No sagging – One-piece 6063-T5 aluminum resists twisting or bowing, even at 48" wide.
- Field-configurable – Multiple mounting kits, designer colors, spacers and controls let you match any station layout.
- Certified & sustainable – NSF, cULus, CE listed and proudly Made in the USA.
Technical specifications
| Model | GRAIH-48D |
|---|---|
| Overall dimensions | 48" W × 15" D × 2.6" H (1219 × 381 × 66 mm) – with standard 3" spacer |
| Heating elements | Dual metal-sheathed Infra-Black emitters, 3" (76 mm) spacing |
| Total wattage | 2200 W (high-watt) |
| Voltage / phase | 208 V / 1 ph (10.6 A) • 220 V / 1 ph (10.0 A) • 240 V / 1 ph (9.2 A) 120 V models available with remote control only |
| Construction | One-piece extruded anodized aluminum housing with high-temperature insulation |
| Certifications | NSF • CE • cULus |
| Shipping weight | 33 lb (15 kg) – remote control enclosure adds 2-8 lb |
Performance data based on single-phase operation with standard 3" spacer.
Popular factory options (ordered with unit)
- 6" (152 mm) spacer for added clearance
- Protective element wire guard
- Designer & gloss color housings – 12+ powder-coat and metallic finishes
- Remote control enclosures (RMB series) with toggle, infinite or thermostatic switches
- Attached thermostatic control box with indicator lights
- Non-adjustable tubular stands (4"–14" heights)
- Angle brackets or chain suspension kits
Hatco backs every Glo-Ray® heater with a 24/7 parts-and-service network and a 2-year parts & labor warranty on the metal-sheathed elements.
