Hatco  |  Glo-Ray®  |  SKU: GRAIH-36D6

Hatco GRAIH-36D6 Glo-Ray® Heat Lamps

$950.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Color chart Owner's manual Catalog brochure
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

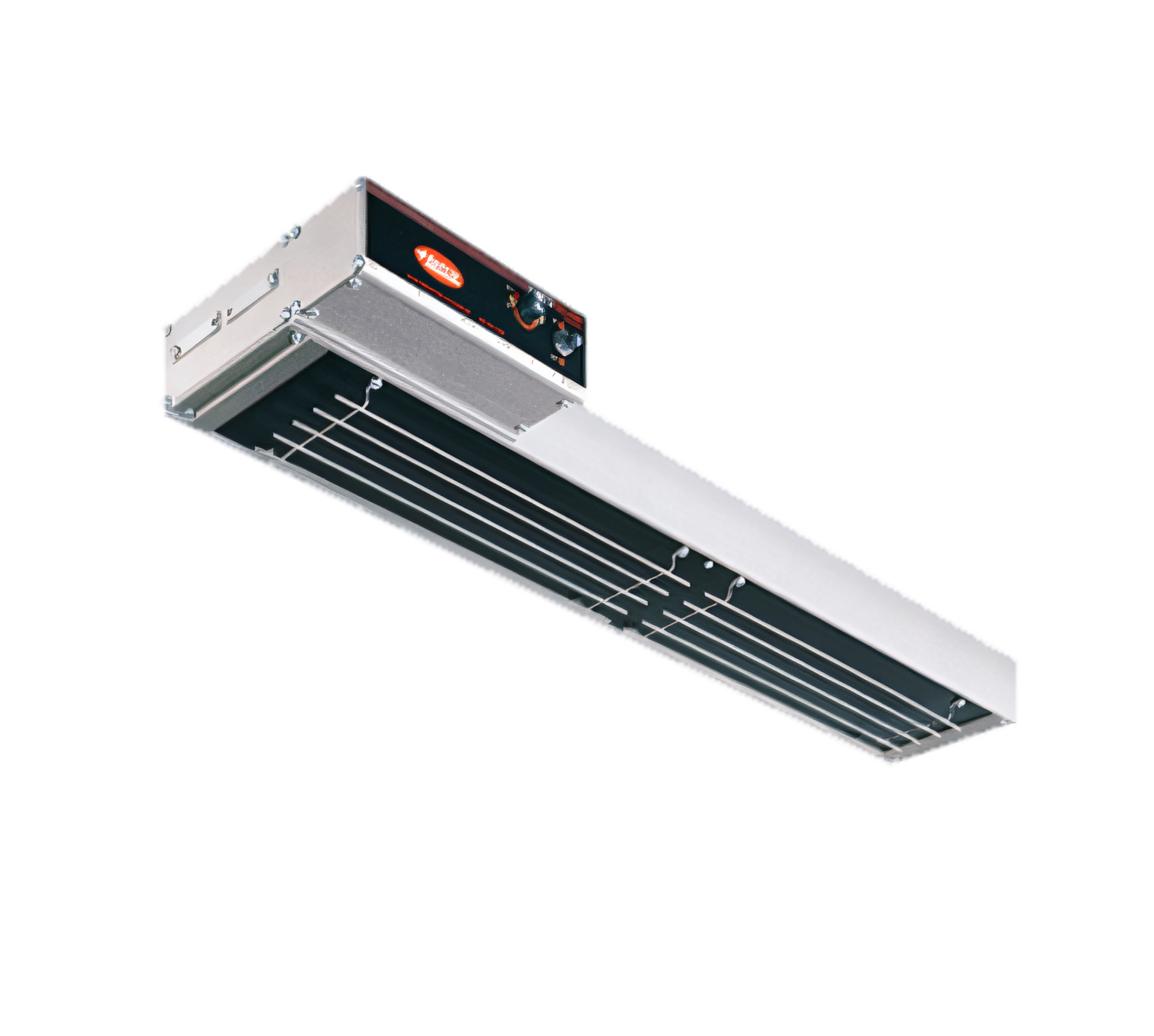

Hatco Glo-Ray® GRAIH-36D Dual Infra-Black Strip Heater – 36"

High-watt, double-housing food warmer with 6" spacing

Deliver consistent, even heat to your plating line, pass-through window or buffet with Infra-Black® technology from Hatco. The GRAIH-36D packs 1,600 watts of focused infrared energy into a rugged 36-inch aluminum housing—keeping food hot, appetizing and safe without over-drying or heating your kitchen.

Key Features

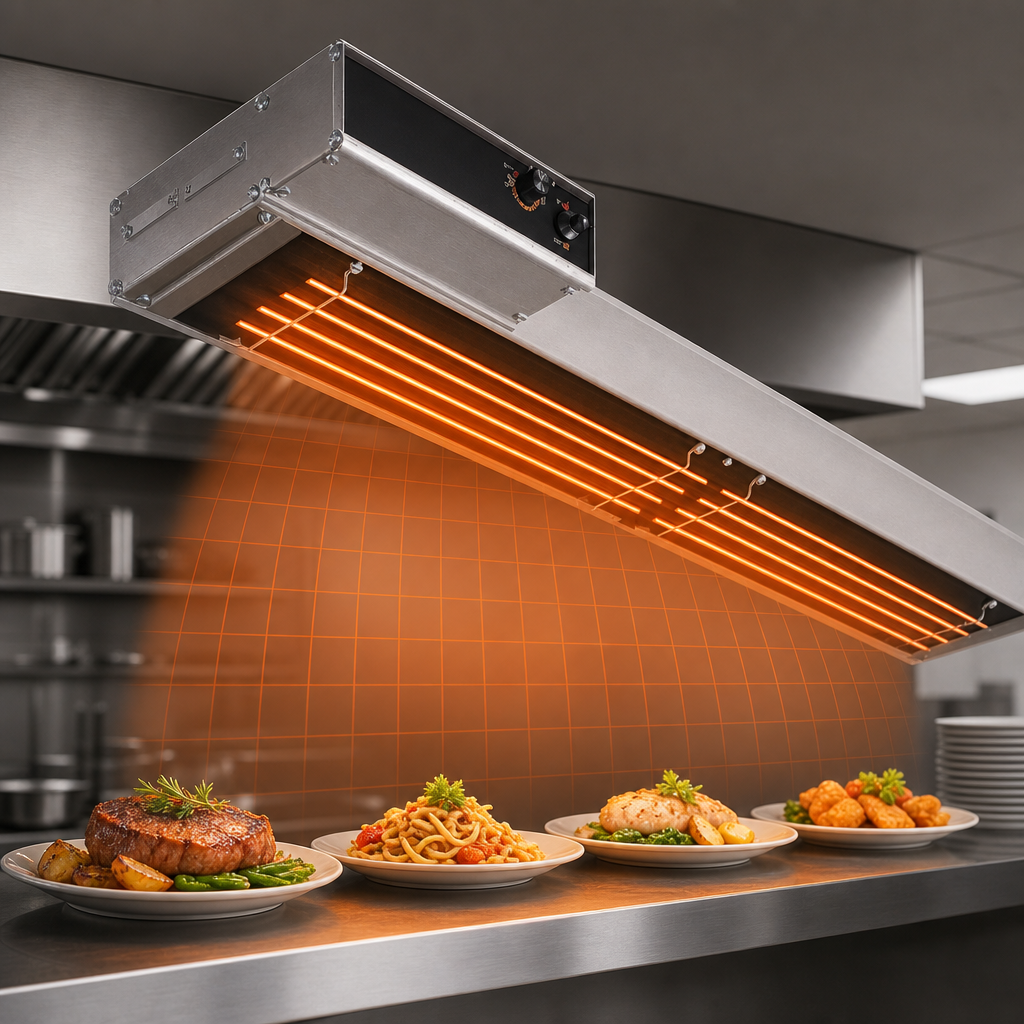

  • Uniform Infra-Black® heat panel eliminates hot and cold spots for close-range warming (8"–14" above food).

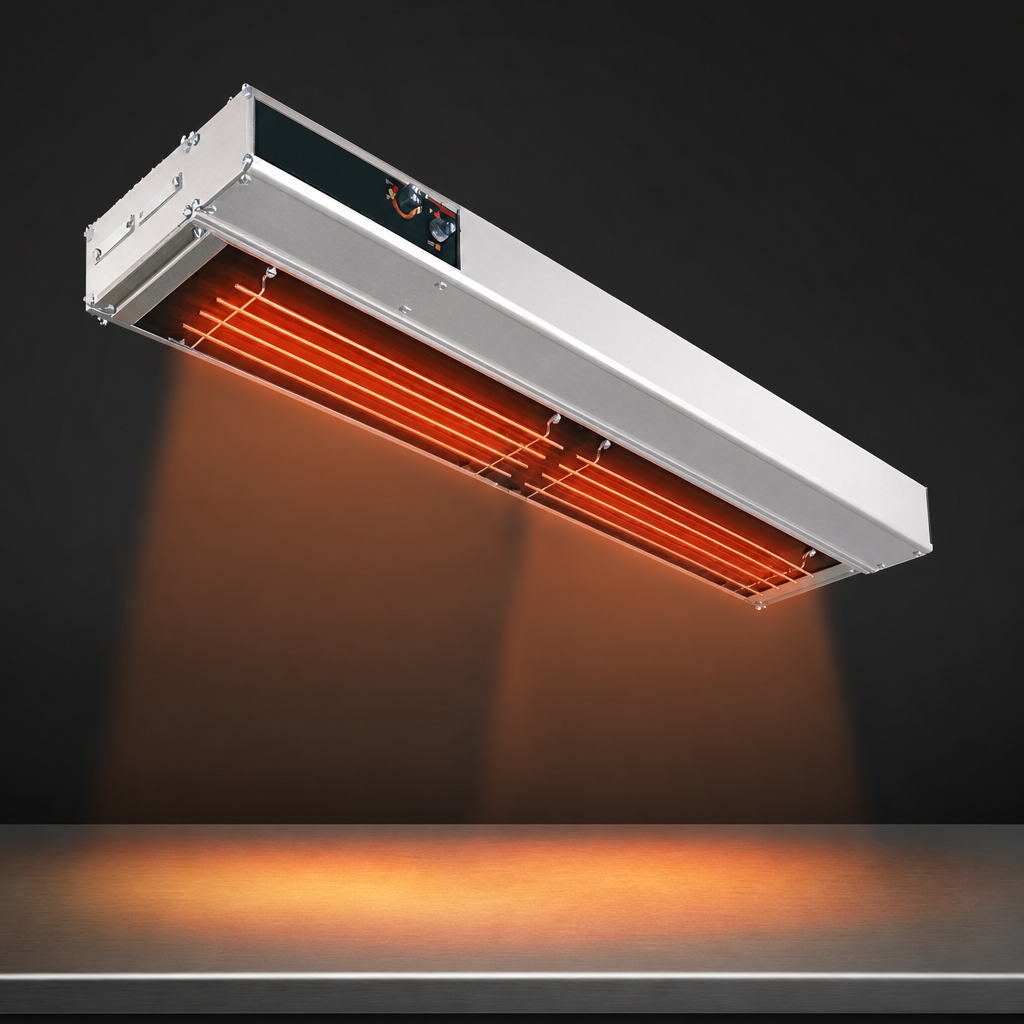

  • High-watt 1,600 W output in a dual-housing design for maximum holding power the full length of the unit.
  • 6" (152 mm) spacer between housings concentrates heat directly on the product zone.
  • Extruded aluminum construction that won’t sag; heavy-duty insulation keeps the exterior cool to the touch.
  • Metal-sheathed heating elements backed by a 2-year burnout & breakage guarantee.
  • NSF, CE & cULus listed; proudly made in Milwaukee, Wisconsin USA.
  • Remote control enclosures, thermostatic control boxes, mounting hardware & designer colors available.

Ideal For

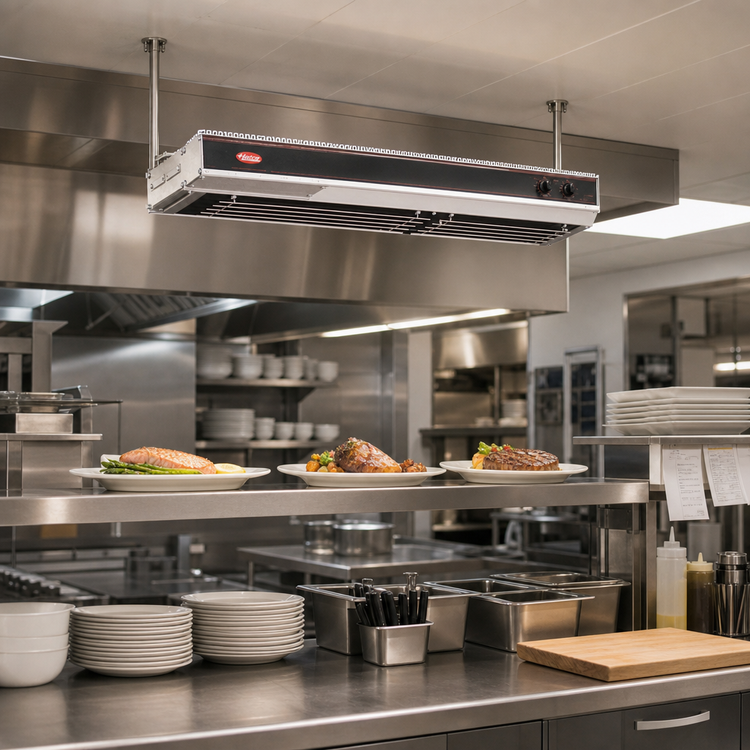

  • Restaurant pass-through windows
  • Quick-serve expo counters
  • Cafeteria and buffet lines
  • C-stores & concessions needing spot warming

Specifications

Model GRAIH-36D (High-Watt, Dual Housing)
Overall Width 36" (914 mm)
Depth 18" (457 mm) with 6" spacer
Height 2.6" (66 mm)
Wattage 1,600 W
Electrical 208 V / 7.7 A  •  240 V / 6.7 A  •  220-230 V (CE) / 7.3 – 7.6 A
Heating Element Metal-sheathed Infra-Black
Certifications NSF, CE, cULus
Construction Extruded aluminum with heavy-duty insulation
Country of Origin USA
Warranty 2 years parts & labor; 2 years element burnout coverage

Unit ships without a control—add a remote toggle, infinite or thermostatic control box to complete your installation. Mount no less than 18" (457 mm) from combustible surfaces and follow local electrical codes.

Important: Install the remote control box outside the strip heater’s heat zone to prevent damage.

Optional Accessories

  • RMB series remote control enclosures (toggle or infinite switches)
  • Attached thermostatic control box with indicator lights
  • Protective element wire guards
  • Non-adjustable tubular stands (4"–14" clearance)
  • Adjustable angle brackets or chain suspension kits
  • Designer powder-coat & gloss finishes with antimicrobial additive

Need help configuring controls or mounting? Chat with our food-service equipment experts for a complete warming solution.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

36.0in

Depth

18.0in

Shipping Weight

27.0lbs

Finish

aluminum

Type of element

black panel heating system

Size

double

Type

unlighted

Length

31 - 36"

Specifications

Glo-Ray® Infrablack Strip Heater, 36" W, high wattage, metal sheathed heating element, double heater housing 6" spacing, aluminum construction, 1600 watts, NSF, CE, cULus, Made in USA
