Hatco  |  Glo-Ray®  |  SKU: GRAIH-36D3

Hatco GRAIH-36D3 Glo-Ray® Heat Lamps

$950.70
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

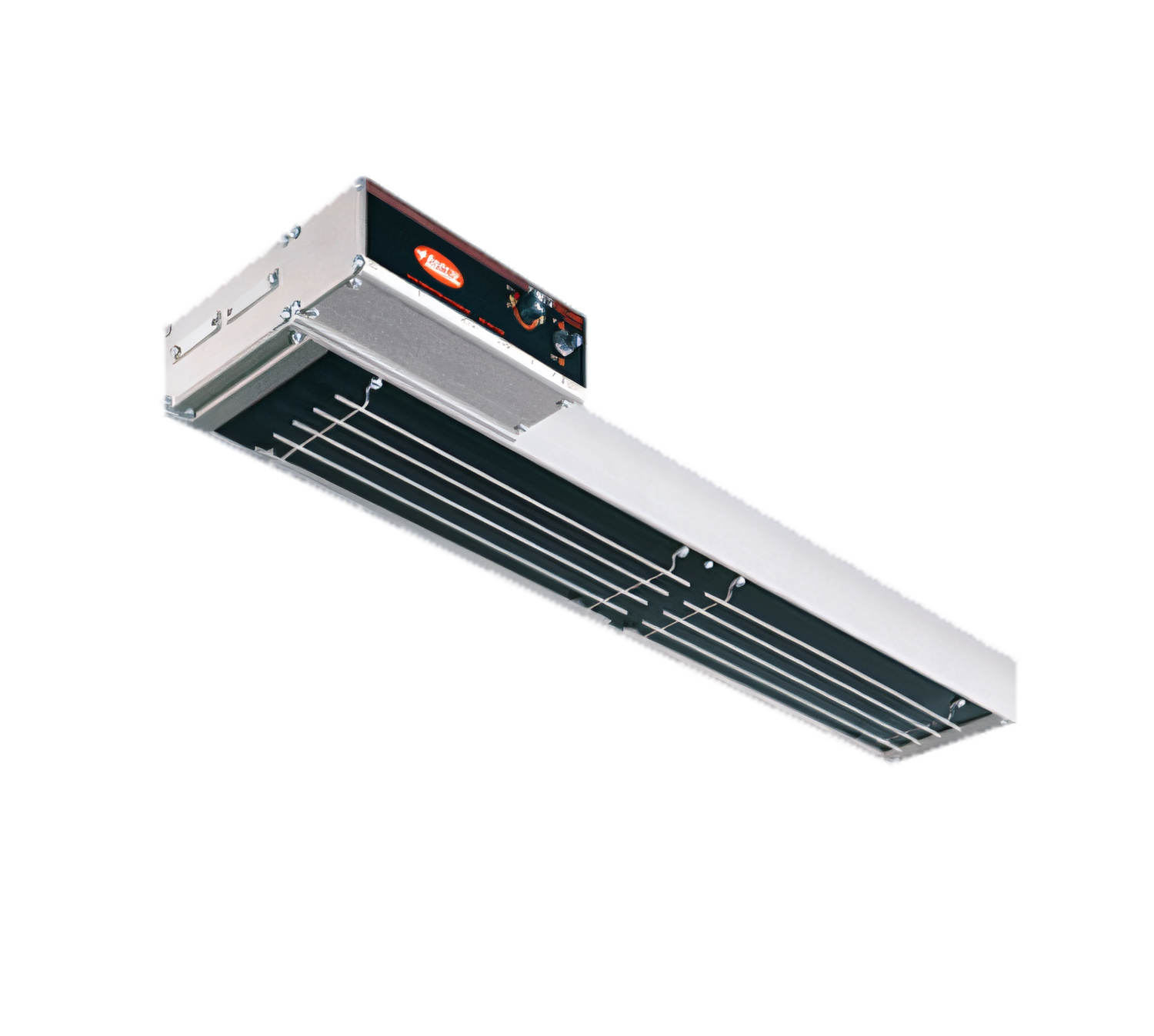

Hatco Glo-Ray® Infra-Black Strip Heater – 36" Dual High-Watt

Model GRAIH-36D | 1600 W | NSF & cULus Listed | Made in USA

Designed for tight clearances and high-volume service, the Hatco Glo-Ray GRAIH-36D surrounds a 36 inch holding zone with a uniform curtain of infrared heat, keeping food hot, fresh and ready to serve without over-cooking.

Why you’ll love it

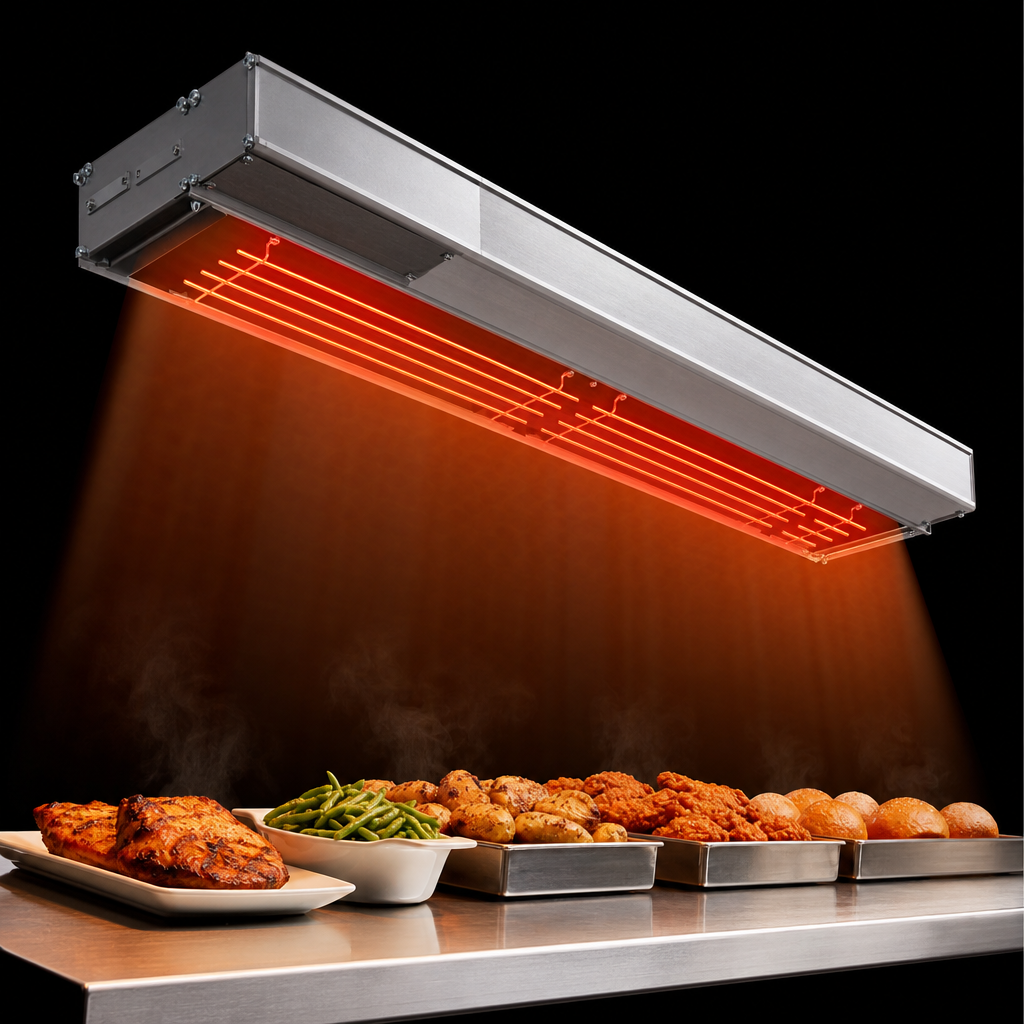

  • Dual high-watt Infra-Black® elements (1600 W total) eliminate “cold spots” across the entire length.

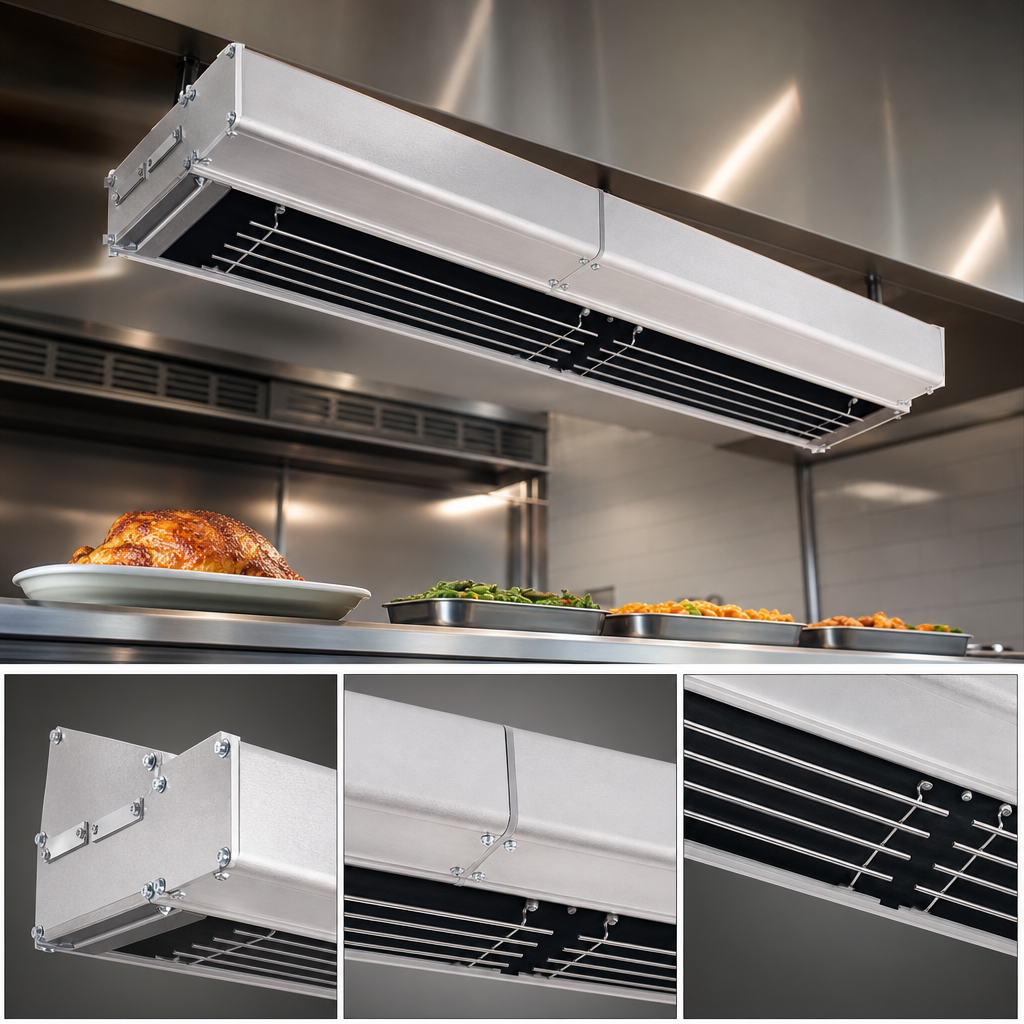

  • Extruded aluminum housing resists sagging and everyday bumps in busy lines.
  • Standard 3" (76 mm) spacer and heavy insulation keep exterior surfaces cooler for safer handling.
  • Metal-sheathed elements carry a 2-year burnout/breakage warranty.
  • Certified NSF, CE and cULus for worldwide code compliance.
  • Built, tested and supported in Wisconsin, USA.

At-a-glance specs

Overall width 36" (914 mm)
Total wattage 1600 W (high watt)
Typical amp draw 208 V – 7.7 A
240 V – 6.7 A
220 V – 7.3 A
Heat source Dual Infra-Black® metal-sheathed elements
Housing material Clear-anodized aluminum (Designer colors available)
Standard spacer 3" (76 mm) between heater housings
Recommended mounting height 8–14" (203–356 mm) above metallic target surface
Net weight 27 lb (13 kg)
Certifications NSF, CE, cULus
Country of origin USA

Perfect for

  • Cafeteria, buffet and self-service lines
  • Pass-through windows and plating stations
  • Pizza, appetizer and bakery holding shelves
  • Back-of-house make-up areas

Factory-fit options

  • Designer or gloss housing colours (Warm Red, Black, Gray Granite, etc.).
  • 6" (152 mm) spacer for extra overshelf clearance.
  • Protective element wire guard.
  • Chain suspension kit or adjustable angle brackets for undershelf mounting.
  • Remote control enclosure with toggle, infinite or thermostatic switches.

Need integrated lighting? See model GRAIHL-36D with built-in display lights.

Installation note: A remote control box must be mounted outside the heat zone to prevent damage. Follow Hatco’s installation manual for required electrical and clearance guidelines.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

36.0in

Depth

15.0in

Shipping Weight

27.0lbs

Finish

aluminum

Type of element

black panel heating system

Size

double

Type

unlighted

Length

31 - 36"

Specifications

Glo-Ray® Infrablack Strip Heater, 36" W, high wattage, metal sheathed heating element, double heater housing 3" spacing, aluminum construction, 1600 watts, NSF, CE, cULus, Made in USA
