Hatco  |  Glo-Ray®  |  SKU: GRAHL-96D6

Hatco GRAHL-96D6 Glo-Ray® Heat Lamps

$1,681.42
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

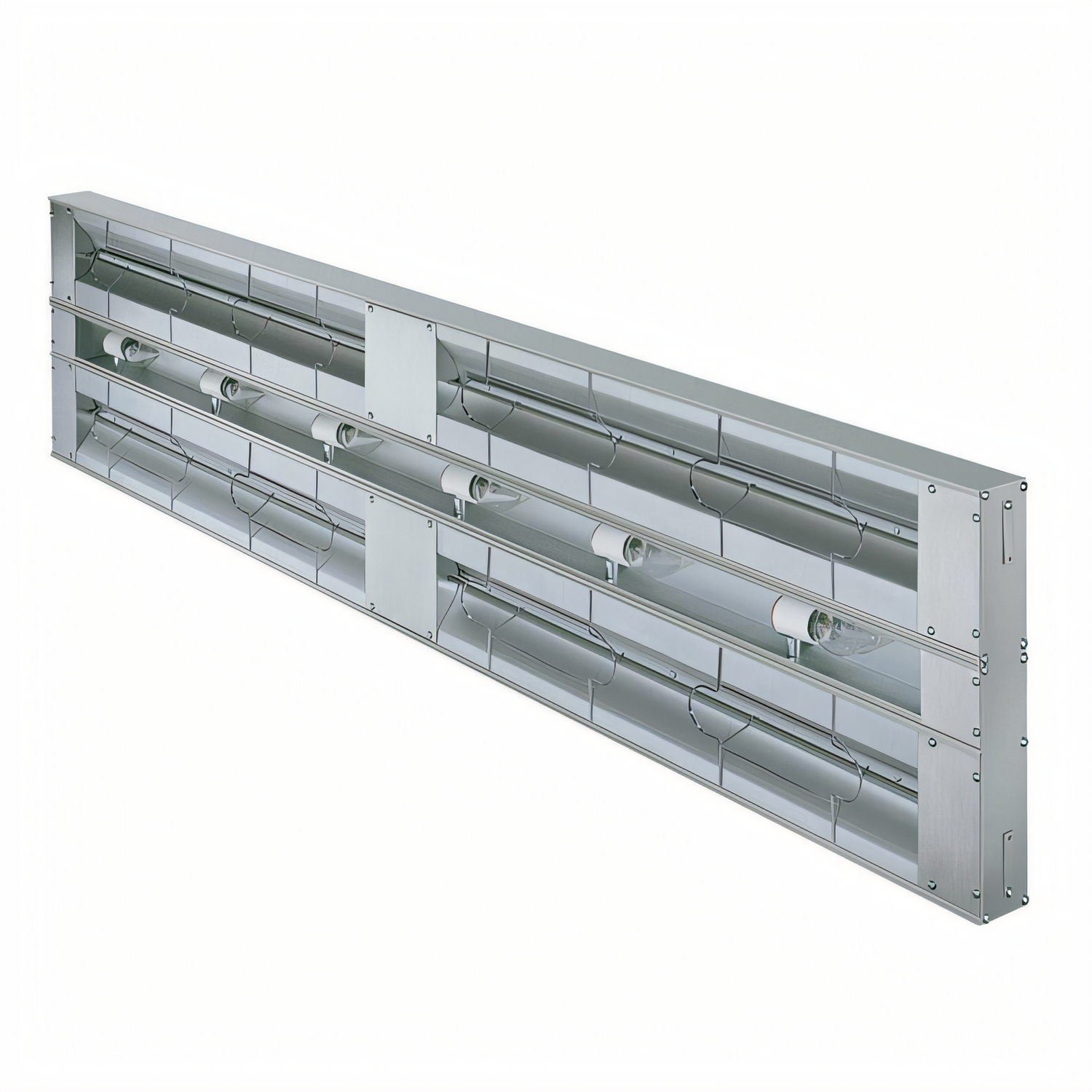

Hatco Glo-Ray® 96" Dual Infrared Strip Heater w/ Lights – High Watt (GRAHL-96D)

5,280 W • 6" Element Spacing • NSF & cULus • Made in USA

Transform any pass-thru, buffet or expo line into a high-performance holding zone. The Hatco Glo-Ray® GRAHL-96D blankets an 8-foot span with powerful, even infrared heat while eight shatter-resistant display lamps showcase food in its best light.

Why you’ll love it
  • High-watt dual tubular metal elements pump out 5,280 W of pre-focused heat—no cold spots, even at peak volume.

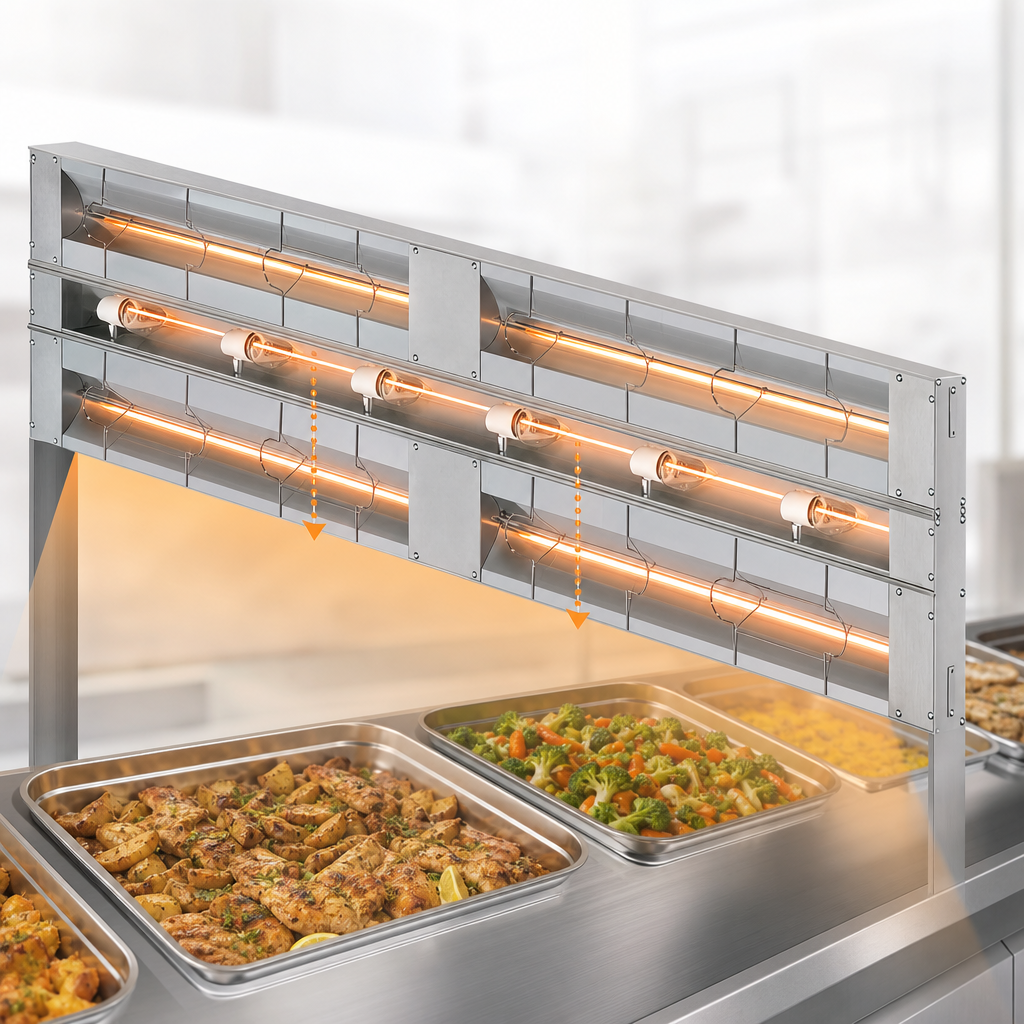

  • 6" (152 mm) element spacing deepens the holding “halo” for piled-high pizzas, sheet pans and multi-pan setups.
  • Rugged extruded-aluminum housing won’t sag across the full 96" (2,438 mm) span.

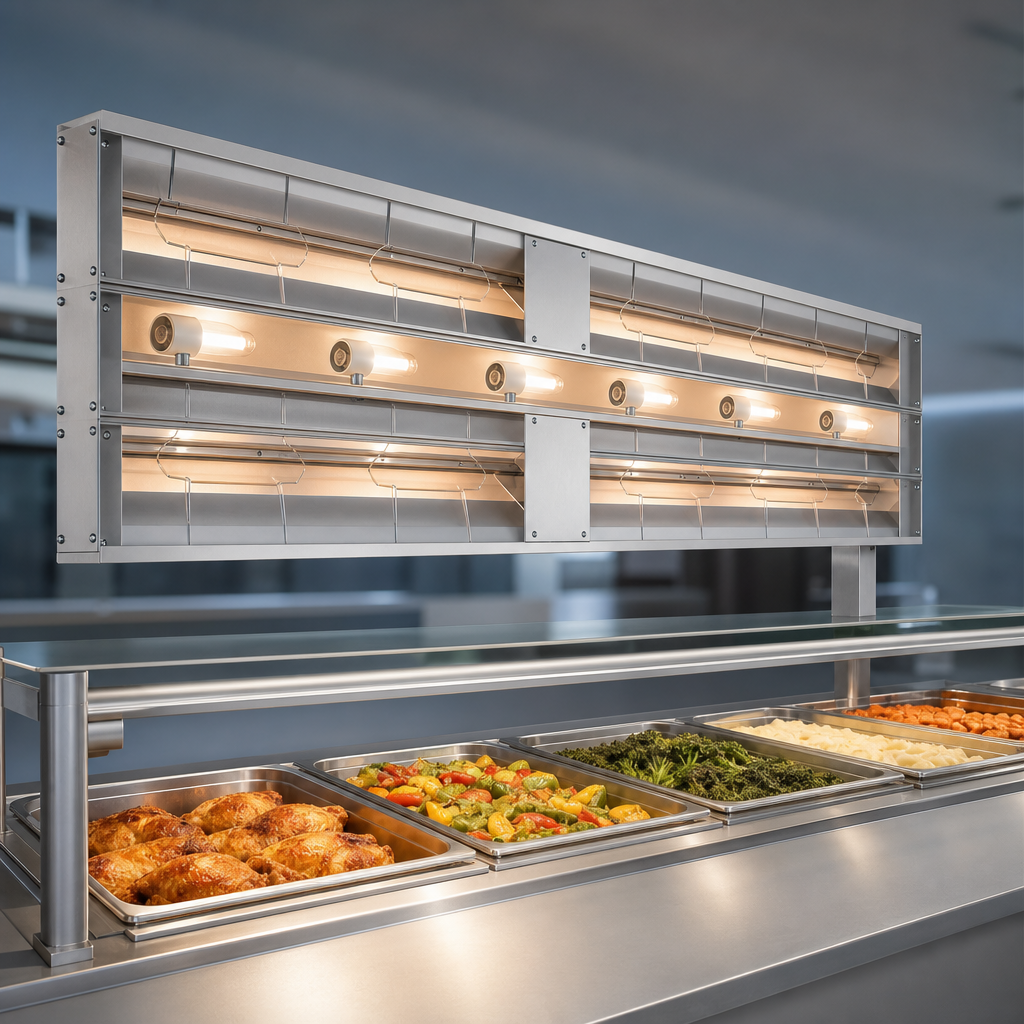

  • Coated, shatter-resistant incandescent bulbs (8 included) boost eye appeal and food safety.
  • Reflector stays bright—no blackening—maintaining a consistent heat pattern for years.
  • Reinforced wire guard protects staff and guests without blocking infrared energy.
  • Metal-sheathed elements carry a 2-year burnout & breakage warranty.
  • NSF & cULus listed and built in Wisconsin, USA for rock-solid reliability.
Perfect for
  • Buffet & cafeteria service lines
  • Pass-through windows and plating rails
  • Fry dump & pizza stations
  • High-volume concessions or QSR kitchens
Specifications
Model GRAHL-96D
Overall width 96" (2,438 mm)
Overall depth 18" (457 mm) with 6" spacer
Overall height 2.5" (64 mm)
Wattage 5,280 W
Voltage 120, 208 or 240 V single-phase (field-wired, see manual)
Amps (at 240 V) ≈22 A
Heat source Dual tubular metal-sheathed elements
Lighting (8) 40 W shatter-resistant incandescent bulbs
Housing Clear-anodized extruded aluminum
Leads 36" flexible conduit with 42" wire leads
Ship weight ≈54 lb (25 kg)
Certifications NSF, cULus
Origin Made in USA

Factory options include designer-color housings, remote control boxes, sneeze guards, extended lead lengths, tubular stands and more—let us quote your perfect setup.

Installation note: Maintain a minimum clearance of 18" (457 mm) between the strip heater and any heated surface. Units with built-in switches must sit at least 10" (254 mm) above a combustible work shelf.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

96.0in

Depth

18.0in

Shipping Weight

54.0lbs

Finish

aluminum

Size

double

Type

lighted

Length

85 - 96"

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 96" W, high wattage, tubular metal heater rod with lights, double heater rod housing 6" spacing, aluminum construction, 5280 watts, NSF, cULus, Made in USA
