Hatco GRAHL-96D3 Glo-Ray® Heat Lamps
Hatco GRAHL-96D3 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAHL-96D3 Glo-Ray® Heat Lamps
Description

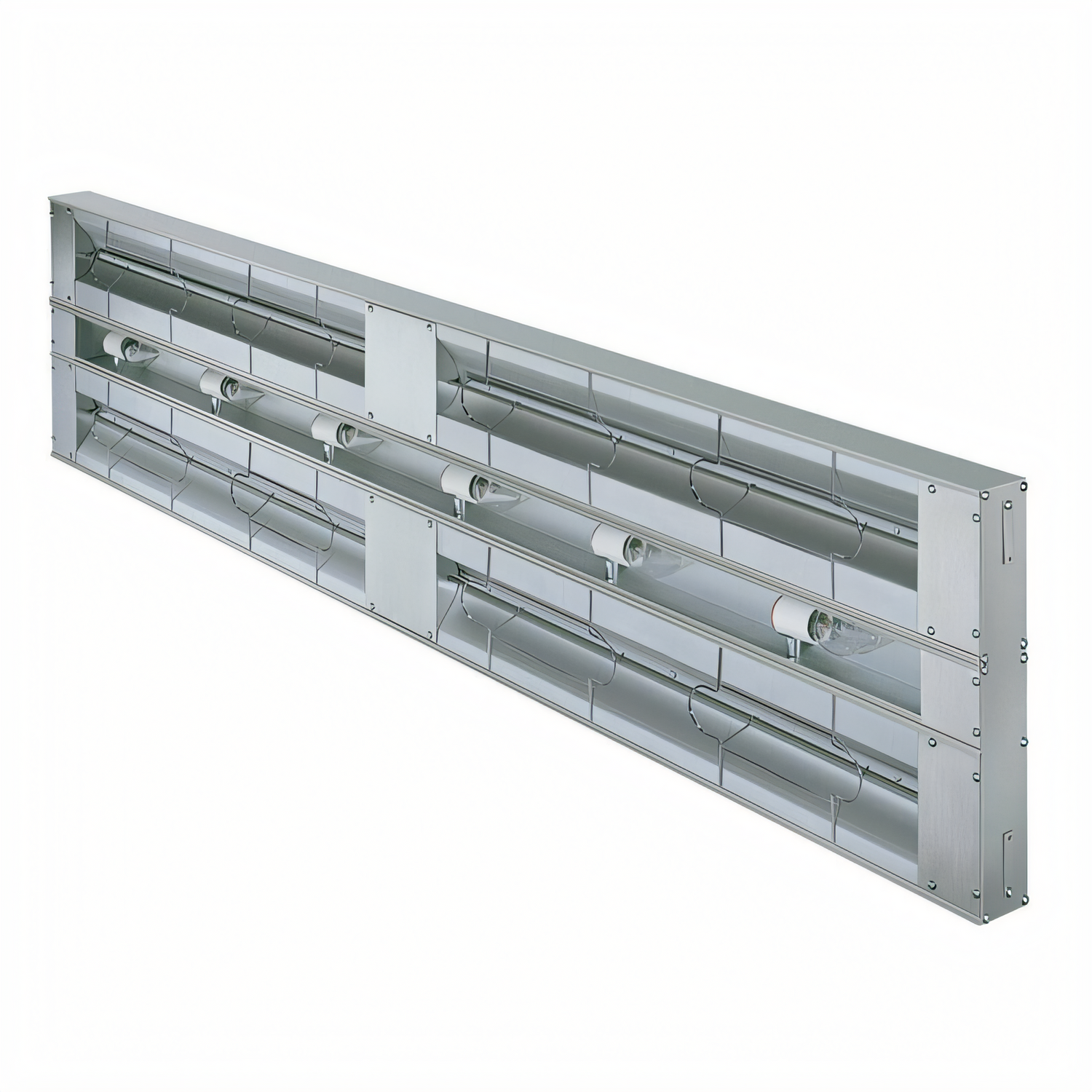

Hatco Glo-Ray® GRAHL-96D Infrared Strip Heater – 96"
Dual high-watt foodwarmer with display lights • 5,280 W • Made in USAGive your longest pass-through shelf the legendary heat of Hatco. The 8-ft GRAHL-96D blankets food with powerful, even infrared warmth while integrated shatter-resistant lights make entrées shine.
Why you’ll love it

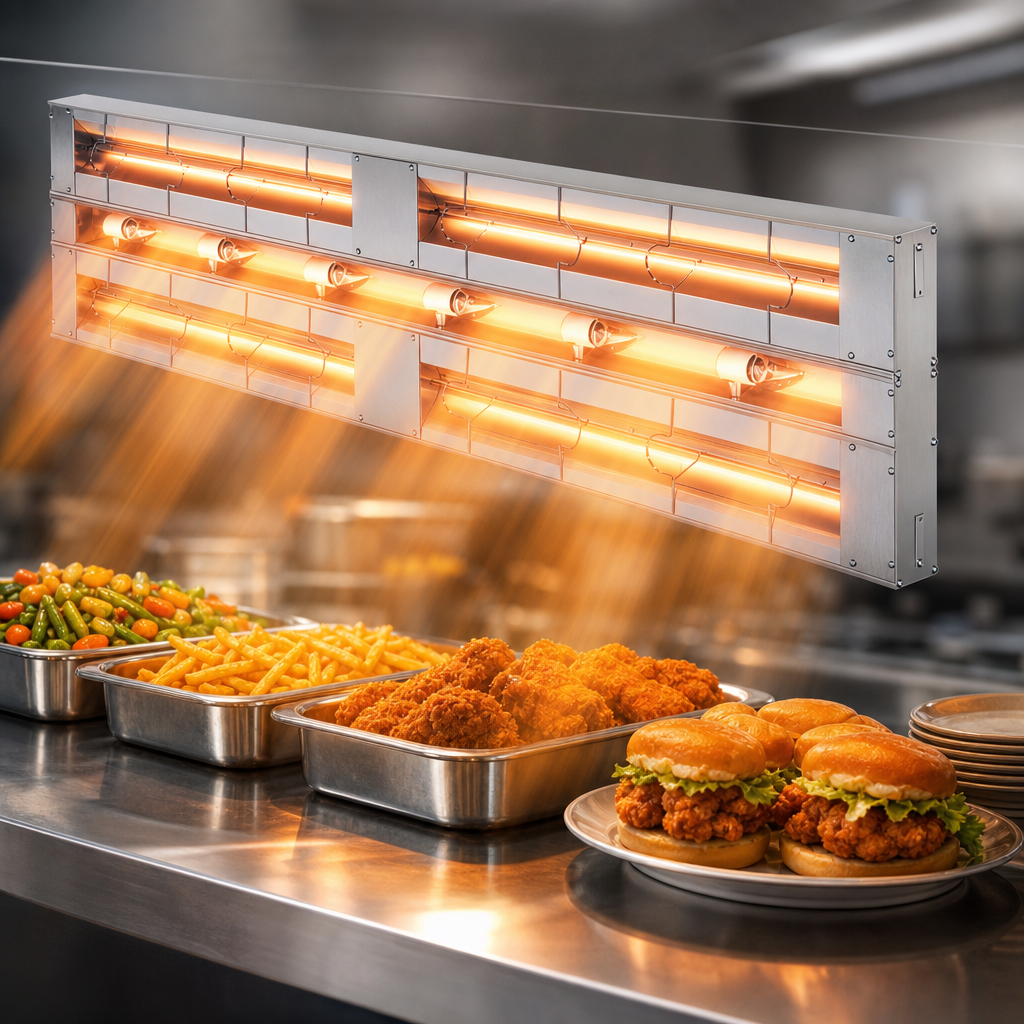

- High-watt dual tubular elements deliver a deeper, uniform heat pattern – no cold spots.

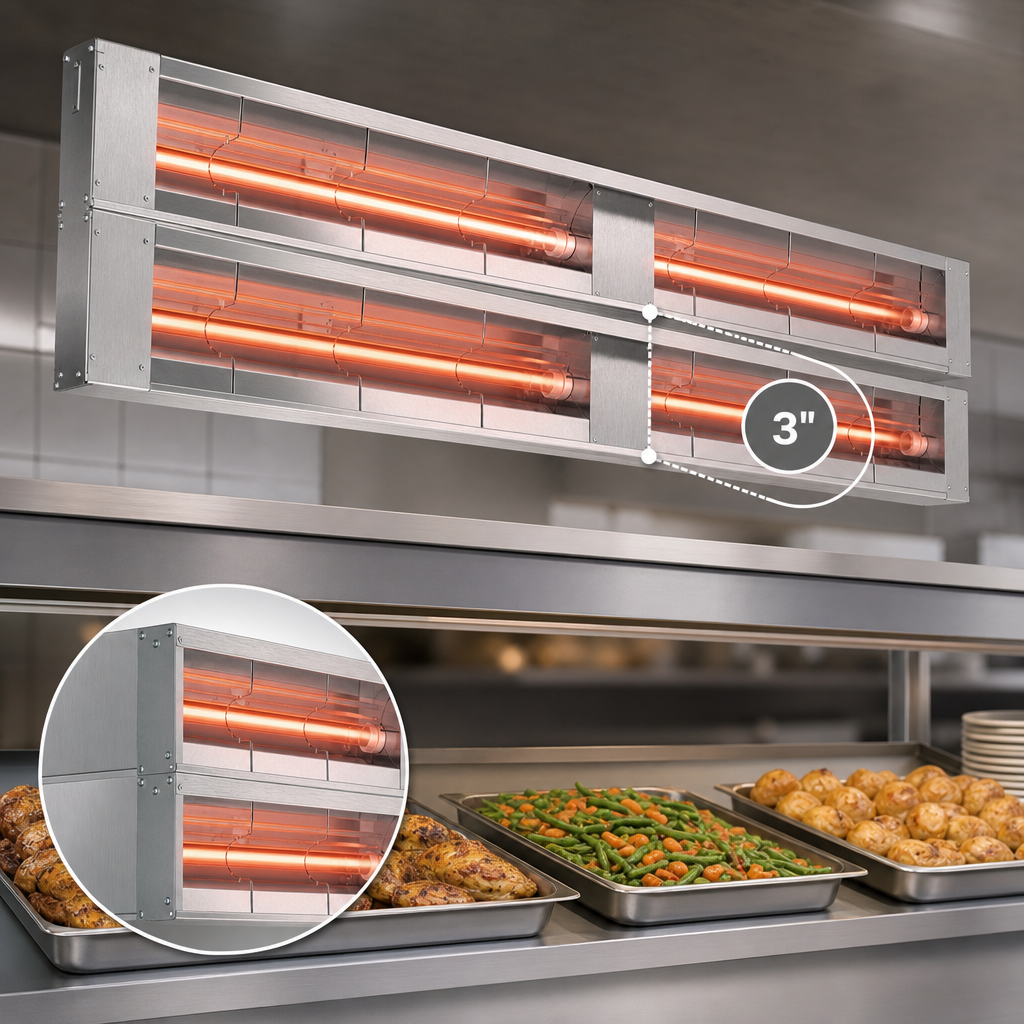

- 3" (76 mm) spacing between heater rods creates a larger “heat curtain” for taller pans and plates.
- Rigid extruded-aluminum housing will not sag, even at a full 96" span.
- Six coated 40 W display bulbs (included) enhance presentation and protect food from glass shards.
- Reinforced wire guard and heavy insulation increase operator safety while minimizing heat loss.
- Metal-sheathed elements are guaranteed against burnout or breakage for two full years.
- NSF-listed, cULus certified and built in Milwaukee, Wisconsin.
Perfect for
- High-volume pass-through counters
- Buffet & carving stations
- Catering and banquet lines
- Supermarket hot bars & delis
Technical details
| Model | GRAHL-96D |
|---|---|
| Overall width | 96" (2,438 mm) |
| Heat source | Dual tubular metal elements (high watt) |
| Rod spacing | 3" (76 mm) |
| Total wattage | 5,280 W |
| Voltage | 208 V or 240 V, single-phase (other voltages on request) |
| Amperage | 25.4 A @ 208 V | 22.0 A @ 240 V |
| Display lights | 6 × 40 W shatter-resistant incandescent |
| Certifications | NSF, cULus |
| Warranty | 2 yr element • 1 yr parts & labor |
Minimum clearance for high-watt models: 18" (457 mm) above combustible surfaces. Always install per Hatco instructions and local codes.
Factory-installed options
- Designer powder-coat colors or gloss finishes
- 6" (152 mm) inter-rod spacer for extra-deep holding areas
- Acrylic sneeze guards (9.375" or 14", single or double-sided)
- Remote toggle or infinite control boxes
- Adjustable/fixed tubular stands, chain suspension or angle brackets
- Chef LED bulbs – 3000 K warm or 4000 K cool
Elevate your serving line with the unmatched performance and durability of the Hatco Glo-Ray® GRAHL-96D – order today and keep every plate picture-perfect.
