Hatco GRAHL-96 Glo-Ray® Heat Lamps
Hatco GRAHL-96 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAHL-96 Glo-Ray® Heat Lamps
Description

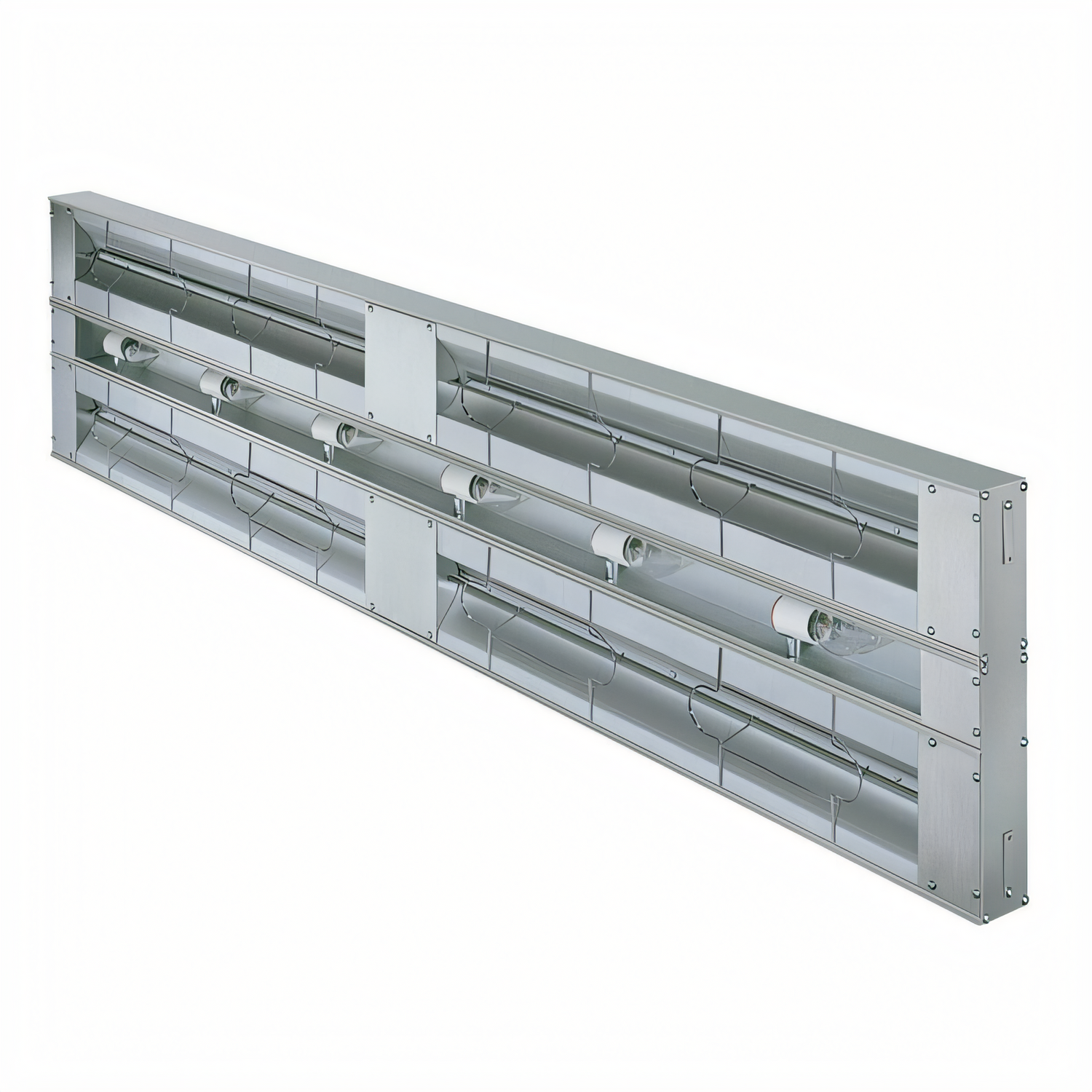

Glo-Ray® 96" High-Watt Infrared Strip Heater with Lights
Hatco Model GRAHL-96 • 2,880 W • Made in USAStretching a full eight feet, the Hatco Glo-Ray® GRAHL-96 keeps even the busiest pass-throughs, buffets and service lines hot, fresh and appetizing. A high-watt tubular metal element delivers pre-focused infrared heat while eight shatter-resistant display lamps put every dish in the best possible light.
Key advantages
- High-watt tubular metal sheathed element eliminates “cold spots” across the entire 96" span.
- Extruded aluminum housing will not sag and resists corrosion in demanding kitchen environments.
- 8 × 60 W Teflon-coated incandescent bulbs (one per foot) illuminate food and protect it from glass fragments.
- Polished reflector maintains a consistent heat pattern that will not blacken over time.
- Reinforced wire guard increases operator safety without blocking heat.
- Simple on/off toggle and pilot light included; optional infinite control or remote switch boxes available.
- NSF, cULus & CE listed for global food-service compliance.
- Backed by Hatco’s 2-year element warranty and 24/7 technical support.
Ideal applications
- Full-service & QSR pass-thru windows
- Self-serve or attended buffet lines up to 8 ft (2.4 m)
- C-stores, concessions and stadium suites
- Bakeries, pizza make lines & delis
Specifications
| Overall length | 96" / 2 438 mm |
|---|---|
| Depth × Height | 9" × 2.5" (229 × 64 mm) |
| Construction | Clear-anodized aluminum, single-rod housing |
| Heating element | Tubular metal sheathed, high watt |
| Total wattage | 2 880 W |
| Voltage options | 208 V or 240 V, 1-phase (dual-circuit 120/208 V or 120/240 V for lights) |
| Amps (approx.) | 13.9 A @ 208 V | 12.0 A @ 240 V |
| Power connection | 36" (914 mm) flexible metal conduit with 42" leads |
| Lamps included | 8 × 60 W shatter-resistant incandescent (120 V) |
| Certifications | NSF • CE • cULus |
| Country of origin | USA |
Installation & mounting
- Recommended clearance above warm surface (high-watt units): 14"–17" (356–432 mm).
- Mount with chain kit, C-leg/T-leg stands, or adjustable tubular stands (sold separately).
- Maintain ≥3" (76 mm) rear/top clearance to combustibles.
Factory-fit options
- Designer color or gloss finish housings
- Halogen display lamps
- Acrylic sneeze guards (single or double-sided)
- Infinite control, remote switch boxes & indicator lights
- Adjustable tubular, C-leg or T-leg stands
Need help configuring voltage, controls or mounting? Talk to our food-service specialists.
