Hatco GRAHL-84D6 Glo-Ray® Heat Lamps
$1,450.55
Unit price
/
Unavailable
Description

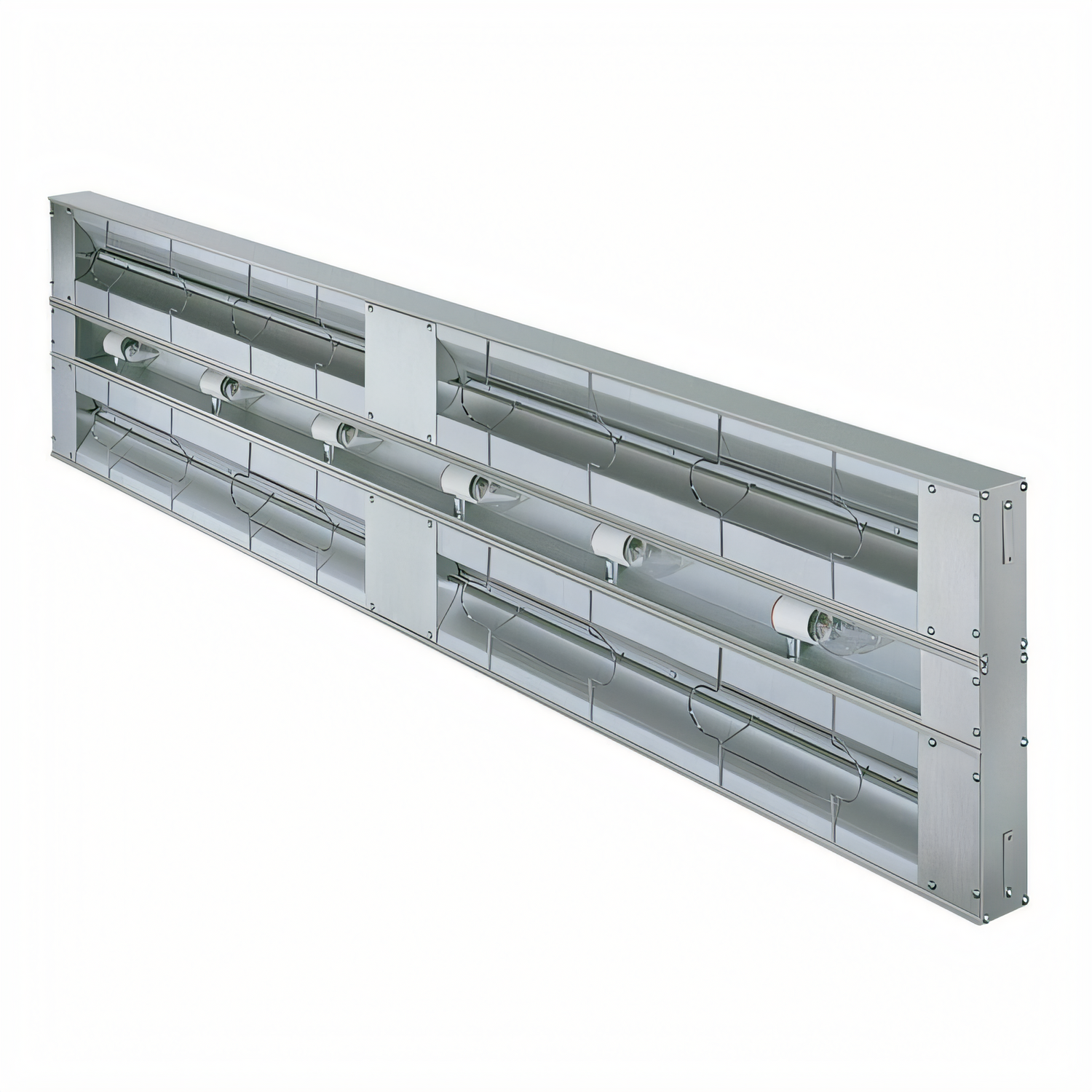

Hatco Glo-Ray® 84" Dual Infrared Strip Heater with Lights – High Watt (GRAHL-84D)
4520 W | Dual metal-sheathed heater rods | 6" element spacing | NSF & cULusServe every guest a hot, picture-perfect plate. Hatco’s high-watt GRAHL-84D Glo-Ray® warms an expansive 84-inch line with uniform infrared heat while six shatter-resistant display lamps make food look as good as it tastes.
Key benefits
- Powerful 4520 W output maintains safe serving temperatures without overcooking.
- Dual tubular metal-sheathed elements spaced 6 in. (152 mm) apart create a deep, even heat zone—no “cold spots.”
- Six coated 40 W incandescent bulbs illuminate food and guard against glass breakage.
- Rigid extruded aluminum housing resists sagging; bright-annealed reflector will not darken.
- Reinforced wire guard protects staff and customers without obstructing heat.
- Heavy insulation cuts radiant heat loss for greater energy efficiency.
- Elements are backed by Hatco’s 2-year burnout/breakage warranty.
- NSF listed, cULus certified, and proudly made in the USA.
Where it excels
- Buffet & cafeteria hot lines
- Pass-through windows and expo counters
- Pizza, pasta & carving stations
- High-volume quick-service kitchens
Specifications
| Model | GRAHL-84D |
|---|---|
| Overall width | 84 in. (2134 mm) |
| Overall depth | 18 in. (457 mm) with 6 in. spacer |
| Overall height | 2.5 in. (64 mm) |
| Total output | ≈ 4520 W (heat & lights) |
| Voltage options | 120 V, 120/208 V, 120/240 V, 208 V, 240 V, 1-phase |
| Amperage (240 V) | ≈ 18.8 A |
| Heating elements | Dual tubular metal-sheathed, 6 in. spacing |
| Display lights | 6 × 40 W coated incandescent (included) |
| Housing | Clear-anodized extruded aluminum |
| Mounting clearance | Minimum 18 in. (457 mm) above surface (high-watt) |
| Certifications | NSF, cULus |
| Country of origin | USA |
| Approx. shipping weight | 50 lb (23 kg) |
Factory-installed options
- Designer or gloss color housings & matching remote control enclosures
- Halogen or Chef-LED adjustable bulbs (3000 K / 4000 K)
- Single- or double-sided acrylic sneeze guards (9 ¾" or 14")
- Non-adjustable or adjustable tubular stands (10–16")
- Angle brackets, chain suspension kits & extended power leads
- Remote toggle or infinite controls
Installation note:
Mount at least 18 in. (457 mm) above the countertop. When a circuit breaker larger than 20 A is required for the heater, the lamp circuit must be on a separate 20 A (or smaller) breaker.
Need a sneeze guard, control box or custom finish? Many accessories can only be added at the factory—reach out before ordering.
Features & Specs
Features & Specs
Manufacturer
Hatco
Brand_name
Glo-Ray®
Certifications
NSF, cULus, Made in USA
Height
2.5in
Width
84.0in
Depth
18.0in
Shipping Weight
50.0lbs
Length
73 - 84"
Size
double
Finish
aluminum
Type
lighted
Type of element
metal heating rod
Specifications
Glo-Ray® Infrared Strip Heater, 84" W, high wattage, tubular metal heater rod with lights, double heater rod housing 6" spacing, aluminum construction, 4520 watts, NSF, cULus, Made in USA
