Hatco  |  Glo-Ray®  |  SKU: GRAHL-84D3

Hatco GRAHL-84D3 Glo-Ray® Heat Lamps

$1,450.55
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

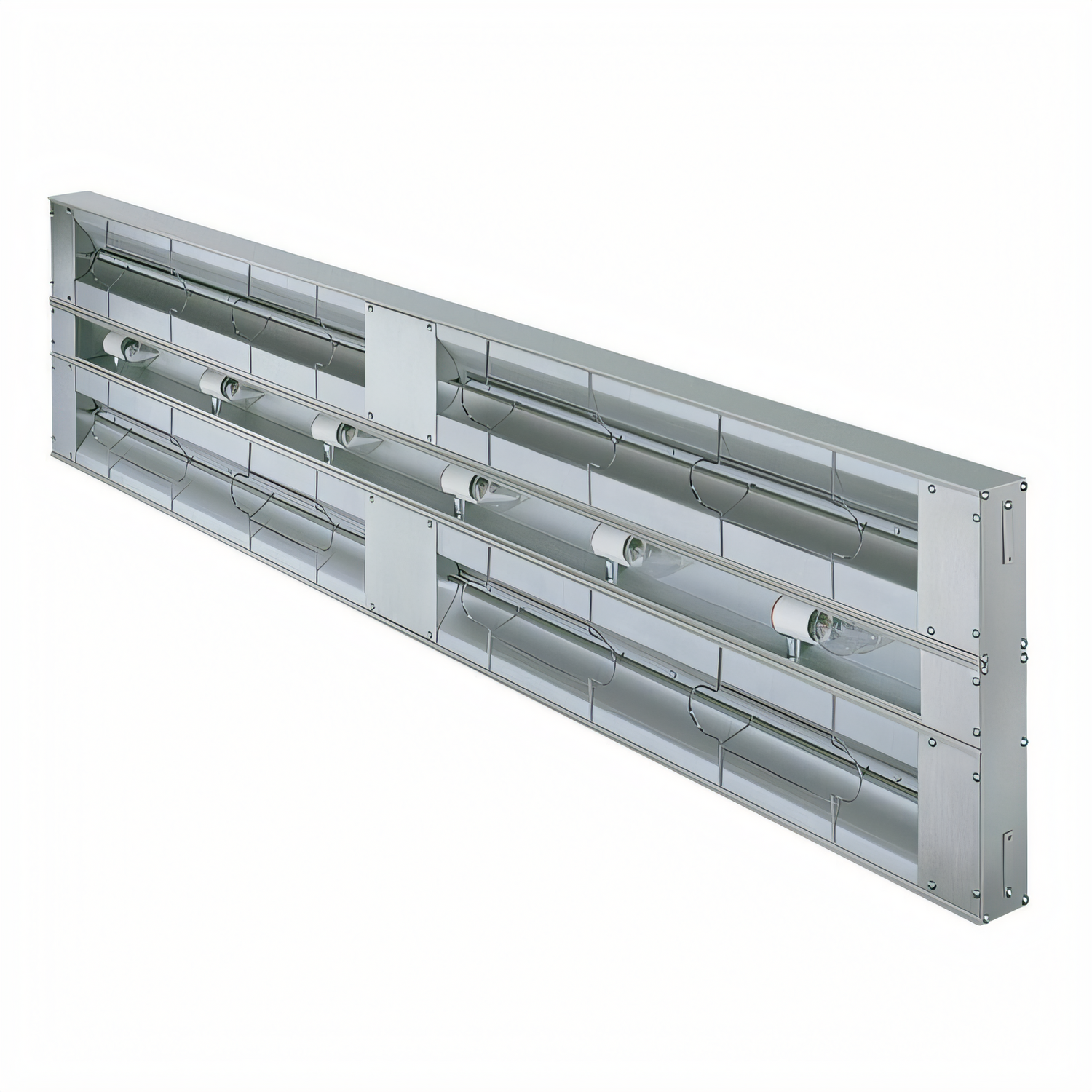

Hatco Glo-Ray® Dual Infrared Strip Heater with Lights – 84" (High Watt)

Model GRAHL-84D • 4520 W • NSF & cULus • Made in USA

Safely hold, highlight and serve your hottest menu favourites with Hatco’s most powerful 84-inch Glo-Ray®. Dual tubular heating elements, shatter-resistant display lights and rock-solid aluminum construction give you the performance you need on busy buffet lines, pass-through windows or concession counters.

Why you’ll love it

  • High-watt dual element design (4520 W) maintains consistent 140 °F+ holding temps across the entire 7-ft span—no cold spots.

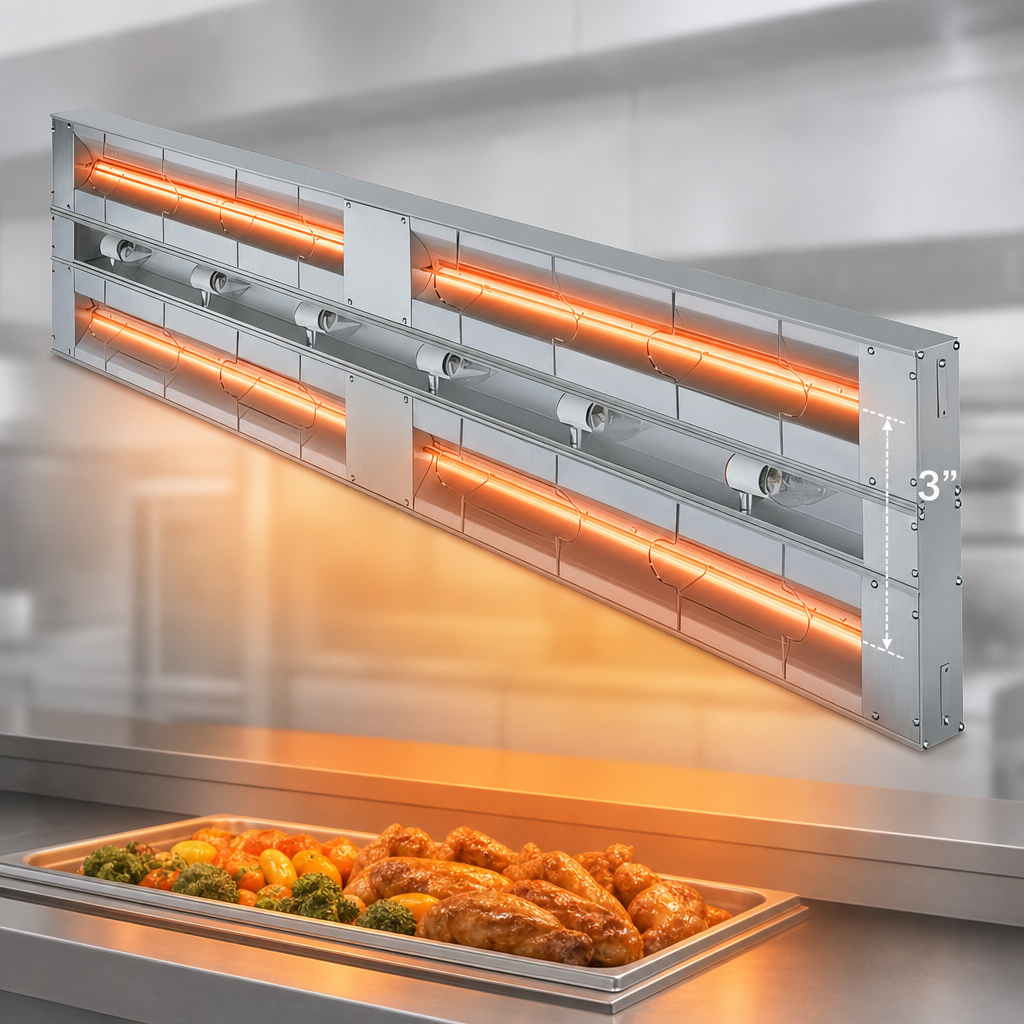

  • 3" (76 mm) factory-installed spacer between heater rods creates a deeper heat envelope for tall pans or piled-high plates.
  • Tubular metal heater rods are backed by a 2-year burnout/breakage warranty.

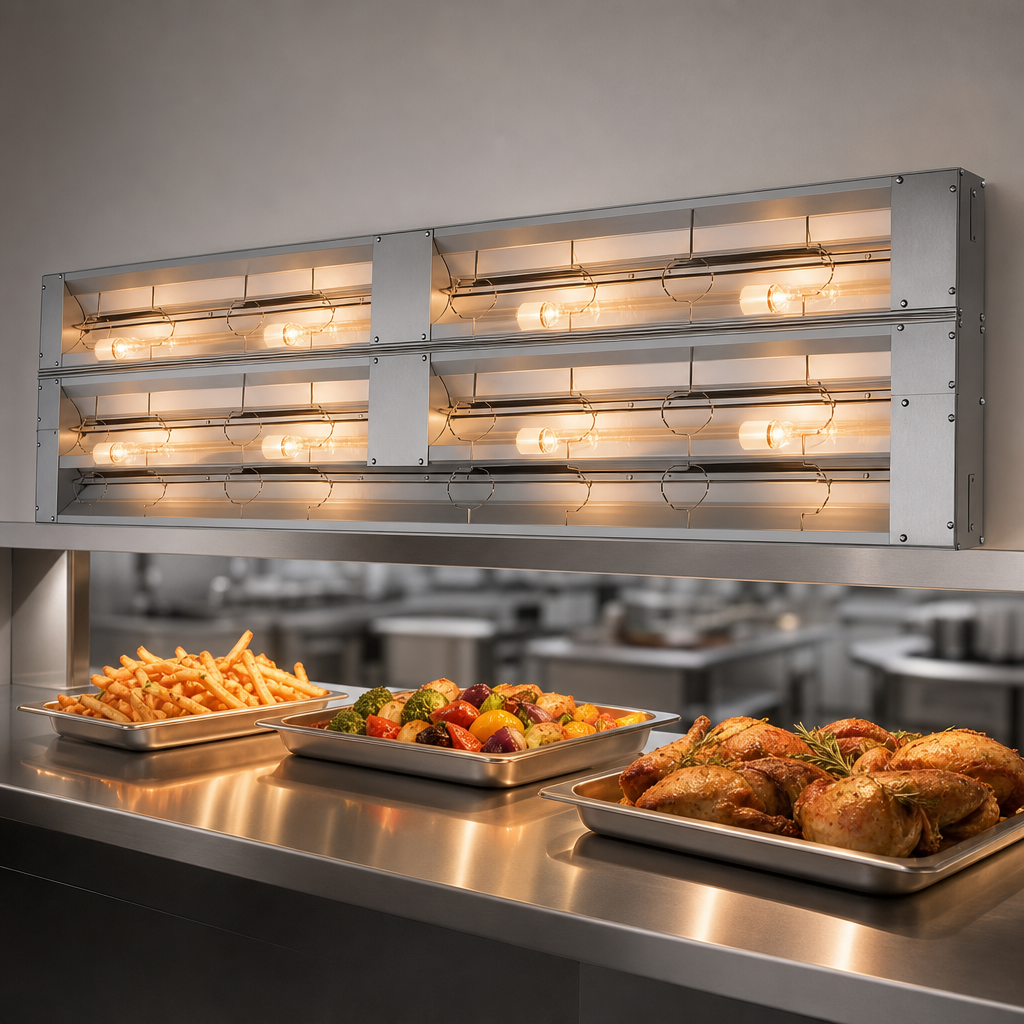

  • Shatter-resistant incandescent lights showcase food while protecting it from glass fragments.
  • Extruded aluminum housing resists sagging on long runs and is fully insulated to minimize energy loss.
  • Reinforced wire guard shields users from accidental contact without blocking radiant heat.
  • NSF listed and cULus certified for sanitation and electrical safety; proudly Made in the USA.

Ideal applications

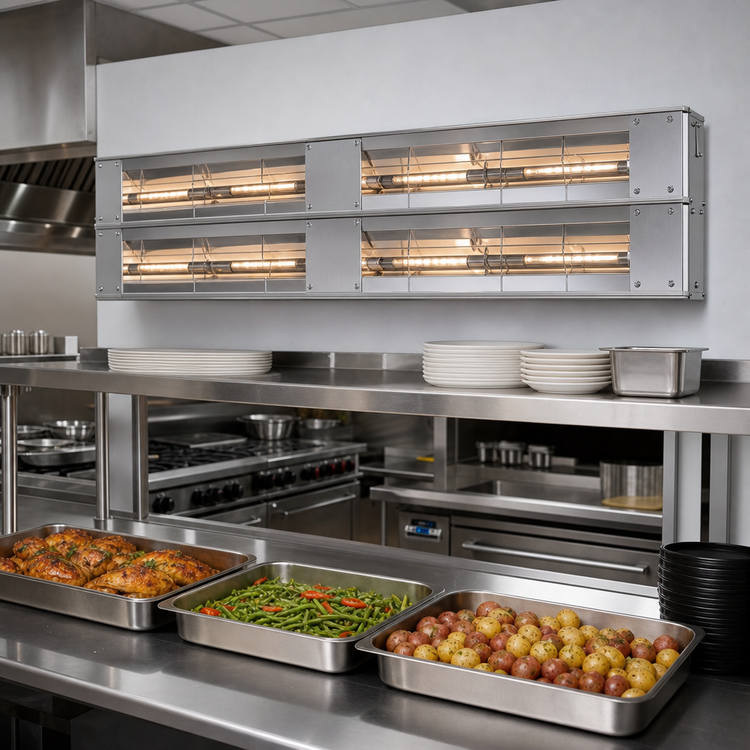

  • Buffet lines & carving stations
  • Pass-through shelves and expo counters
  • Concessions & stadium kiosks
  • Catering and banquet platters

Technical specifications

Overall width 84" (2134 mm)
Housing depth × height 15" D × 2.5" H (381 × 64 mm)
Element spacing 3" (76 mm)
Wattage 4520 W (high-watt)
Voltage 208/240 V, single phase (multiple-circuit wiring)
Amperage @ 240 V 18.8 A
Number of bulbs 6 × 40 W coated incandescent (one per foot)
Construction Anodized aluminum with bright-annealed reflector
Controls Built-in toggle switch (remote infinite control available)
Certifications NSF, cULus
Country of origin USA
Warranty 2 years on heating elements; 1 year parts & labour

Need custom colours, sneeze guards or remote controls? Ask us about Hatco factory options available at time of order.

Installation note: Maintain a minimum clearance of 18" (457 mm) above combustible surfaces and wire the light circuit on a breaker ≤ 20 A when required.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

84.0in

Depth

15.0in

Shipping Weight

50.0lbs

Size

double

Length

73 - 84"

Type

lighted

Finish

aluminum

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 84" W, high wattage, tubular metal heater rod with lights, double heater rod housing 3" spacing, aluminum construction, 4520 watts, NSF, cULus, Made in USA
