Hatco GRAHL-72D6 Glo-Ray® Heat Lamps
Description

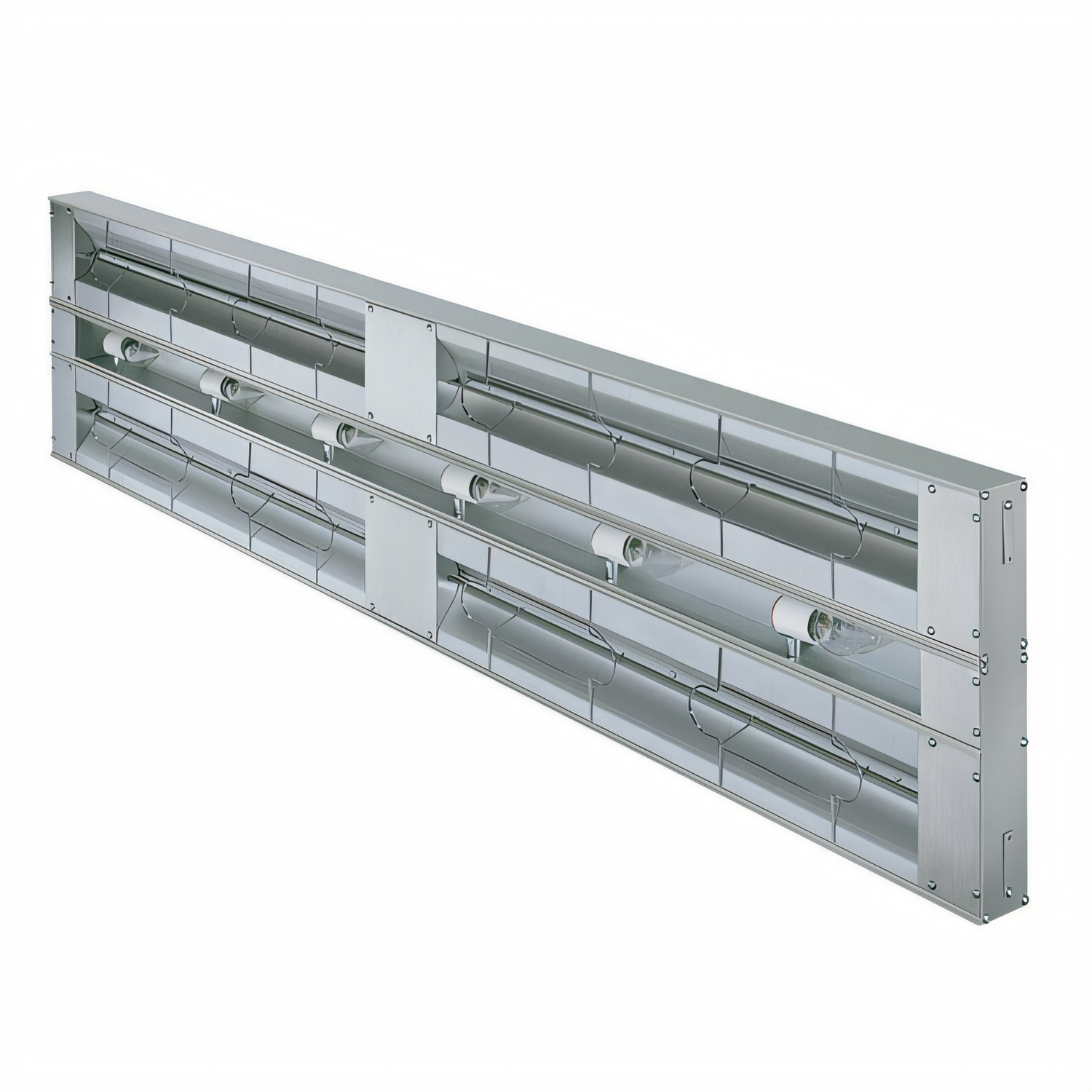

Hatco Glo-Ray® Dual Infrared Strip Heater – 72" | High Watt
Model GRAHL-72D • 6" (152 mm) spacer • With lightsKeep entrées, sides and plated meals hot, appetizing and ready to serve. Hatco’s 72-inch Glo-Ray® high-watt dual heater combines intense infrared heat with shatter-resistant display lighting to eliminate cold spots, extend hold times and showcase your food in its best light.
Why you’ll love it
- High-watt performance – 3810 W of pre-focused infrared heat prevents temperature drop-off across the entire 6-foot holding zone.

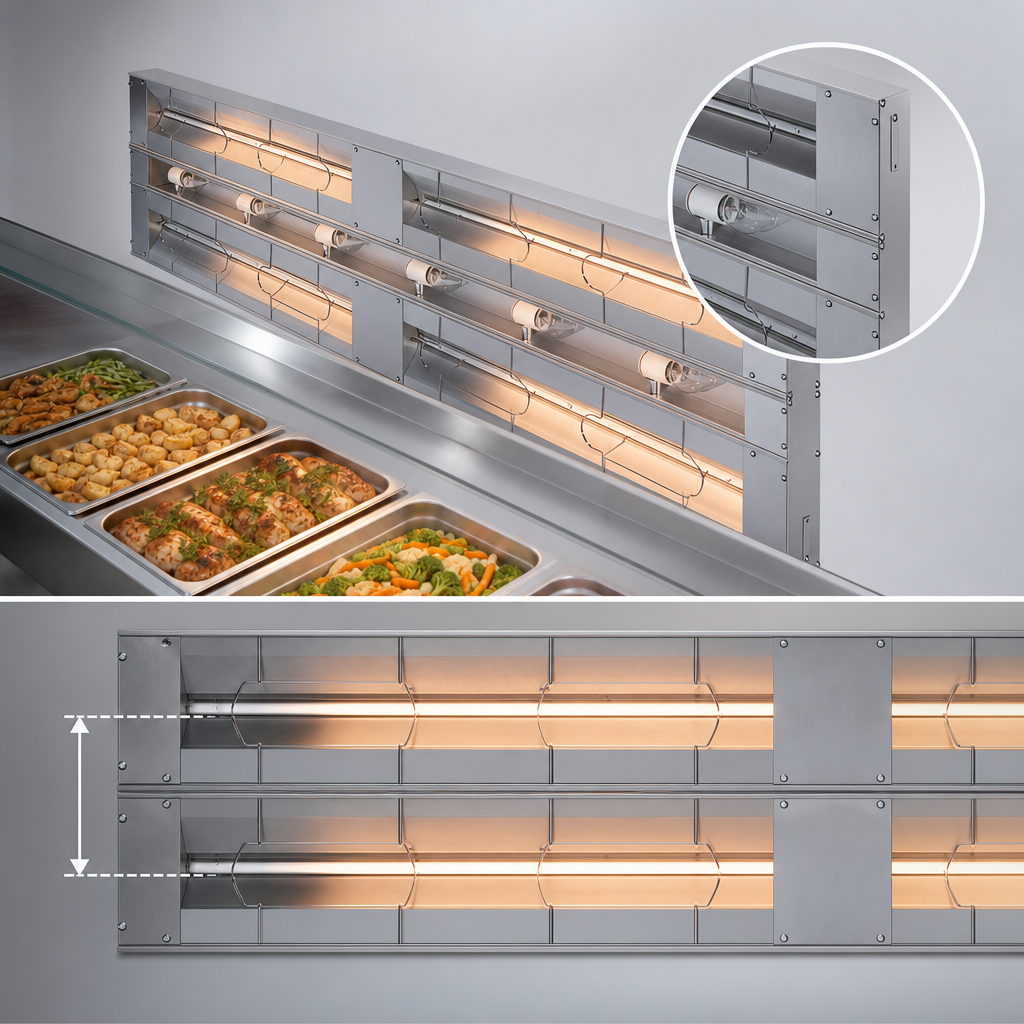

- Dual tubular elements, 6" apart create a deeper “heat blanket,” ideal for cafeteria lines, pass-through shelves and buffet counters.
- Rugged extruded aluminum housing resists sagging on long runs and includes heavy-duty mounting tabs for quick installation.

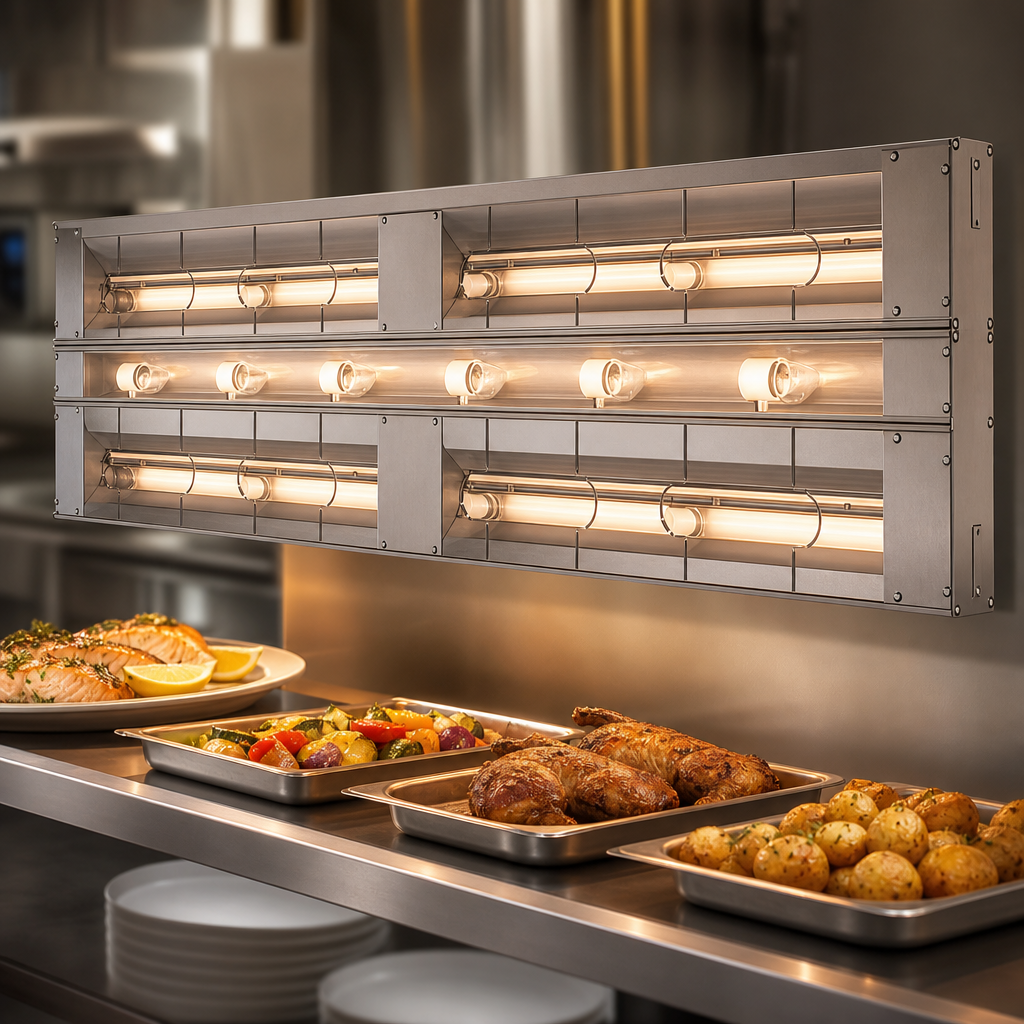

- Shatter-resistant incandescent bulbs (six included) safely illuminate food and drive impulse sales.
- Even heat distribution – Hatco’s continuous reflector will not blacken, so hot spots never develop.
- Energy-saving insulation minimizes heat loss to keep utility costs in check.
- NSF & cULus listed and proudly Made in the USA.
Technical specifications
| Model | GRAHL-72D (dual-rod, high watt) |
|---|---|
| Overall width | 72 in | 1829 mm |
| Depth (with 6" spacer) | 18 in | 457 mm |
| Height | 2.5 in | 64 mm |
| Total wattage | 3810 W |
| Voltage / phase | 120, 208 or 240 V • 1-phase |
| Amperage (typical) | 120 V 31.8 A | 208 V 18.3 A | 240 V 15.9 A |
| Heating elements | Dual tubular metal sheathed, 6" spacing |
| Lights | 6 × 40 W shatter-resistant incandescent (included) |
| Construction | Clear-anodized extruded aluminum with reinforced wire guard |
| Certifications | NSF • cULus |
| Country of origin | USA |
| Warranty | 2-yr element, 1-yr parts & labor |
Factory options (ordered with unit)
- Designer color or gloss powder-coat housings
- 3" or 6" sneeze guards (one or two-sided)
- Remote toggle or infinite controls
- Adjustable or fixed tubular stands & chain suspension kits
- Extended power leads up to 20' (6096 mm)
Looking for matching lengths or lower-watt models? Search our full family of Glo-Ray® strip heaters or chat with our team for personalized sizing help.
