Hatco GRAHL-72D3 Glo-Ray® Heat Lamps
Description

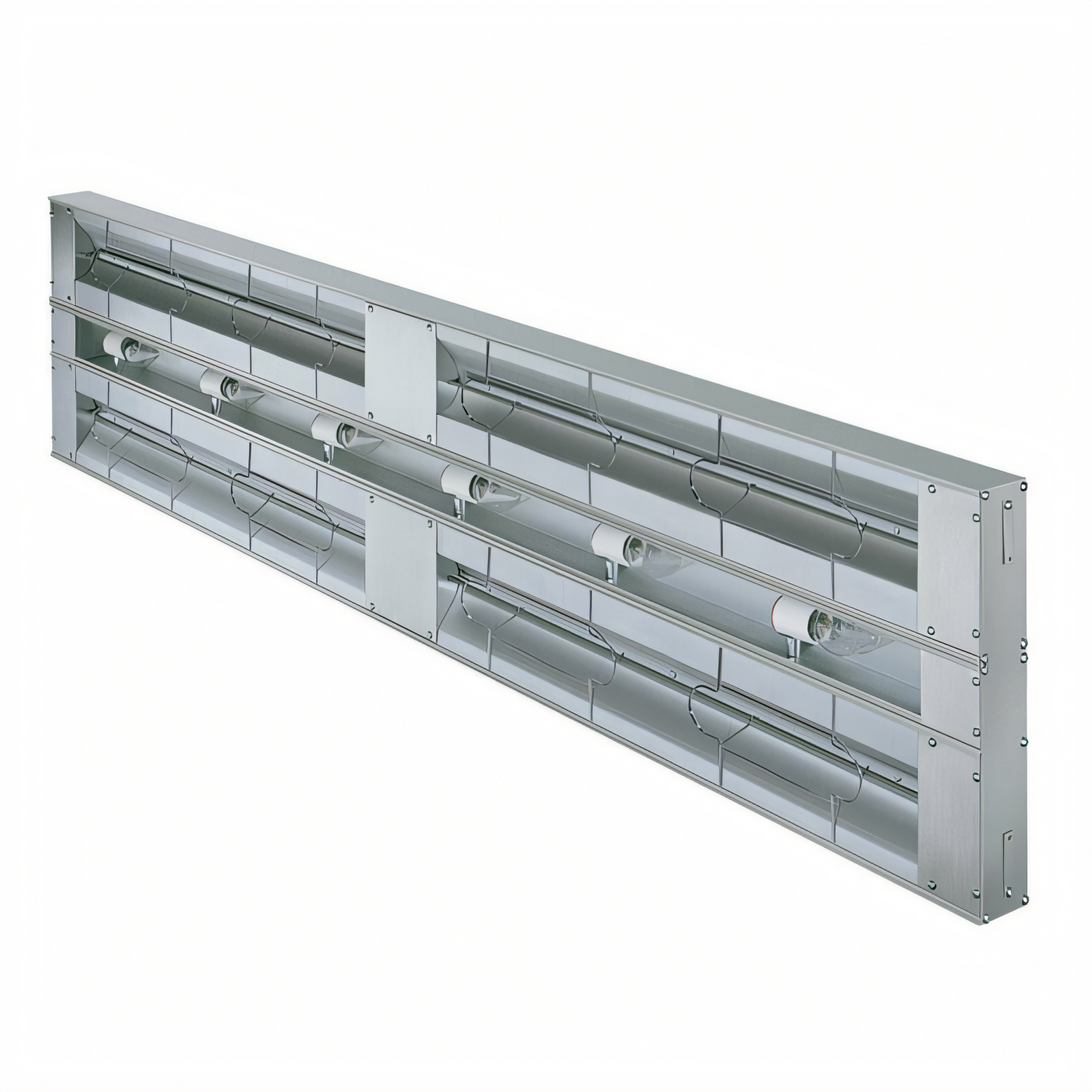

Hatco Glo-Ray® GRAHL-72D Dual Infrared Strip Heater with Lights – 72"
High-watt | 3" tandem spacing | 3810 WGive every entrée the just-plated look—right up to the point of service. The Glo-Ray® GRAHL-72D delivers intense, even infrared heat across a full 6-foot holding zone while built-in, shatter-resistant display lamps keep foods looking fresh and appetizing. Engineered and manufactured in Milwaukee, Wisconsin, this NSF-listed strip heater pairs rugged construction with the performance busy kitchens demand.
Built for peak-hour performance
- High-watt tandem elements create a deeper, 3" (76 mm) heat pattern—ideal for high-volume pass-thru stations and buffet lines.
- Pre-focused, metal-sheathed tubular heaters eliminate cold spots and are guaranteed for two years against burnout or breakage.

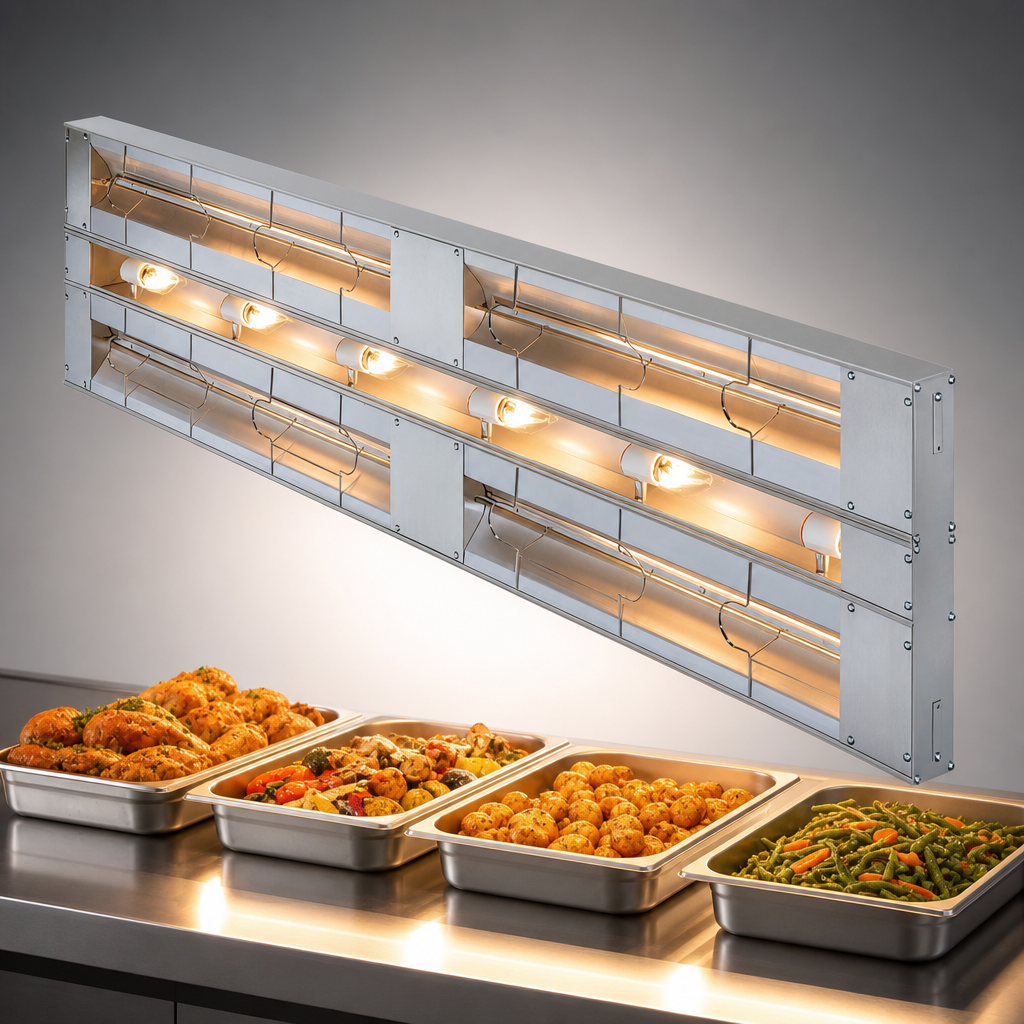

- Five coated, shatter-resistant incandescent bulbs (one per foot) highlight product while safeguarding food from glass fragments.
- Extruded aluminum housing will not sag, even at the full 72" (1829 mm) span, and includes a reinforced wire guard for added operator safety.
- Heavy-duty insulation minimizes heat loss, lowering utility costs and keeping the work area cooler.
- Simple toggle on/off controls are mounted on the unit; remote control boxes, infinite switches and designer colors are available at time of order.
Perfect for
- Restaurant pass-through shelves
- Supermarket service lines & carving stations
- Hotel banquet plating areas
- C-stores and concession counters
Technical specifications
| Model | GRAHL-72D (High-Watt Dual) |
|---|---|
| Overall width | 72 in / 1829 mm |
| Depth × height | 15 in × 2.5 in (381 mm × 64 mm) |
| Housing | Extruded aluminum, double heater rod with 3" (76 mm) spacing |
| Total wattage | 3810 W (max) |
| Voltage options / phase | 120, 120/208, 120/240, 200, 220, 230, 240 V | Single phase |
| Amperage (120 V) | 31.8 A* |
| Heat source | (2) metal-sheathed tubular rods |
| Display lighting | (5) coated incandescent lamps, 40 W each |
| Leads | 36" (914 mm) flexible conduit with 42" (1067 mm) power leads |
| Certifications | NSF, cULus, CE (select voltages) |
| Country of origin | Made in USA |
| Warranty | 2 yrs on elements | 1 yr parts & labor |
*Units drawing more than 20 A for the heat circuit require a separate 20 A (or less) circuit for the light circuit.
Looking for remote controls, sneeze guards or tubular stands? Ask our team about Hatco factory options available at the time of purchase.
