Hatco GRAHL-66D3 Glo-Ray® Heat Lamps
Description

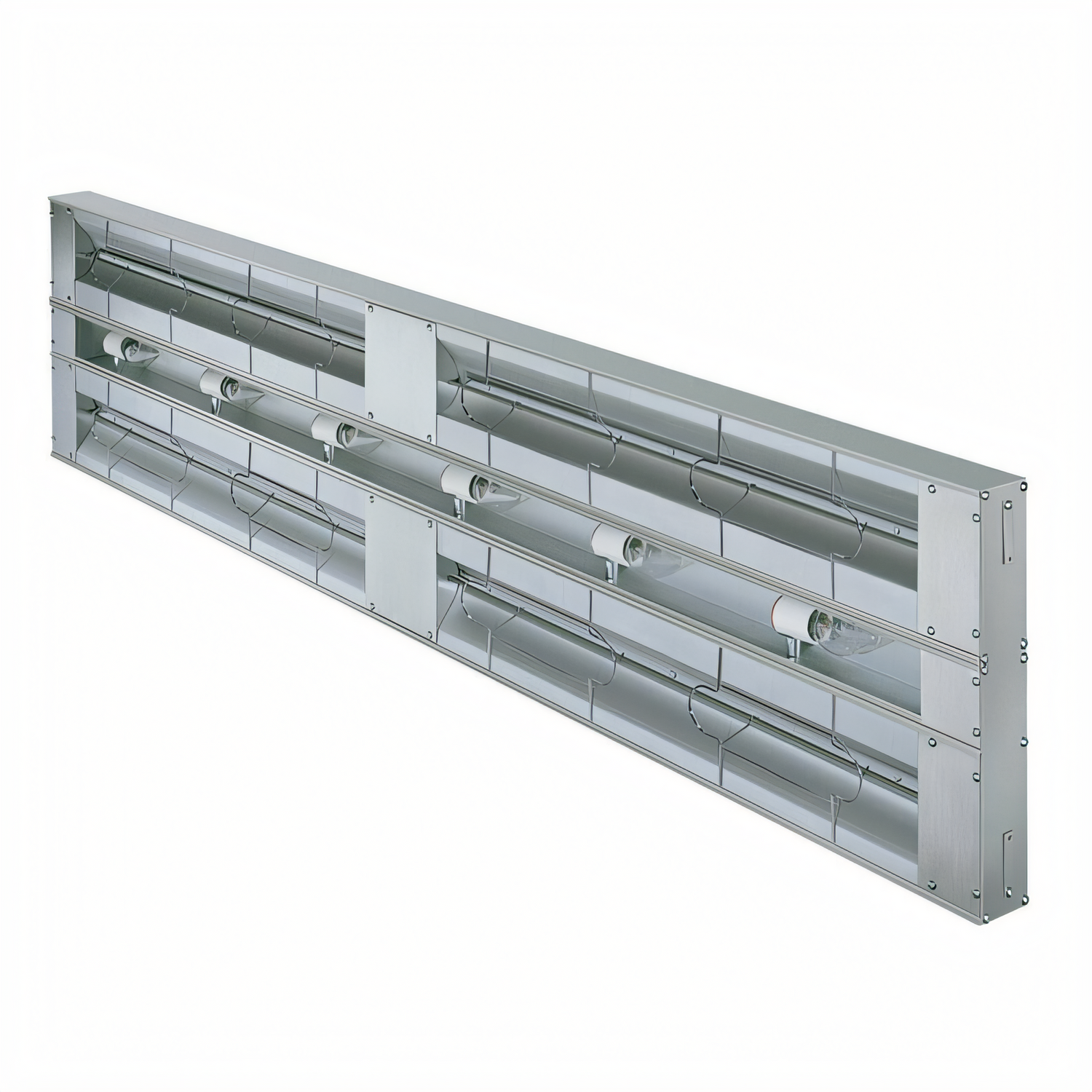

Hatco Glo-Ray® GRAHL-66D High-Watt Infrared Strip Heater – 66"
Dual tubular elements • 3" spacer • 3.42 kW • NSF & cULusWhen you need wide-area, high-intensity holding power, Hatco’s GRAHL-66D delivers. The 66-inch dual-strip design blankets an entire pass-through, buffet or plating line with pre-focused infrared heat, maintaining safe serving temperatures while brilliant shatter-resistant lights keep every dish looking fresh and appetising.
Key benefits
- Uniform heat coverage – no “cold spots” thanks to Hatco’s pre-focused infrared pattern.

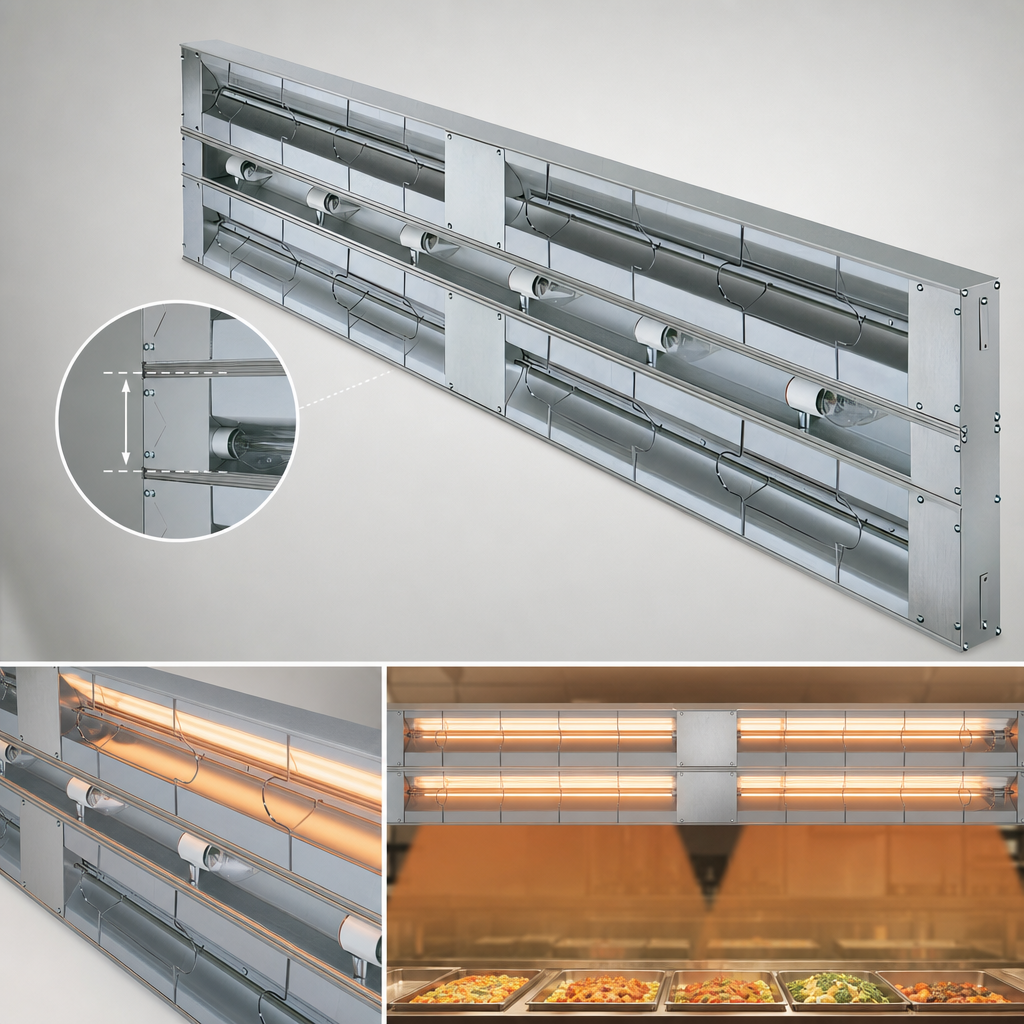

- High-watt dual housing (3" internal spacer) creates a deeper heat field for bulky pans and tall platters.
- Durable extruded-aluminium construction resists sagging across the full 66" span.
- Metal-sheathed tubular elements are covered by Hatco’s 2-year no-burnout warranty.

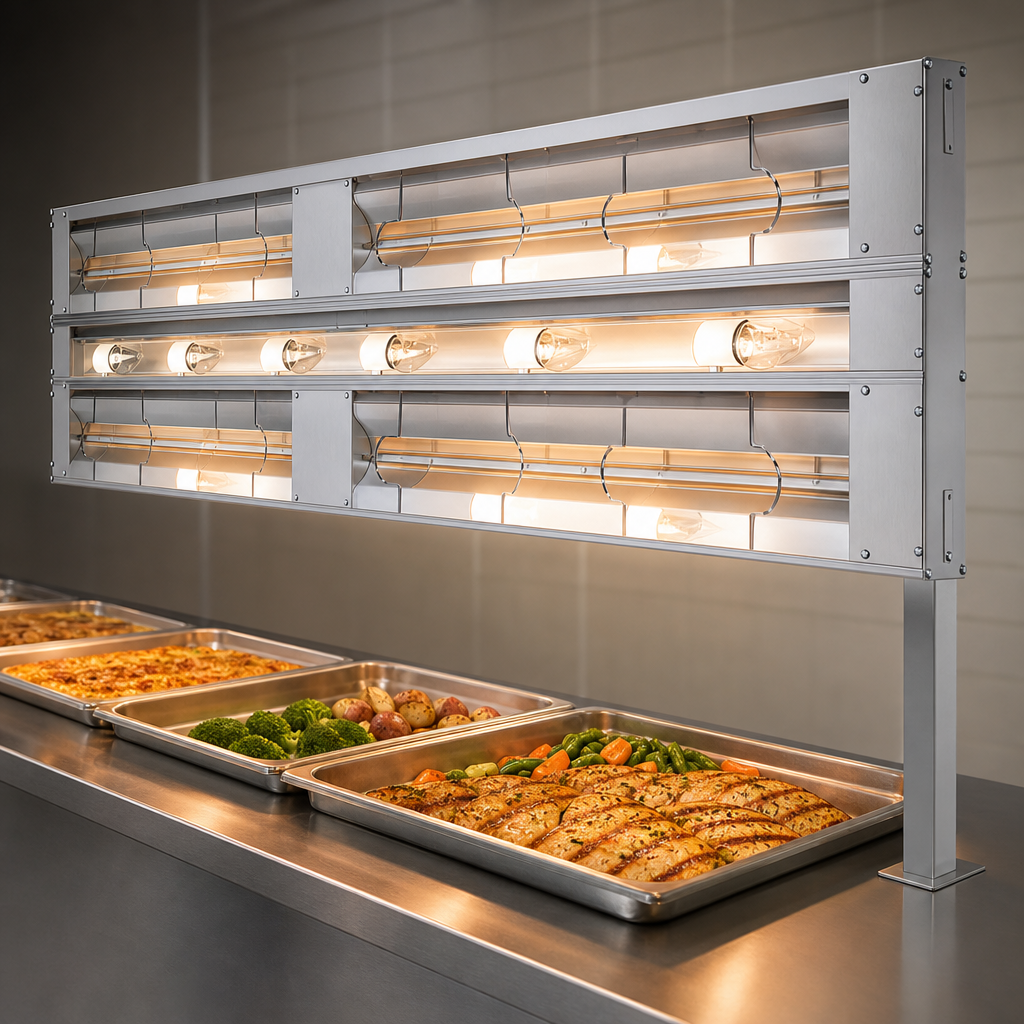

- Coated, shatter-resistant incandescent bulbs illuminate food while guarding against glass breakage.
- Reinforced wire guard protects staff without interrupting heat flow.
- Heavy-duty insulation limits heat loss and keeps energy costs in check.
- Factory-installed in the USA and listed to NSF & cULus standards for commercial kitchens.
Technical specifications
| Model | GRAHL-66D |
|---|---|
| Overall width | 66" / 1,676 mm |
| Heat source | Dual tubular metal-sheathed infrared elements |
| Total wattage | 3,420 W |
| Voltage options | 120/208 V, 120/240 V, 208 V, 240 V, 220-240 V (single-phase) |
| Full-load amps | Approx. 14.3–16.4 A (varies by voltage) |
| Lighting | (4) shatter-resistant incandescent display lamps |
| Housing spacer | 3" / 76 mm (standard) |
| Certifications | NSF, cULus |
| Country of origin | Made in USA |
Popular factory options
- Designer colour or gloss finish housings
- Sneeze guards (one- or two-sided, clear acrylic)
- Remote toggle or infinite controls
- Adjustable or fixed tubular stands
- Halogen or Chef LED replacement bulbs
Options must be specified at time of order.
Upgrade your holding line with the uncompromising performance of a Hatco Glo-Ray® – trusted worldwide wherever food has to stay hot, safe and irresistible.
