Hatco  |  Glo-Ray®  |  SKU: GRAHL-60D3

Hatco GRAHL-60D3 Glo-Ray® Heat Lamps

$1,024.75
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

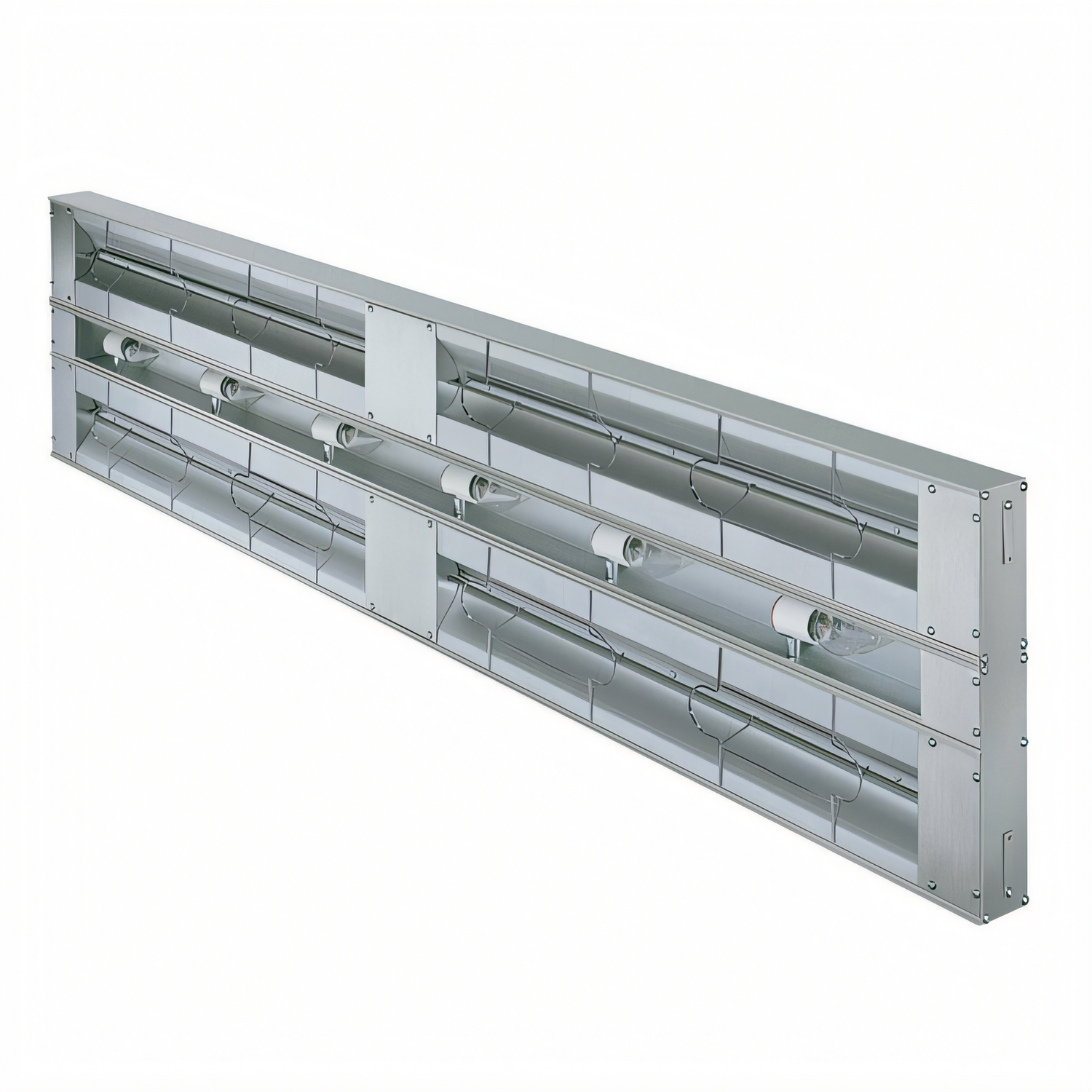

Hatco Glo-Ray® 60" High-Watt Dual Infrared Strip Heater with Lights

Model GRAHL-60D | 3" tandem housing spacer

Designed for the busiest buffet lines and pass-through stations, the Hatco Glo-Ray® GRAHL-60D blankets a full 60 inches of product with powerful, even infrared heat—while integrated display lights keep every dish looking its best.

Why you’ll love it

  • High-watt dual tubular metal elements (≈ 3.1 kW) eliminate cold spots and maintain safe serving temps.
  • 3" (76 mm) built-in spacer deepens the heat pocket for piled-high pans and plates.
  • Five shatter-resistant incandescent bulbs illuminate food and protect against glass contamination.
  • One-piece extruded aluminum housing will not sag, even at 60" (1524 mm) length.
  • Bright-annealed reflectors stay clear—no “blackening”—to keep heat precisely on the product.
  • Reinforced wire guard maximizes operator safety without blocking heat.
  • NSF & cULus listed and proudly Made in the USA.

Ideal applications

  • Buffet & cafeteria service lines
  • Quick-service pass-through windows
  • Pizza, fry & appetizer stations
  • Banquet plating & staging areas

Technical specs

Model GRAHL-60D (dual, high-watt)
Overall width 60" / 1524 mm
Depth × height 15" × 2.5" (381 × 64 mm) with 3" spacer
Heat output ≈ 3,100 W (varies by voltage)
Voltage options 120, 208, 240 V, single phase
Amperage @ 208 V ≈ 15 A
Heating elements (2) tubular metal-sheathed rods
Lighting (5) 40 W coated incandescent lamps (included)
Material Extruded aluminum housing, bright-annealed reflector
Recommended mounting height 18"–24" (457–610 mm) above surface
Certifications NSF, cULus
Origin Made in USA
Warranty 2 years on heating elements; 24/7 parts & service support

Custom designer colors, gloss finishes, remote control enclosures, sneeze guards, and mounting stands are available at time of order—ask us for details.

Installation note: High-watt strip heaters must be mounted a minimum of 18" (457 mm) above combustible surfaces and connected to a dedicated circuit. If the required breaker exceeds 20 A, the incandescent light circuit must be supplied by a separate 20 A (or smaller) breaker.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

60.0in

Depth

15.0in

Shipping Weight

37.0lbs

Finish

aluminum

Length

55 - 60"

Type

lighted

Size

double

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 60" W, high wattage, tubular metal heater rod with lights, double heater rod housing 3" spacing, aluminum construction, 3100 watts, NSF, cULus, Made in USA
