Hatco GRAHL-144D6 Glo-Ray® Heat Lamps
Description

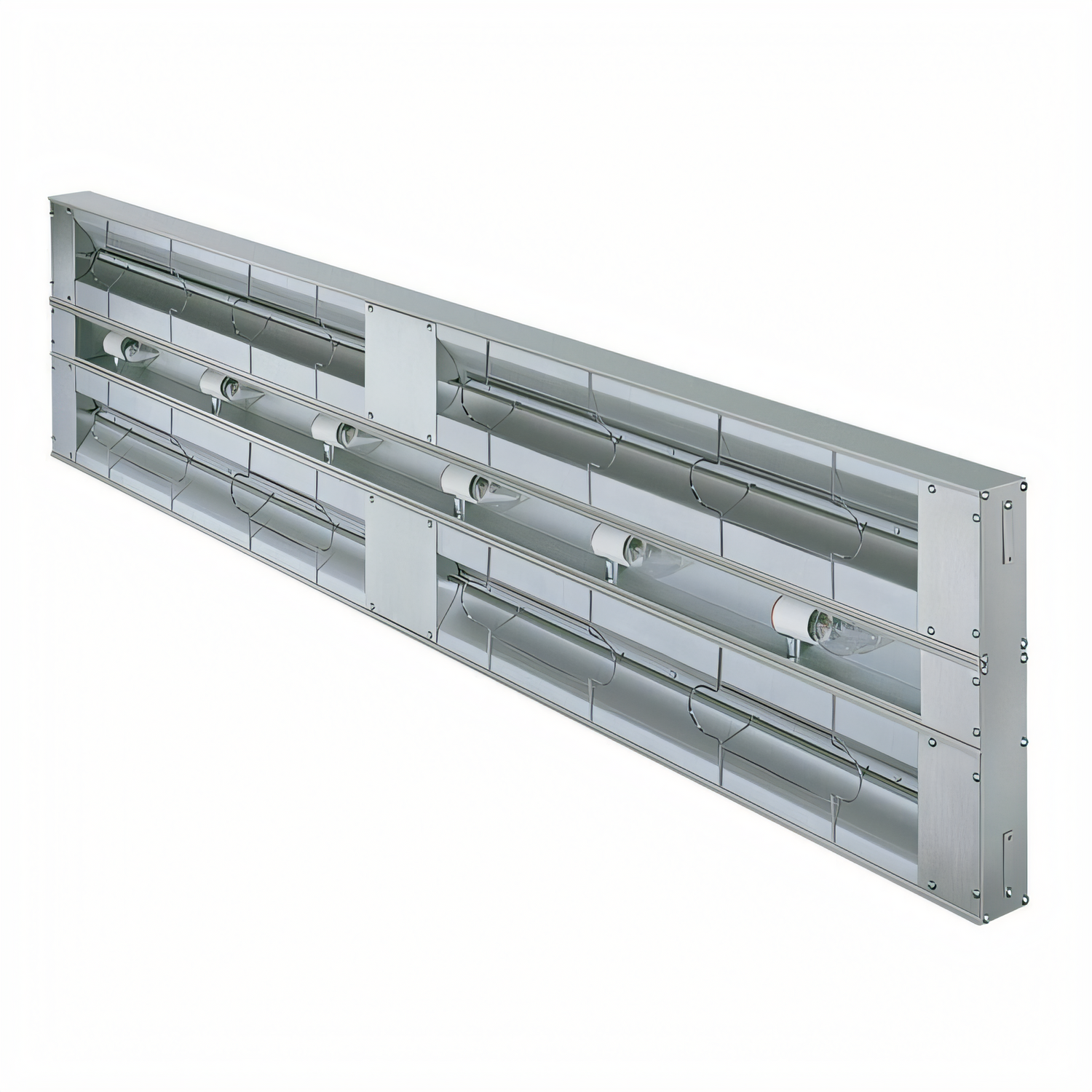

Glo-Ray® GRAHL-144D High-Watt Dual Infrared Strip Heater with Lights
144" (12 ft) - 7,620 W - NSF & cULus - Made in USATake control of your busiest buffet, pass-through or plating line with Hatco’s longest, most powerful dual strip heater. The GRAHL-144D delivers a wall of pre-focused infrared heat across an entire 12-foot holding area—no cold spots, no sagging, just perfectly held food and a brilliant presentation shift after shift.
Why you’ll love it
- High-output tandem elements – 7.6 kW of infrared power keeps even the deepest pans at safe serving temps.

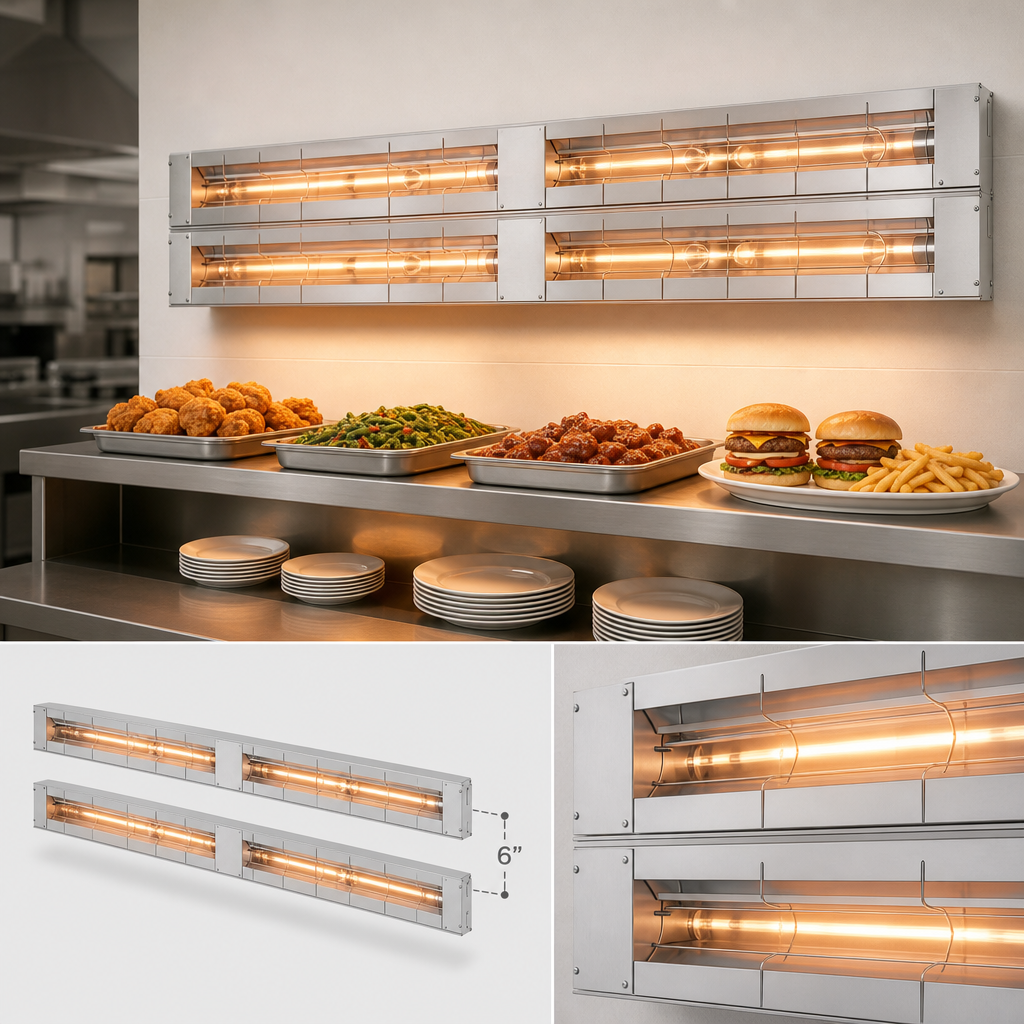

- Dual housing with 6" (152 mm) spacing – creates a wider, more forgiving heat zone for bulk production.

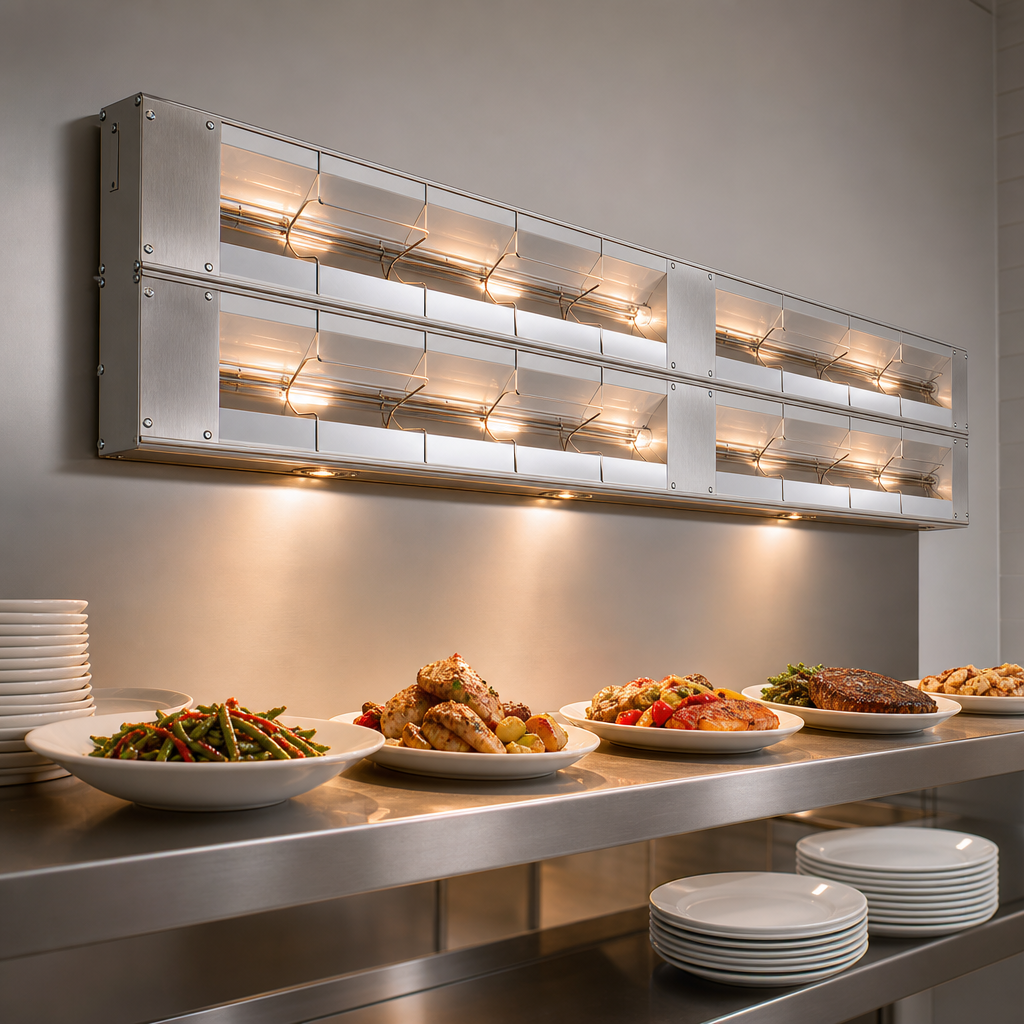

- Showcase lighting built in – 12 shatter-resistant incandescent bulbs highlight product while protecting it from glass fragments.
- Rugged 144" extruded aluminum body – will not bow or sag, even at full span.
- Bright-annealed reflectors stay shiny and never blacken, maintaining a consistent heat pattern.
- Reinforced wire guard adds operator safety without blocking heat.
- Heavy-duty insulation minimizes energy loss for cooler work areas.
- Elements covered by a 2-year warranty against burnout or breakage.
Perfect for
- Extra-long buffet or carving stations
- High-volume pass-through shelving
- Catering lines & banquet plating areas
- Any installation that demands even heat across 12 feet
Technical Specs
| Model | GRAHL-144D |
|---|---|
| Overall length | 144" / 3658 mm |
| Depth (with 6" spacer) | 18" / 457 mm |
| Height | 2.5" / 64 mm |
| Total wattage | 7,620 W (varies slightly by voltage) |
| Voltage options* | 120/208 V, 120/240 V, 208 V, 220-240 V, Single-Phase |
| Amps (nominal) | Up to 38.1 A – check chart for selected voltage |
| Heating elements | Metal-sheathed tubular, tandem (dual row) |
| Display lights | 12 × 40 W coated incandescent (1 per ft., included) |
| Certifications | NSF Listed, cULus |
| Shipping weight | ≈ 80 lb / 36 kg |
| Country of origin | USA |
*Select the required voltage in the dropdown above. Electrical connection is via a 36" flexible metal conduit with 42" leads. High-watt models must be mounted at least 18" (457 mm) above the holding surface.
Factory options (contact us to order)
- Designer colors or gloss finishes
- Remote toggle or infinite control boxes
- 3" spacer for tighter installations
- Adjustable or fixed tubular stands
- Acrylic sneeze guards & chain suspension kits
- LED Chef bulbs (3000 K or 4000 K)
