Hatco GRAHL-144D3 Glo-Ray® Heat Lamps
Description

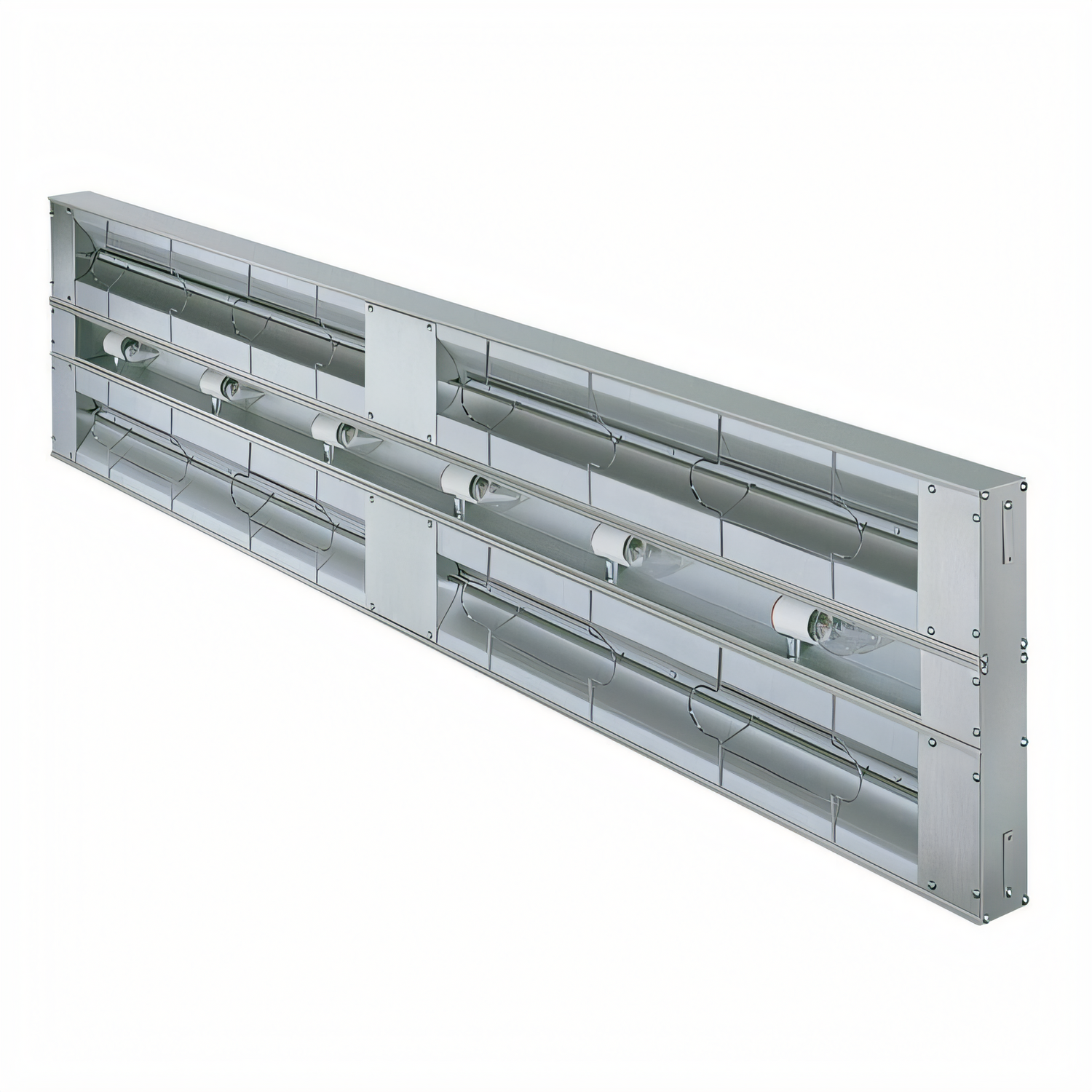

Glo-Ray® Dual Infrared Strip Heater – 144" High-Watt (Model GRAHL-144D)
Hatco’s longest, most powerful food-holding strip with integral lightsStretching a full 12 feet, the Hatco Glo-Ray® GRAHL-144D blankets even the biggest pass-thru or buffet line with steady, pre-focused infrared heat. Twin tubular metal elements—spaced 3" (76 mm) apart inside a rugged aluminum housing—deliver 7,620 watts of high-intensity warmth while shatter-resistant display lamps showcase every dish.
Why you’ll love it

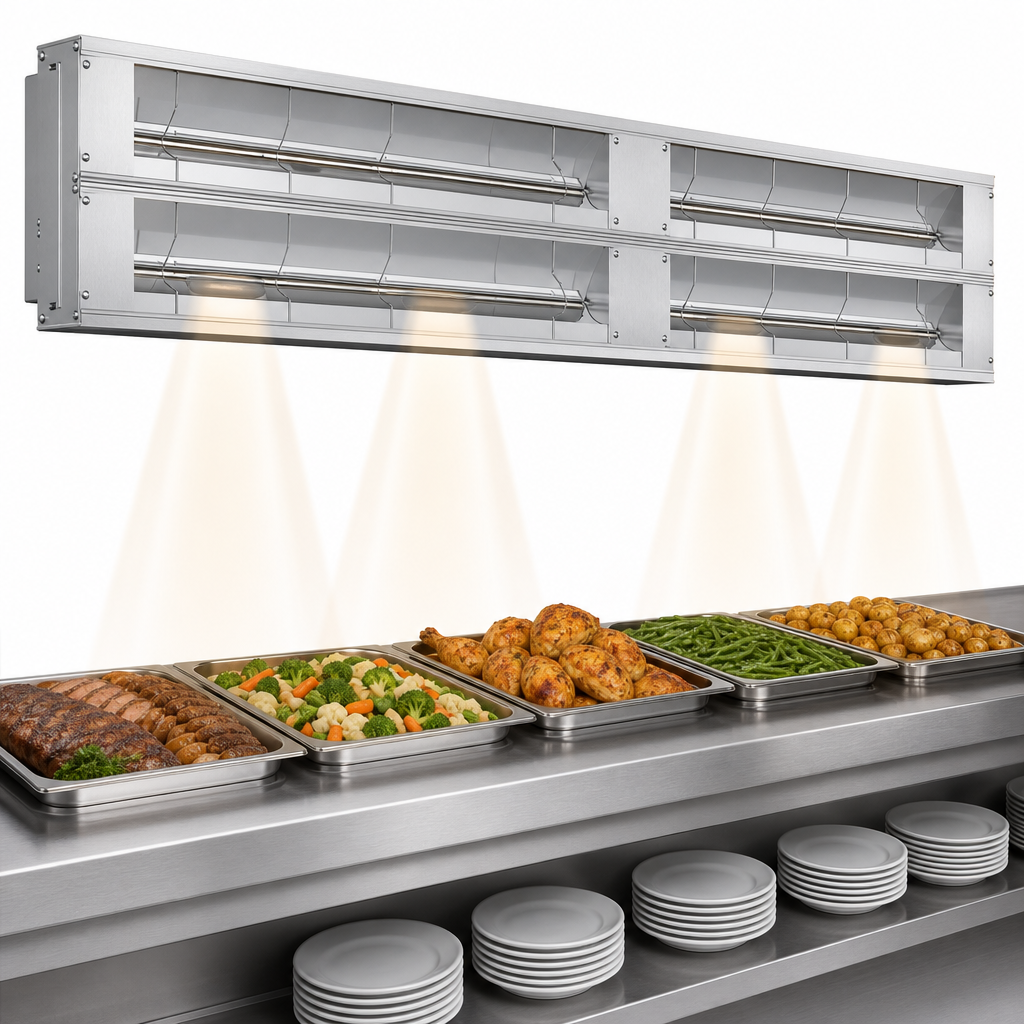

- High-watt tandem elements eliminate cold spots across the entire 144" span.
- Pre-focused heat pattern keeps food safely above 140 °F (60 °C) for longer holding times.
- Extruded aluminum construction will not sag, even at full length.

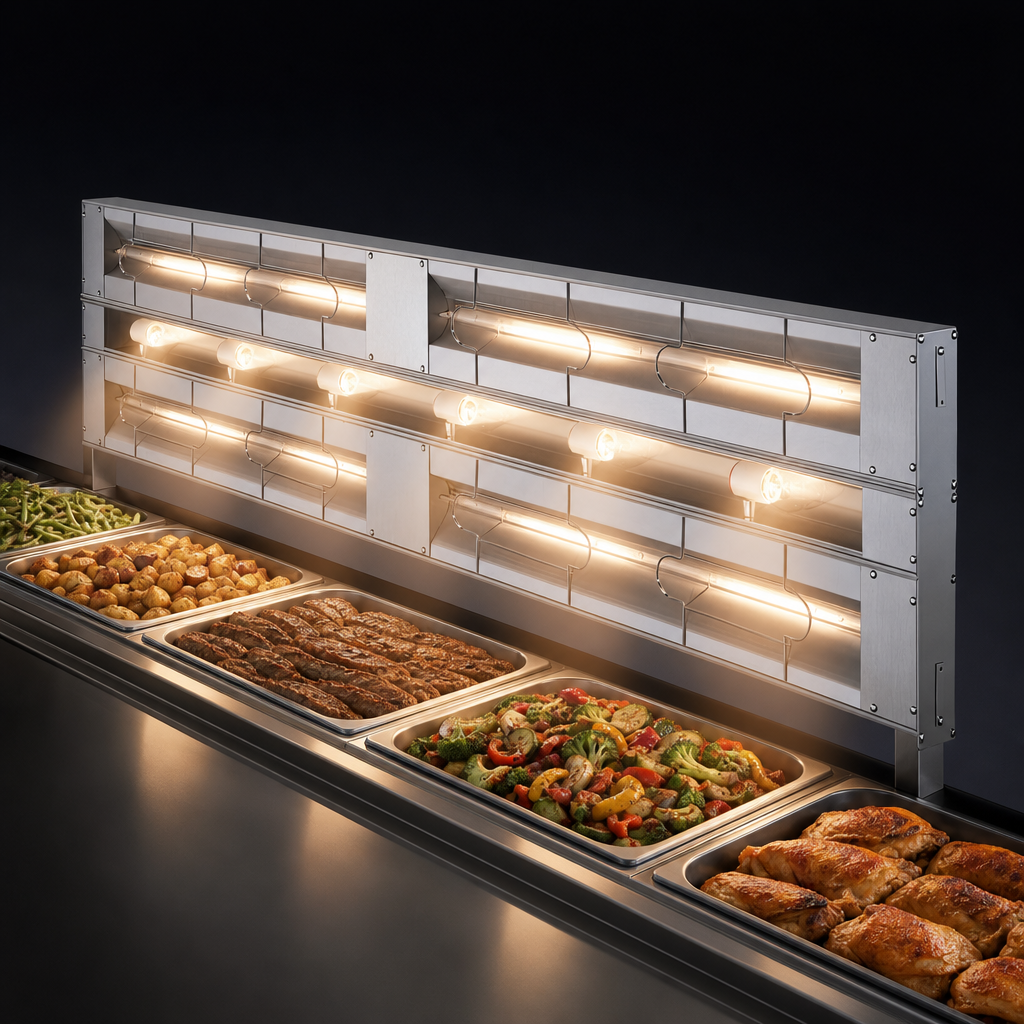

- Bright, coated incandescent lights enhance presentation and protect food from broken glass.
- Reinforced wire guard provides operator safety without blocking heat.
- Heavy-duty insulation minimizes heat loss and keeps the kitchen cooler.
- NSF & cULus listed and Made in the USA.
- 2-year element warranty for worry-free ownership.
Ideal applications
- Convention-length pass-thru shelves
- High-volume cafeteria or buffet lines
- Catering pick-up rails & banqueting
- Commissary and central kitchen plating areas
Technical specifications
| Model | GRAHL-144D (High Watt) |
|---|---|
| Overall width | 144" (3,658 mm) |
| Depth × Height | 15" × 2.5" (381 × 64 mm) – with 3" spacer |
| Heating elements | Dual tubular metal, 3" spacing, tandem |
| Wattage | 7,620 W |
| Voltage / Phase | 120/208 V 1 ø or 120/240 V 1 ø (other voltages available) |
| Amperage (nom.) | 36.6 A @ 208 V • 31.8 A @ 240 V |
| Lights | (11) coated incandescent display bulbs included |
| Housing material | Anodized aluminum with bright-annealed reflectors |
| Certifications | NSF • cULus |
| Origin | Made in USA |
High-watt GRAHL models must be mounted a minimum of 18" (457 mm) above the holding surface and clear of combustible materials. Always follow local electrical codes and Hatco’s installation manual.
Looking for color-matched housings, extended leads, sneeze guards or stand kits? All factory options are available at time of order—chat with our team for a personalized quote.
