Hatco GRAHL-144 Glo-Ray® Heat Lamps
Description

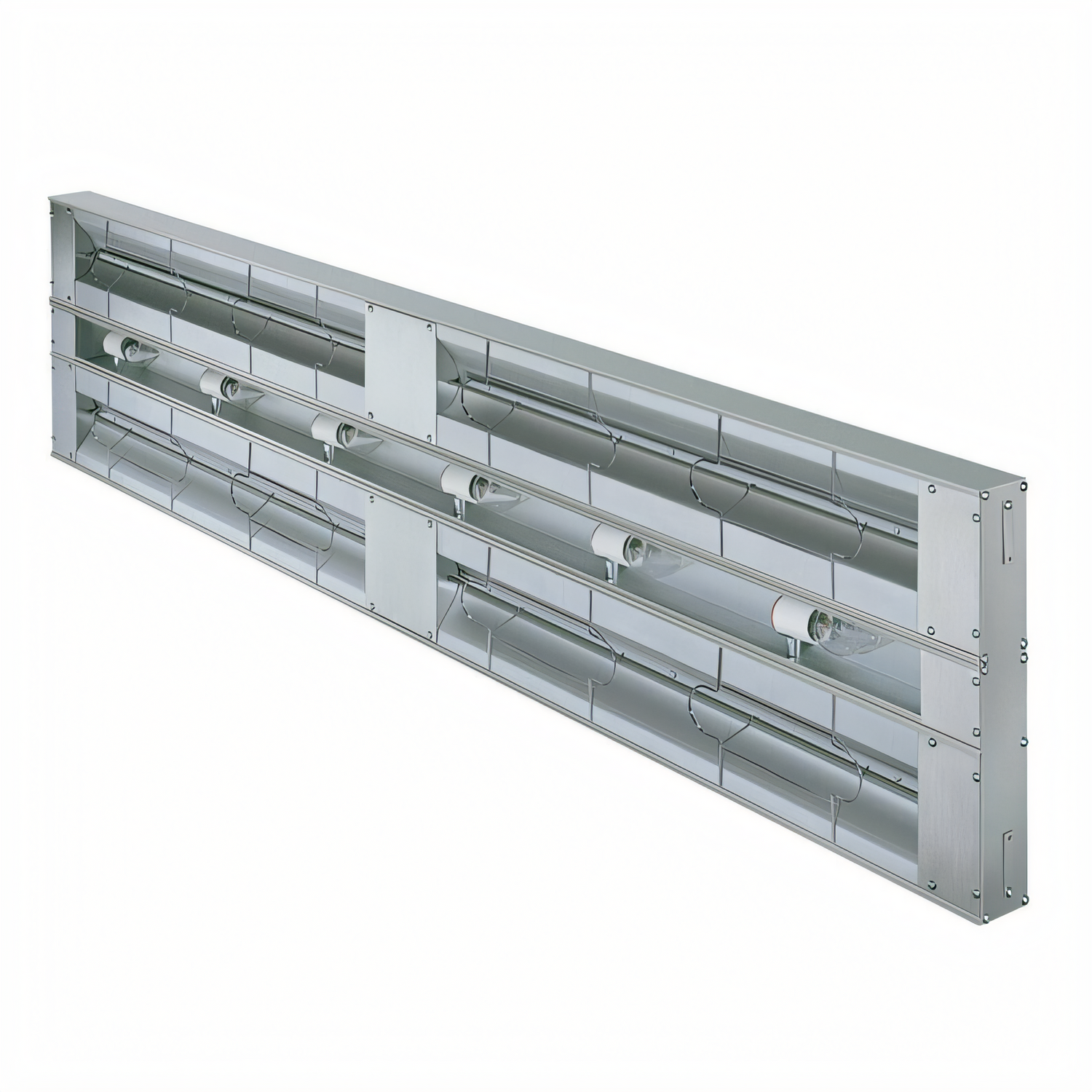

Hatco Glo-Ray® High-Watt Infrared Strip Heater – 144" with Lights
Model GRAHL-144 | 4,170 W • 12 ft span • Made in USAGive every inch of your 12-foot serving line the same appetizing glow and holding power. Hatco’s top-of-the-line Glo-Ray® GRAHL-144 delivers high-watt, pre-focused infrared heat and brilliant display lighting in one rugged, low-profile housing – keeping food hot, safe and guest-ready for extended periods.
Key advantages

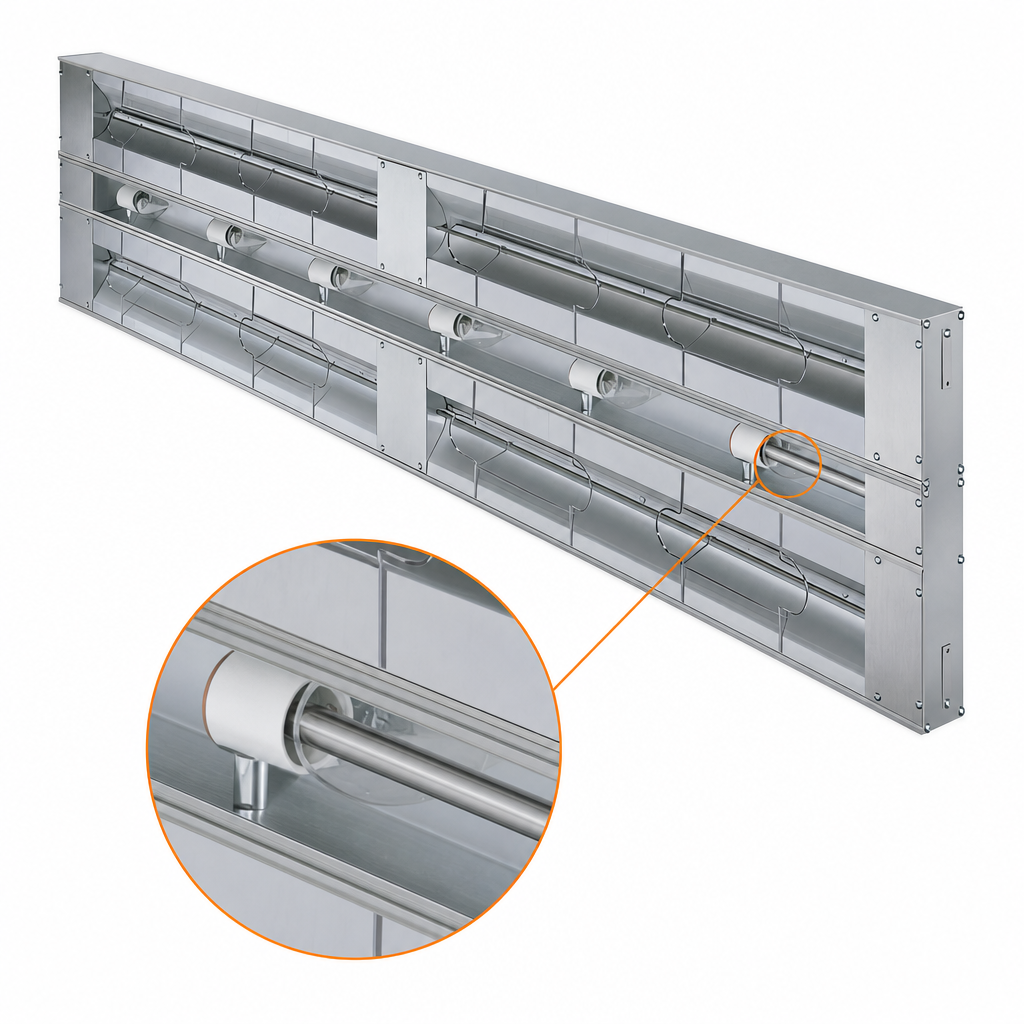

- Serious heat output – 4,170 W tubular metal sheathed element (two tandem elements end-to-end) for maximum coverage without cold spots.
- Pre-focused Glo-Ray technology keeps holding temperatures steady, minimising food waste and re-fires.

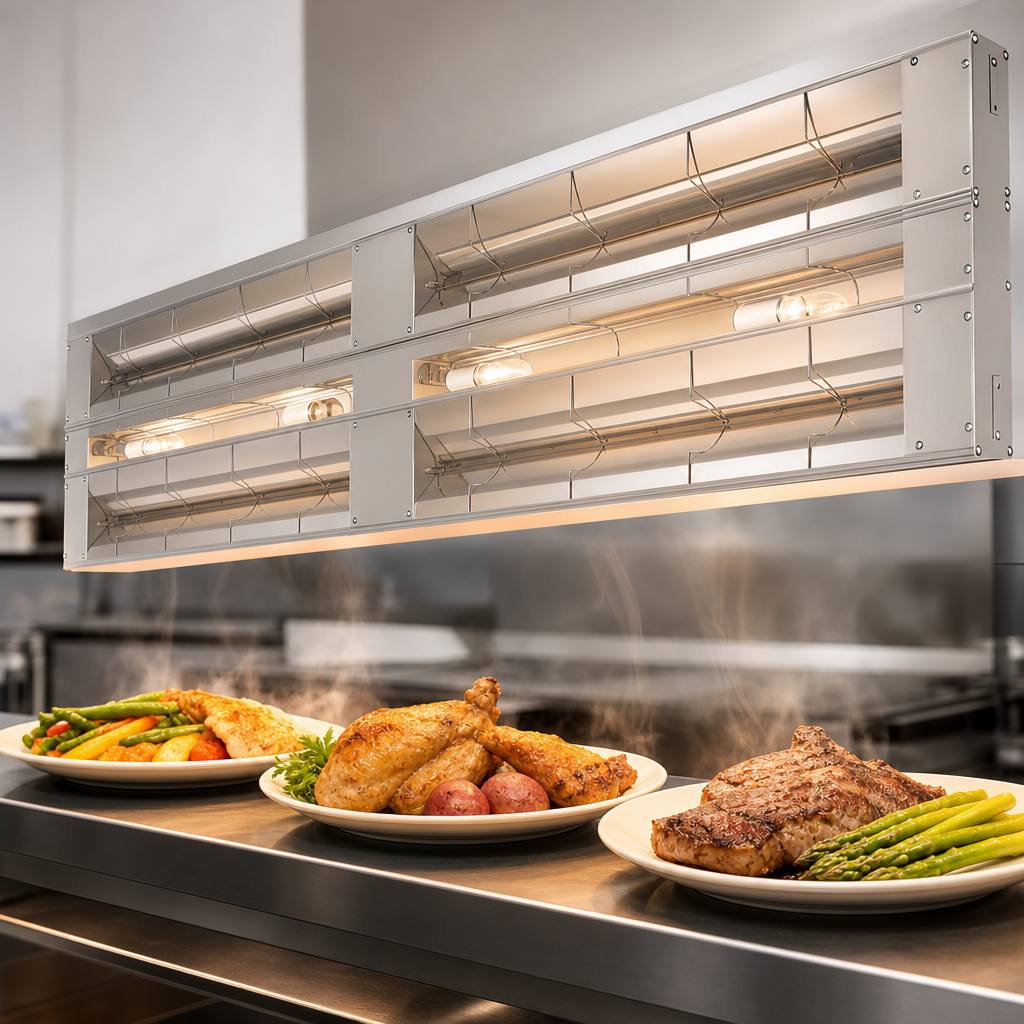

- Built-in (12) shatter-resistant, 60 W incandescent bulbs – one per foot – beautifully illuminate menu items while protecting them from glass breakage.
- Heavy-duty extruded aluminum housing won’t sag, resists corrosion and is lighter to install than stainless alternatives.
- Reinforced wire guard and non-blackening reflector maintain a consistent, even heat pattern for the life of the unit.
- Metal-sheathed heating elements are warranted for two full years against burnout or breakage.
- NSF, cULus & CE certified for worldwide compliance; built and factory-tested in Milwaukee, WI, USA.
Ideal applications
- Banquet & plating lines up to 12 ft (3658 mm)
- Buffets, carving stations & cafeterias
- Airport clubs, stadium premium seating & convention catering
- Marine & concession build-outs (ask about stainless housings)
Technical specifications
| Overall dimensions | 144" W × 9" D × 2.5" H (3658 × 229 × 64 mm) |
|---|---|
| Housing | Single-rod, extruded aluminum with integrated wire guard |
| Heat source | (2) Tandem tubular metal sheathed elements |
| Watts | 4,170 W (high-watt configuration) |
| Voltage / amps (select during checkout) |
• 120 V - 34.8 A • 208 V - 20.1 A • 240 V - 17.4 A |
| Lighting | (12) Teflon-coated 60 W incandescent bulbs (included) |
| Power connection | 36" (914 mm) flexible metal conduit with 42" (1067 mm) wire leads |
| Shipping weight | Approx. 48 lb (22 kg) |
| Certifications | NSF 4, CE, cULus |
| Warranty | 2-year parts & labor on heating elements; 24/7 US-based support |
Popular factory options
- Designer powder-coat colors or gloss finishes
- Sneeze guards (one- or two-sided, 9⅜" or 14" high)
- C-leg, T-leg or tubular stands (adjustable & fixed heights)
- Remote infinite control box & indicator light
- Halogen or Chef-grade LED bulbs
- Chain-mount suspension kits & angle brackets
Need help configuring mounting hardware or electrical options? Contact your local Hatco representative or chat with our team – we’re happy to assist.
