Hatco GRAHL-132D3 Glo-Ray® Heat Lamps
Description

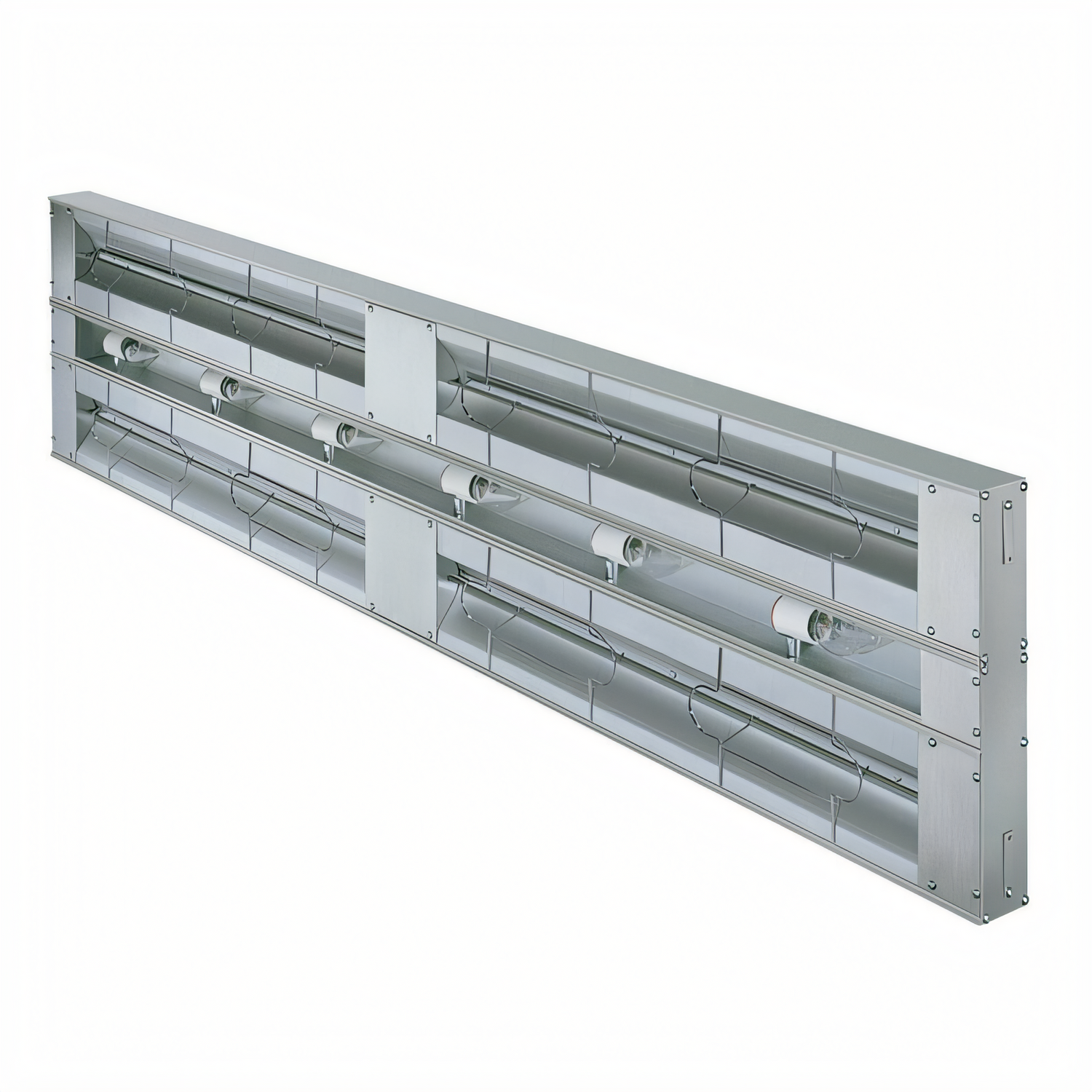

Hatco Glo-Ray® High-Watt Dual Infrared Strip Heater – 132"
Model GRAHL-132D | 6,900 W • 3" Spacer • 11 Display LampsGive every pan on your steam table the same “just-made” appeal. The 132" Hatco Glo-Ray® Dual Infrared Strip Heater blankets a full 11-foot run with pre-focused infrared heat while integrated shatter-resistant lamps illuminate your menu. Built for the busiest cafeteria lines, carving stations and banquet passes, this American-made powerhouse delivers 6,900 watts of safe, even holding temperature without cold spots or food-drying hotspots.
Key advantages
- High-watt tandem tubular metal elements concentrate heat across the entire holding surface.
- Dual heater rods mounted 3" apart create a deeper heat zone for high-capacity pans.

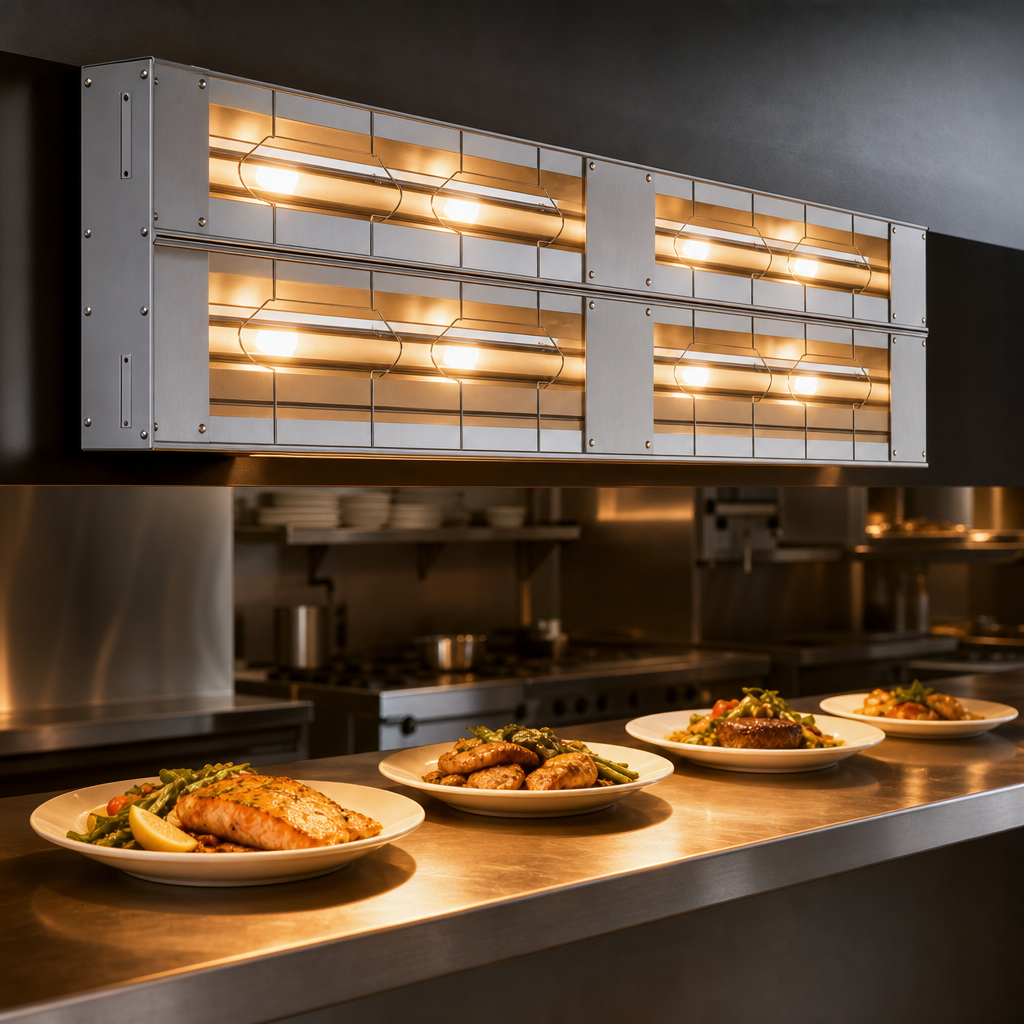

- 11 coated, shatter-resistant incandescent bulbs enhance product presentation and protect food.
- Continuous extruded aluminum housing will not sag, even at 132" (3353 mm) long.
- Heavy-duty insulation and bright-annealed reflectors minimise heat loss and never blacken.
- Reinforced wire guard increases operator safety without blocking heat.
- Heating elements are warranted for two years against burnout and breakage.
- NSF listed, cULus certified and proudly Made in the USA.
Popular applications
- Buffet or cafeteria lines up to 11 ft (3.35 m)
- Cook-to-serve pass-through shelves
- High-volume carving or action stations
- Banquet plate make-up areas
Specifications
| Overall width | 132" / 3353 mm |
|---|---|
| Depth (with 3" spacer) | 15" / 381 mm |
| Height | 2.5" / 64 mm |
| Heating wattage | 6,900 W (high-watt model) |
| Voltage & amp draw |
208 V ≈ 33.2 A | 240 V ≈ 28.8 A
Multi-circuit units also available at 120/208 V or 120/240 V. |
| Heating elements | Dual tandem metal-sheathed infrared tubes |
| Lighting | 11 × 40 W coated incandescent display lamps (included) |
| Construction | Heavy-gauge extruded aluminum with bright-annealed reflectors |
| Ship weight | ≈ 73 lb / 33 kg |
| Certifications | NSF, cULus |
| Country of origin | USA |
Minimum clearances
- Install only over non-combustible surfaces.
- Surface to bottom of heater: 18" (457 mm) minimum.
- Side/End clearances: 3" (76 mm).
Complete installation, wiring and mounting details are provided with the unit.
Upgrade your serving line with the reliability that has made Hatco the preferred name in holding equipment since 1950. Keep food hot, safe and looking its best—order the Glo-Ray® 132" Dual Infrared Strip Heater today.
