Hatco GRAHL-132 Glo-Ray® Heat Lamps
Description

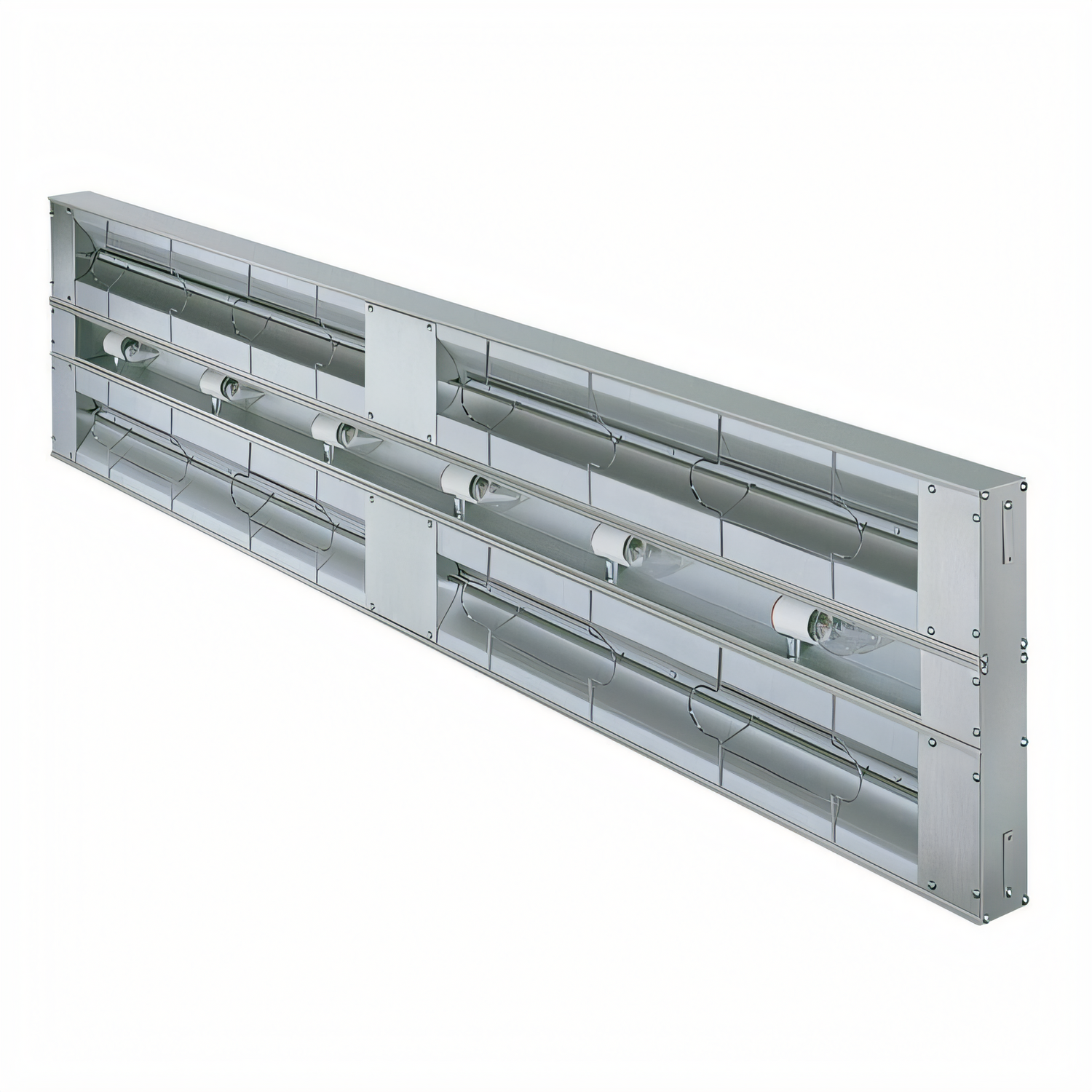

Hatco Glo-Ray® 132" High-Watt Infrared Strip Heater with Lights
Model GRAHL-132 | Single housing | Tandem elementsStretching a full 11 feet, this powerful Glo-Ray® strip heater blankets wide buffet lines, pass-throughs and plating stations with an even wave of infrared heat while its built-in lamps keep every dish brilliantly illuminated. If your operation demands hot, fresh and eye-catching food from open to close, this is the heater for you.
Key advantages
- 3780 watts of high-watt infrared power ensure safe holding temperatures without over-cooking.
- Pre-focused tubular metal-sheathed element provides uniform heat—no cold spots.

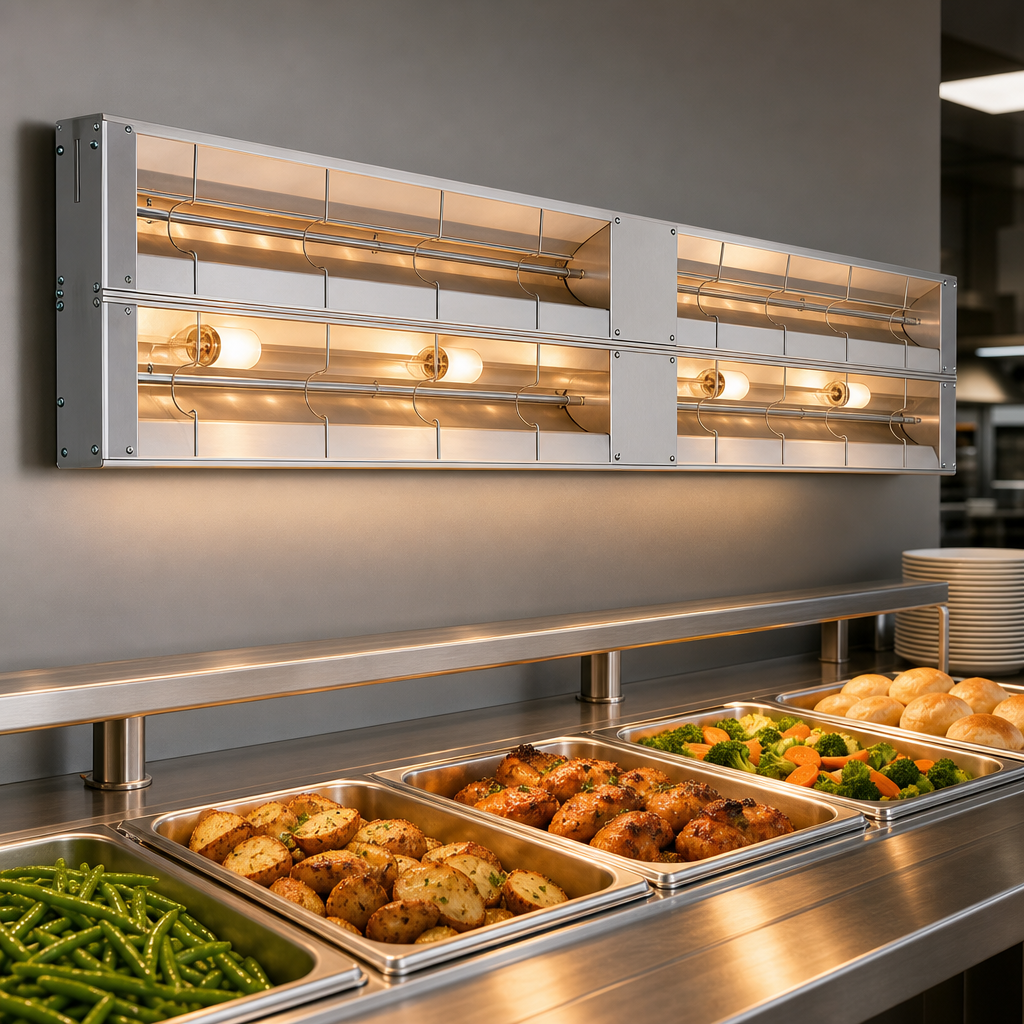

- Integrated 60 W shatter-resistant display lamps (one per foot) enhance product appeal and safety.

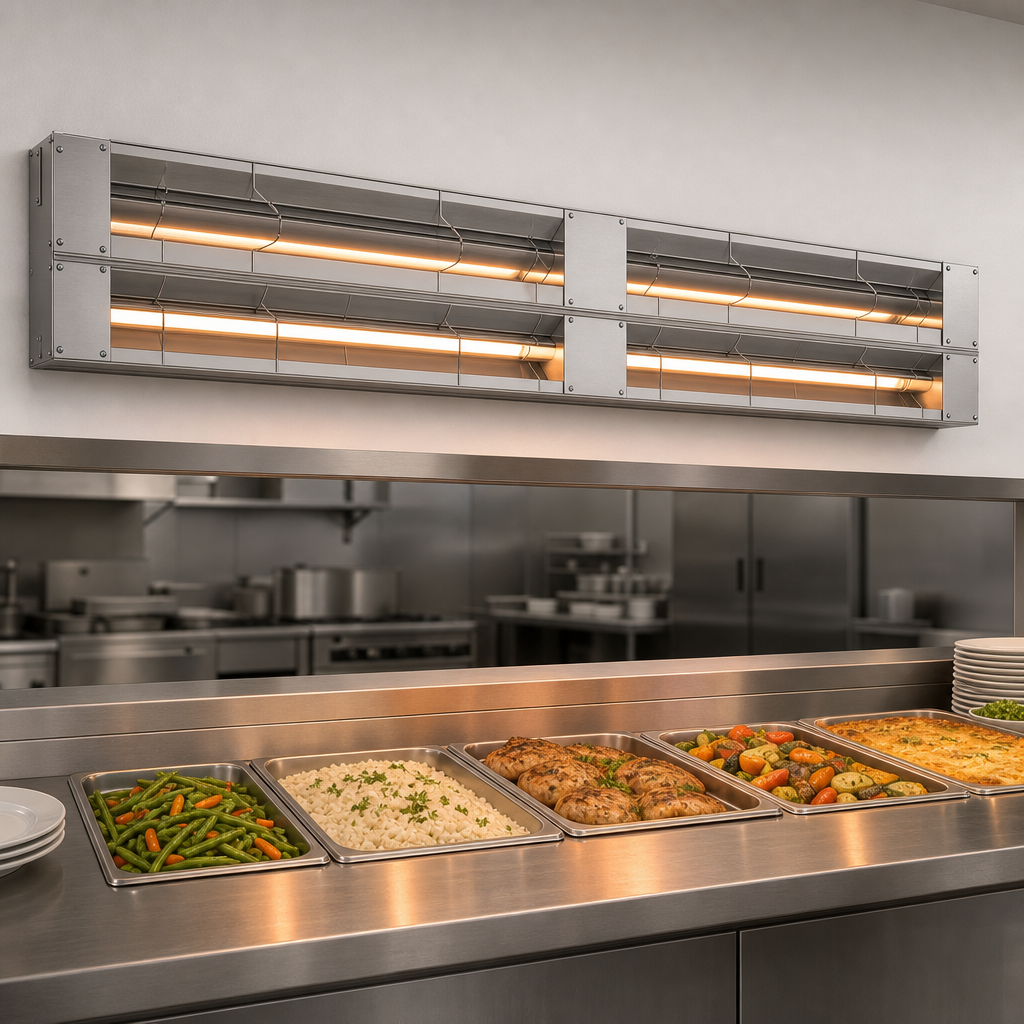

- Rigid extruded-aluminum housing will not sag across the 132" span and resists corrosion.
- Tandem element design places two heaters end-to-end inside a single strip for simplified wiring.
- Reinforced wire guard protects staff while allowing maximum heat flow.
- Heating element carries a 2-year no-breakage warranty for added peace of mind.
- Built, tested and certified in the USA — NSF, cULus & CE listed.
Ideal applications
- Hotel & corporate buffets
- High-volume pass-through windows
- Banquet or commissary plating lines
- Supermarket hot food bars
Technical specifications
| Overall length | 132" (3353 mm) |
|---|---|
| Dimensions | 132" W × 9" D × 2.5" H |
| Housing material | Single-piece extruded aluminum |
| Heat source | Tubular metal-sheathed infrared element (tandem) |
| Wattage | 3780 W (High Watt) |
| Voltage options* | 120/208 V, 120/240 V, 208 V, 240 V, 220-230 V (CE) |
| Display lighting | 11 × 60 W Teflon-coated incandescent (standard) Halogen upgrade available |
| Electrical connection | 36" (914 mm) flex conduit with 42" leads, chef’s left side |
| Recommended mounting height | High-watt units: 11"–14" (279–356 mm) above holding surface |
| Certifications | NSF, cULus, CE |
| Country of origin | Made in USA |
*Verify available voltages, amperage draw and circuit requirements with your electrician before ordering.
Popular factory options
- Designer powder-coat or gloss finishes
- Remote infinite control box (0–100 % heat adjustment)
- Adjustable or fixed tubular stands, C-Leg or T-Leg mounts
- Single- or double-sided acrylic sneeze guards
- Extended power leads up to 20 ft (6.1 m)
- Extra or halogen display lamps (max 2 per foot minus 1)
Elevate every plate with consistent heat and brilliant presentation—choose the Hatco Glo-Ray® 132" High-Watt Infrared Strip Heater and keep your service line shining.
