Hatco GRAHL-120D3 Glo-Ray® Heat Lamps
Description

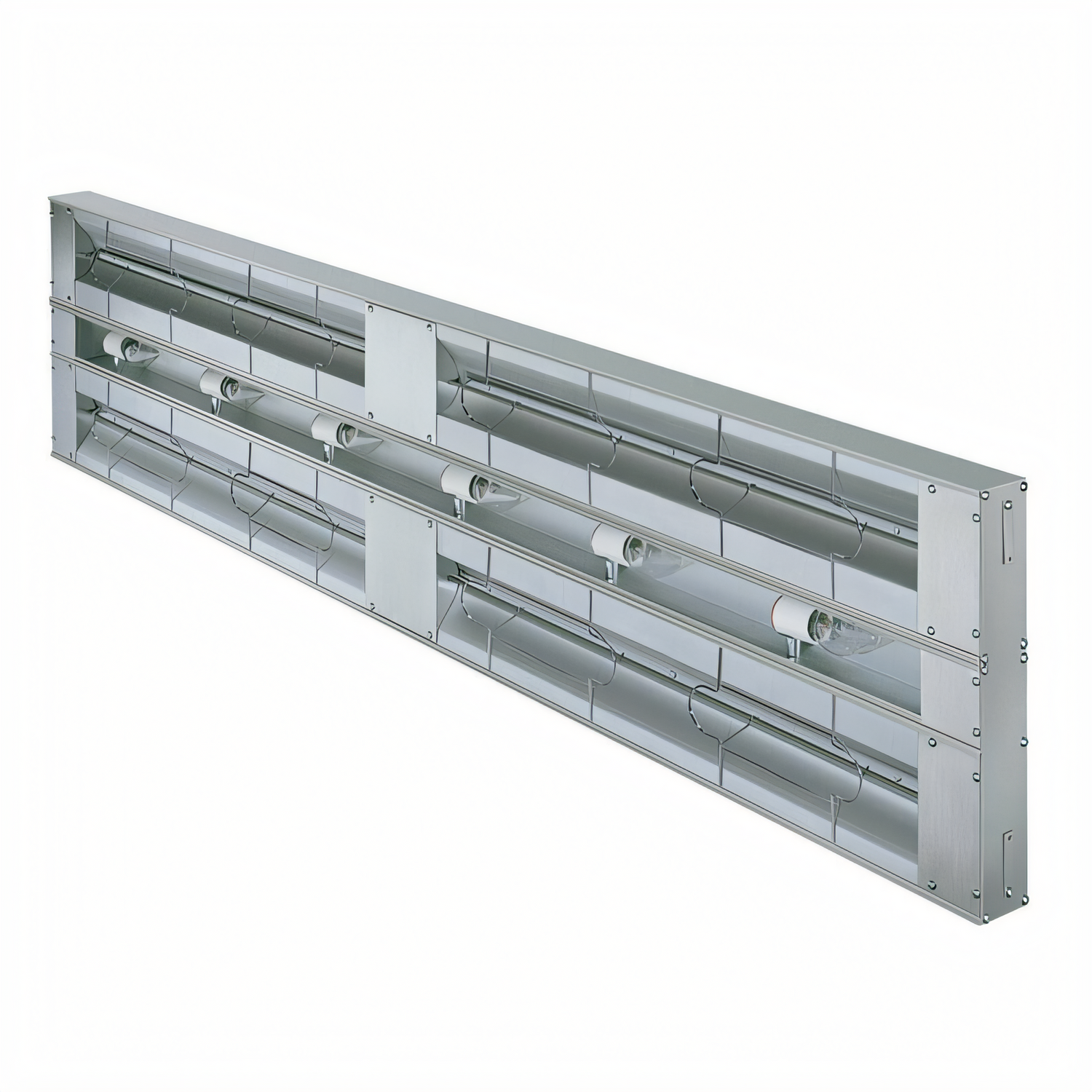

Hatco Glo-Ray® 120" Dual High-Watt Infrared Strip Heater with Lights
Model GRAHL-120D | 6,200 W | Made in USABring powerful, even heat to the entire length of your serving line. The 10 ft Hatco Glo-Ray® GRAHL-120D combines high-watt infrared heating with shatter-resistant display lighting to keep food safe, appetising and ready to serve during the busiest rushes.
Key advantages
- High-output tandem elements deliver 6.2 kW of pre-focused infrared heat—no cold spots.

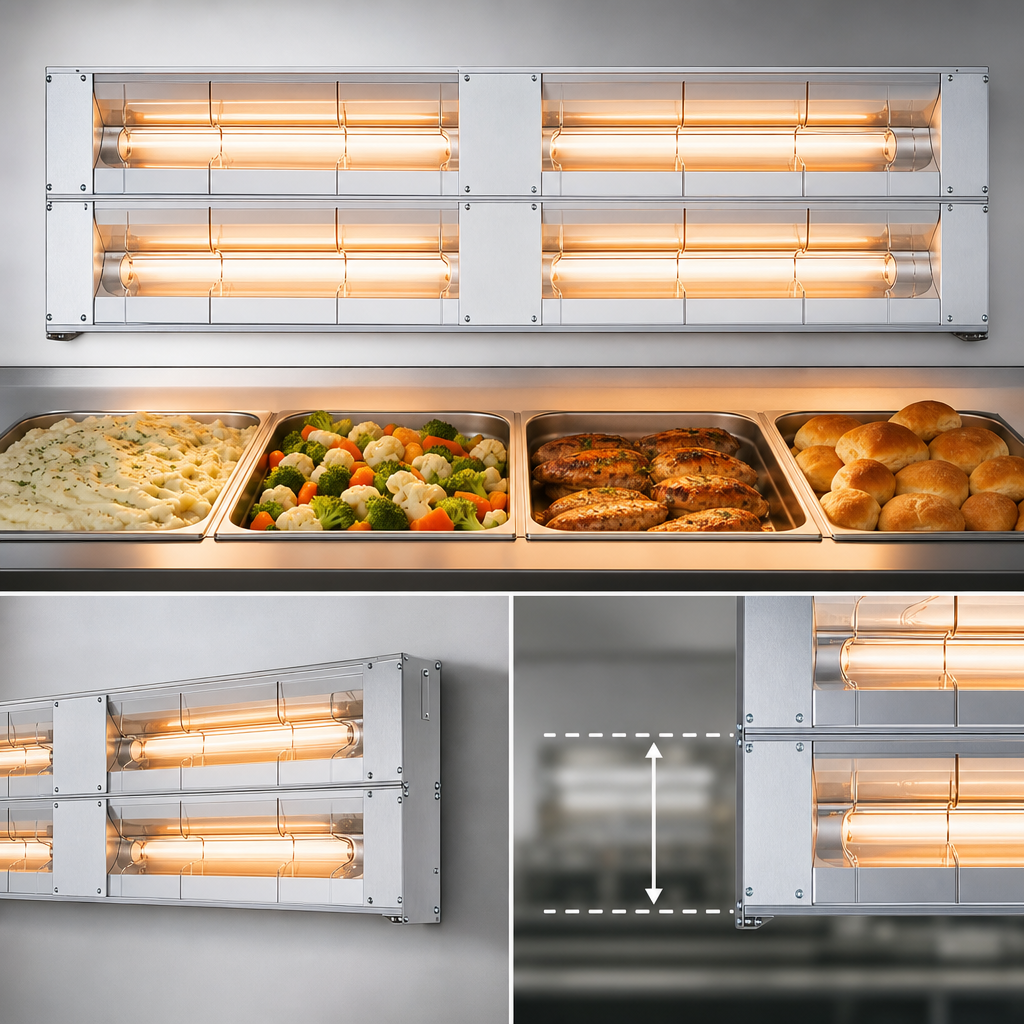

- Dual tubular metal heater rods spaced 3" apart create a deeper, more forgiving holding area.

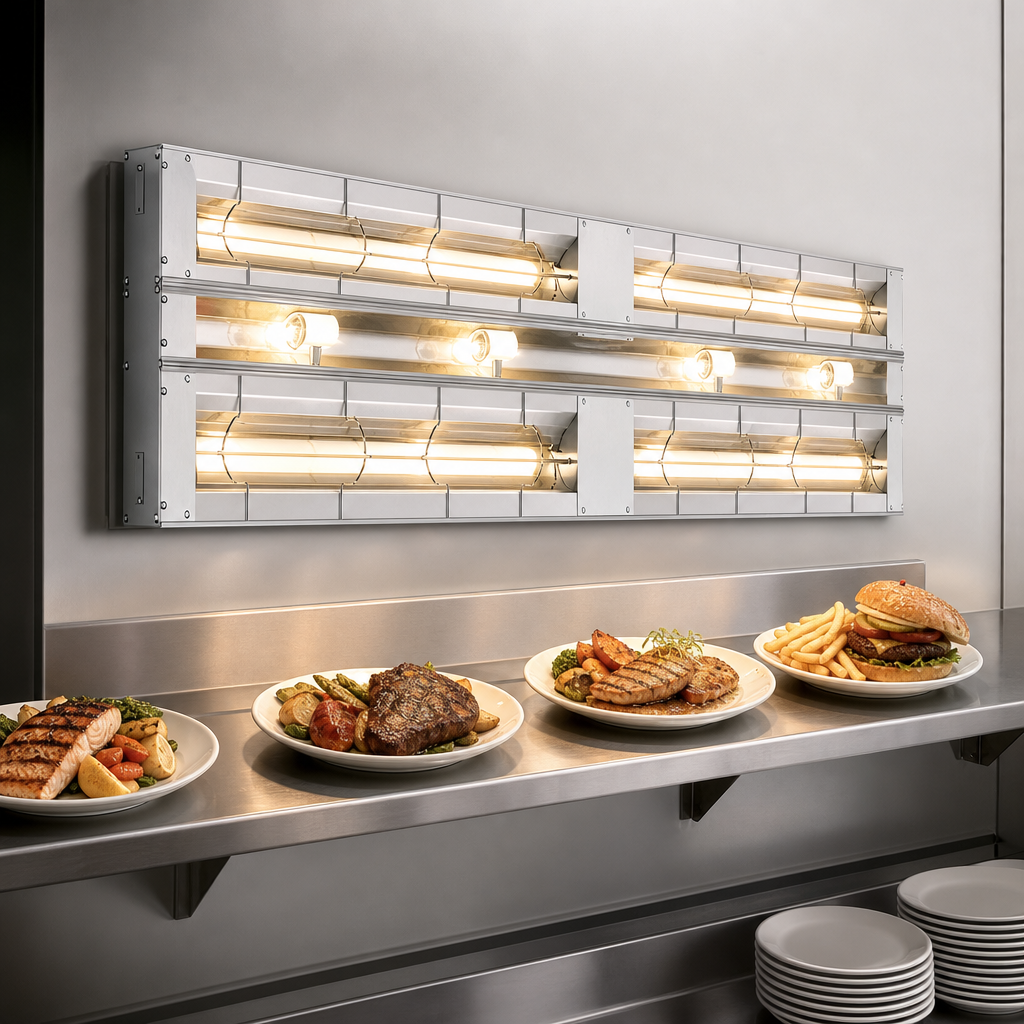

- Showcase lighting included (one shatter-resistant bulb per foot) to boost impulse sales and protect food.
- Built to last: extruded aluminum housing that will not sag, plus heavy-duty insulation to reduce heat loss.
- Safety first: reinforced wire guard shields users without interrupting heat distribution.
- Worry-free warranty: metal-sheathed elements are guaranteed against burnout & breakage for two years.
- NSF & cULus listed for sanitation and electrical safety.
At-a-glance specs
| Model | GRAHL-120D |
|---|---|
| Heat length | 120" / 10 ft (3048 mm) |
| Wattage | 6,200 W (high watt) |
| Voltage options* | 120/208 V, 120/240 V, 208 V or 240 V, single phase |
| Amps @ 240 V | ≈ 25.8 A (separate 120 V light circuit on multi-voltage units) |
| Bulbs supplied | 10 coated, shatter-resistant incandescent |
| Overall size † | 120" W × 15" D × 2.5" H (with 3" spacer) |
| Shipping weight | ≈ 66 lb (30 kg) |
| Construction | Clear-anodized aluminum housing & tandem metal-sheathed elements |
| Certifications | NSF, cULus |
*Specify voltage at time of order. 20 A (max) breaker recommended for light circuit. †Width and shipping weight are nominal.
Popular options & accessories
- Designer color or gloss-finish housings (Warm Red, Black, Gray Granite, Smooth White, Gleaming Gold and more).
- 6" spacer bars for an even deeper heat zone.
- Adjustable or fixed tubular stands, angle brackets, or chain suspension kits.
- Acrylic sneeze guards (single or double-sided) for safe self-service applications.
- Remote toggle or infinite control boxes — choose finish to match your décor.
