Hatco  |  Glo-Ray®  |  SKU: GRAHL-120

Hatco GRAHL-120 Glo-Ray® Heat Lamps

$1,233.84
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Parts list Electrical rating Owner's manual Color chart Catalog brochure
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

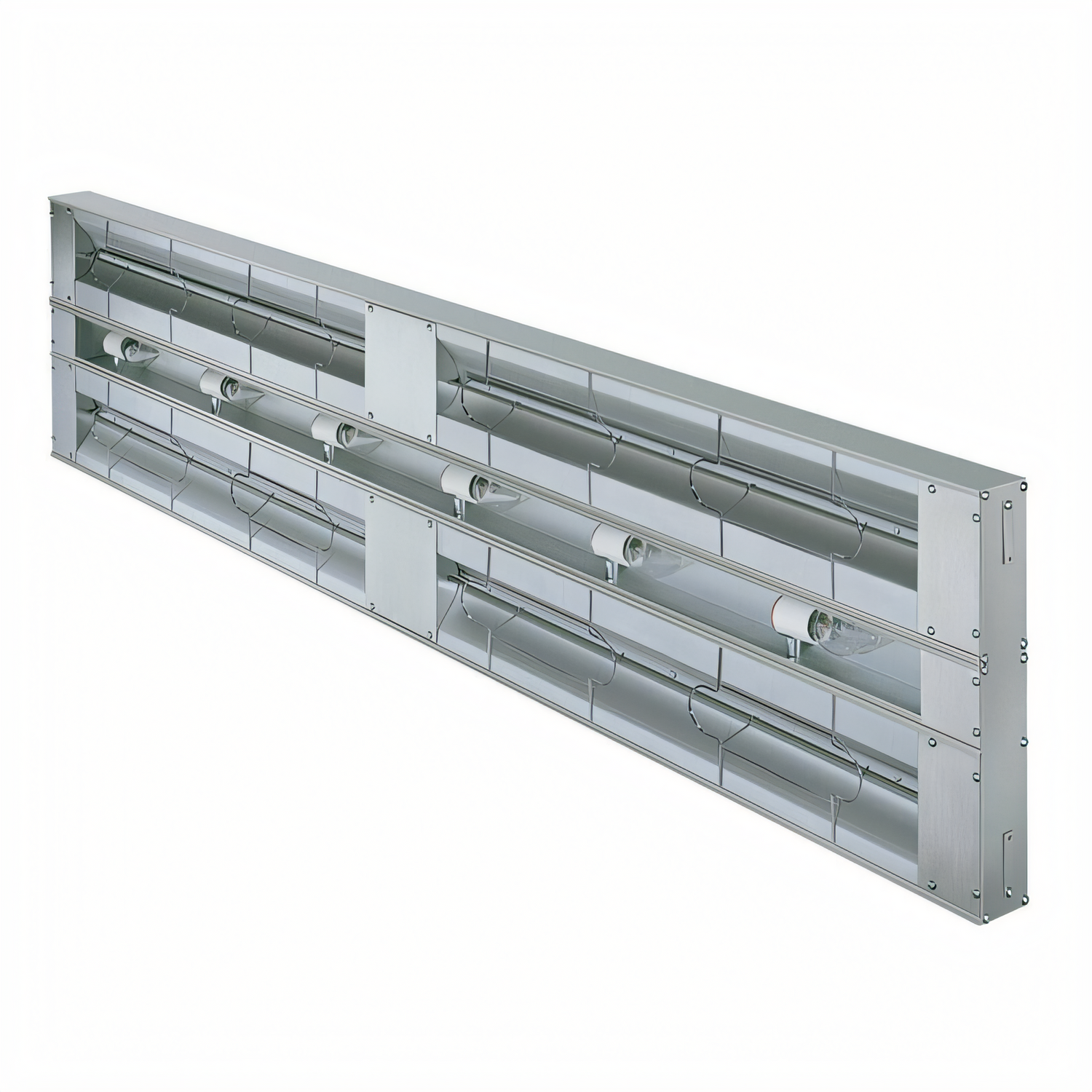

Hatco Glo-Ray® GRAHL-120 Infrared Strip Heater with Lights – 120″

High-Watt • 3,400 W • Tandem Elements • Aluminum Housing

Stretching a full ten feet, the Glo-Ray® GRAHL-120 delivers powerful, pre-focused infrared heat that safeguards product quality and food-safe temperatures across the entire length of your service line, pass-thru, or buffet. Shatter-resistant display lights keep every dish looking its best while Hatco’s proven tubular metal-sheathed elements provide unmatched durability and even coverage.

Key Features
  • High-watt, tandem, tubular metal elements generate a robust 3,400 W of even infrared heat—no “cold spots.”
  • Pre-focused heat pattern keeps food above 140 °F (60 °C) without drying or over-cooking.
  • Twelve (12) coated 60 W incandescent bulbs (one per foot) brighten product displays and are shatter-resistant for added food safety.
  • Rigid extruded aluminum housing won’t sag—even at 120″—yet is lighter and easier to install than stainless alternatives.
  • Reinforced wire guard shields staff and guests while allowing full heat penetration.
  • Metal-sheathed heating element is warranted for two years against burnout or breakage.
  • NSF, cULus, and CE listed; proudly made in the USA.
Perfect For
  • 10-ft buffet or carving stations
  • Quick-service pass-through shelves
  • Hotel banquet lines & catered events
  • Commissary staging & holding areas
Specifications
Model GRAHL-120 (High Watt)
Overall Length 120″ (3,048 mm)
Heat Source Tandem tubular metal-sheathed elements
Total Wattage 3,400 W
Voltage Options 120 V, 120/208 V, 120/240 V, 200 V, 220–240 V, single-phase
Amps @ 120 V ≈ 28.3 A
Housing Material Clear-anodized aluminum
Dimensions (W × D × H) 120″ × 9″ × 2.5″ (3,048 × 229 × 64 mm)
Shipping Weight ≈ 45 lb (19 kg)
Electrical Connection 36″ (914 mm) metal conduit with 42″ (1,067 mm) leads – hard-wired
Certifications NSF, CE, cULus
Country of Origin United States
Mounting & Accessory Options
  • Recommended mounting height (high-watt models): 14″–17″ (356–432 mm) above the holding surface.
  • Compatible with chain suspension kits, adjustable angle brackets, C-leg and T-leg tubular stands.
  • Optional acrylic sneeze guards, designer color housings, remote infinite controls, and extra lighting available at time of order.
Installation Note: This high-watt unit must be hard-wired by a qualified electrician on a properly rated branch circuit. Remote controls or switch boxes must be mounted outside the heat zone to prevent damage.

Hatco backs every Glo-Ray® strip heater with 24/7 parts & service assistance (U.S. & Canada) and a two-year element warranty.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

120.0in

Depth

9.0in

Shipping Weight

40.0lbs

Size

single

Length

97 -120"

Finish

aluminum

Type

lighted

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 120" W, high wattage, tubular metal heater rod with lights, single heater rod housing, aluminum construction, 3400 watts, contains tandem elements, NSF, CE, cULus, Made in USA
