Hatco GRAHL-108D6 Glo-Ray® Heat Lamps
Hatco GRAHL-108D6 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAHL-108D6 Glo-Ray® Heat Lamps
Description

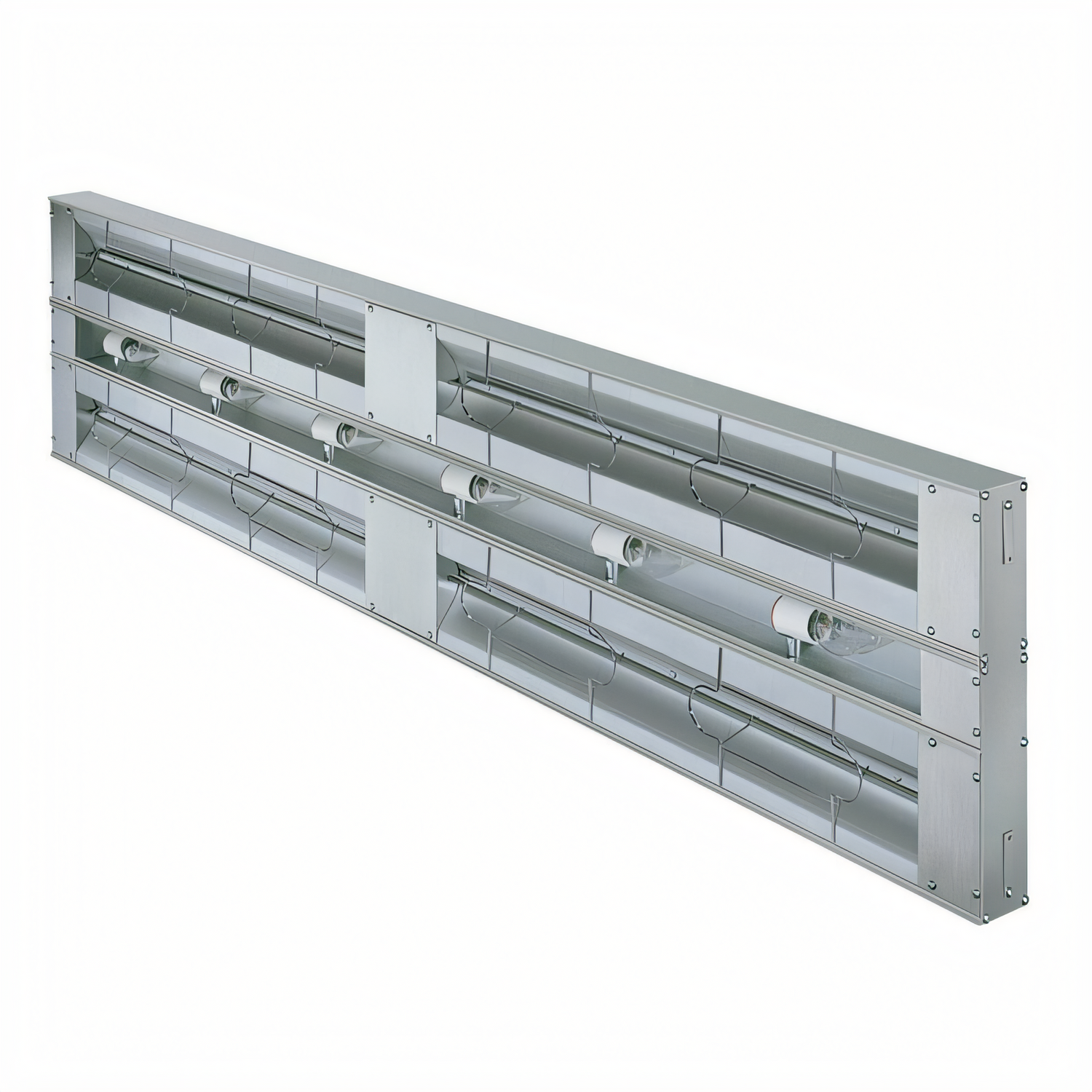

Hatco Glo-Ray® 108" Dual Infrared Strip Heater with Lights – High Watt
Model GRAHL-108D | 5,540 W | NSF & cULus ListedEngineered for large buffet lines, pass-throughs and production counters, the Hatco Glo-Ray GRAHL-108D blankets a full 108-inch holding area with powerful, even infrared heat. Its tandem, high-watt tubular elements and 6 inch dual-rod spacing create a deeper heat zone that keeps entrées hot, fresh and ready to serve, while shatter-resistant display lights showcase your food in the best possible light.
Key Benefits
- High-watt tandem elements deliver a robust 5,540 W of pre-focused infrared heat with no cold spots.

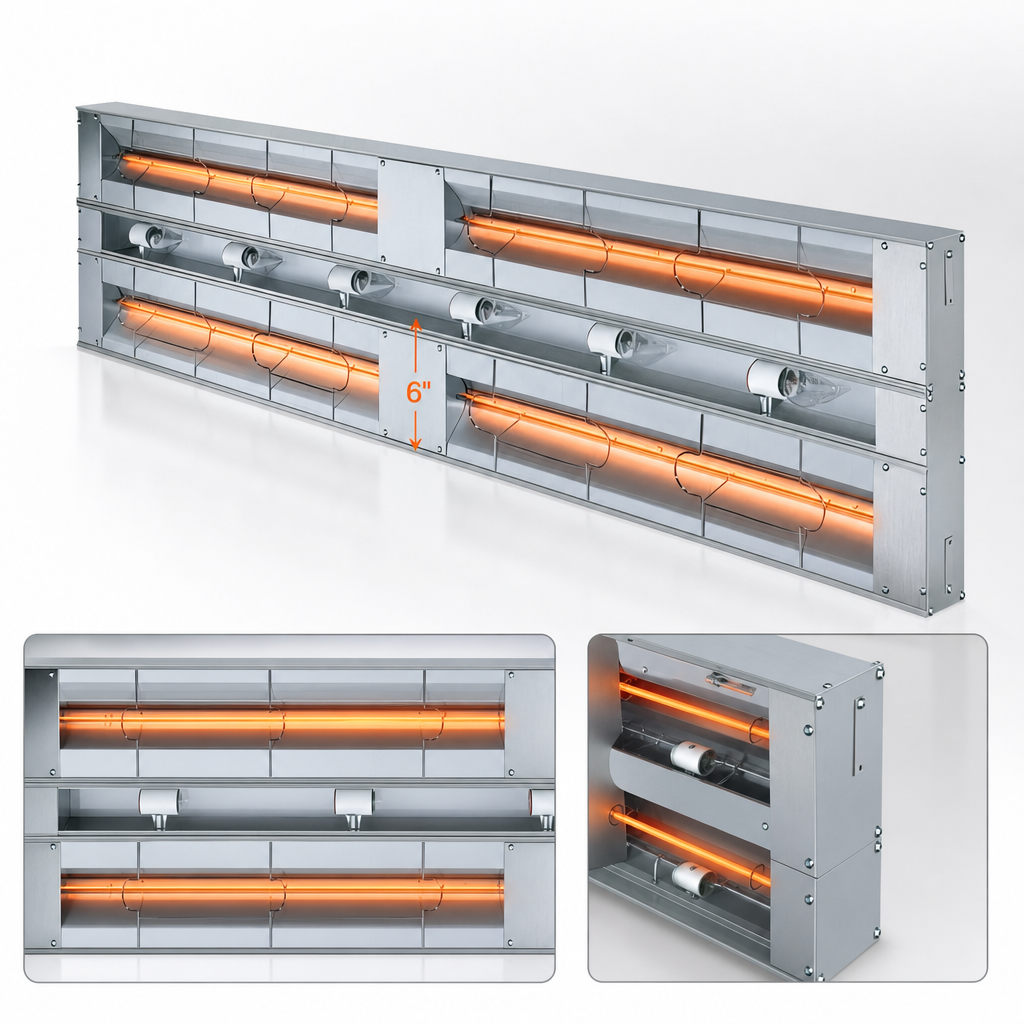

- Dual heater rods spaced 6" (152 mm) apart create a deeper holding area for bulk pans and tall platters.
- Metal-sheathed elements are guaranteed for 2 years against burnout or breakage.

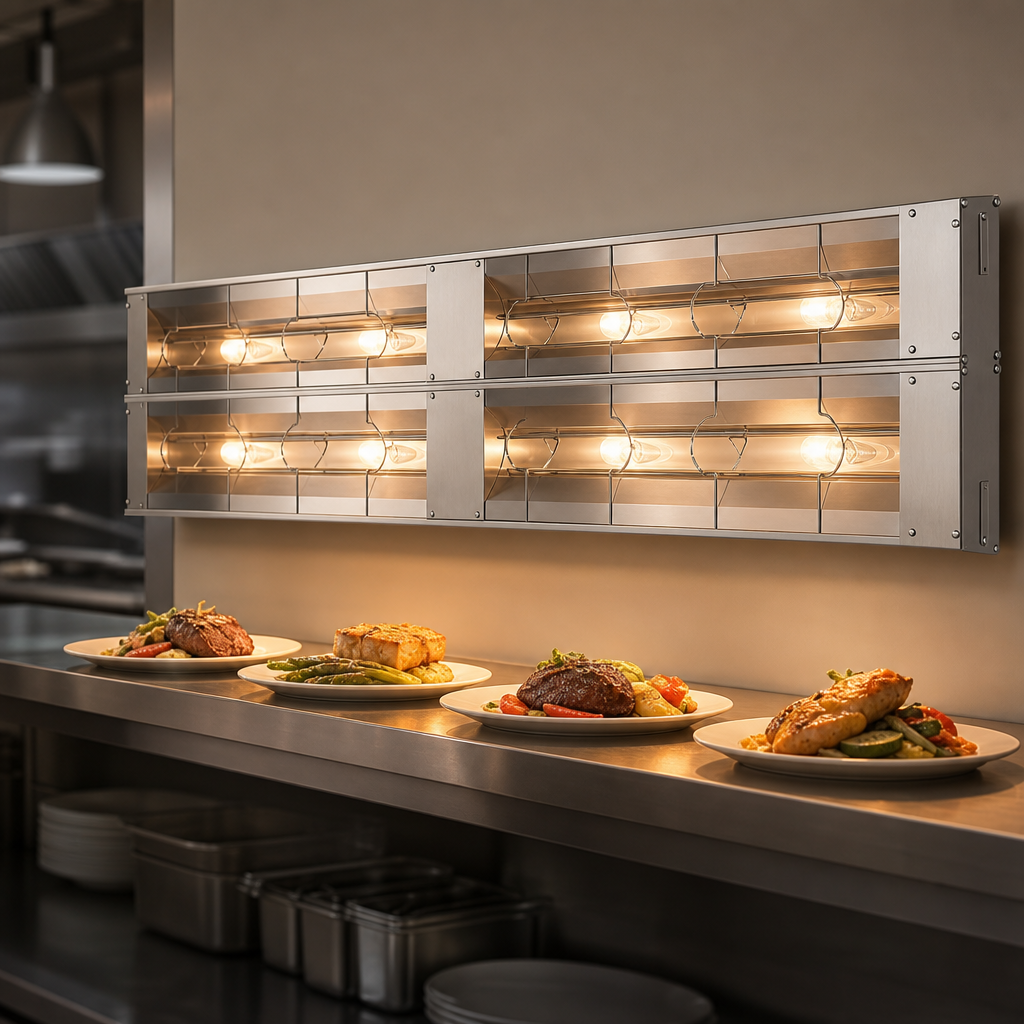

- Coated, shatter-resistant incandescent bulbs enhance product presentation while protecting food from glass fragments.
- Extruded, clear-anodized aluminum housing will not sag, even at 108" (2,743 mm) length.
- Reinforced wire guard and heavy-duty internal insulation improve operator safety and energy efficiency.
- NSF listed, cULus certified and proudly Made in the USA.
Specifications
| Model | GRAHL-108D |
|---|---|
| Overall Length | 108" / 2,743 mm |
| Depth (with 6" spacer) | 18" / 457 mm |
| Height | 2.5" / 64 mm |
| Wattage | 5,540 W (high watt) |
| Voltage Options | 120/208 V, 120/240 V, 208 V, 240 V, 220-240 V, single phase |
| Amperage (240 V) | ≈ 23.1 A |
| Heat Source | Dual tubular metal-sheathed elements (tandem) |
| Lighting | 9 coated, shatter-resistant incandescent bulbs (included) |
| Housing Material | Clear-anodized extruded aluminum |
| Minimum Clearance | 18" (457 mm) above work surface; 25 mm below overshelf |
| Certifications | NSF, cULus |
| Country of Origin | United States of America |
Common Applications
- Full-service and self-service buffets
- Pass-through windows
- Pizza and finishing stations
- Supermarket delis & grab-and-go shelves
Optional Accessories (sold separately)
- Designer-color or gloss-finish housings
- Remote or attached control boxes (toggle or infinite)
- C-leg & T-leg tubular stands (10"–18" clearance)
- Sneeze guards in 9 ⅜" or 14" depths
- Adjustable angle brackets & chain suspension kits
- Chef-LED adjustable bulbs (3 000 K or 4 000 K)
Looking for a different length, wattage or finish? Explore the complete Hatco Glo-Ray® line or contact us for a custom quote.
