Hatco  |  Glo-Ray®  |  SKU: GRAHL-108D3

Hatco GRAHL-108D3 Glo-Ray® Heat Lamps

$1,955.84
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

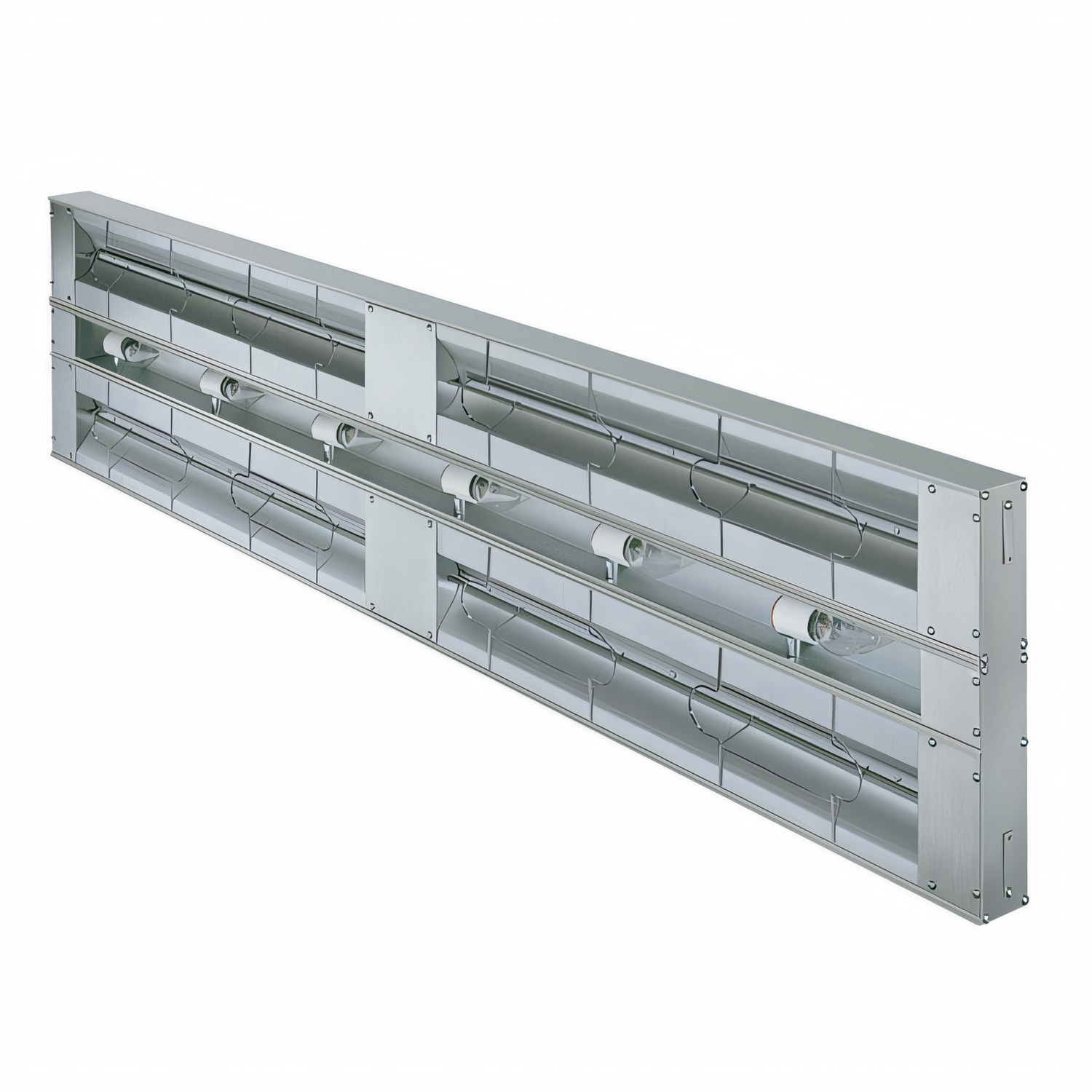

Hatco Glo-Ray® Dual Infrared Strip Heater – 108" (Model GRAHL-108D)

High-watt • 3" Spacer • Built-in Lights

Stretch your holding line without sacrificing temperature or eye-appeal. The 108-inch Hatco Glo-Ray® GRAHL-108D delivers an impressive 5,540 watts of pre-focused infrared heat from two tandem tubular elements, while nine shatter-resistant display lamps keep food looking its best. Rugged extruded-aluminum construction and a bright, non-blackening reflector make this the go-to warmer for high-volume pass-throughs, buffets and plating lines.

Key Benefits

  • Uniform heat blanket—no cold spots across the entire 108" span.
  • High-watt tandem elements can be individually serviced, reducing downtime.

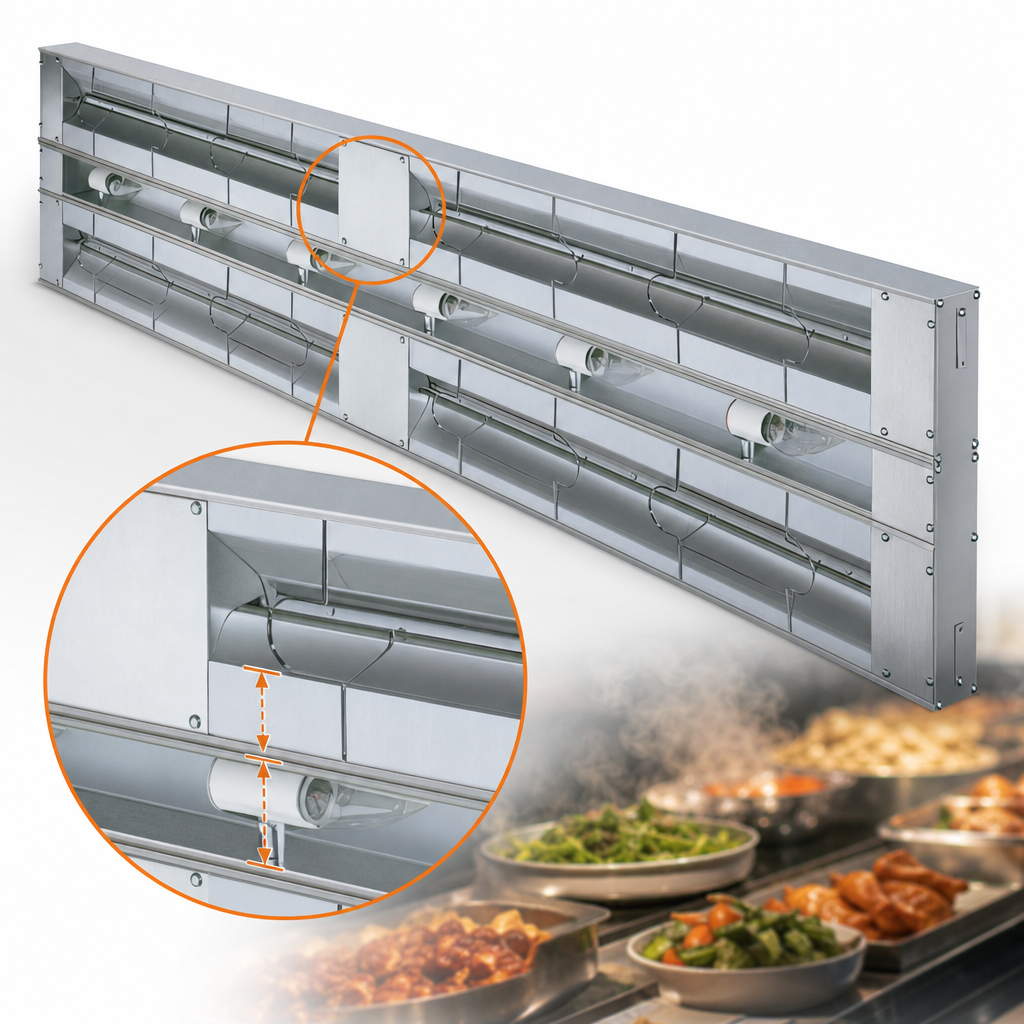

  • 3" (76 mm) spacer between heater rods creates a deeper heat zone for piled or bulk foods.

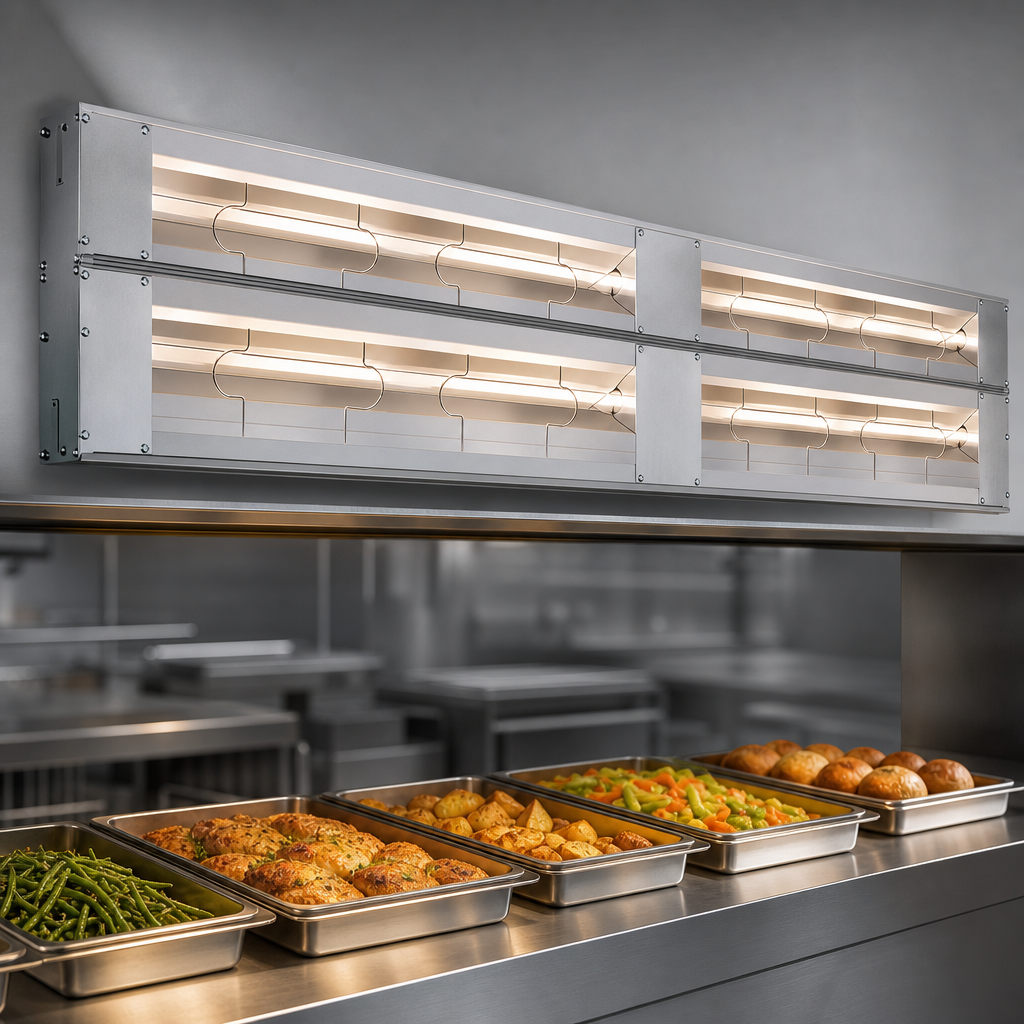

  • Nine shatter-resistant incandescent bulbs (40 W ea.) illuminate product and resist breakage.
  • Metal-sheathed elements are backed by a 2-year burnout & breakage guarantee.
  • Bright reflector will not blacken, maintaining consistent heat delivery.
  • Reinforced wire guard protects staff without obstructing heat.
  • Extruded-aluminum housing won’t sag—even at 108" long.
  • Heavy-duty internal insulation minimizes radiant heat loss.
  • NSF & cULus listed; proudly Made in the USA.

Specifications

Model GRAHL-108D
Overall Width 108" / 2743 mm
Depth (with 3" spacer) 15" / 381 mm
Height 2.5" / 64 mm
Heat Output 5,540 W
Voltage Options 208 V, 240 V, 220-230 V (CE) or multi-voltage 120/208 & 120/240
(single-phase)
Approx. Amps @ 240 V ≈ 23 A
Heating Elements Dual tubular metal, tandem
Lights 9 × 40 W shatter-resistant incandescent (included)
Recommended Mounting Height 18–24" (457–610 mm) above holding surface
Construction Extruded aluminum housing & bright-annealed reflector
Certifications NSF, cULus
Country of Origin USA

Perfect For

  • Full-service or quick-serve pass-through lines
  • Buffets, carving stations & cafeteria counters
  • Catering & banquet holding areas
  • Back-of-house plating operations

Need a color-matched housing, remote controls or a sneeze guard? Factory-installed options and accessories are available—ask your rep for details.

Installation Note: High-watt models must be mounted a minimum of 18" (457 mm) above the food surface. Follow all local electrical codes and Hatco installation instructions.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

108.0in

Depth

15.0in

Shipping Weight

64.0lbs

Finish

aluminum

Size

double

Type

lighted

Length

97 -120"

Type of element

metal heating rod

Specifications

Glo-Ray® Infrared Strip Heater, 108" W, high wattage, tubular metal heater rod with lights, double heater rod housing 3" spacing, aluminum construction, 5540 watts, contains tandem elements, NSF, cULus, Made in USA
