Hatco GRAH72D120V Quick Ship Heat Lamps
Description

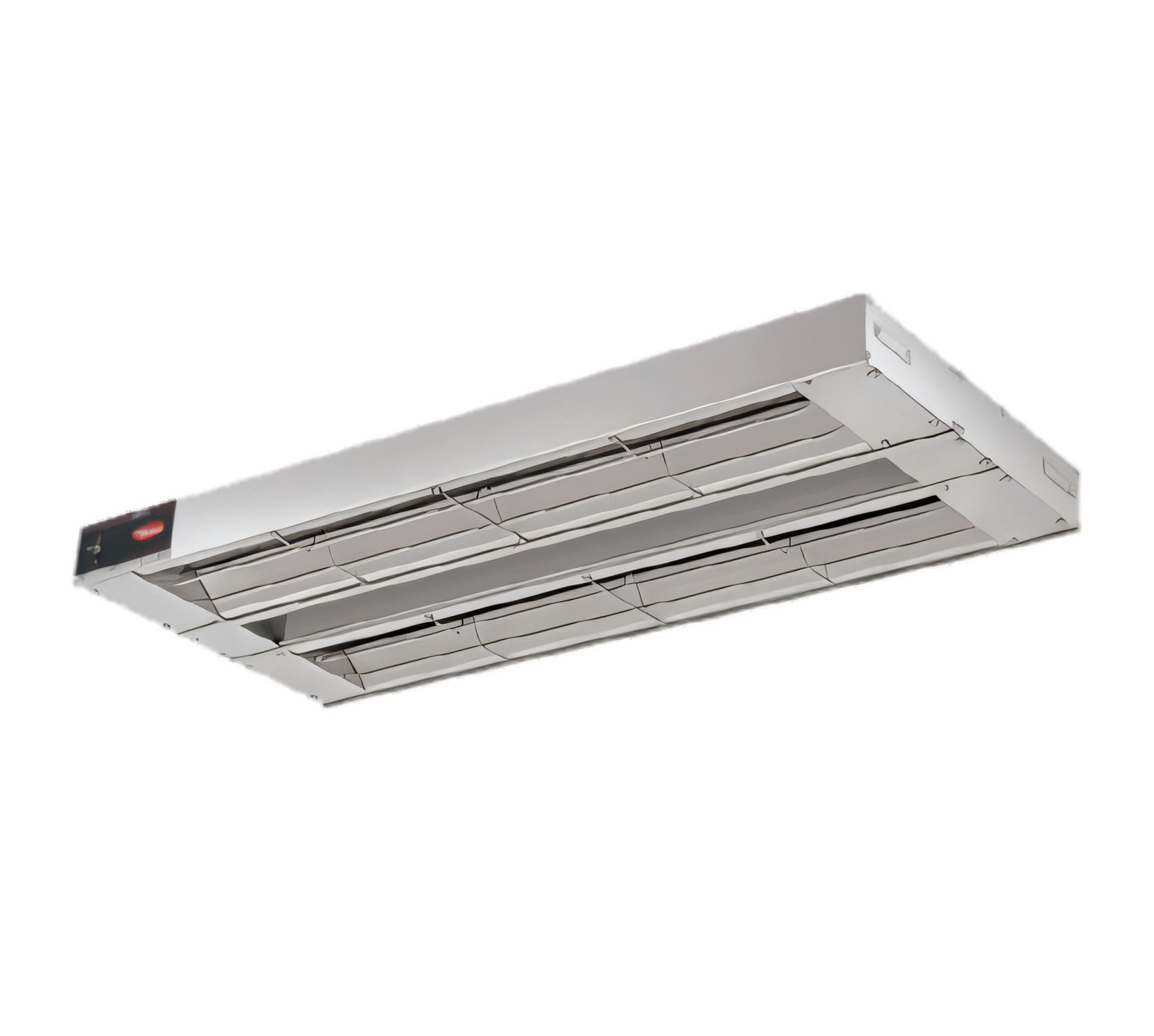

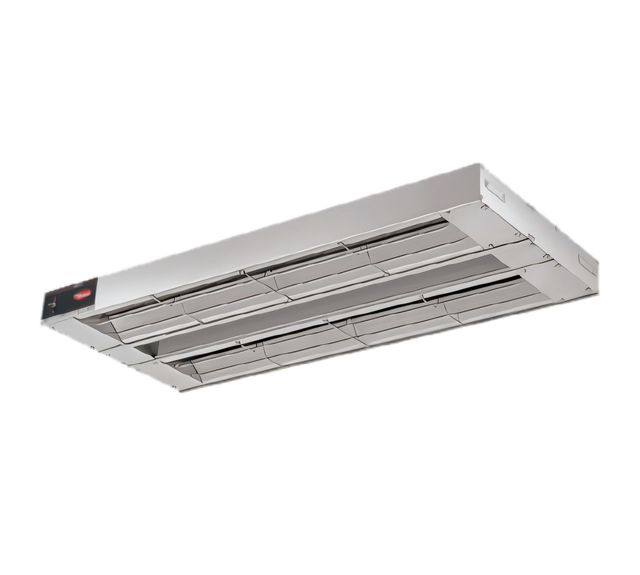

Hatco Glo-Ray® Dual Infrared Strip Heater – 72" Quick Ship

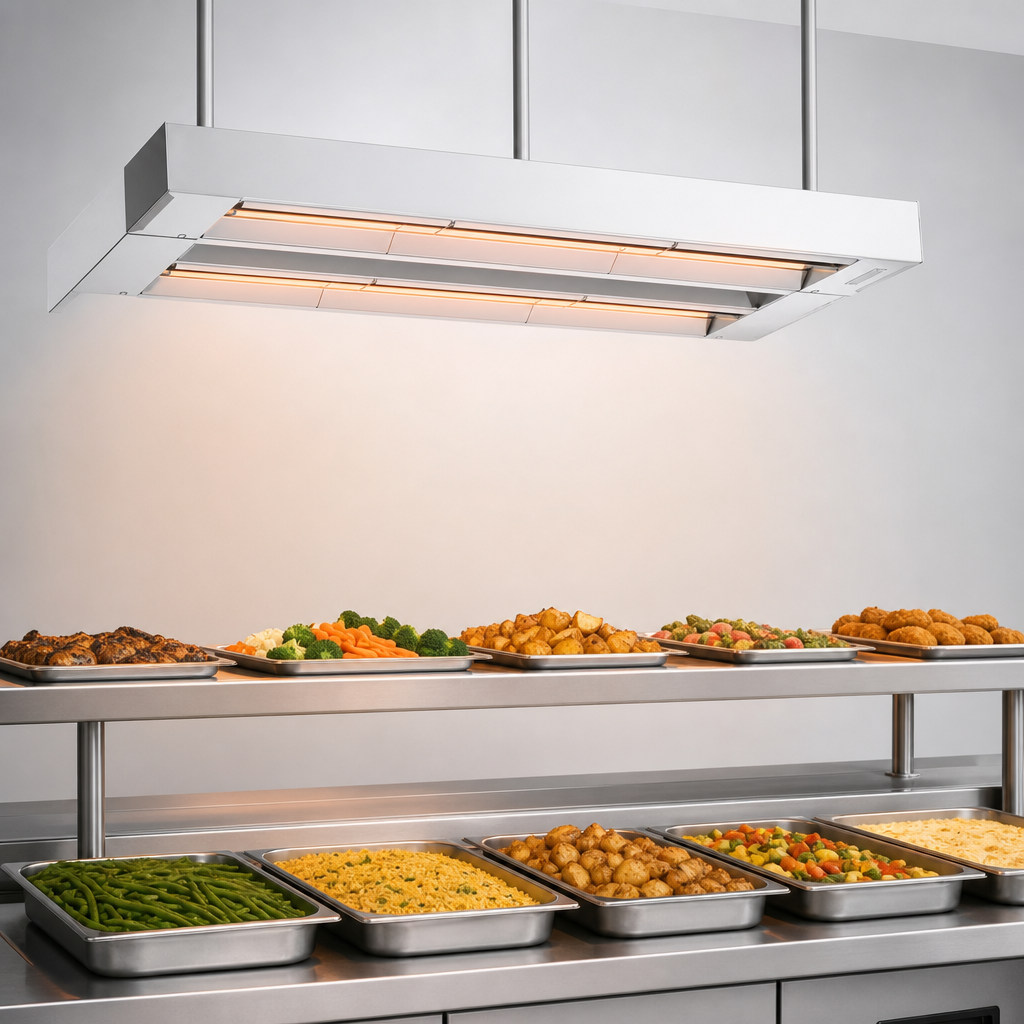

Model GRAH-72D • 120 V / 1-Phase • 3450 W High-WattKeep every order hot, fresh and ready to serve. The 6-ft Glo-Ray® GRAH-72D bathes your entire holding area in a uniform blanket of infrared heat—no cold corners, no soggy plates, and no waiting. Built tough in the USA and in stock for Quick Ship delivery, it’s the industry standard for busy cafeterias, QSR lines and catering stations.
Performance you can count on

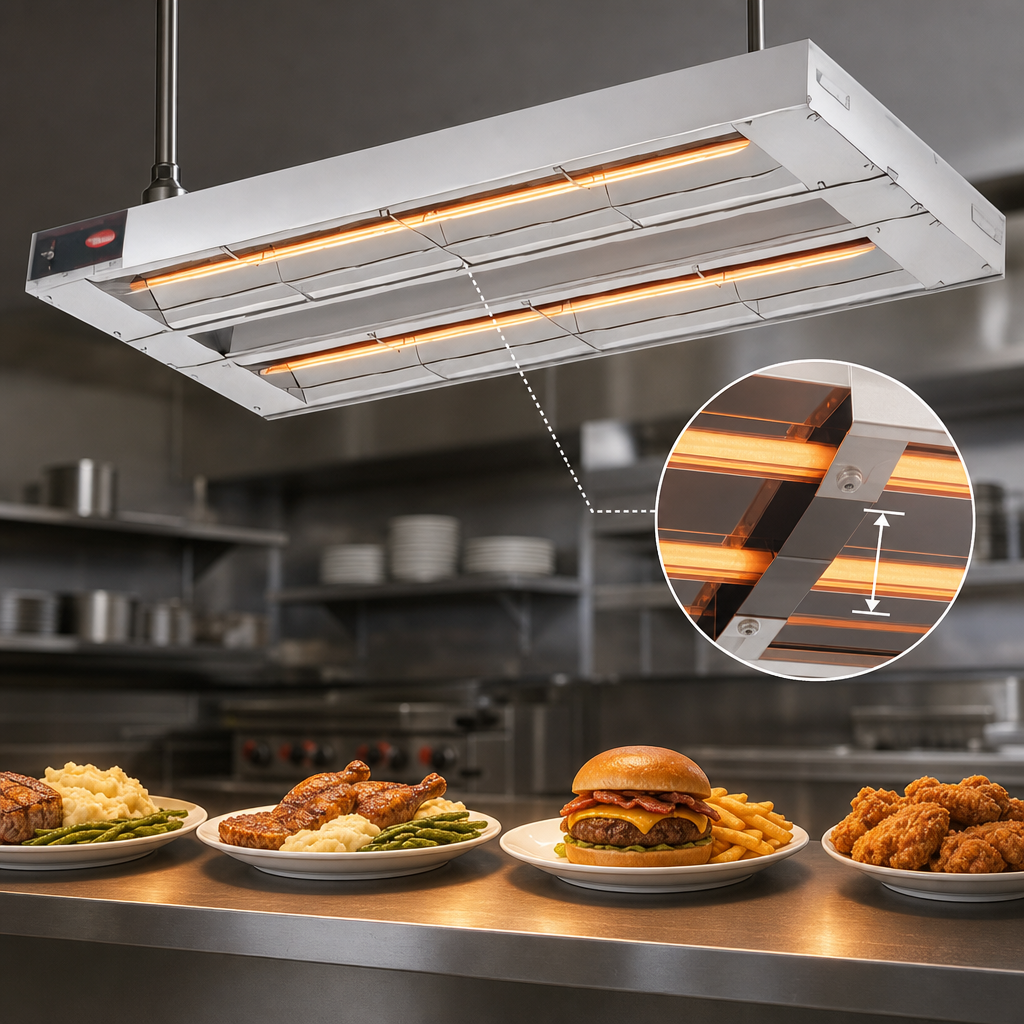

- Dual tubular metal heater rods with a 3" (76 mm) spacer create a wider, deeper heat zone.
- High-watt, 3450 W output maintains safe serving temperatures even on the fullest pans.
- Pre-focused infrared pattern eliminates “cold spots” found in single-strip units.
- Rigid extruded aluminum housing will not bow or sag—even at 72".
- Mirror-bright reflector stays clear and never blackens, preserving efficiency.
- Reinforced wire guards protect elements without blocking heat.
- Heavy-duty insulation minimizes heat loss, keeping counters cool.
- NSF listed, cULus certified and proudly Made in the USA.
Fast installation
Ships ready to hard-wire with a 36" (914 mm) flexible metal conduit and 42" (1067 mm) leads. On-board toggle switch and indicator light are factory-installed for instant operation.
Recommended mounting heights
- Combustible surfaces: 10" (254 mm) minimum clearance
- Non-combustible surfaces: 8" (203 mm) minimum clearance
Clearance is measured from the bottom of the heater to the food surface.
Key specifications
| Model | GRAH-72D (Quick Ship) |
|---|---|
| Overall width | 72" (1829 mm) |
| Depth × height | 15" D × 2.5" H (with 3" spacer) |
| Construction | Extruded aluminum, clear anodized |
| Heat source | Dual tubular metal elements |
| Wattage | 3450 W |
| Voltage | 120 V / 60 Hz / 1-ph |
| Amperage | 28.8 A |
| Power connection | Hard-wire, 36" flexible conduit w/ 42" leads |
| Certifications | NSF, cULus |
| Warranty | 2-year element guarantee; 24/7 Hatco parts & service |
Popular accessories (factory-installed)
- Acrylic sneeze guards (one- or two-sided, 9.375" or 14" deep)
- Adjustable or fixed tubular stands (10"–18" clearance)
- Remote toggle or infinite control boxes (RMB series)
- Designer powder-coat and antimicrobial finishes
Accessories must be specified at time of order and may affect lead time.
Ready when you are—this Quick Ship model typically leaves our warehouse within just a few business days.
