Hatco GRAH-96D6 Glo-Ray® Heat Lamps
Hatco GRAH-96D6 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAH-96D6 Glo-Ray® Heat Lamps
Description

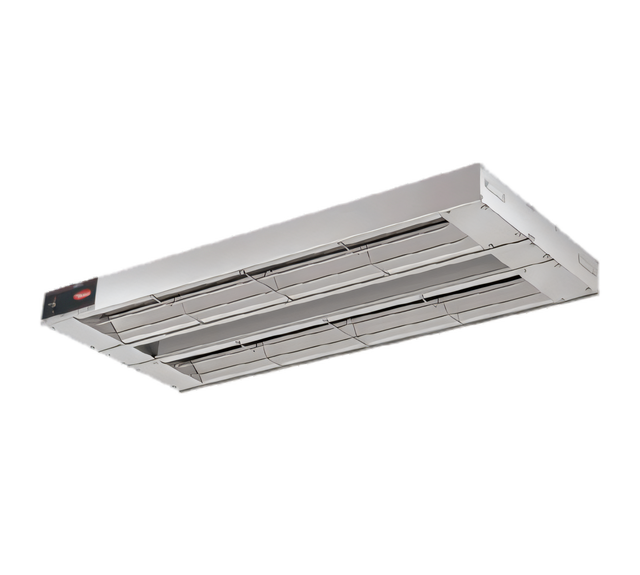

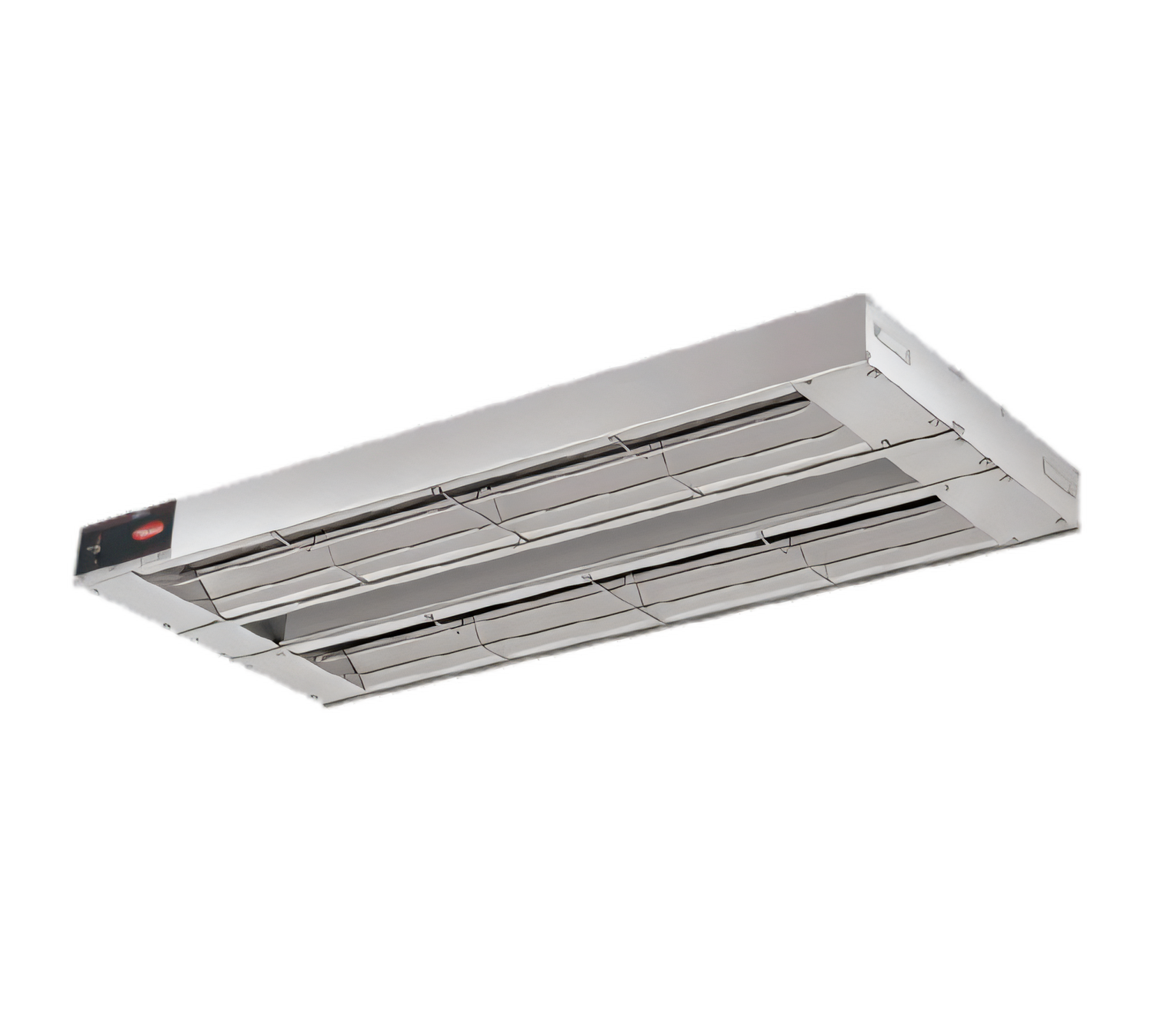

Hatco Glo-Ray® GRAH-96D High-Watt Dual Infrared Strip Heater – 96"
6" center spacer | 4,800 W | NSF & cULus ListedStretch your serving line without sacrificing food quality. The 8-ft (2438 mm) Hatco Glo-Ray® GRAH-96D blankets every inch of the holding surface with powerful, pre-focused infrared heat, locking in temperature and taste for the busiest buffets, cafeterias and pass-through kitchens.
Why you’ll love it
- Even, “cold-spot-free” coverage from two tubular metal-sheathed elements that are factory-focused for a perfectly uniform heat pattern.
- 6" (152 mm) spacer between the heater banks creates a deeper holding cavity—ideal for high-profile pans and plated entrées.
- High-watt punch – 4,800 watts of focused infrared energy keep foods safely above 140 °F (60 °C) on the longest lines.
- Rugged, sag-proof housing made from extruded aluminum with heavy-duty insulation to minimize heat loss.
- Clean, bright reflector will not blacken, ensuring consistent performance for years.
- Operator safety built-in thanks to reinforced wire guards that protect the elements without blocking heat.
- USA-made quality backed by Hatco’s 24/7 parts & service assistance.
Technical Specs
| Model | GRAH-96D (High Watt, Dual Housing, 6" Spacer) |
|---|---|
| Overall Dimensions | 96" W × 18" D × 2.5" H (2438 × 457 × 64 mm) |
| Wattage | 4,800 W total |
| Voltage / Phase | 208 V / 1-ph (23.1 A) | 240 V / 1-ph (20.0 A) Other voltages available – consult factory. |
| Power Connection | 36" (914 mm) flexible metal conduit with 42" (1067 mm) leads, right-side exit |
| Recommended Mounting Height* | 18"–24" (457–610 mm) above holding surface |
| Construction | Extruded aluminum housing; dual tubular metal-sheathed elements; reinforced wire guards |
| Shipping Weight | ≈ 52 lb (24 kg) |
| Certifications | NSF, cULus, CE (select voltages) |
| Country of Origin | Made in USA |
Popular factory options
- Designer powder-coat colors or gloss metal finishes to match your décor.
- Integrated sneeze guards (single or double-sided, 9 ⅜" or 14").
- Remote control boxes, infinite switches or toggle switches.
- Adjustable or fixed tubular stands, angle brackets, or chain suspension kits.
Options must be specified at time of order and may affect lead time.
*Mounting heights are guidelines; follow local codes and the installation manual for final clearances.
