Hatco GRAH-96D3 Glo-Ray® Heat Lamps
Hatco GRAH-96D3 Glo-Ray® Heat Lamps is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Hatco GRAH-96D3 Glo-Ray® Heat Lamps
Description

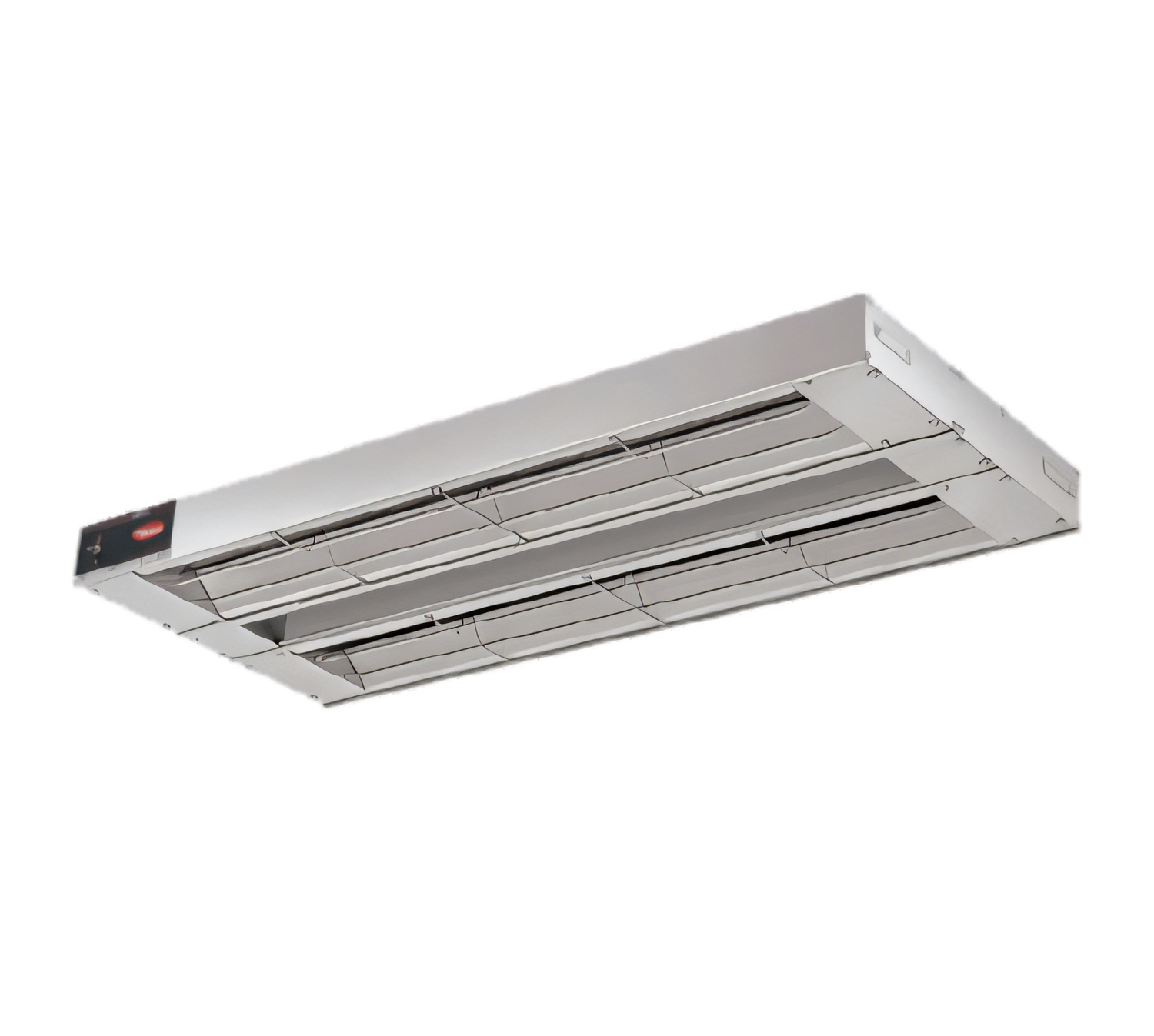

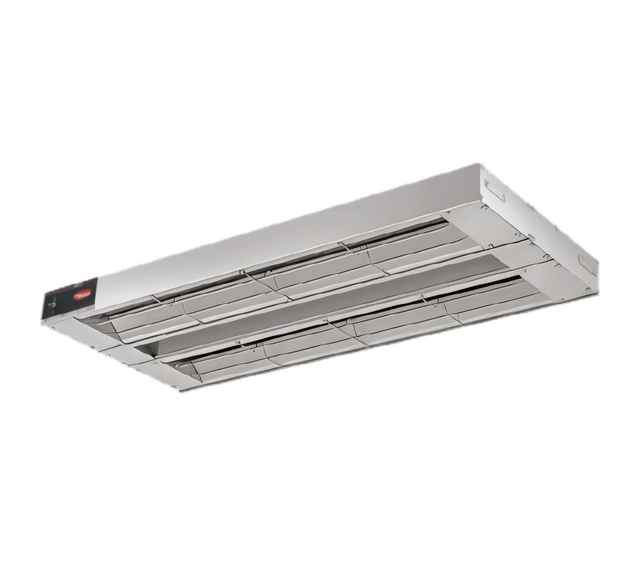

Hatco Glo-Ray® 96" Dual Infrared Strip Heater – High Watt
Model GRAH-96D | 4,800 W | 3" Spacer | NSF & cULusCover the entire length of a full-sized pass-through or buffet line with consistent, high-output heat. The Hatco Glo-Ray® GRAH-96D pairs two tubular metal elements inside a rigid, 96-inch aluminum housing, delivering an impressive 4,800 watts of pre-focused infrared warmth that eliminates cold spots and keeps food at safe, appetizing temperatures for extended periods.
Why you’ll love it
- Edge-to-edge heat—no “dead zones” along the 8 ft holding surface.
- High-wattage dual elements (4,800 W) recover fast during peak service.

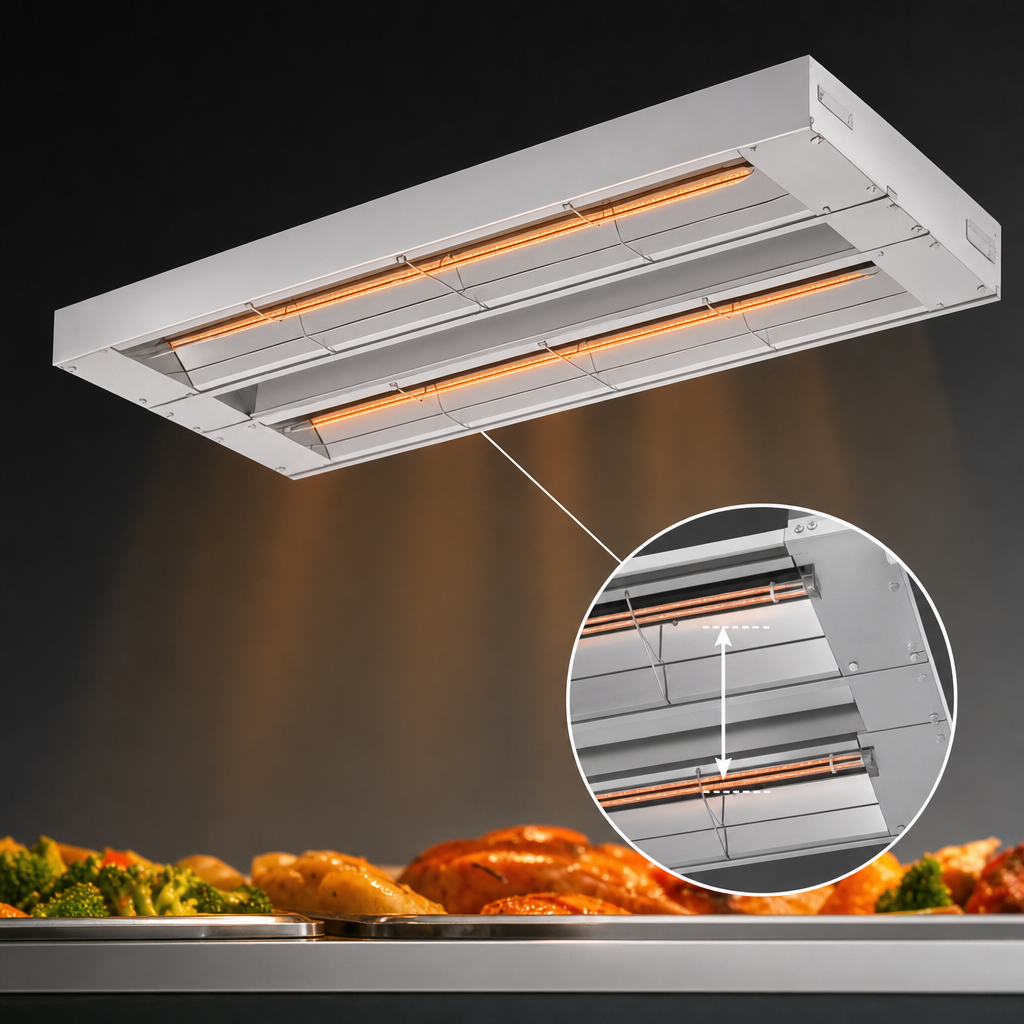

- 3" (76 mm) center spacer creates a deeper heat well for taller pans and trays.
- Extruded, clear-anodized aluminum housing resists sagging and corrosion.
- Reinforced wire guards protect elements without disturbing heat pattern.
- Heavy-duty insulation minimizes heat loss and keeps exterior cooler to the touch.
- Metal-sheathed elements are guaranteed against burnout & breakage for 2 years.
- NSF & cULus listed and proudly Made in the USA.
Perfect for
- Pass-through windows & expo lines
- Full-service or self-service buffets
- Banquet carving stations
- Pizza, sandwich and dessert finishing areas
Technical specifications
| Model | GRAH-96D (High Watt) |
|---|---|
| Overall width | 96" / 2,438 mm |
| Depth × Height | 15" × 2.5" (381 mm × 64 mm) |
| Housing material | Clear-anodized aluminum (Designer & Gloss colors available) |
| Heat source | Dual tubular metal elements, 3" spaced |
| Total wattage | 4,800 W |
| Voltage / Phase | 208 V or 240 V, 1 Ph (other voltages on request) |
| Approx. amps | 23.1 A @ 208 V | 20.0 A @ 240 V |
| Electrical connection | 36" (914 mm) flexible metal conduit with 42" (1,067 mm) leads |
| Minimum clearance* (non-combustible) |
14"–18" (356–457 mm) below unit |
| Certifications | NSF, cULus, CE |
| Country of origin | USA |
*Refer to the Installation & Operating Manual and local codes for complete mounting requirements.
Factory-fit options
- Sneeze guards – 9.375" or 14" high, single or double-sided
- Remote or infinite control boxes (RMB series)
- Chain suspension kits or adjustable angle brackets
- Non-adjustable & adjustable tubular stands (10"–16" clearance)
- Extended lead lengths up to 20 ft (6 m)
- Designer Color or Gloss Finish housings
Ready to give every plate the just-finished glow guests expect? Add the Hatco Glo-Ray® GRAH-96D to your line-up today and keep service moving hot and fast.
