Hatco GRAH-84D6 Glo-Ray® Heat Lamps
Description

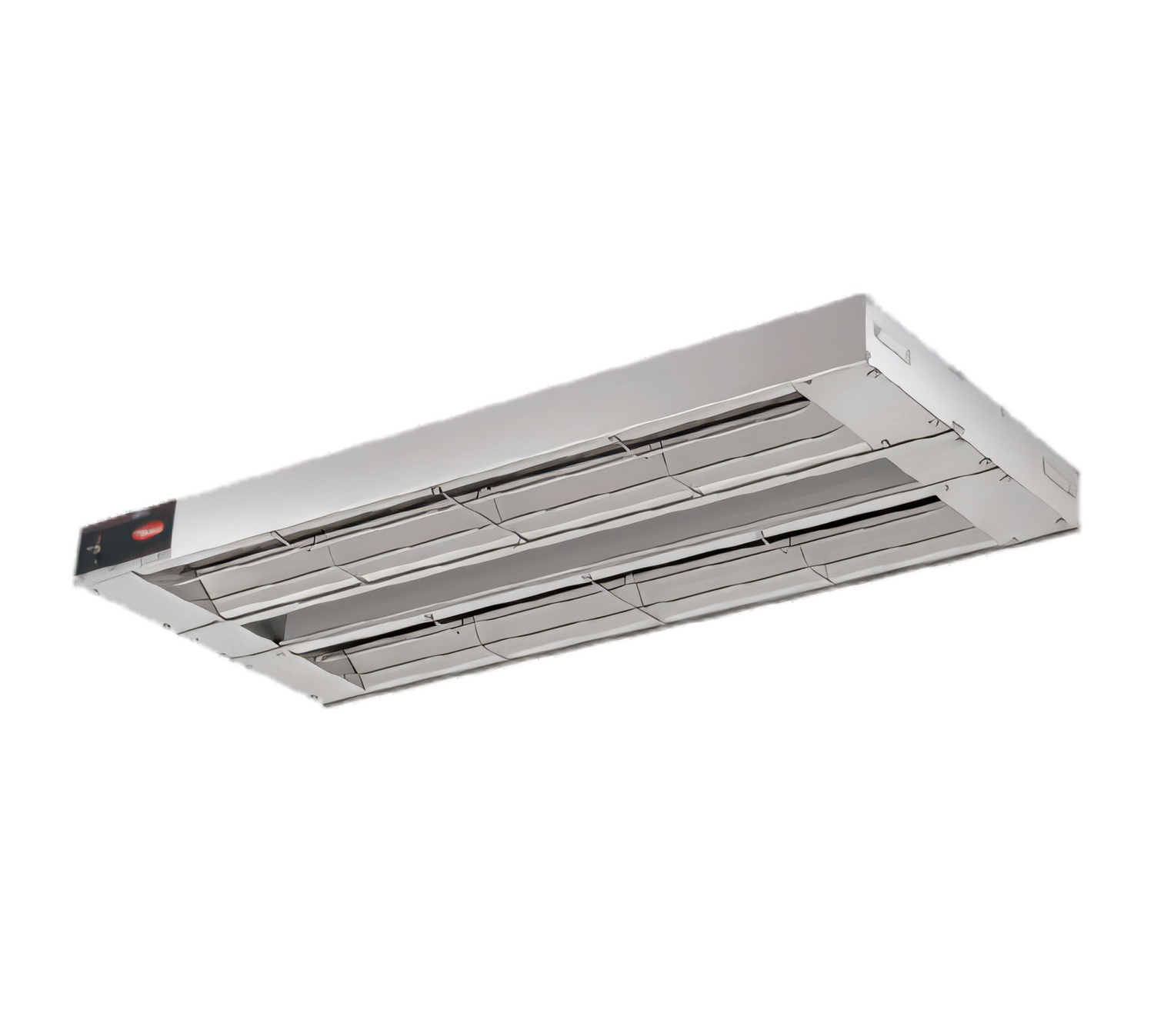

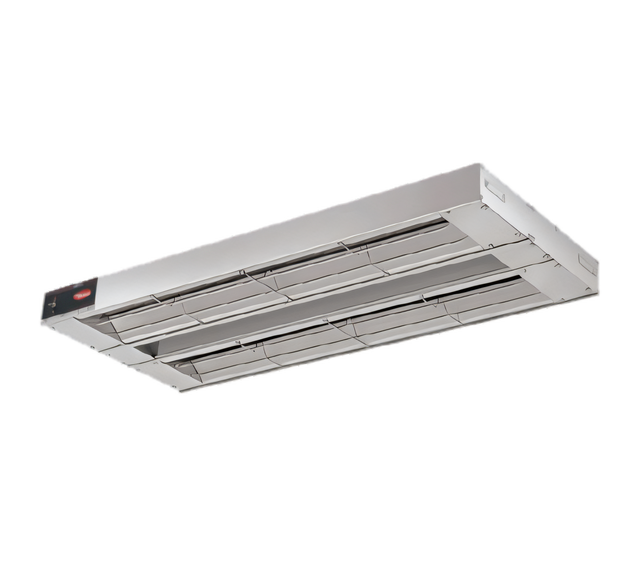

Hatco Glo-Ray® 84" Dual Infrared Strip Heater – High Watt, 6" Spacing

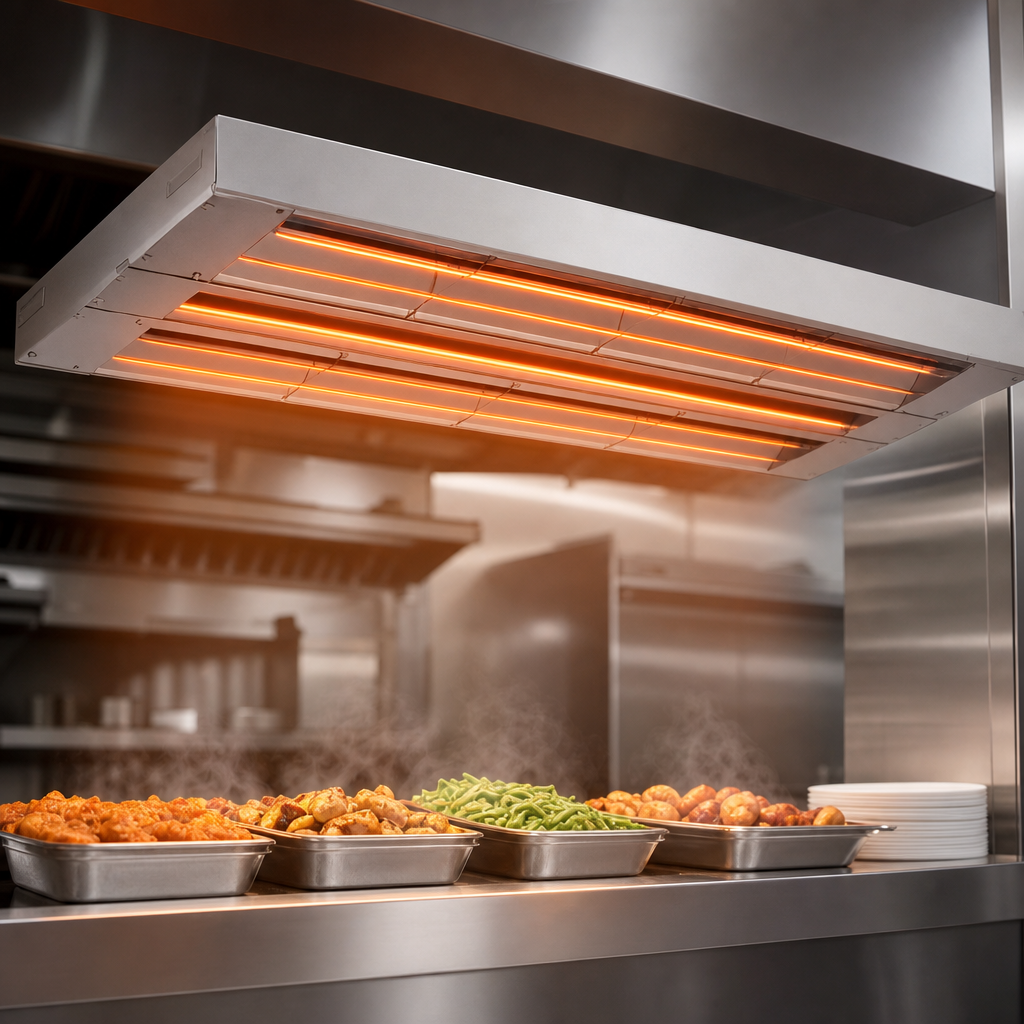

Model GRAH-84D | 4,100 W | NSF & cULus Listed | Made in USAGive every plate the just-made appeal guests expect. Hatco’s high-watt 84" Glo-Ray® Dual Infrared Strip Heater blankets a wide holding zone with steady, pre-focused infrared heat that keeps menu items at safe, appetizing temperatures without continuing to cook them. The 6" (152 mm) center spacer provides a deeper heat field — perfect for high-volume pass-throughs, buffet lines and carving stations.
Key features- Even heat distribution across the full 84" length – no cold spots.
- Dual tubular metal-sheathed elements deliver a powerful 4,100 W of high-intensity heat.

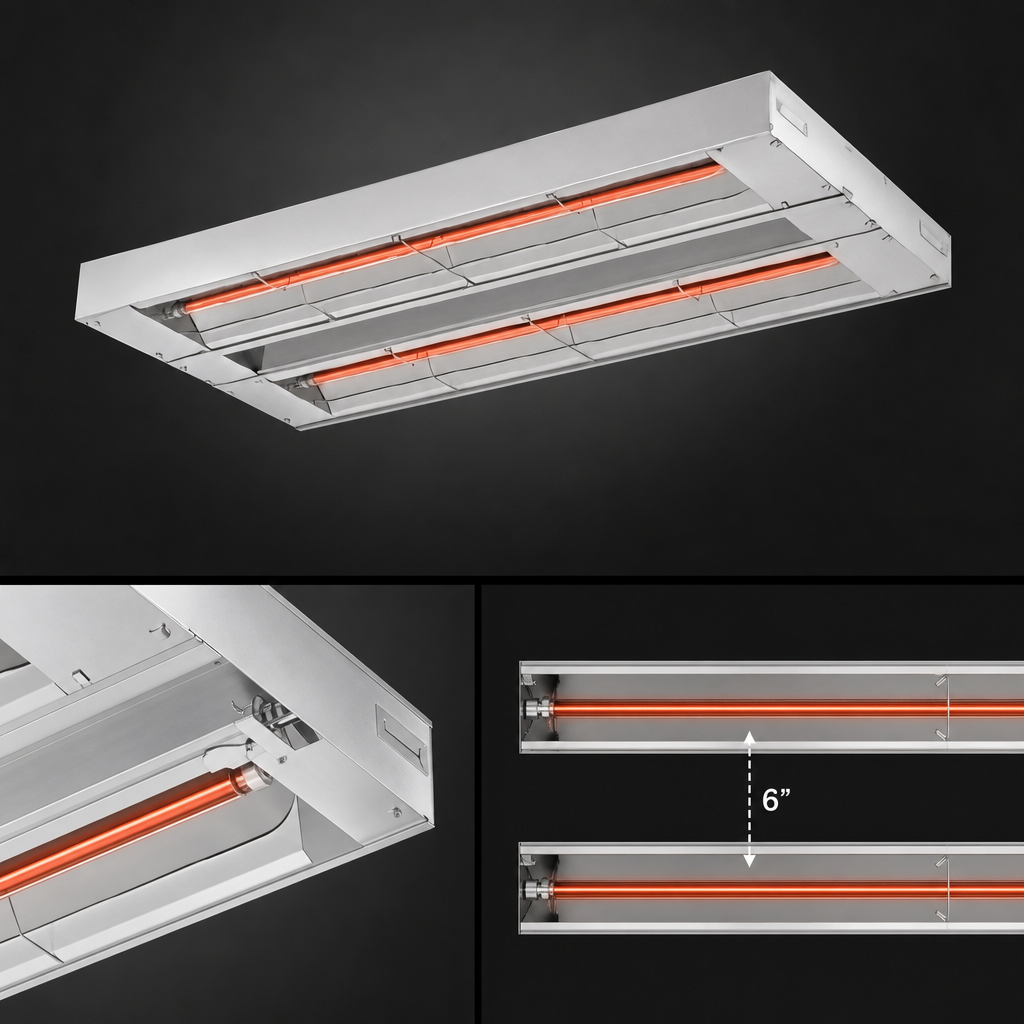

- 6" (152 mm) spacer between heater banks creates a deeper holding area for bulk pans and taller platters.
- Extruded aluminum housing will not sag and is insulated to minimize heat loss.
- Reinforced wire guards protect elements without blocking heat.
- Reflector will not blacken, ensuring a consistent heat pattern for the life of the unit.
- Factory-installed 36" (914 mm) flexible metal conduit with 42" (1 067 mm) leads for quick hard-wire connection.
- Approved by NSF and cULus for sanitation and electrical safety; completely engineered and built in Wisconsin, USA.
- Metal-sheathed elements are guaranteed against burnout/breakage for two years.

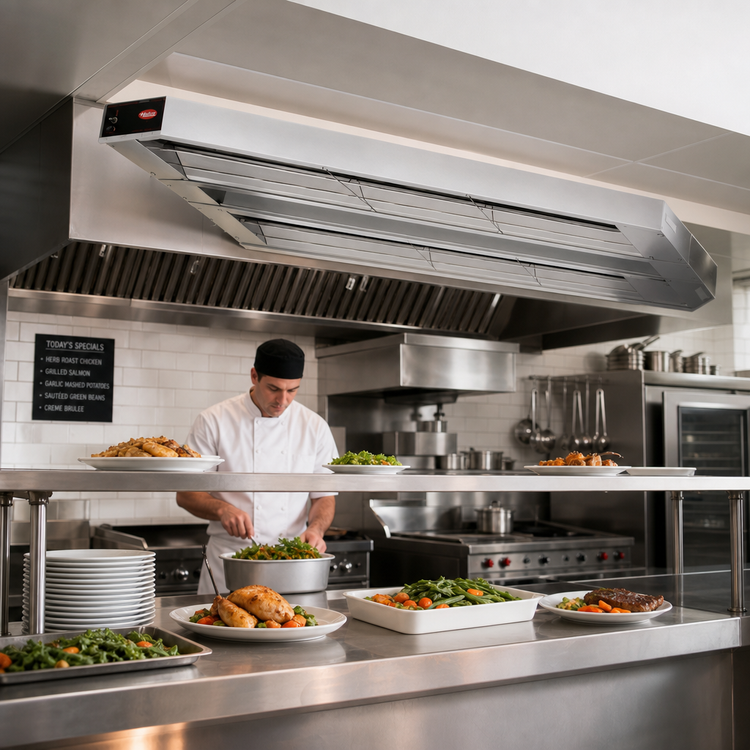

- Pass-through shelves on the cookline
- Quick-service and cafeteria serving counters
- Buffet or banquet holding lines
- Carving, omelet and action stations
| Overall width | 84" (2 134 mm) |
|---|---|
| Overall depth | 18" (457 mm) (with 6" spacer) |
| Overall height | 2.5" (64 mm) |
| Heat output | 4,100 W (high-watt dual elements) |
| Typical amps | 19.7 A @ 208 V | 18.6 A @ 220 V | 17.1 A @ 240 V* |
| Element type | Tubular metal-sheathed infrared |
| Housing material | Heavy-gauge extruded aluminum |
| Electrical connection | Hard-wired, 1-phase (36" flex conduit supplied) |
| Certifications | NSF, cULus |
| Country of origin | United States of America |
| Shipping weight | ≈ 50 lb (23 kg) |
- Adjustable or fixed tubular stands (10"-18" clearances)
- Chain suspension kit for overhead mounting
- Clear acrylic sneeze guards – 9⅜" or 14" deep, one- or two-sided
- Remote control enclosures (RMB series) with toggle or infinite controls
- C-leg or T-leg countertop stands finished to match the housing
*Amperage varies with voltage and configuration; always verify with the specification label before installation.
