Hatco GRAH-72D6 Glo-Ray® Heat Lamps
Description

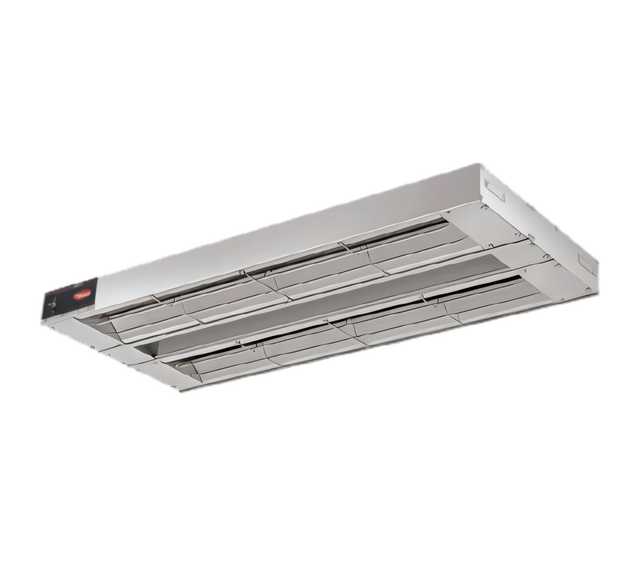

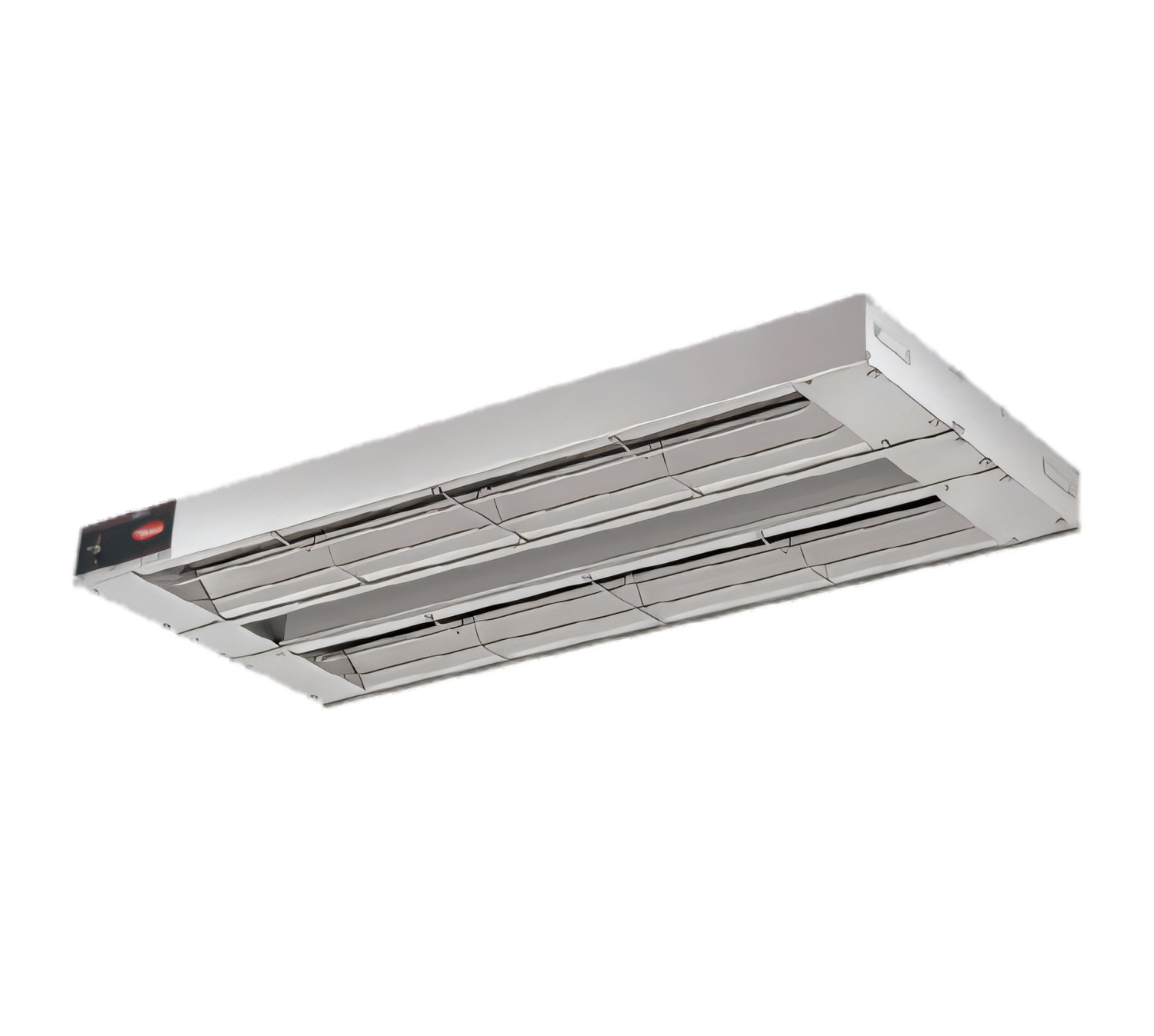

Hatco Glo-Ray® Dual Infrared Strip Heater – 72"
Model GRAH-72D | High-Watt, 6" SpacerDesigned for demanding, high-volume service lines, the 72-inch Hatco Glo-Ray® dual infrared heater delivers a powerful 3.45 kW punch that keeps entrées, sides and baked goods hot and appetizing without continuing to cook them. A generous 6 inch (152 mm) center spacer deepens the holding area to 18 inches, making it ideal for buffets, pass-through shelves and oversized pans.
Why You’ll Love It
- Even, pre-focused heat pattern eliminates cold spots across the entire 6 ft holding surface.
- High-watt tubular metal heating rods (dual) recover quickly during peak rushes.
- Heavy-duty extruded aluminum housing resists sagging and corrosion.
- 6" (152 mm) spacer between heater banks creates a deeper holding cavity for taller items or elevated pans.
- Reinforced wire guards protect elements without affecting heat distribution.
- Factory-installed 36" flexible conduit & 42" leads for fast, code-compliant hook-up.
- Certified NSF & cULus for sanitation and safety; proudly Made in the USA.
Technical Specifications
| Model | GRAH-72D-6 |
|---|---|
| Overall Size (W × D × H) | 72" × 18" × 2.5" (1829 × 457 × 64 mm) |
| Heat Source | Dual tubular metal-sheathed elements |
| Center Spacer | 6" (152 mm) |
| Wattage / Amps |
208 V – 3120 W / 16.6 A 220 V – 3450 W / 15.7 A 240 V – 3450 W / 14.4 A |
| Electrical | Single phase, hard-wired (conduit/leads supplied) |
| Minimum Clearance (non-combustible) |
14" (356 mm) under heater* |
| Ship Weight | ≈ 37 lb (17 kg) |
| Certifications | NSF, cULus |
| Warranty | 2-yr element warranty • 24/7 parts & service support |
| Country of Origin | USA |
Popular Factory Options
- Designer or gloss powder-coat finishes to match your décor.
- Acrylic sneeze guards – one- or two-sided, 9⅜" or 14" heights.
- Remote toggle or infinite controls (wall or counter mounted).
- Non-adjustable tubular stands (10" – 16" clearances) for portable setups.
- Chain suspension kit or adjustable angle brackets for overhead installs.
*Clearance listed for high-watt dual units with 6" spacer. Always verify local codes.
