Hatco GRAH-72D3 Glo-Ray® Heat Lamps
Description

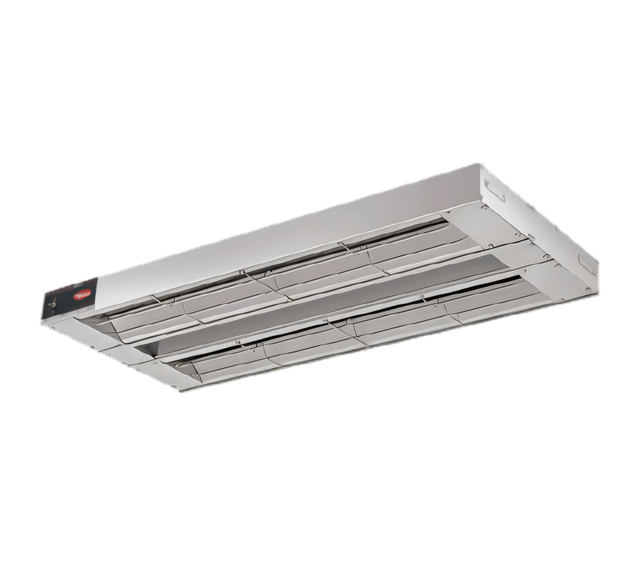

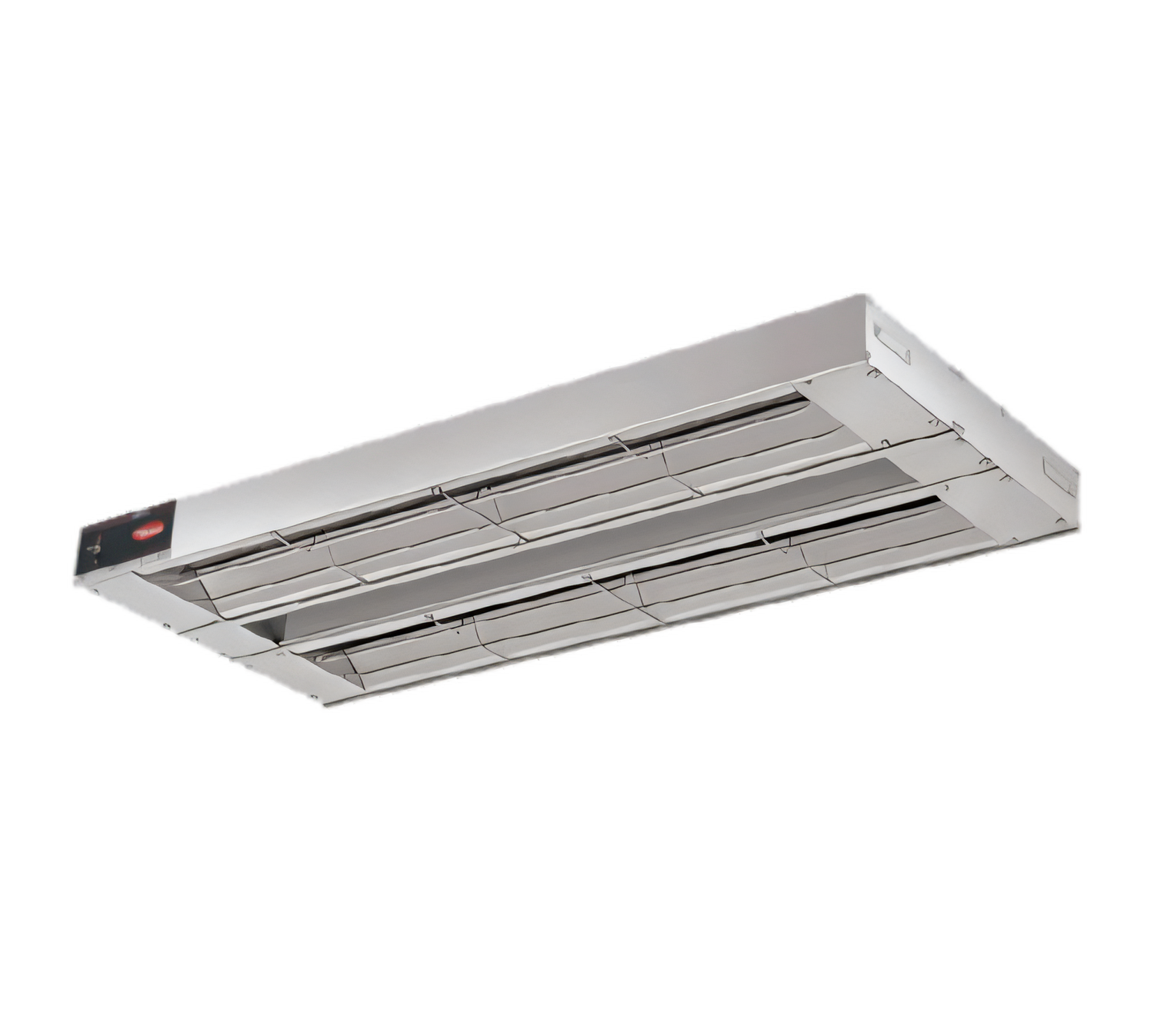

Hatco Glo-Ray® Dual Infrared Strip Heater – 72" High-Watt (Model GRAH-72D)
3" center spacer • 3450 W • NSF & cULus • Made in USAGive every pan, tray, and plate the same mouth-watering appeal with Hatco’s flagship 72" Glo-Ray® dual infrared foodwarmer. Two high-watt tubular elements sit side-by-side inside a rigid aluminum housing, creating a wide, pre-focused heat pattern that eliminates cold spots and keeps product safely above 140 °F (60 °C) for extended serving times.
Why You’ll Love It
- High-watt design (3450 W) delivers intense, even infrared heat across the full 72" holding surface.

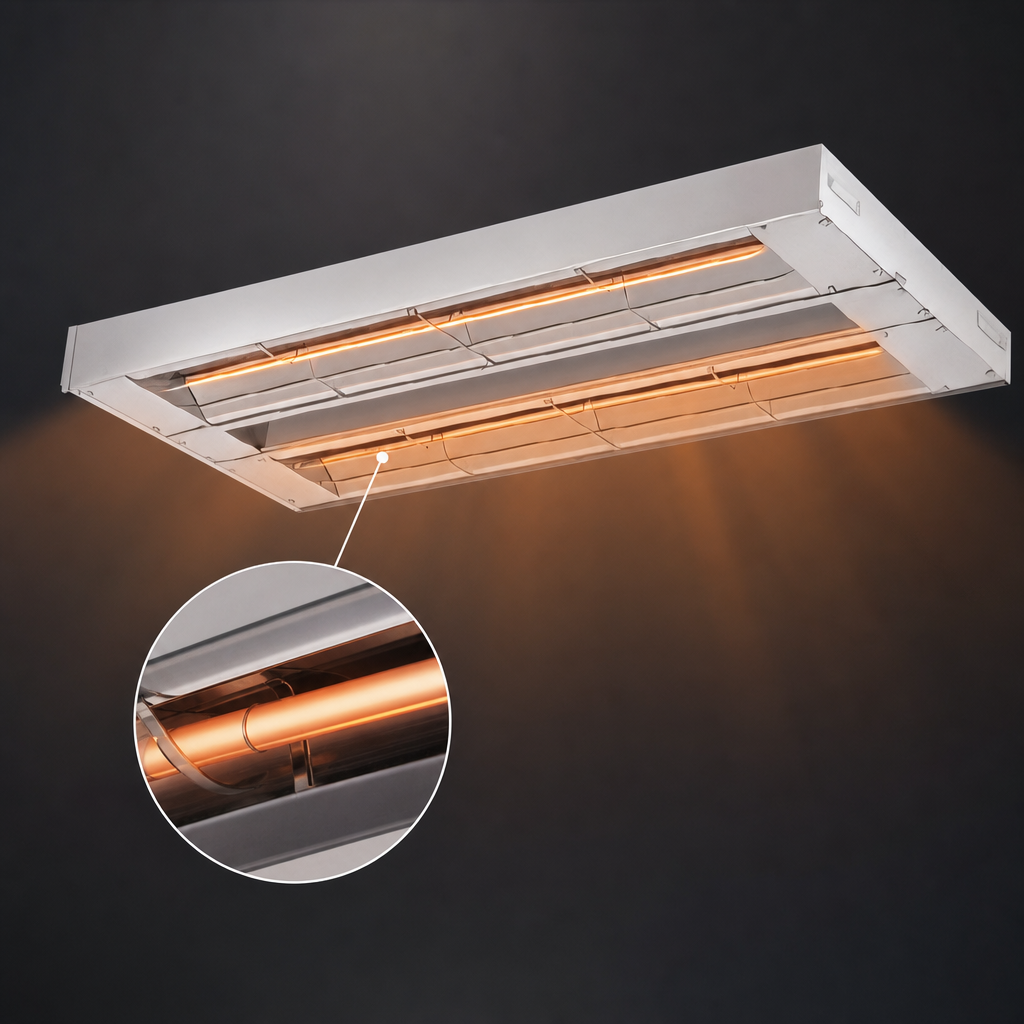

- Dual metal-sheathed elements are guaranteed for two years against burnout or breakage.

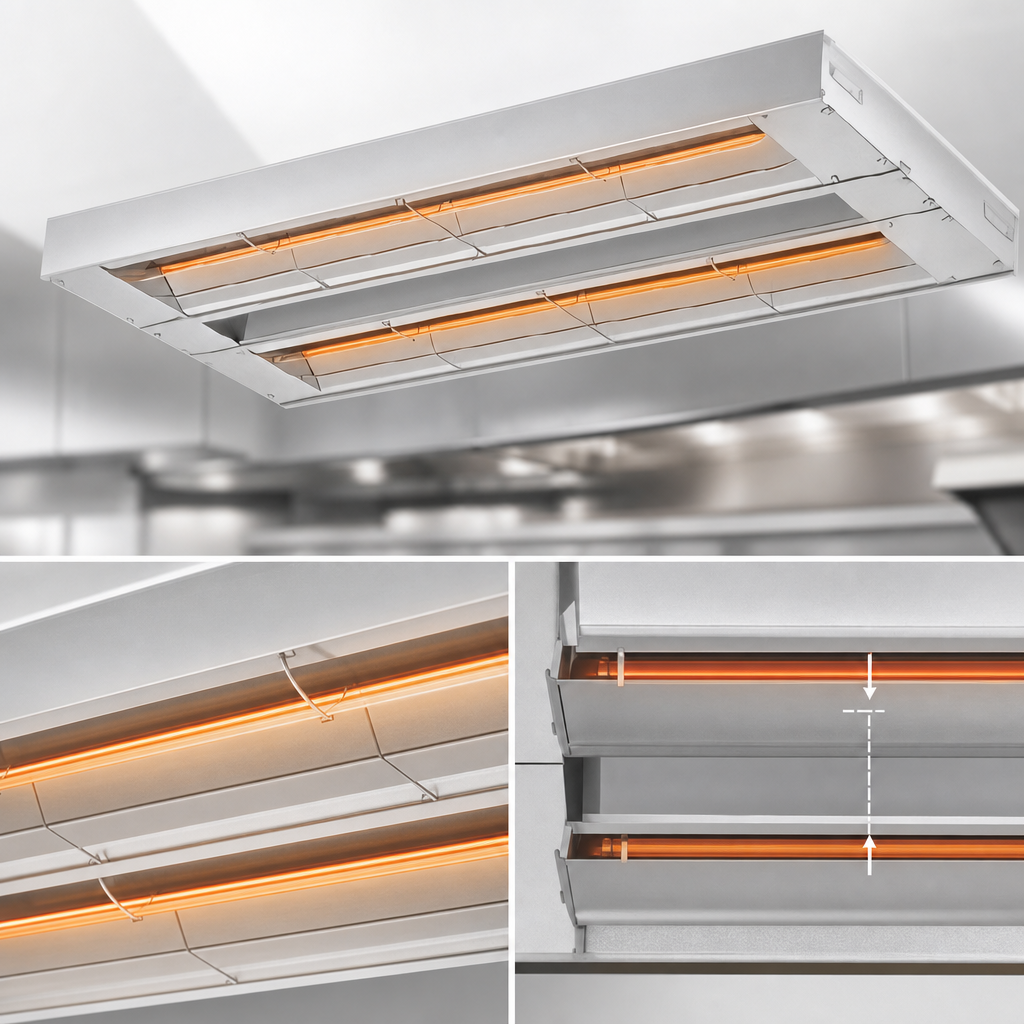

- 3" (76 mm) center spacer creates a deeper heat field—perfect for taller pans and piled-high dishes.
- Extruded, clear-anodized aluminum housing will not sag and is fully insulated to minimize heat loss.
- Reinforced wire guards protect elements without disrupting the heat pattern.
- Simple toggle switch on the right-hand end; optional remote toggle or infinite controls available.
- NSF & cULus listed and proudly Made in the USA for lasting, trouble-free service.

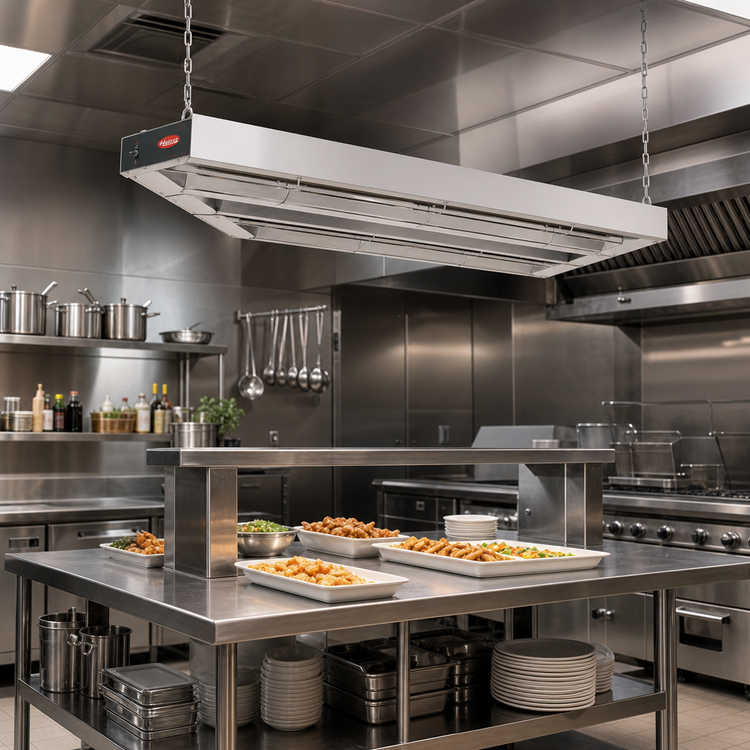

Ideal For
- Pass-through and expo counters
- Cafeteria & buffet lines
- Pizza, fry, and appetizer stations
- Carving boards & plating areas
Technical Specifications
| Model | GRAH-72D (Dual, High Watt) |
|---|---|
| Overall size | 72" W × 15" D × 2.5" H (1829 × 381 × 64 mm) |
| Housing material | Clear-anodized aluminum (designer colors available at time of order) |
| Heating elements | 2 × tubular metal-sheathed rods, 3" spacing |
| Wattage | 3450 W total |
| Voltage / Amps |
208 V ≈ 16.6 A 220 V ≈ 15.7 A 240 V ≈ 14.4 A |
| Electrical connection | 36" (914 mm) flexible metal conduit with 42" leads, field-wire |
| Recommended mounting height* | 14–18" (356–457 mm) above holding surface |
| Ship weight | Approx. 36 lb (17 kg) |
| Certifications | NSF, cULus |
*Mounting hardware sold separately. See Accessories below.
Popular Accessories (sold separately)
- Sneeze guards (9.375" or 14" deep, one- or two-sided)
- Non-adjustable tubular stands – 10", 12", 14", or 16" clearance
- Adjustable angle brackets or chain suspension kit
- Remote control enclosures (RMB-series) for multi-heater setups
- Designer Color powder-coat finishes with anti-microbial option
Backed by Hatco’s limited 24/7 parts & service assistance (U.S. & Canada) and a 2-year element warranty.
