Hatco GRAH-66D3 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® Dual Infrared Strip Heater – 66" (Model GRAH-66D)

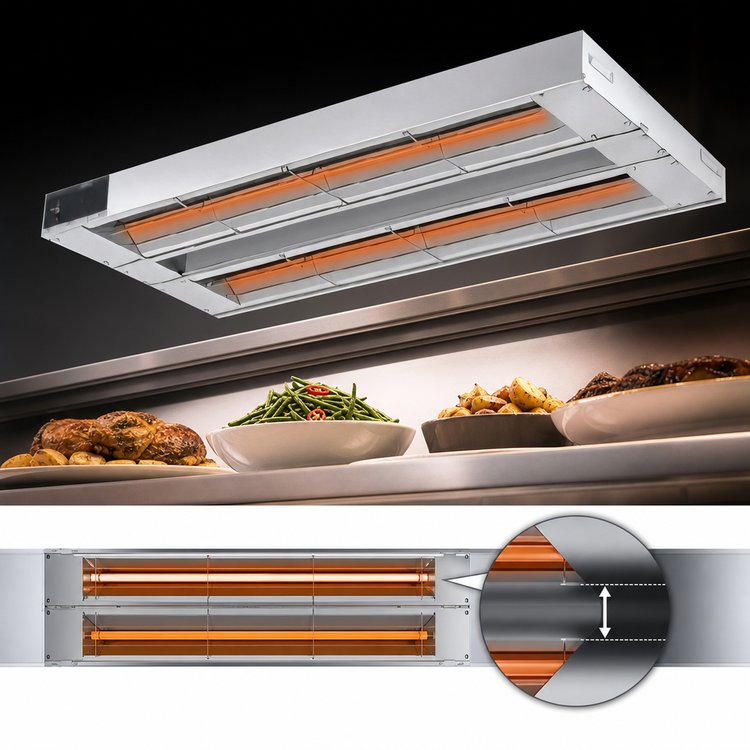

High-Watt • 3" Spacer • 3120 W • NSF & cULusKeep entrées, sides and grab-and-go favourites hot, fresh and ready to serve. The 66" Hatco Glo-Ray® high-watt dual infrared strip heater blankets the entire holding surface with pre-focused radiant heat, eliminating cold spots and extending food quality.
Why you’ll love it

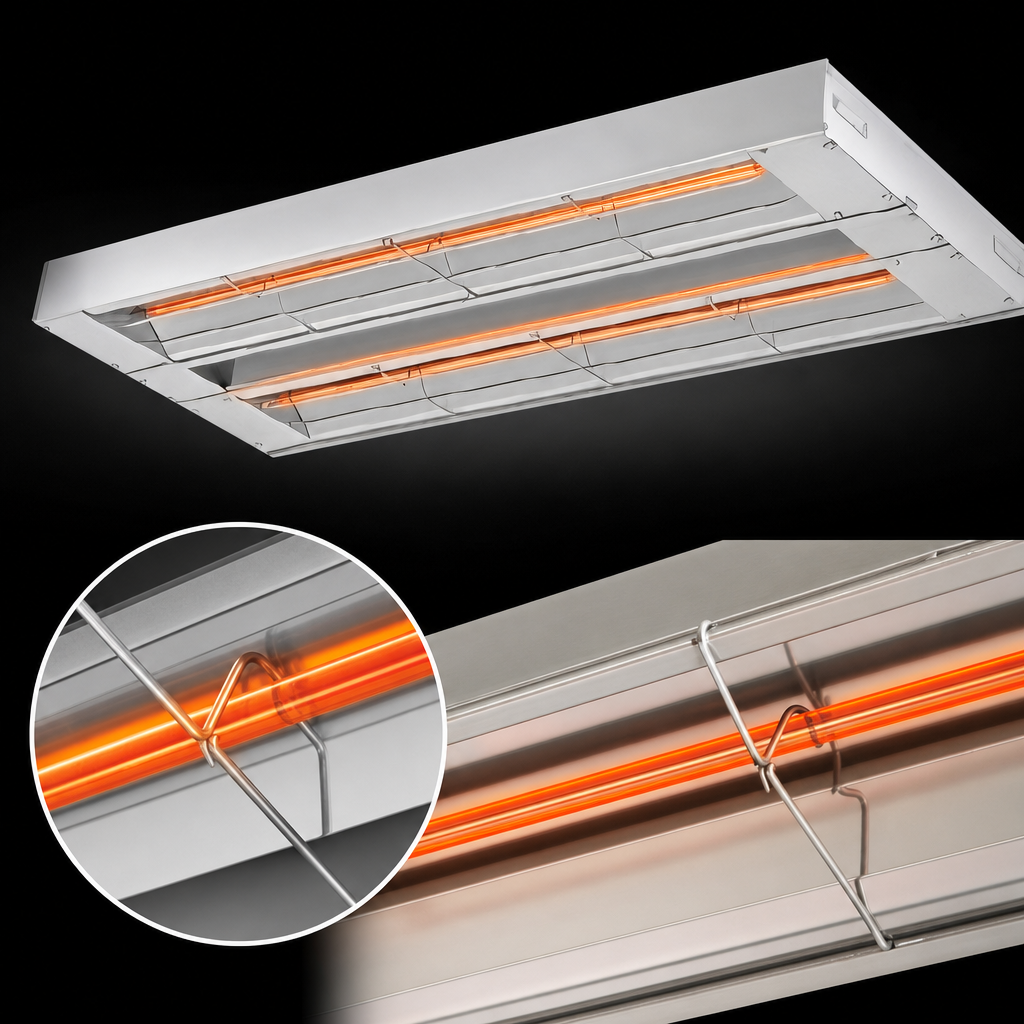

- Even heat distribution – dual tubular metal-sheathed elements are precision-aligned for consistent coverage across the full width.

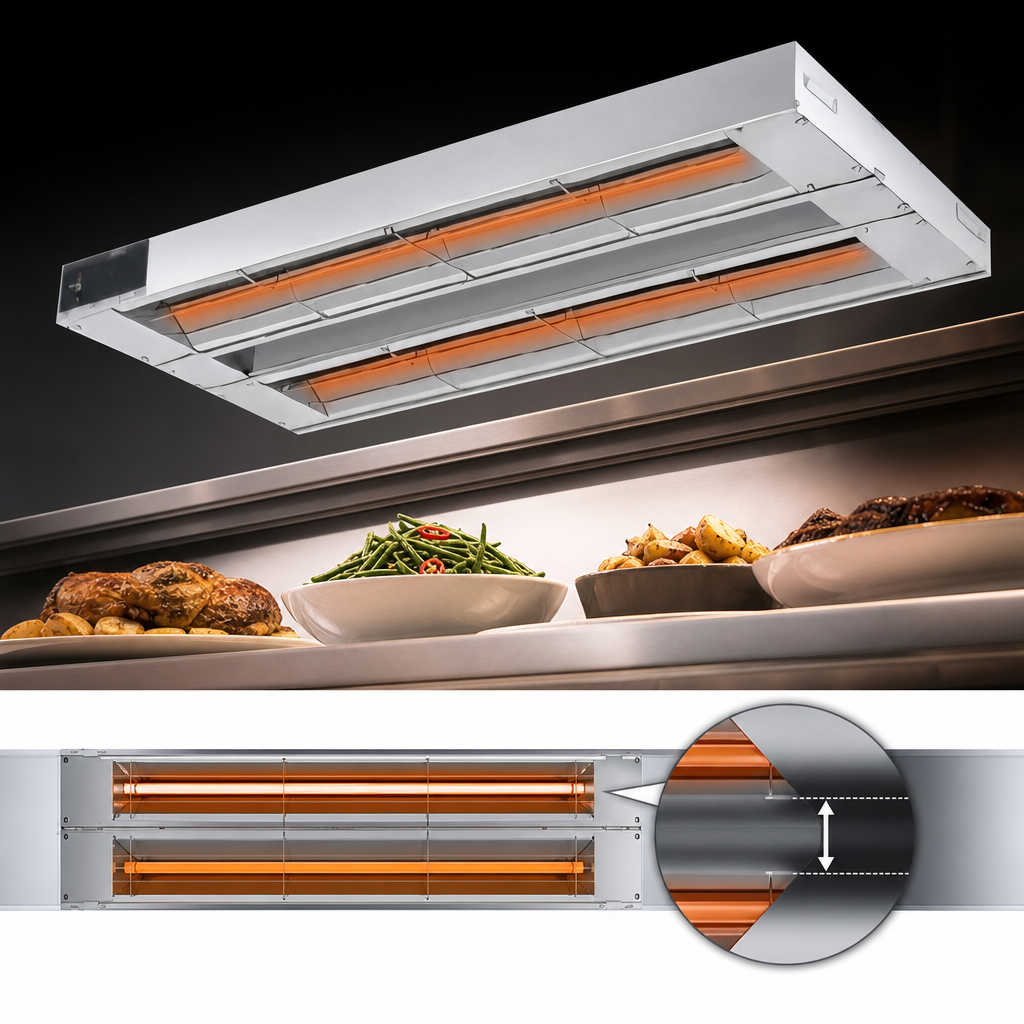

- Deeper holding zone – 3" (76 mm) centre spacer positions the heater rows for bulkier pans and elevated plating.
- High-watt output (3120 W) quickly recovers temperature during rush periods.
- Rigid extruded aluminium housing won’t sag, warp or discolour over time.
- Bright polished reflector resists blackening, ensuring a steady heat pattern meal after meal.
- Reinforced wire guards protect the elements without blocking heat.
- NSF listed, cULus certified and proudly Made in the USA.
Perfect for

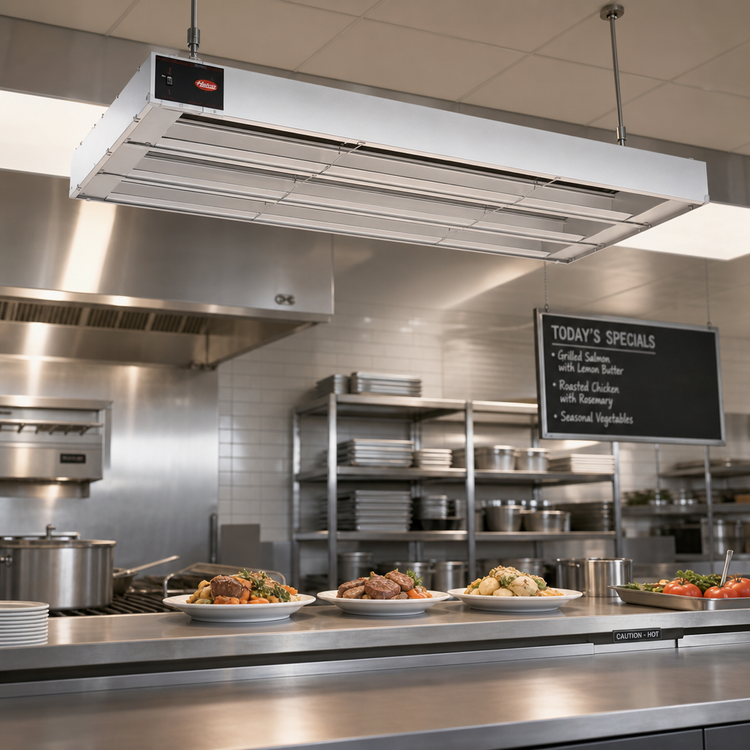

- Service lines and pass-through windows
- Carving stations & buffets
- Convenience-store hot shelves
- Cafeterias, catering & banquet setups
Technical specifications
| Model | GRAH-66D (Dual, 3" spacer) |
|---|---|
| Overall width | 66" (1676 mm) |
| Depth × height | 15" × 2.5" (381 × 64 mm) |
| Wattage | 3120 W (high watt) |
| Voltage options | 208 V, 220-230 V or 240 V, 1-phase |
| Amps (240 V) | 13.0 A |
| Heating elements | 2 × metal-sheathed tubular rods |
| Housing material | Anodised aluminium |
| Power lead | 36" (914 mm) flex conduit with 42" (1067 mm) leads |
| Mounting | Angle brackets, chain suspension or tubular stands (sold separately) |
| Certifications | NSF, cULus |
| Origin | Made in USA |
| Warranty | 2-year element warranty; 24/7 parts & service support |
Need a specific Designer Color housing, sneeze guard or remote control box? Contact us for factory-installed options available at time of order.
