Hatco GRAH-144D3 Glo-Ray® Heat Lamps
Description

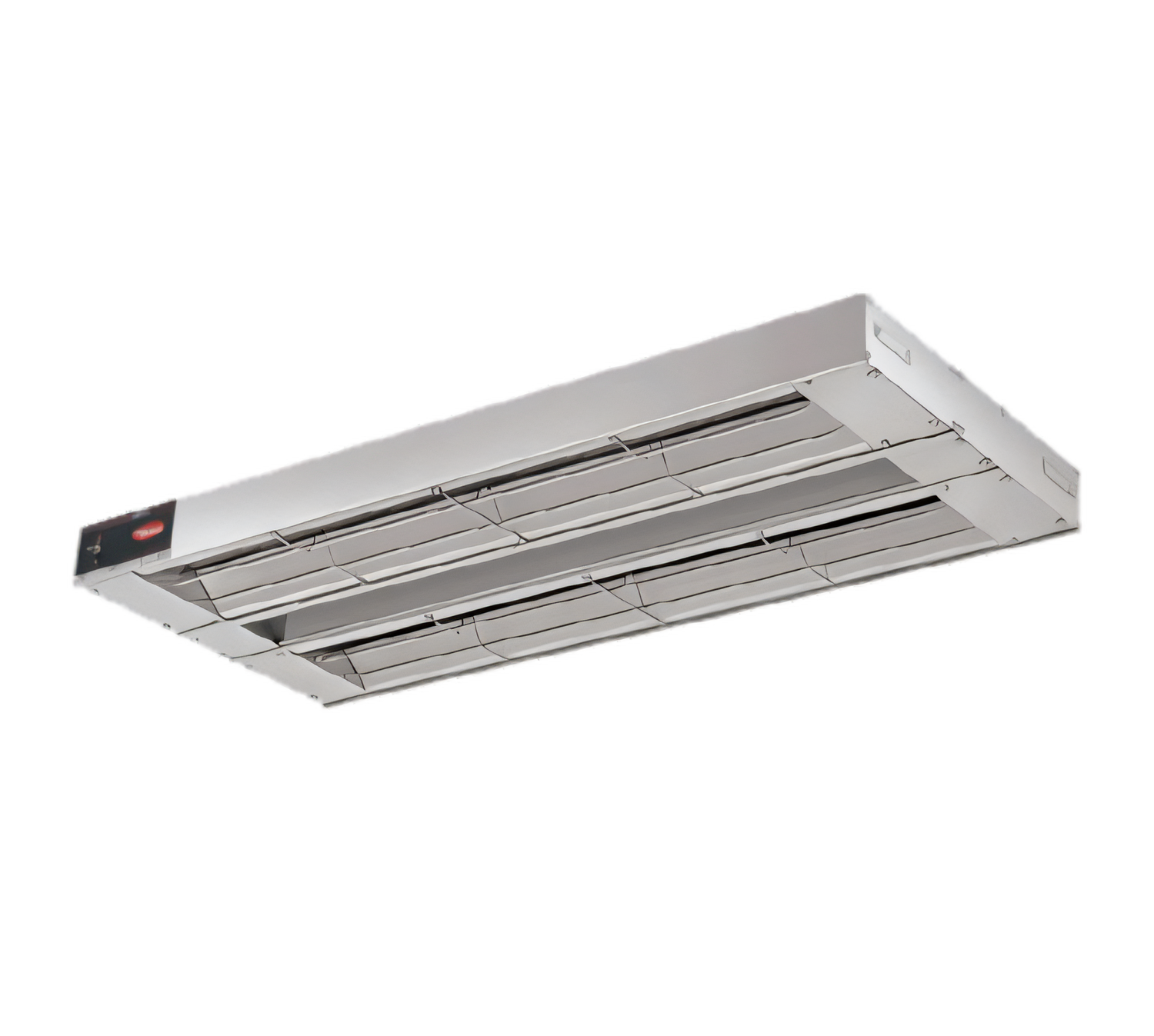

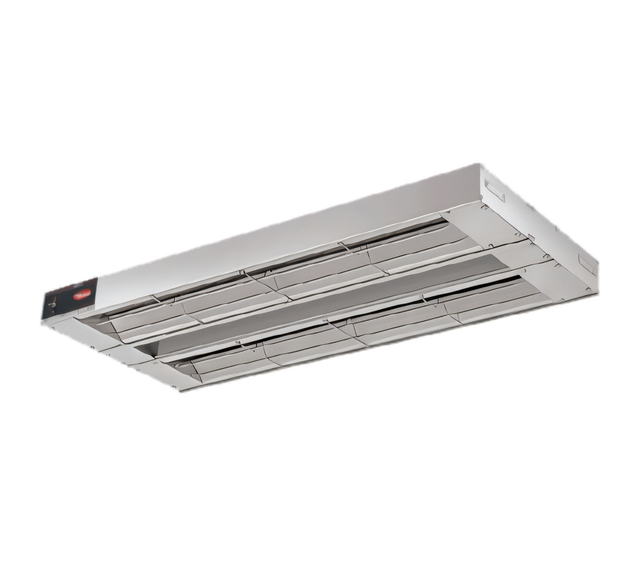

Hatco Glo-Ray® 144" Dual Infrared Strip Heater – High Watt

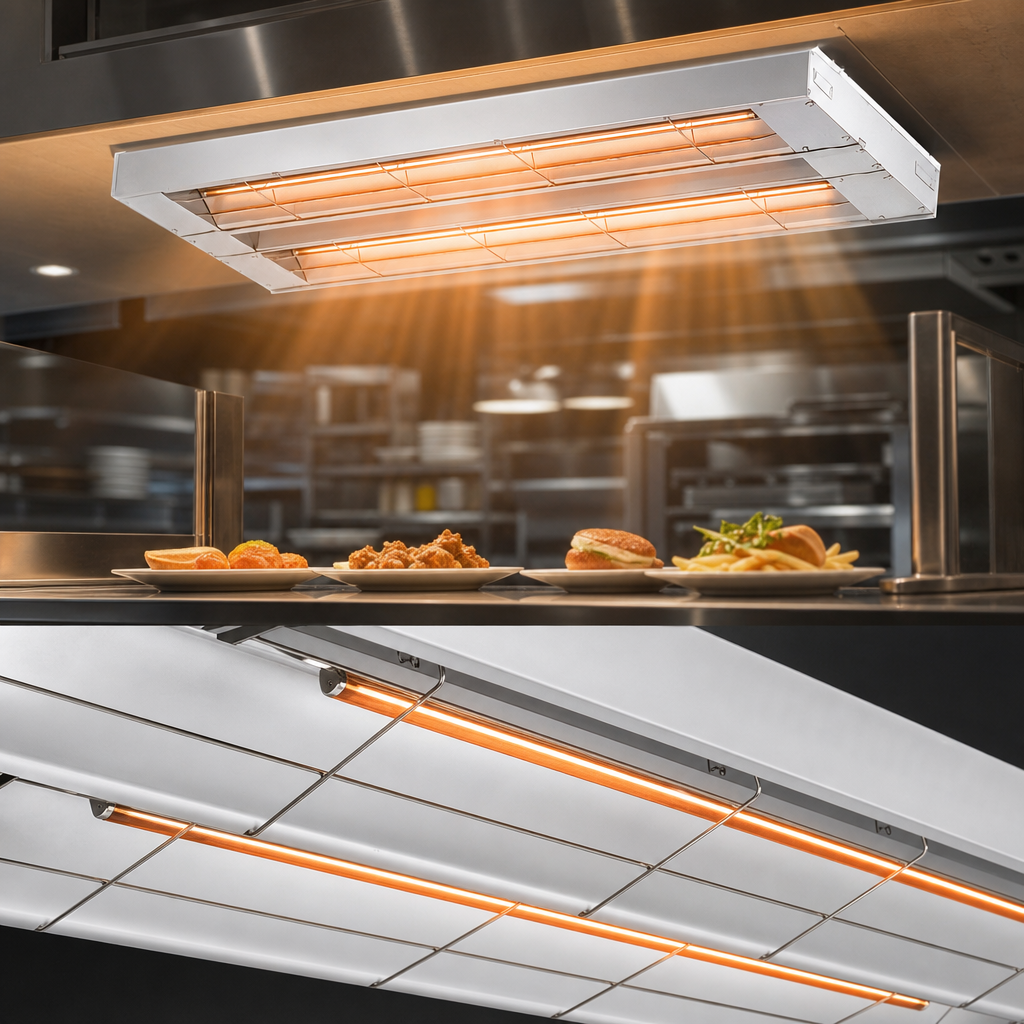

Model GRAH-144D | 3" Tandem Spacer | 6,900 WStretching a full twelve feet, Hatco’s largest dual Glo-Ray® strip heater delivers a powerful 6,900 watt blanket of infrared heat that keeps an entire serving line hot, appetizing and ready to plate. Two metal-sheathed heater rods sit side-by-side in a rigid aluminum housing, separated by a 3" spacer that creates a deeper heat zone without cold spots.
Why You’ll Love It
- High-watt tandem elements provide even, pre-focused heat across the full 144" width—no reheating or hot-holding dead zones.
- 3" (76 mm) center spacer increases the usable holding depth, perfect for high-profile pans and sheet-pan items.

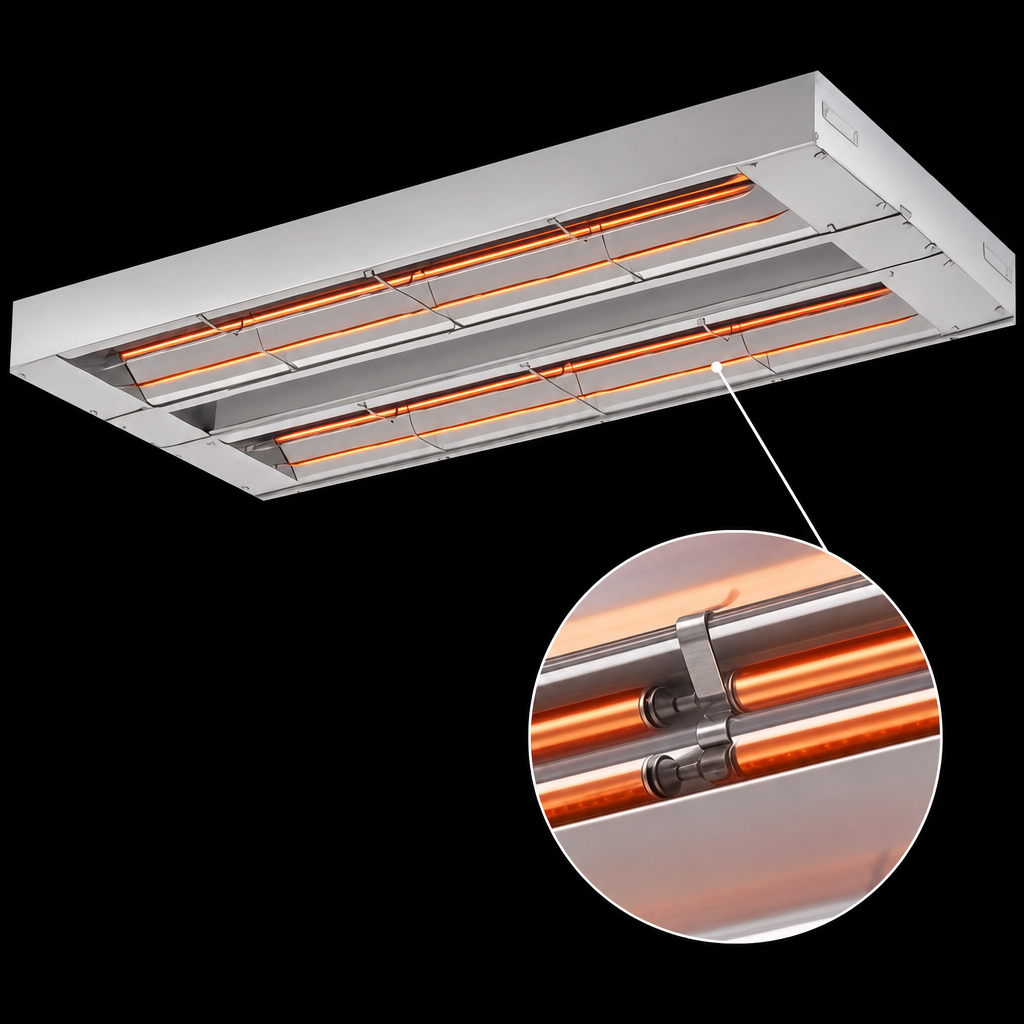

- Metal-sheathed tubular elements are guaranteed for two years against burnout or breakage.
- Heavy-gauge extruded aluminum housing resists sagging and corrosion while remaining lightweight for overhead installs.
- Reinforced wire guards protect the elements without interrupting the heat pattern, boosting operator safety.
- Thick internal insulation minimizes heat loss and keeps surrounding areas cooler.
- NSF & cULus listed and Made in the USA for lasting, code-compliant performance.
Ideal Applications
- Extended steam tables & cafeteria lines
- Full-length buffet sneeze-guard installations
- Catering & banquet plate make-up stations
- High-volume quick-service pass-through shelves
Technical Specifications
| Overall width | 144" (3,658 mm) |
|---|---|
| Depth × Height | 15" × 2.5" (381 × 64 mm) |
| Construction | Extruded aluminum housing with tandem metal-sheathed heater rods |
| Wattage | 6,900 W (high watt) |
| Voltage / Amps* |
208 V / 33.2 A 240 V / 28.8 A 220-230 V (CE) / 27.5-28.8 A |
| Electrical | Hard-wired, single phase; 36" (914 mm) flexible metal conduit with 42" (1,067 mm) leads |
| Recommended mounting height above holding surface |
14"–18" (356–457 mm) – High watt units |
| Net weight | 74 lbs. (34 kg) † |
| Listings | NSF, cULus |
| Country of origin | USA |
What’s Included
- GRAH-144D dual infrared strip heater with factory-installed 3" spacer
- Factory-installed toggle power switch
- 36" conduit whip with pre-stripped leads
- Operator’s manual
Popular Factory Options
- Remote control enclosure (RMB-3, RMB-14, etc.) for wall or counter mounting
- Non-adjustable or adjustable tubular stands (10-16" clearance)
- Acrylic sneeze guards – 9.375" or 14" depth (single or double-sided)
- Designer color or gloss powder-coat finishes
- Extended lead lengths (up to 20')
*Amp draw may vary with optional switches or international voltages.
†Shipping weight with packaging: approx. 82 lbs (37 kg).
