Description

Hatco Glo-Ray® Dual Infrared Strip Heater – 132"

Model GRAH-132D • High-Watt • 6,240 W

Stretching a full 11 feet, the Hatco Glo-Ray® GRAH-132D blankets extra-long buffet runs, pass-through windows and plating areas with steady, pre-focused infrared warmth. Dual tubular metal-sheathed elements sit side-by-side inside a rugged aluminum housing, creating a deeper 3" heat zone that keeps every inch of food hot, appetizing and ready to serve.

Why You’ll Love It

  • Even heat from end to end – tandem high-watt elements eliminate “cold spots” across the entire 132" span.

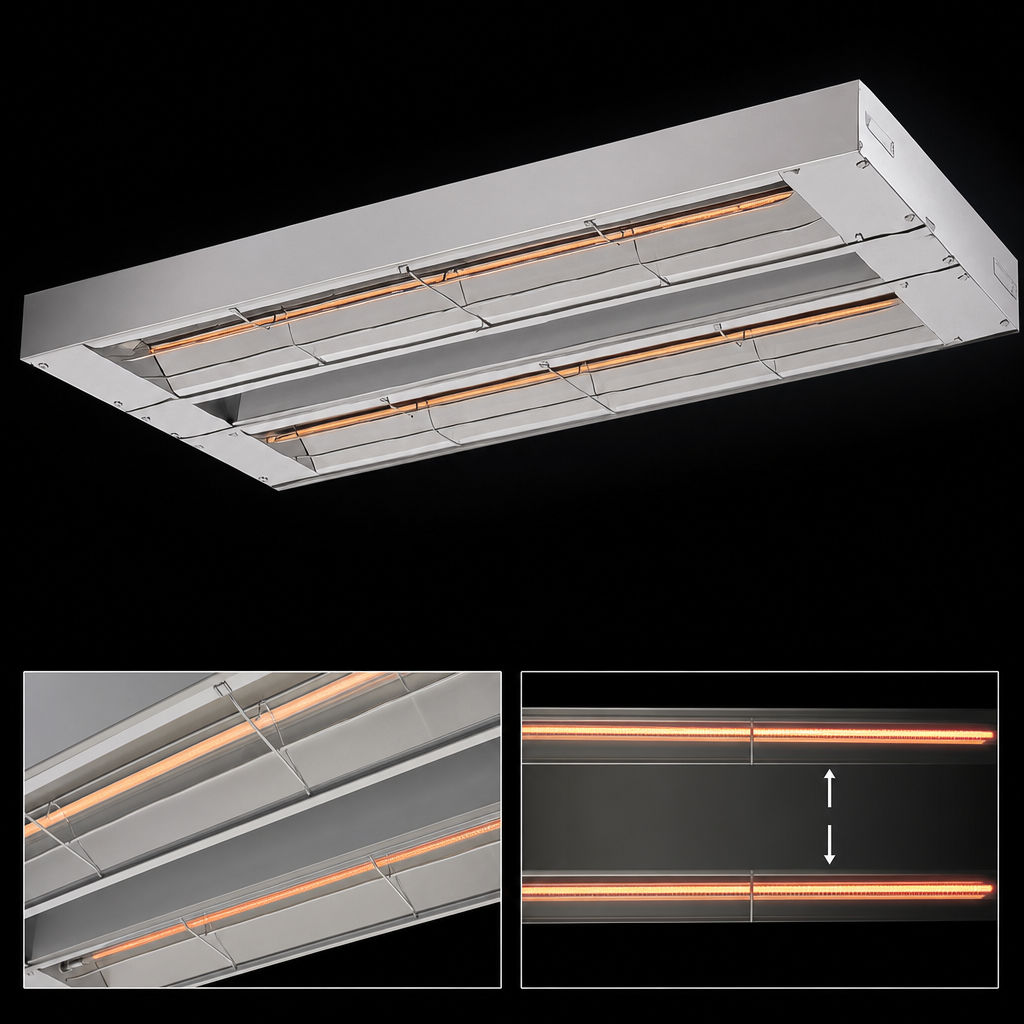

  • Deep 3" spacing between the dual strips creates a broader holding area ideal for high-volume serving lines.

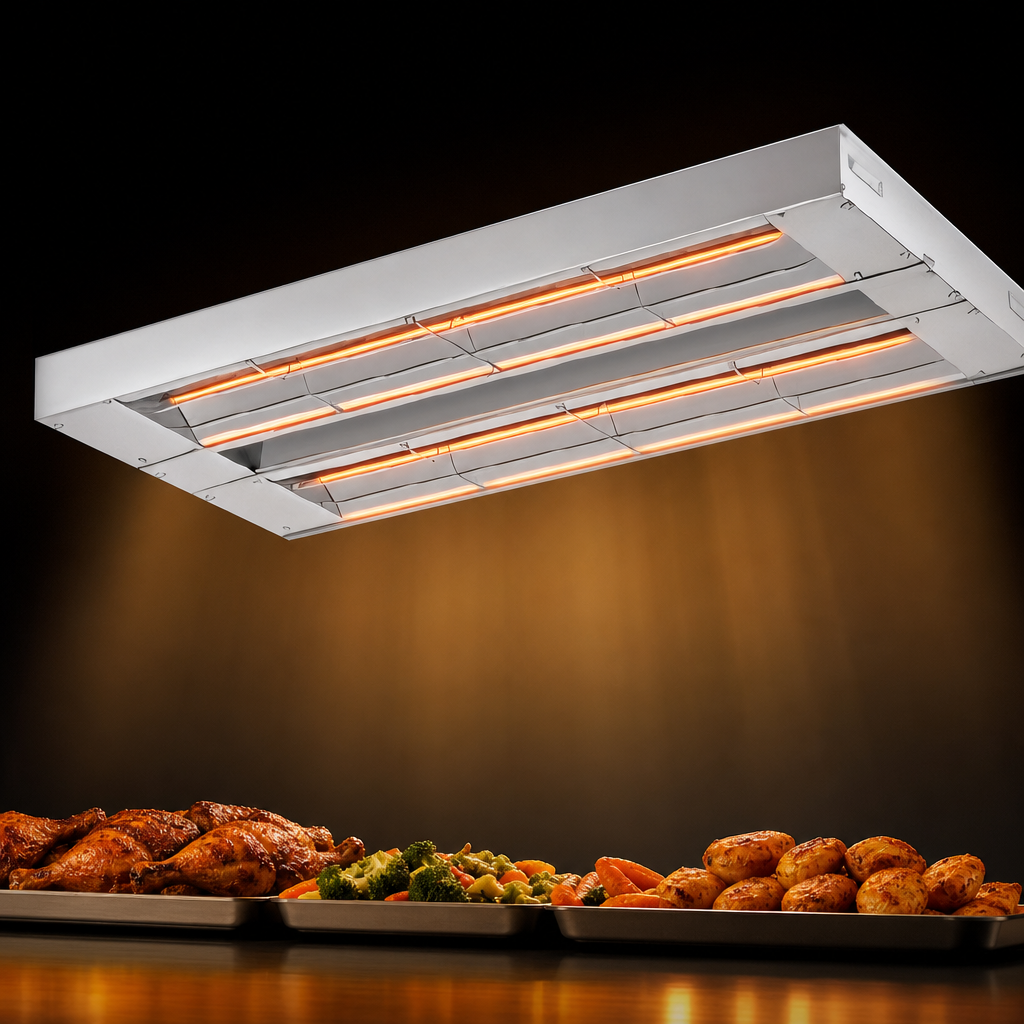

  • High output – 6,240 watts pumps out intense infrared heat that holds food at safe temperatures without drying.
  • Rugged, sag-free construction – extruded aluminum housing with reinforced wire guards built for busy kitchens.
  • Clean, consistent performance – bright polished reflector will not blacken and is fully insulated to reduce heat loss.
  • Certified & backed by Hatco – NSF & cULus listed, Made in the USA, with a 2-year element warranty and 24/7 parts & service support.

Ideal Applications

  • Extra-long cafeterias & buffet bars
  • High-volume banquet plating lines
  • Pass-through windows & expo counters
  • Catering commissaries & prep kitchens

Technical Specs

Overall width 132" / 3,353 mm
Depth (with 3" spacer) 15" / 381 mm
Height 2.5" / 64 mm
Heating elements Dual tubular metal-sheathed, tandem (end-to-end)
Total wattage 6,240 W  (high-watt)
Voltage & amps 208 V  – 30.0 A
220-230 V  – 28.4-28.7 A
240 V  – 26.0 A
Electrical connection Hard-wired; includes 36" (914 mm) flexible metal conduit with 42" (1,067 mm) leads
Construction Extruded aluminum housing, polished reflector, heavy-duty insulation
Certifications NSF • cULus • Made in USA
Shipping weight ≈ 73 lb / 34 kg
Warranty 2 years on metal-sheathed elements; 1 year parts & labor

Recommended mounting clearance to combustible surfaces: 10" (254 mm) minimum. Unit ships without switch controls; remote toggle or infinite control boxes are available separately.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

132.0in

Depth

15.0in

Shipping Weight

73.0lbs

Type of element

metal heating rod

Length

121 - 144"

Size

double

Finish

aluminum

Type

unlighted

Specifications

Glo-Ray® Infrared Strip Heater, 132" W, high wattage, tubular metal heater rod, double heater rod housing 3" spacing, aluminum construction, 6240 watts, contains tandem elements, NSF, cULus, Made in USA
