Hatco  |  Glo-Ray®  |  SKU: GRAH-120D6

Hatco GRAH-120D6 Glo-Ray® Heat Lamps

$1,990.29
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Hatco Glo-Ray® Dual Infrared Strip Heater – 120"

Model GRAH-120D | High Watt • 5600 W • 6" Spacer

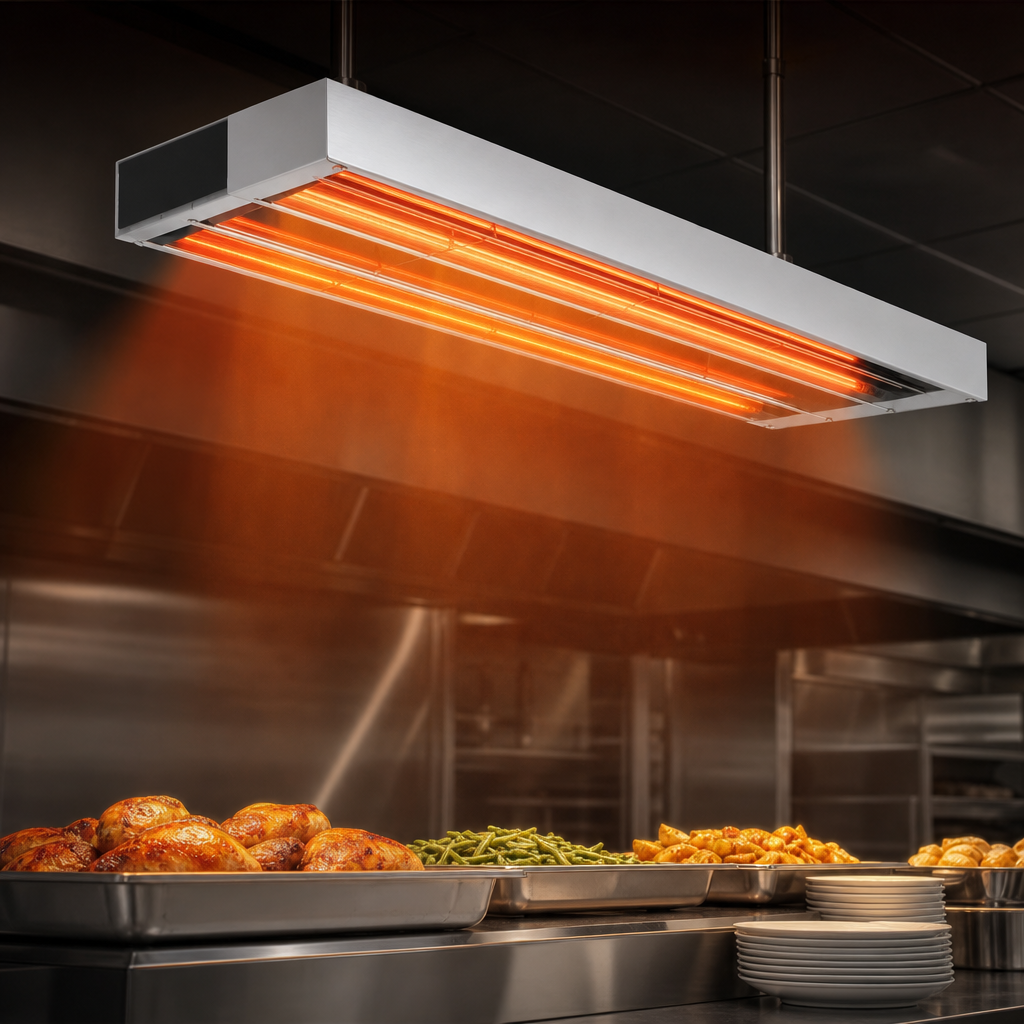

Stretch your serving line a full ten feet without losing heat consistency. Hatco’s Glo-Ray® GRAH-120D blankets food with intense, pre-focused infrared energy, holding entrees at safe, appetizing temperatures while preserving texture and flavor.

Key advantages
  • Dual tubular metal-sheathed elements generate uniform heat with no cold spots.
  • High-watt 5600 W output handles higher clearances and deeper pans.

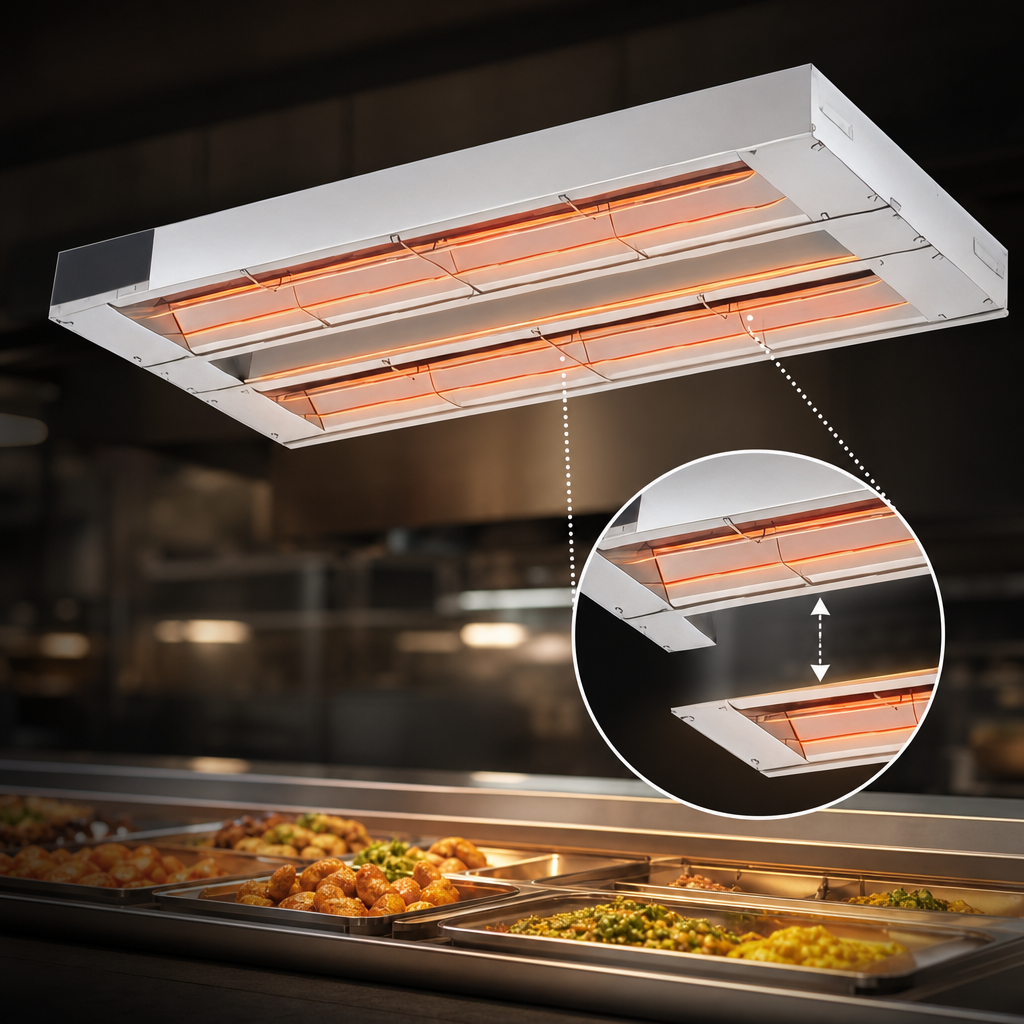

  • 6" (152 mm) center spacer deepens the heat zone for bulky items or stacked plates.
  • Extruded aluminum housing resists sagging, corrosion and daily wear.
  • Polished reflector won’t blacken, guaranteeing consistent heat year after year.
  • Reinforced wire guards protect elements without blocking heat.
  • Tandem end-to-end elements can be individually controlled when paired with an optional RMB remote box.
  • NSF & cULus listed and proudly Made in the USA.
Perfect for
  • Buffets, cafeterias & carving stations
  • QSR pass-through shelves
  • Supermarket hot bars
  • Catering lines & banquets
Technical specifications
Overall width 120" (3048 mm)
Depth × height 18" D × 2.5" H (457 mm × 64 mm)
Heating elements Two metal-sheathed rods with 6" center spacer
Total wattage 5600 W (high watt)
Voltage options 208 V or 240 V, single phase
Amps @ 208 V ≈ 26.9 A
Amps @ 240 V ≈ 23.3 A
Lead length 36" (914 mm) flexible metal conduit with 42" (1067 mm) leads
Construction Extruded aluminum housing with high-temp insulation & polished reflector
Certifications NSF, cULus
Warranty 2-year element warranty against burnout/breakage
Country of origin United States
Need mounting brackets, tubular stands, sneeze guards or a remote control box? Hatco offers a complete line of accessories to tailor the GRAH-120D to your counter or pass-through application.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

120.0in

Depth

18.0in

Shipping Weight

66.0lbs

Finish

aluminum

Type of element

metal heating rod

Size

double

Type

unlighted

Length

97 -120"

Specifications

Glo-Ray® Infrared Strip Heater, 120" W, high wattage, tubular metal heater rod, double heater rod housing 6" spacing, aluminum construction, 5600 watts, contains tandem elements, NSF, cULus, Made in USA
