Hatco  |  Glo-Ray®  |  SKU: GRAH-120D3

Hatco GRAH-120D3 Glo-Ray® Heat Lamps

$1,863.82
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Electrical rating Catalog brochure Color chart Parts list
Related Searches
Heat Lamps Serving & Display Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

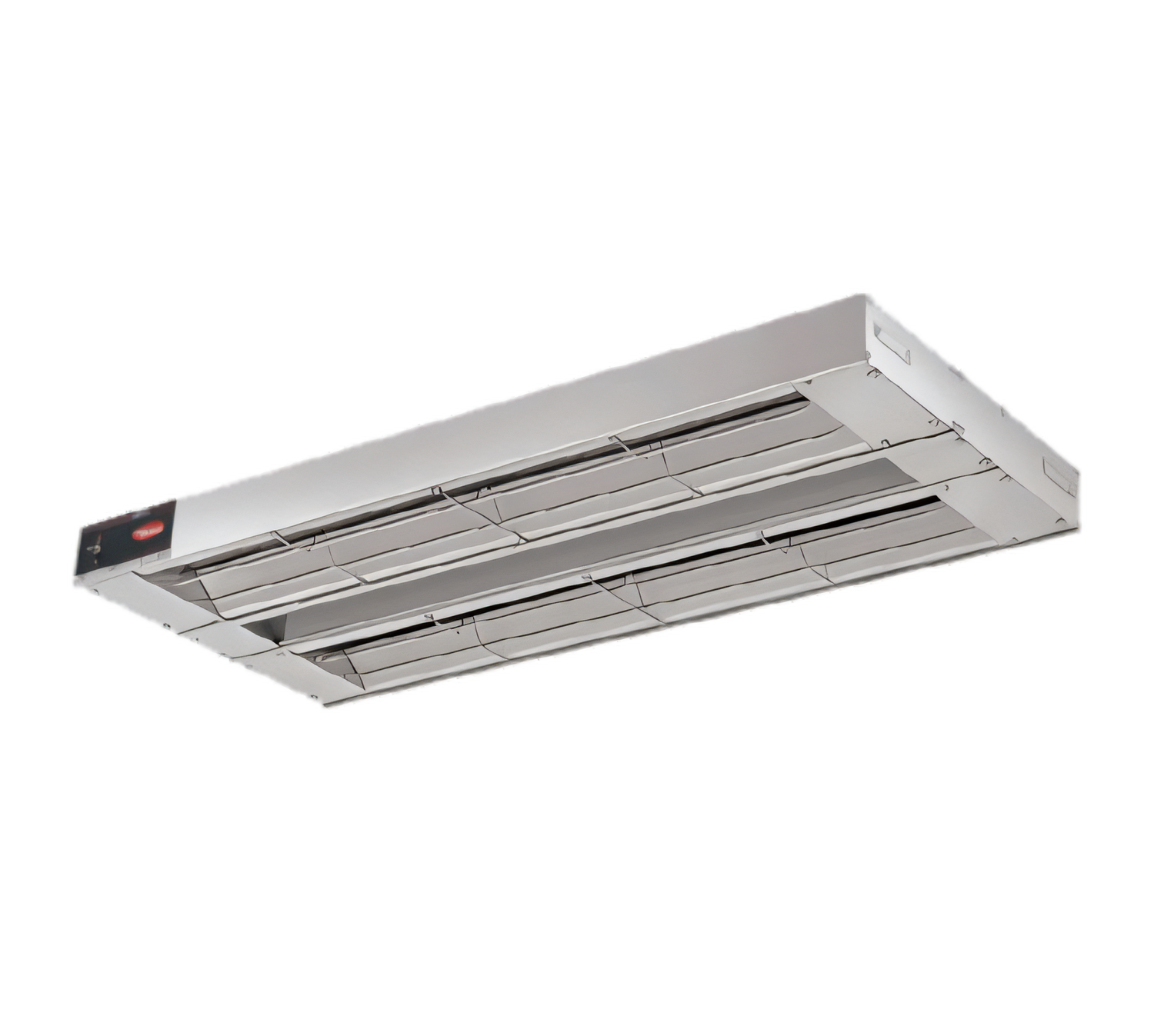

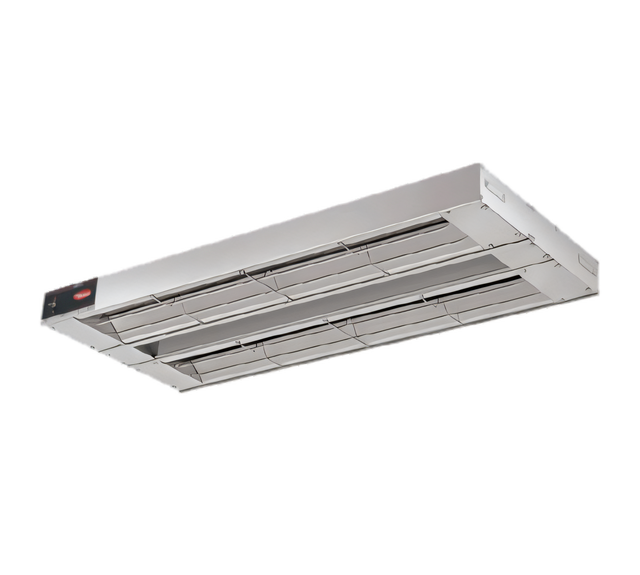

Hatco Glo-Ray® 120" Dual Infrared Strip Heater – High Watt

Model GRAH-120D | 5,600 W | 3" Spacer | Tandem Elements

Give your 10-ft service line the high-performance heat it deserves. Hatco’s Glo-Ray® GRAH-120D keeps every inch of product at safe, appetising temperatures while preserving moisture and fresh-cooked flavour.

Why you’ll love it

  • Powerful dual tubular metal-sheathed elements deliver 5,600 watts of even infrared heat.
  • 3" (76 mm) centre spacer deepens the heat envelope—perfect for taller or stacked pans.
  • Pre-focused reflector eliminates cold spots and will not blacken over time.
  • Reinforced wire guards protect the element without blocking heat.
  • One-piece extruded aluminium housing resists sagging across the full 120" span.
  • Heavy insulation minimises heat loss and keeps the operator side cool.
  • Tandem end-to-end elements can be independently controlled with an optional remote box.
  • NSF & cULus listed and Made in the USA.

Technical specifications

Model GRAH-120D (High Watt)
Overall width 120" / 3,048 mm
Depth (with 3" spacer) 15" / 381 mm
Height 2.5" / 64 mm
Housing material Clear-anodised aluminium
Heating elements Dual tubular metal rods
Total wattage 5,600 W
Voltage options 208 V, 220–230 V or 240 V, 1-phase
Full-load amps 208 V / 26.9 A  |  240 V / 23.3 A (approx.)
Power connection 36" (914 mm) flex metal conduit with 42" (1,067 mm) leads
Certifications NSF, cULus
Origin USA
Warranty 2-yr parts & labour on elements; 24/7/365 factory tech support

Popular accessories (sold separately)

  • Sneeze guards – 9.375" or 14" heights, single or double-sided
  • Remote toggle or infinite control boxes (mount outside heat zone)
  • Adjustable or fixed tubular stands – 10" – 16" clearances
  • Chain suspension kits & angle brackets for overhead mounting
Installation tip: Maintain at least 1" (25 mm) clearance above the unit, and install any remote control enclosure outside the heated zone to prevent heat damage.

Need a different size? Glo-Ray® dual strip heaters are available from 18" to 144" in standard or high-watt models. Contact us for a fast quote.

Features & Specs

Manufacturer

Hatco

Brand_name

Glo-Ray®

Certifications

NSF, cULus, Made in USA

Height

2.5in

Width

120.0in

Depth

15.0in

Shipping Weight

66.0lbs

Finish

aluminum

Type of element

metal heating rod

Size

double

Type

unlighted

Length

97 -120"

Specifications

Glo-Ray® Infrared Strip Heater, 120" W, high wattage, tubular metal heater rod, double heater rod housing 3" spacing, aluminum construction, 5600 watts, contains tandem elements, NSF, cULus, Made in USA
