Hatco GRAH-108D6 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® 108" Dual Infrared Strip Heater
Model GRAH-108D • High-Watt • 5,000 WGive every pan, plate, and platter the perfect finishing touch with the longest, most powerful member of Hatco’s legendary Glo-Ray® family. Engineered for extra-wide serving lines and oversized pass-thru shelves, this 108 inch dual-rod heater blankets product with pre-focused infrared heat—eliminating cold spots while keeping food appetizingly hot and ready to serve.
Why You’ll Love It
- High-watt 5,000 W output delivers rapid recovery and stable holding temperatures.

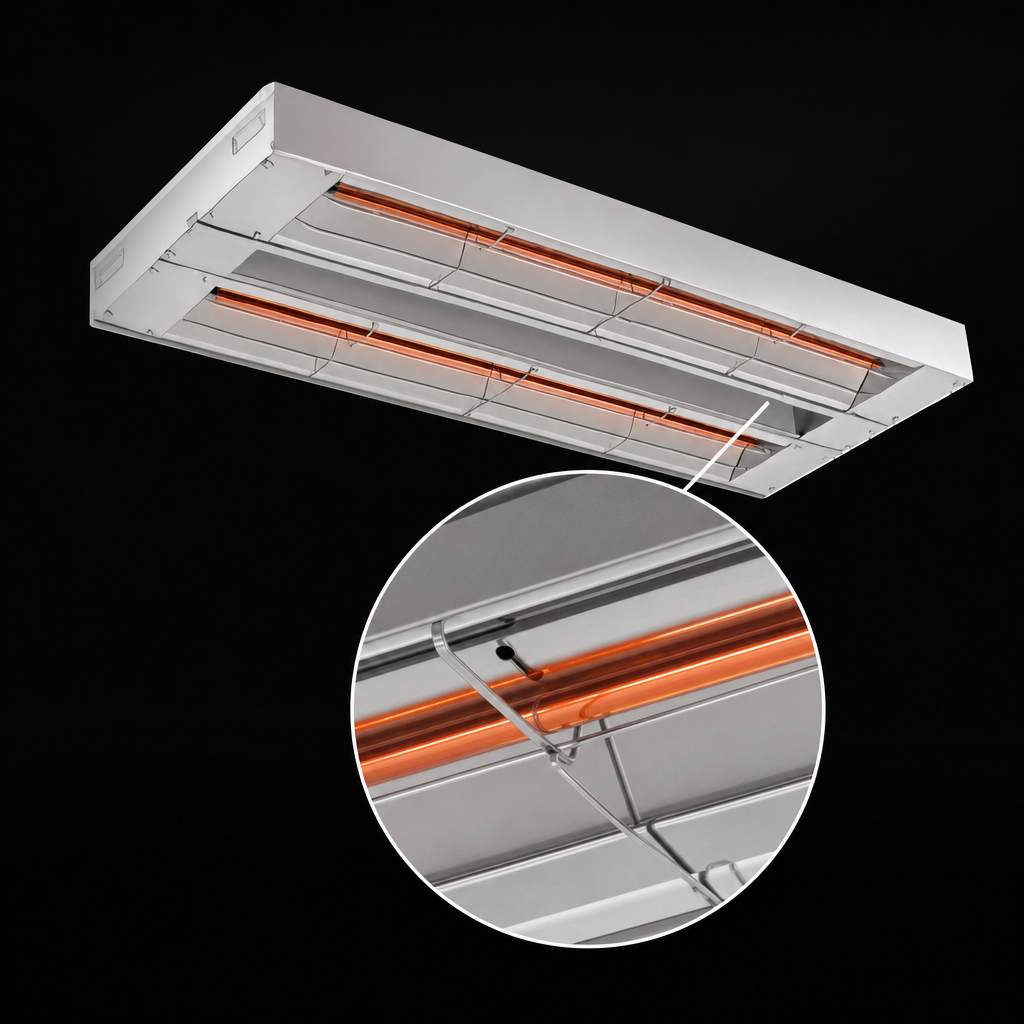

- Tandem tubular metal elements run end-to-end for uniform heat the full 108" width.

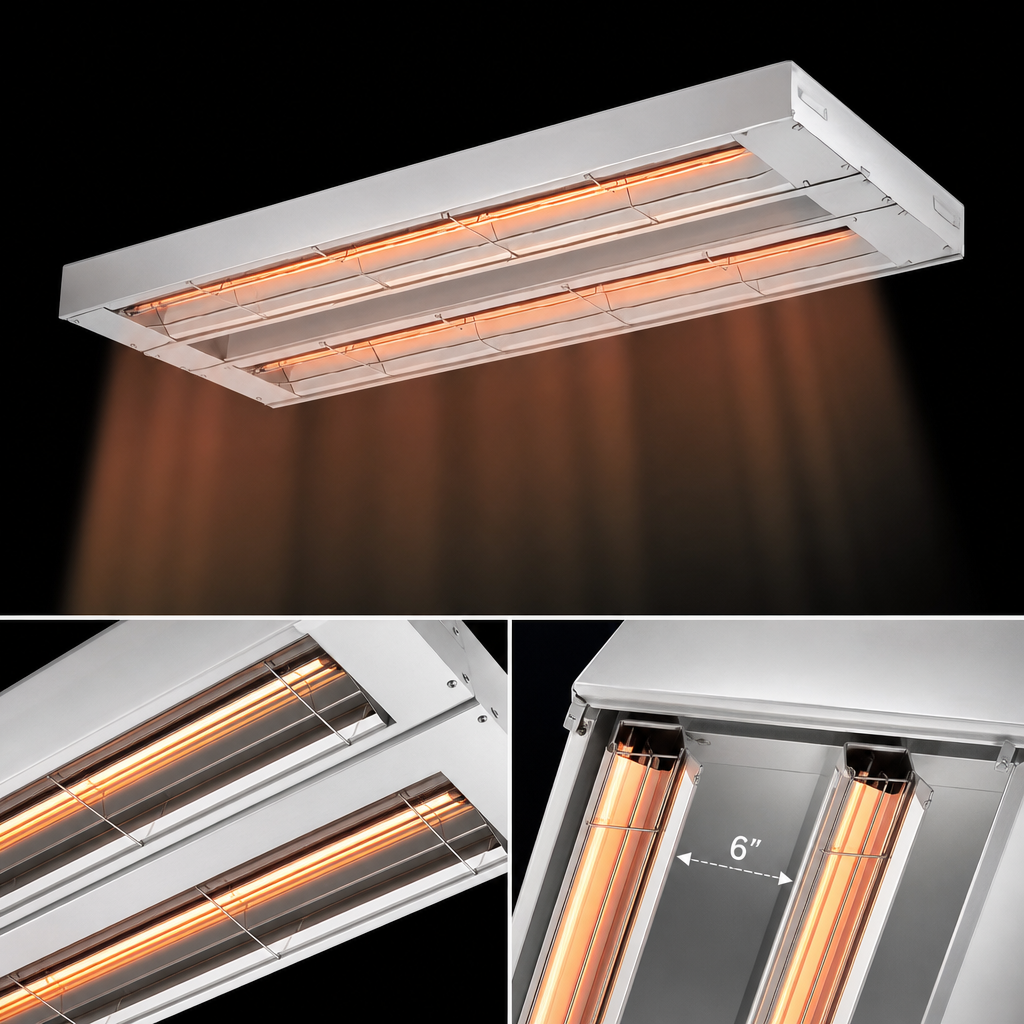

- 6" (152 mm) spacer between housings creates a deeper heat pattern for tall or piled-high dishes.
- Extruded aluminum construction resists sagging and stands up to busy commercial kitchens.
- Bright-finish reflector will not blacken, ensuring consistent heat distribution for years.
- Reinforced wire guards protect elements without blocking infrared energy.
- Heavy-duty insulation minimizes heat loss and keeps exterior surfaces cooler.
- NSF & cULus listed and proudly Made in the USA.
At-a-Glance Specs
| Model | GRAH-108D (Dual Rod, High Watt) |
|---|---|
| Overall Width | 108" / 2,743 mm |
| Heat Source | Tubular metal-sheathed infrared elements (tandem) |
| Total Wattage | 5,000 W |
| Voltage / Amps | 120 V ≈ 41.7 A 208 V ≈ 24.0 A 240 V ≈ 20.8 A |
| Housing Depth | 18" / 457 mm (with 6" spacer) |
| Height | 2.5" / 64 mm |
| Construction | Extruded aluminum with bright anodized reflector & wire guards |
| Controls | On-off toggle switch (remote control boxes & infinite switches optional) |
| Certifications | NSF • cULus Listed |
| Country of Origin | USA |
| Warranty | 2-year element warranty; 24/7 parts & service support |
Perfect For
- Extra-long buffet lines & carving stations
- Institutional cafeterias & commissaries
- High-volume pass-through windows
- Catering operations needing broad, even holding zones
Popular Factory Options
- Designer color or gloss finish housings to match your décor
- Acrylic sneeze guards (one- or two-sided)
- Adjustable or fixed tubular stands (10"-16" clearance)
- Remote control enclosures (RMB series) for multiple heaters
- Extended lead lengths & chain suspension kits
Options are factory-installed at time of order—ask a sales specialist for details.
