Hatco GRAH-108D3 Glo-Ray® Heat Lamps
Description

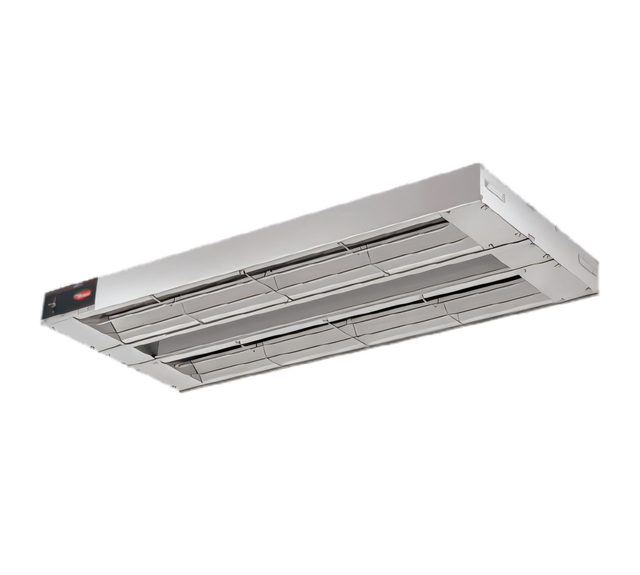

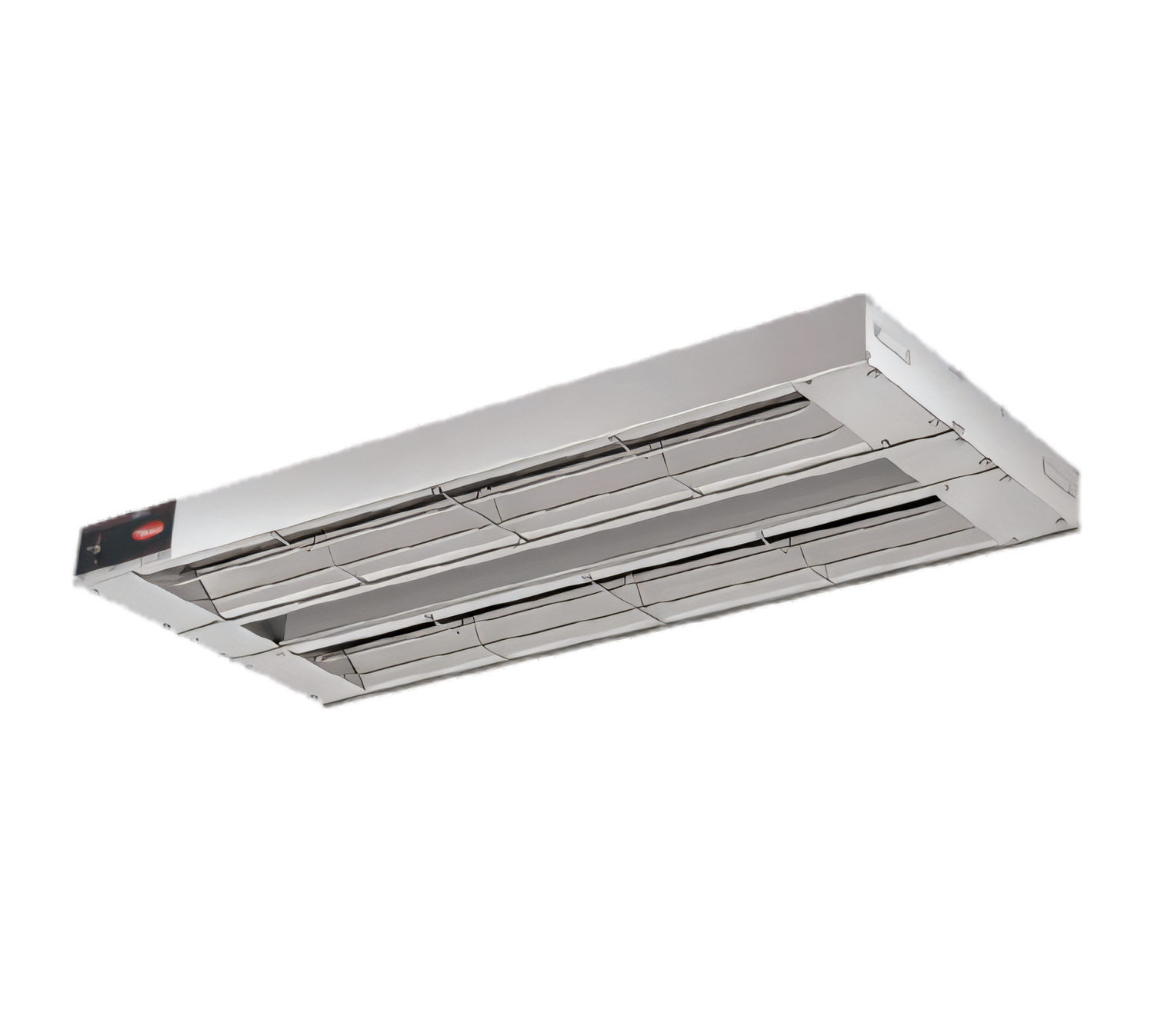

Hatco Glo-Ray® Dual Infrared Strip Heater – 108", 5 kW
Model GRAH-108D | High-Watt • Tandem Elements • 3" SpacerGive your longest serving line the professional finishing touch with Hatco’s 108-inch Glo-Ray® dual infrared heater. Two high-output tubular metal elements deliver a concentrated, even blanket of heat that holds food at safe, appetizing temperatures without continuing to cook it.
Why you’ll love it
- 5,000 watts of high-watt, pre-focused infrared heat – no “cold spots.”

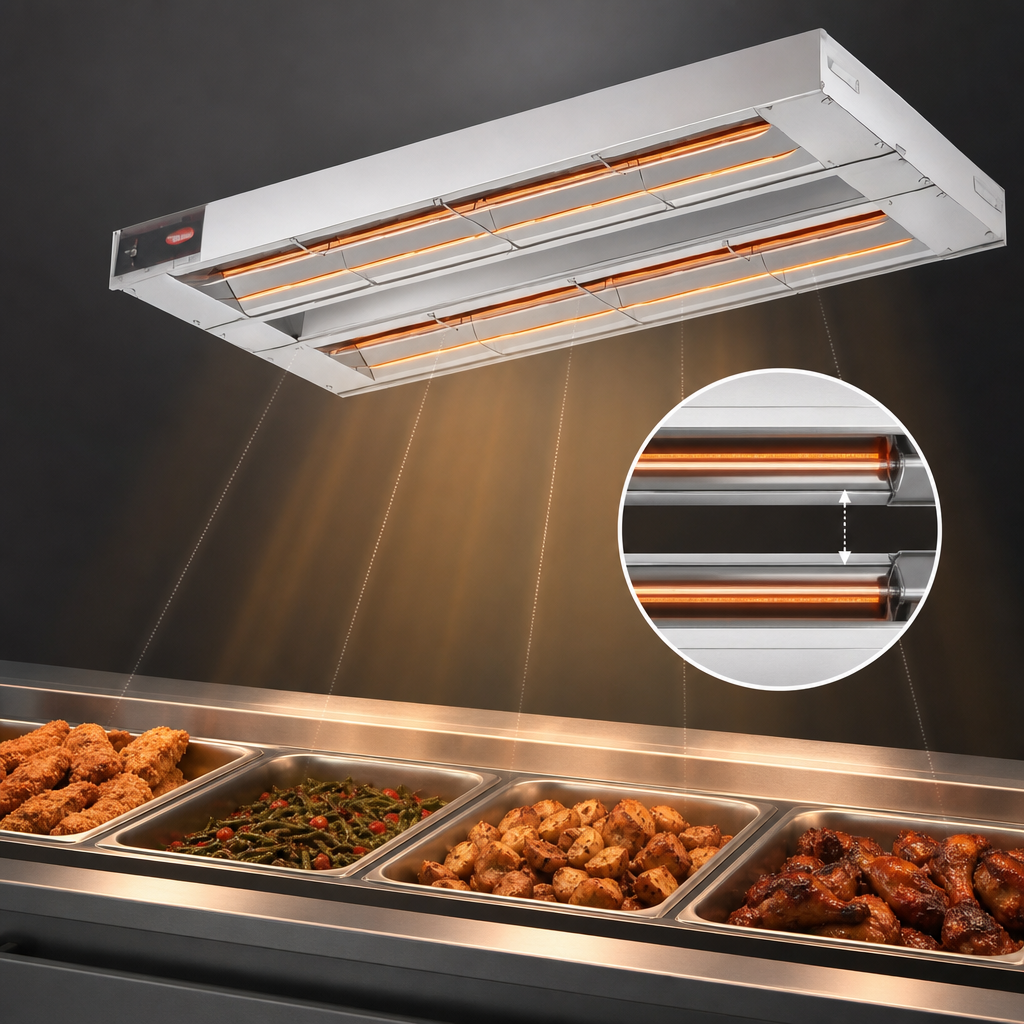

- Dual-element housing with a 3" (76 mm) center spacer creates a deeper 15" holding zone ideal for sheet pans, trays and bulky dishes.
- Extruded aluminum construction resists corrosion and will not sag over long spans.
- Reinforced wire guards protect the elements while preserving heat distribution.
- Heavy-duty insulation minimizes heat loss and keeps the operator side cooler.
- Simple built-in toggle switch and indicator light; remote infinite or toggle controls available.
- NSF & cULus listed and proudly Made in the USA.
Technical Specifications
| Overall width | 108" (2,743 mm) |
|---|---|
| Depth × Height | 15" D × 2.5" H (with 3" spacer) |
| Heating elements | 2 × tubular metal rods, tandem (end-to-end) |
| Total wattage | 5,000 W (high-watt) |
| Typical amperage | 24 A @ 208 V | 20.8 A @ 240 V |
| Power connection | 36" (914 mm) flexible metal conduit with 42" leads |
| Recommended mounting height | 14–18" (356–457 mm) above the food surface |
| Shipping weight | ≈ 59 lb (27 kg) |
| Certifications | NSF, cULus |
| Country of origin | United States |
Optional accessories
- Designer-color or gloss-finish housings
- Remote control boxes (RMB) with toggle or infinite switches
- Adjustable or fixed tubular stands (10"–18" clearance)
- Shatter-proof acrylic sneeze guards (9-3/8" or 14" deep, one- or two-sided)
- Chain suspension kits and angle-bracket mounts
Need a different size or voltage? Glo-Ray strip warmers are available in lengths from 18" to 144" with multiple wattages and control options. Contact us for expert sizing help.
