Hatco GRA-96D6 Glo-Ray® Heat Lamps
Description

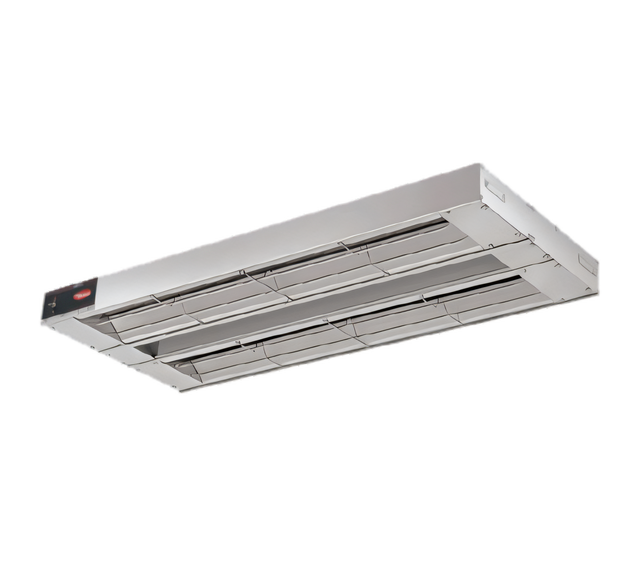

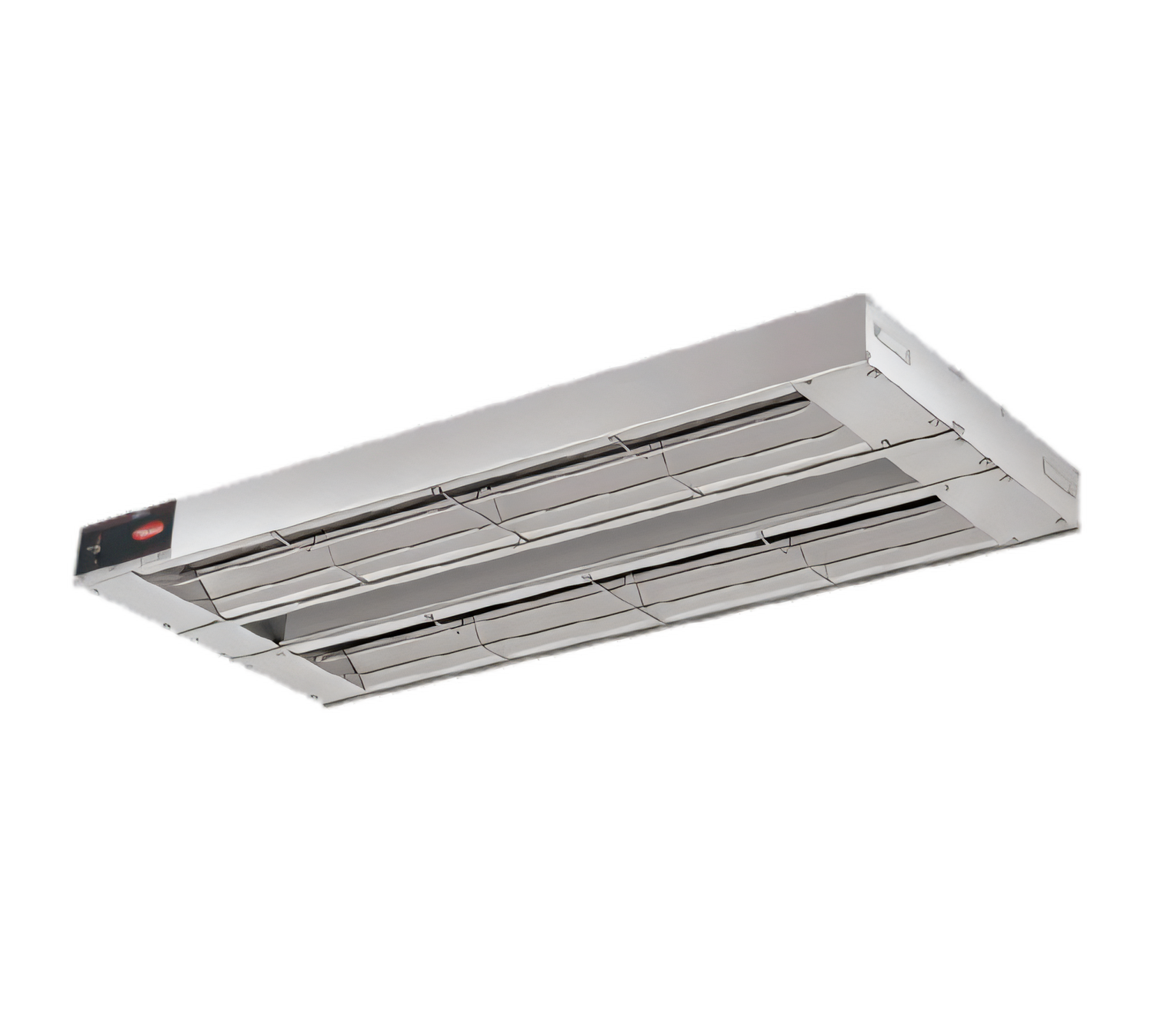

Hatco Glo-Ray® 96" Dual Infrared Strip Heater
Model GRA-96D • Standard Watt • 3,450 W • 6" SpacerGive every pan on an 8 ft serving line the perfect finishing touch of heat. The Hatco Glo-Ray® GRA-96D uses two pre-focused tubular metal heater rods, mounted side-by-side inside a rugged aluminum housing, to blanket foods with even, gentle infrared warmth—without cold spots or soggy texture. Built for the demands of busy cafeterias, buffets and QSR pass-through stations, this NSF-listed warmer keeps product at safe, appetizing temperatures while its 6" (152 mm) center spacer creates a deeper holding cavity for taller items or stacked plates.
Why You’ll Love It

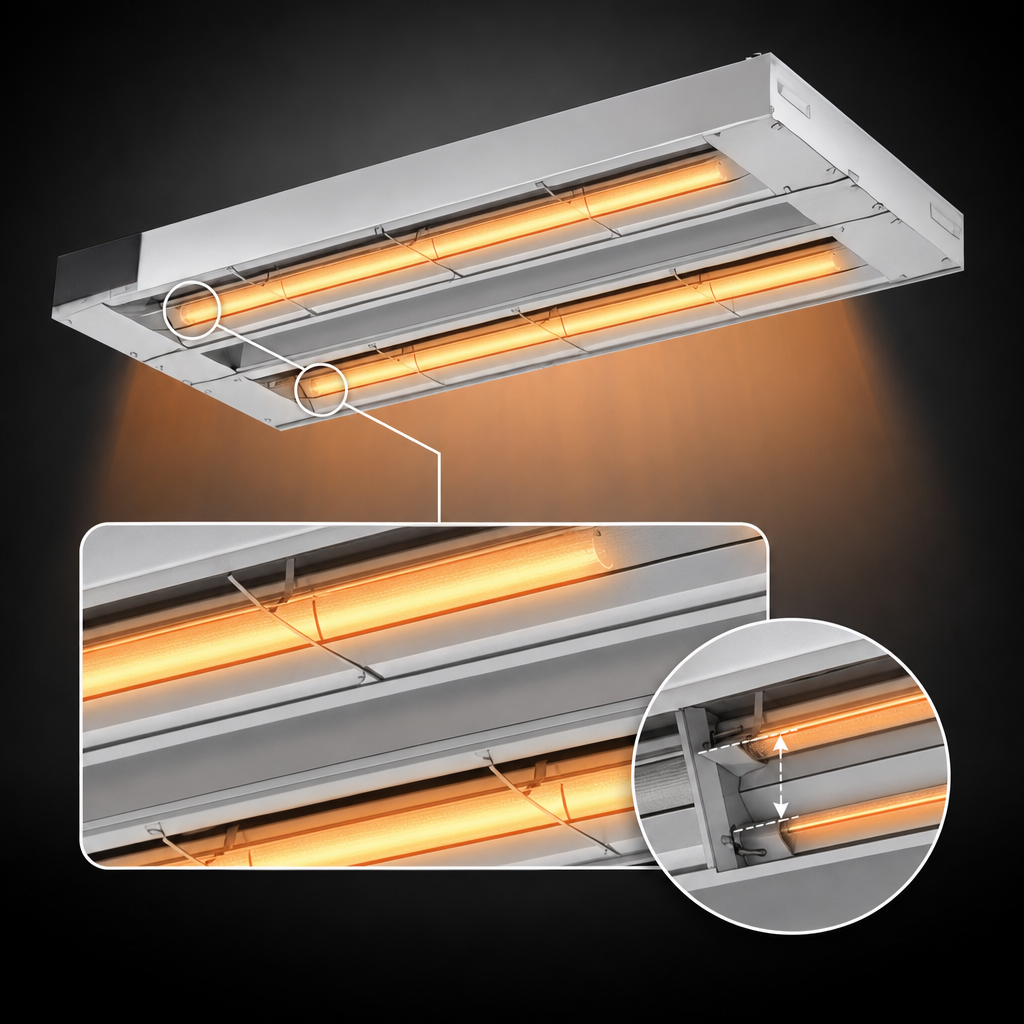

- Dual metal-sheathed elements deliver uniform heat across the full 96" (2438 mm) width—no “cold corners.”
- 6" spacer between the two heater sections increases holding depth for bulky menu items.
- Extruded aluminum housing will not sag and is fully insulated to reduce heat loss.
- Reinforced wire guards protect elements without disrupting the heat pattern.
- Reflector will not blacken over time, ensuring consistent performance and presentation.
- Simple toggle switch (chef-side) supplied; remote control boxes, stands, sneeze guards and designer finishes available at purchase.
- NSF, cULus certified and proudly Made in the USA.
At-a-Glance Specs
| Overall width | 96" (8 ft / 2438 mm) |
|---|---|
| Depth × Height | 18" × 2.5" (457 × 64 mm) — with 6" spacer |
| Output (standard watt) | 3,450 W |
| Typical amp draw | 14.4 A @ 240 V | 16.6 A @ 208 V |
| Element type | Metal-sheathed tubular rods (dual) |
| Housing material | Heavy-duty anodized aluminum |
| Recommended mounting clearance | 10"–14" (254–356 mm) below heater* |
| Shipping weight | ≈ 52 lb (24 kg) |
| Certifications | NSF | cULus |
| Country of origin | United States |
*Clearance values apply to standard-watt models with a 6" spacer. Consult the installation manual for combustible surface and remote-switch mounting requirements.
Popular Options (factory-fit)
- Designer color or gloss housings
- Acrylic sneeze guards (one- or two-sided, 9⅜" or 14" height)
- Remote toggle or infinite controls (via RMB control enclosure)
- Non-adjustable or adjustable tubular stands (10"–16" clearance)
- Extended power leads or chain suspension kit
Need help configuring accessories or voltage? Contact our team—this Hatco warmer is built to order so you get the perfect fit for your line.
