Hatco GRA-96D3 Glo-Ray® Heat Lamps
Description

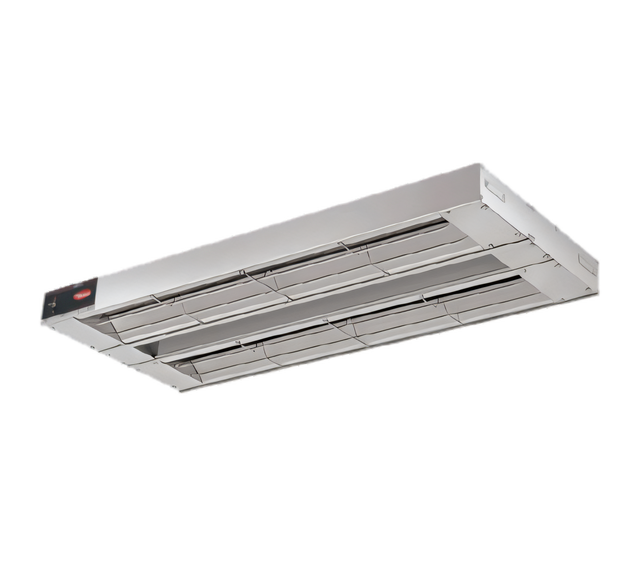

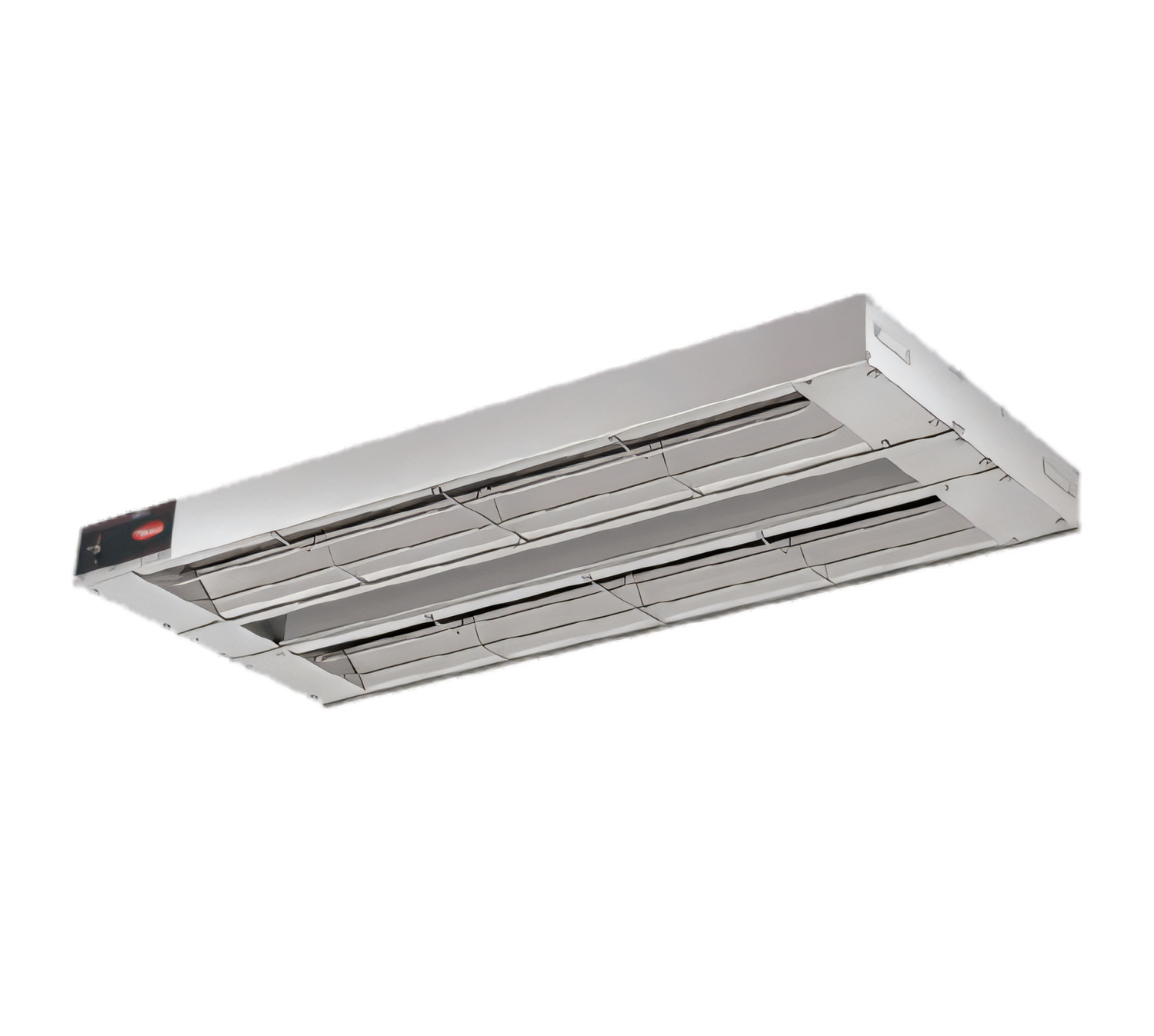

Hatco Glo-Ray® 96" Dual Infrared Strip Heater
Model GRA-96D | Standard-Watt 3450 W | 3" Center SpacerGive every dish the chef’s-table treatment. Hatco’s Glo-Ray® GRA-96D keeps cooked food at safe, appetizing temperatures without over-drying or over-cooking, thanks to two tubular metal-sheathed heater rods that deliver a perfectly pre-focused heat pattern across the full 96 inch holding area.
Key Features

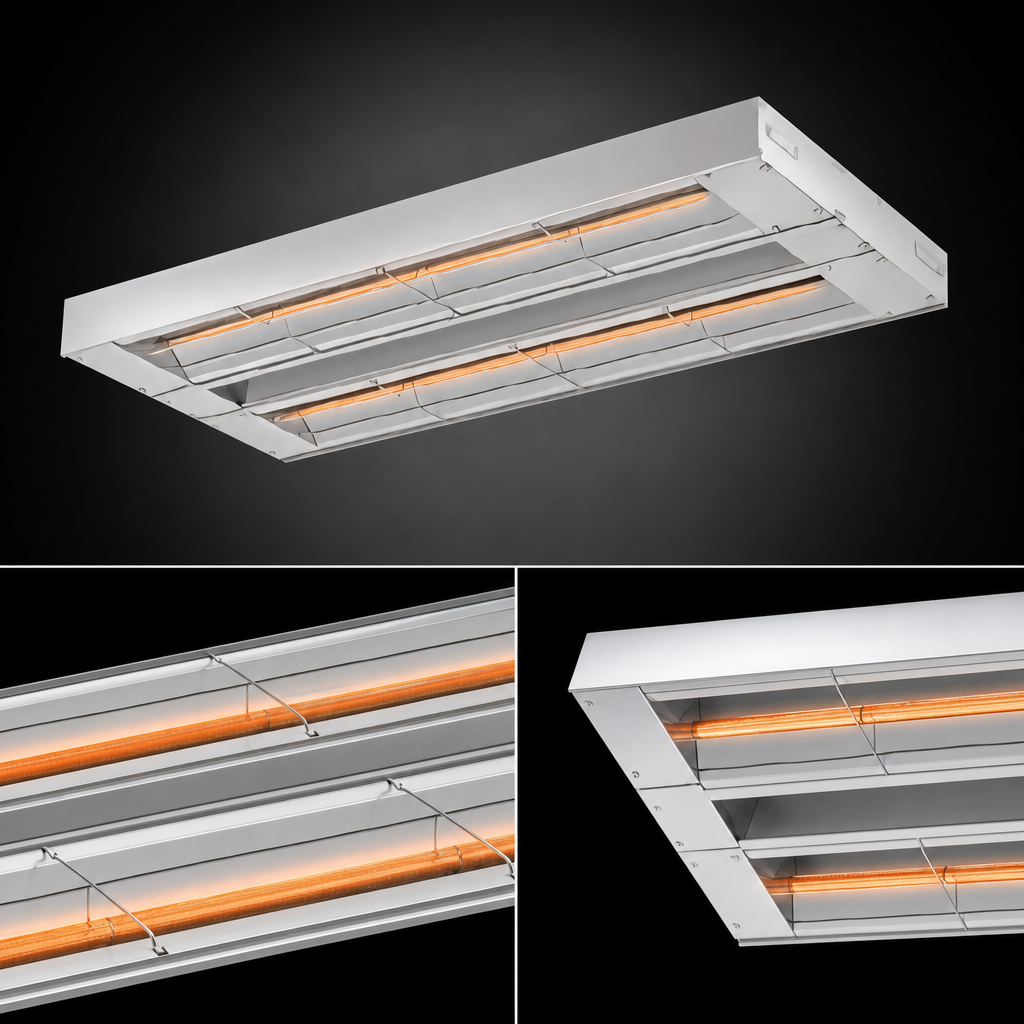

- Dual heater rods mounted side-by-side create a deeper, more even heat field—no cold spots.
- Extruded aluminum housing will not sag and is insulated to minimize heat loss.
- 3 inch (76 mm) center spacer increases holding depth for bulkier pans and platters.
- Reinforced wire guards protect elements while maintaining full heat distribution.
- Reflector design will not blacken, preserving a consistent, high-output heat pattern over time.
- Metal-sheathed elements are guaranteed for two years against burnout or breakage.
- Certified NSF Sanitation and cULus for electrical & safety compliance.
- Proudly Made in the USA.
Perfect For
- Pass-through stations and service lines
- Buffet counters and carving stations
- Take-out, grab-and-go, and staging areas
- Food trucks, cafeterias, and convenience stores
Specifications

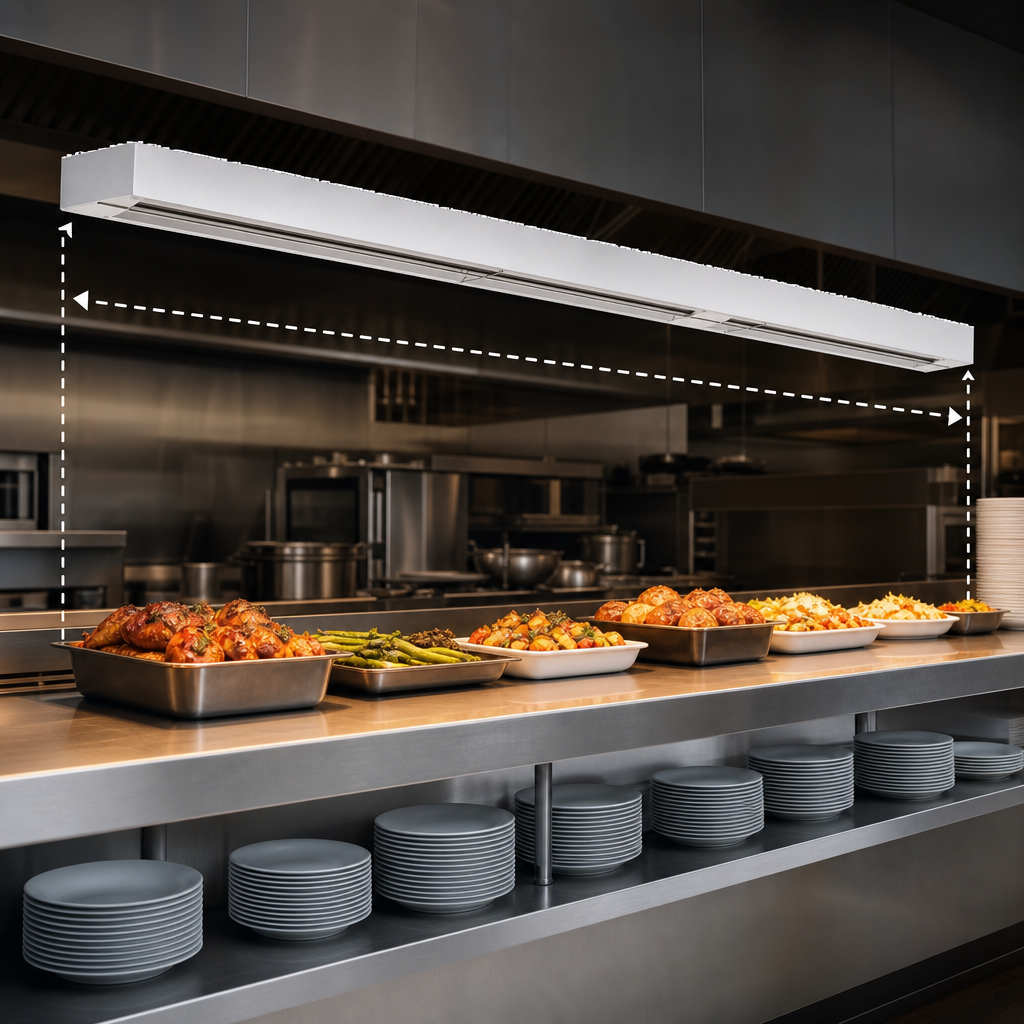

| Overall length | 96" (2438 mm) |
|---|---|
| Depth × Height | 15" × 2.5" (381 × 64 mm) with 3" spacer |
| Construction | Clear anodized extruded aluminum, heavy-duty insulation |
| Heating elements | 2 × tubular metal-sheathed rods, factory-sealed |
| Wattage (standard) | Up to 3,450 W - actual draw varies by selected voltage |
| Voltage / Phase | 208–240 V, 1-ph (see wiring chart for exact amp draw) |
| Amperage range | Approx. 14–18 A (model & voltage dependent) |
| Shipping weight | ≈ 52 lb (24 kg) |
| Mounting height | 10"–14" (254–356 mm) above the holding surface (standard-watt units) |
| Certifications | NSF Listed, cULus, CE (select models) |
| Country of origin | United States of America |
Popular Factory Options & Accessories
- Remote toggle or infinite controls (RMB control box)
- Designer color powder-coat finishes
- Extended power leads or flexible conduit kits
- Acrylic sneeze guards (one- or two-sided, 9⅜" or 14" high)
- Tubular counter stands or chain-suspension kits
Need a different length, wattage, or finish? The Glo-Ray® family ranges from 18" to 144" with multiple power options— contact us for a custom quote.
