Hatco GRA-84D3 Glo-Ray® Heat Lamps
Description
Hatco Glo-Ray® Dual Infrared Strip Heater – 84"
Model GRA-84D | 3000 W Standard Wattage | 3" SpacerKeep every plate hot, fresh and ready to serve along even the longest pass-thru window. The Hatco GRA-84D combines two tubular metal heater rods with Hatco’s pre-focused infrared technology, bathing up to 7 feet of countertop in consistent, moisture-preserving heat.
Key advantages

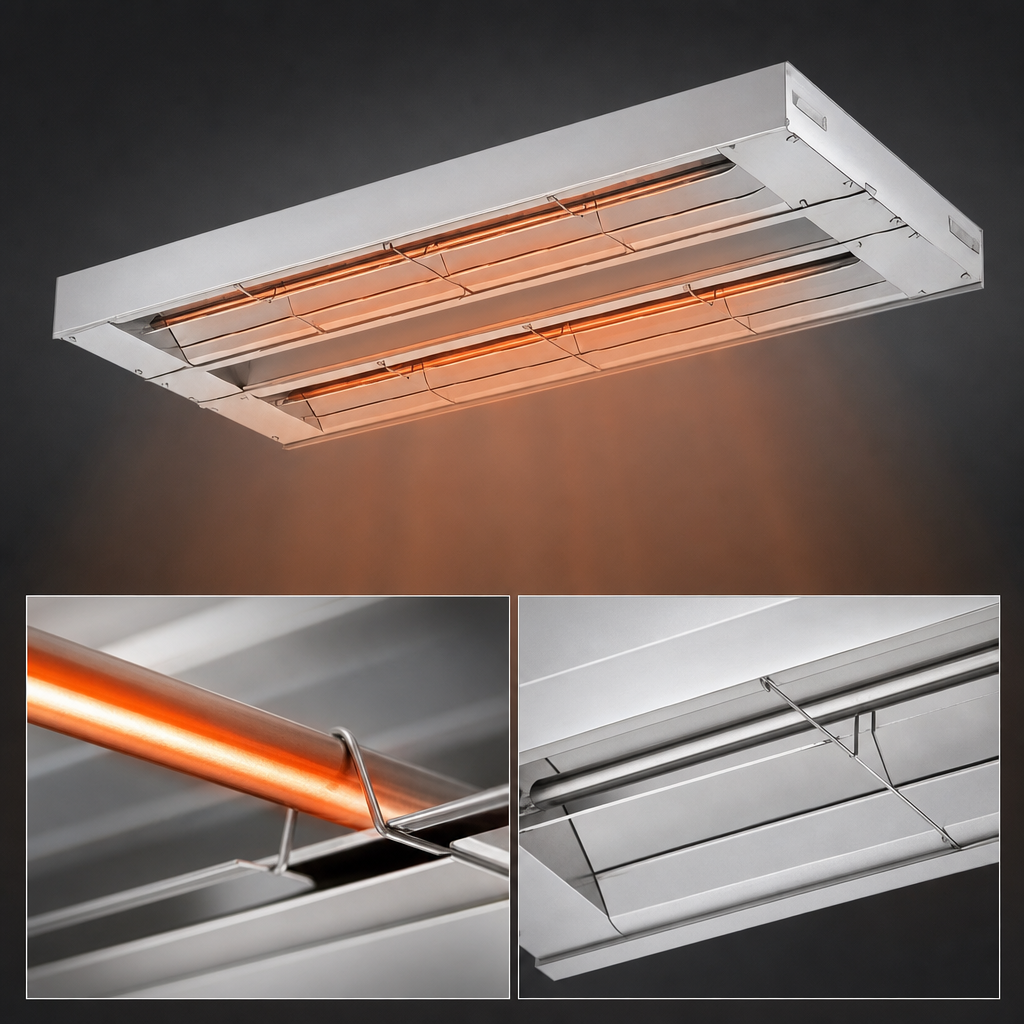

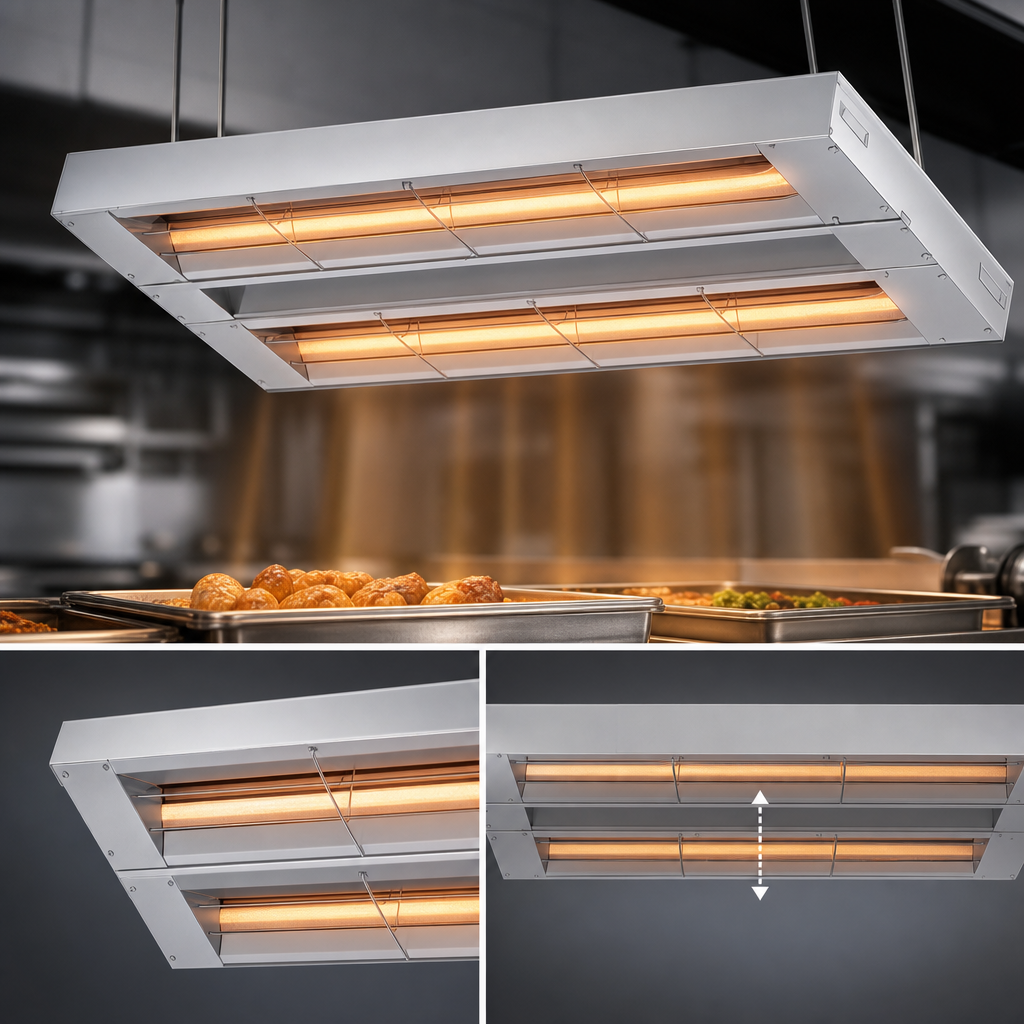

- Dual tubular elements eliminate cold spots and extend the holding zone front-to-back.
- Pre-focused infrared reflector won’t blacken, so heat output stays uniform for years.
- Rugged, clear-anodized aluminum housing resists corrosion and will not sag.
- 3" (76 mm) center spacer deepens the heat pattern—perfect for taller pans and plated entrées.
- Reinforced wire guards protect elements without blocking heat.
- Heavy-duty insulation minimizes heat loss and keeps the line cool to the touch.
- NSF & cULus listed for safe, code-compliant installation.
- Proudly Made in the USA; metal-sheathed elements carry a 2-year no-burnout guarantee.
Ideal applications
- Pass-through & expo stations
- Cafeteria and buffet lines
- Carving boards & à la carte holding
- Self-serve or quick-service counters needing up to 84" of coverage
Technical specifications
| Model | GRA-84D (dual heater, 3" spacer) |
|---|---|
| Overall dimensions | 84" W × 15" D × 2.5" H (2134 × 381 × 64 mm) |
| Heat source | 2 × tubular metal heater rods |
| Wattage | 3000 W (standard watt) |
| Voltage / current |
208 V — 14.4 A 220 V — 13.6 A 240 V — 12.5 A |
| Power connection | 36" (914 mm) flexible metal conduit with 42" (1067 mm) leads |
| Recommended mounting height | 10" – 14" (254 – 356 mm) above holding surface |
| Housing finish | Clear-anodized aluminum |
| Certifications | NSF, cULus |
| Shipping weight | ≈ 50 lb (23 kg) |
| Country of origin | USA |
Looking for sneeze guards, remote control boxes, designer colors or mounting kits? Ask our team to configure the perfect Glo-Ray® solution for your operation before you order.
